BluDot Modu-licious Bedside Table Guide de démarrage rapide

Modu-licious Bedside Table

DESIGNED IN 1999

ASSEMBLY NOTES | REV 00

NEED A HAND?

844.425.8368for assistance.

KEEP THE STUFFYOU LIKE AND S TO RE I T WELL .

Drawers and doors are your canvas with the award-winning

Modu-licious series.

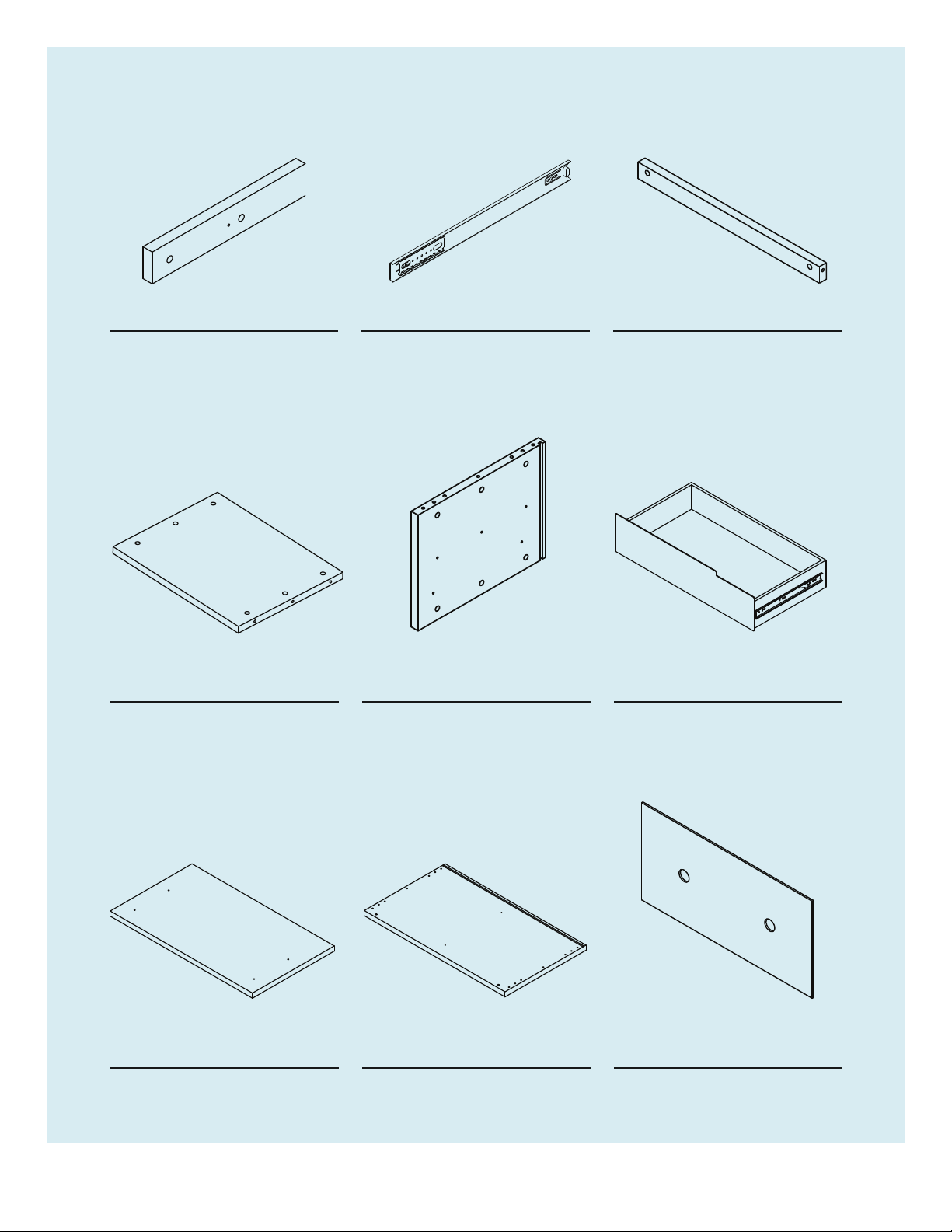

1 | 8 4 4 . 4 2 5 . 8 3 6 8 MODU-LICIO U S BED S I D E T A BLE

Foot

2QTY

Drawer Slide

2QTY

Stretcher

1QTY

Shelf Panel

1QTY

Side Panel

2QTY

Drawer

1QTY

Bottom Panel

1QTY

Top Panel

1QTY

Back Panel

1QTY

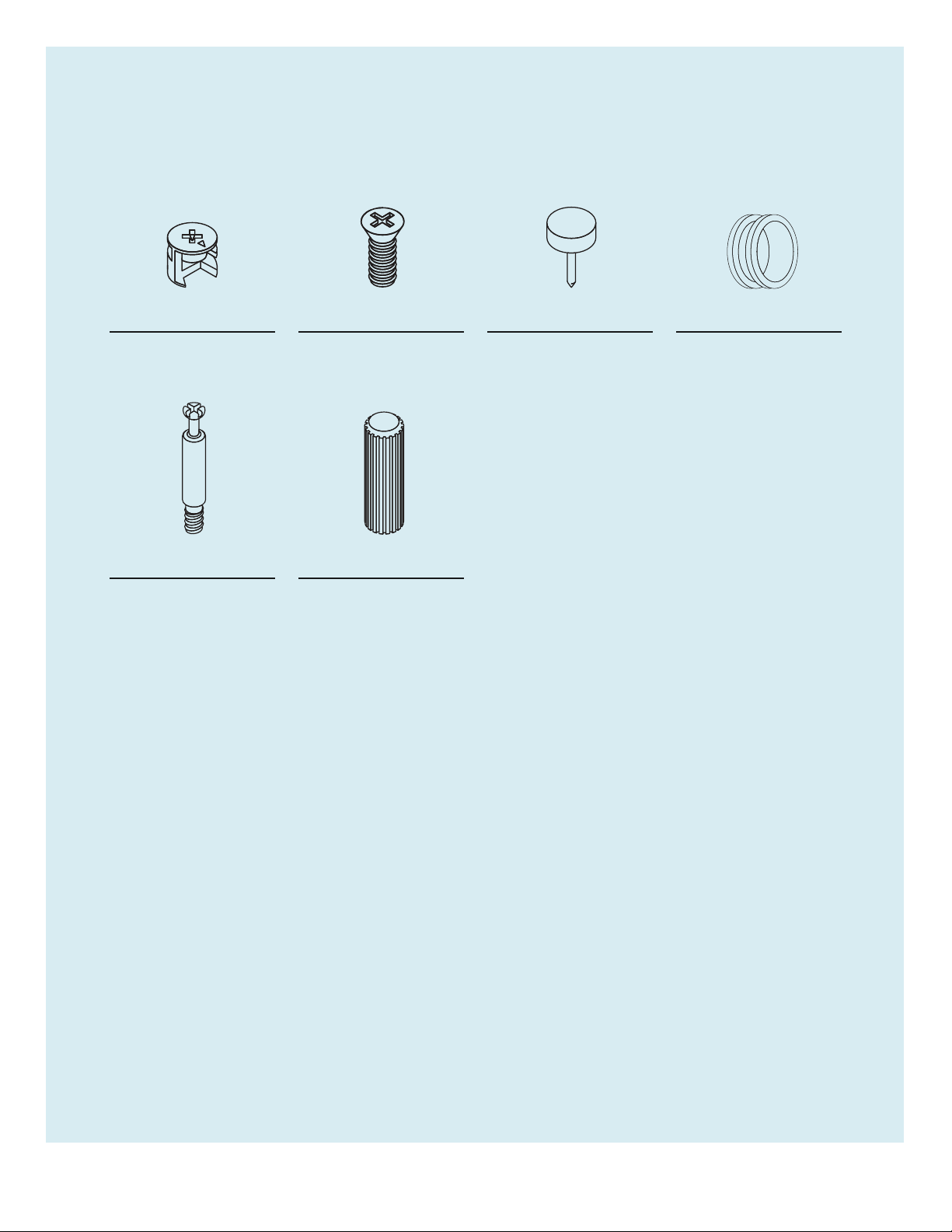

Parts & Hardware

S E RVIC E @ B L U DOT . C O M | 2A S SEM B L Y NOTES

Pt. 5001

18QTY

Pt. 1023

4QTY

Pt. 4005

QTY

Pt. 8018

1QTY4

Pt. 5002

18QTY

Pt. 5005

22QTY

Parts & Hardware

3 | 8 4 4 . 4 2 5 . 8 3 6 8 MODU-LICIO U S BED S I D E T A BLE

354

1 2

How to use the cam lock system

Note direction of cam arrow. Turn cam clockwise 1/2 turn or until tight. Note direction of cam arrow.

S E RVIC E @ B L U DOT . C O M | 4A S SEM B L Y NOTES

PT. 5001 x 2 PT. 5002x 2 PT. 4005x 4

Finished Edge

Step 01

ASSEMBLE BASE .

Using the stretcher and feet assemble the

base as shown. Refer to Page 3 on how to use

the cam lock system.

5 | 8 4 4 . 4 2 5 . 8 3 6 8 MODU-LICIO U S BED S I D E T A BLE

PT. 5001 X 4 PT. 5002 X 4

Bottom Panel

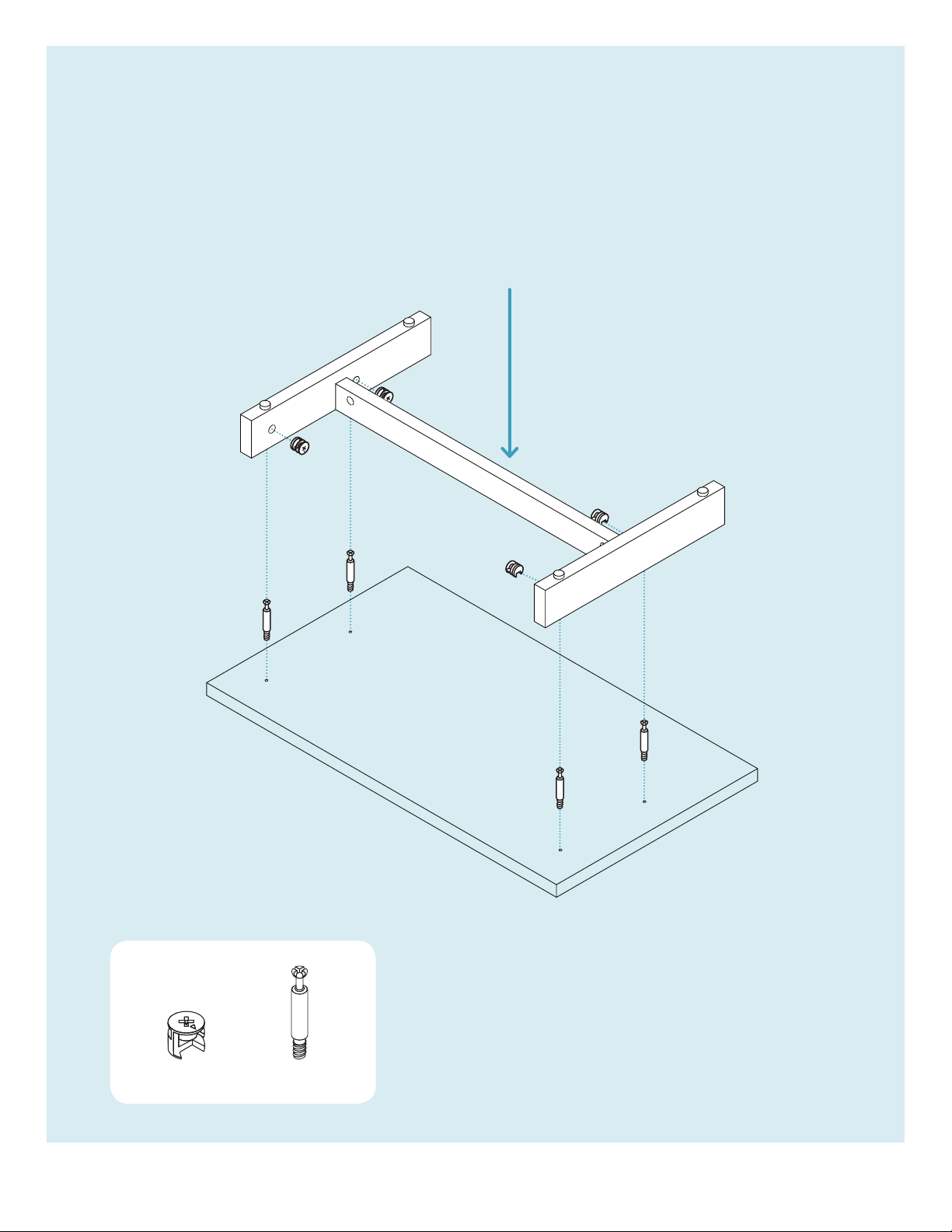

Step 02

AT TACH B O T T O M PANEL .

Attach the bottom panel to the base using

the provided hardware as shown. Refer to

page 3 on how to use the cam lock system.

S E RVIC E @ B L U DOT . C O M | 6A S SEM B L Y NOTES

PT. 1023 X 4

Right Side Panel

Step 03

AT TACH DRAWER SLIDES.

Attach drawer slides to side panel as shown

using the provided hardware. Repeat for left

side panel.

7 | 8 4 4 . 4 2 5 . 8 3 6 8 MODU-LICIO U S BED S I D E T A BLE

Side Panel

PT. 5005 X 6

Shelf Panel

Step 04

BEGIN ASSEMBLING C A S E .

Attach side panels to shelf panel as shown

using the provided hardware. Be sure to align

grooves on side panels. Refer to page 3 on

how to use the cam lock system.

S E RVIC E @ B L U DOT . C O M | 8A S SEM B L Y NOTES

PT. 5001 x 6 PT. 5002x 6 PT. 5005 x 8

Step 05

AT TACH BAS E .

Attach the base as shown using the provided

hardware. Refer to page 3 on how to use the

cam lock system.

9 | 8 4 4 . 4 2 5 . 8 3 6 8 MODU-LICIO U S BED S I D E T A BLE

PT. 8018 X 1

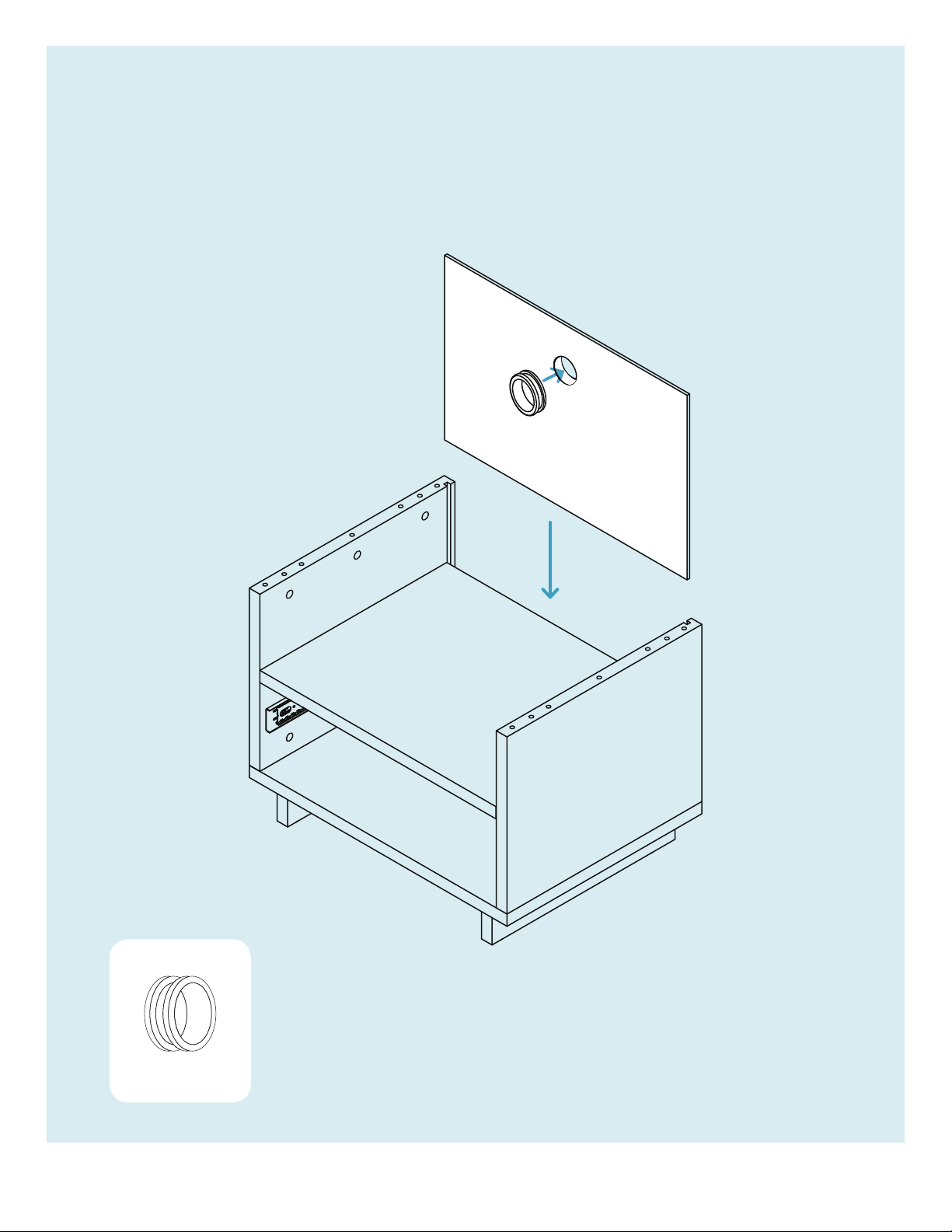

Step 06

INSERT THE BACK PANEL .

Add rubber grommet to back panel as

shown. Insert back panel into grooves

in case.
