C5 Service Manual

Chart 1.Product introduction

This manual provides the technical information to support the service activity of this products

This document contains highly confidential information, so any or all of this document should not be revealed to

any third party.

1.1 Product view

Charter 3 Explode view and Part list

3.1Explode view

Charter 4 Repair tool


Name

Hot Air

Gun

Soldering

Iron

Tin

Solder Wire

ESD Gloves

ESD Wrist

Strap


Name

Plastic

stick

Plastic

Opening

Card

Cotton Swabs

Alcohol

Sim Card

Needle


Name

Multimeter

DC Power

supply

Soldering

station

Tweezers

Screw

Drivers

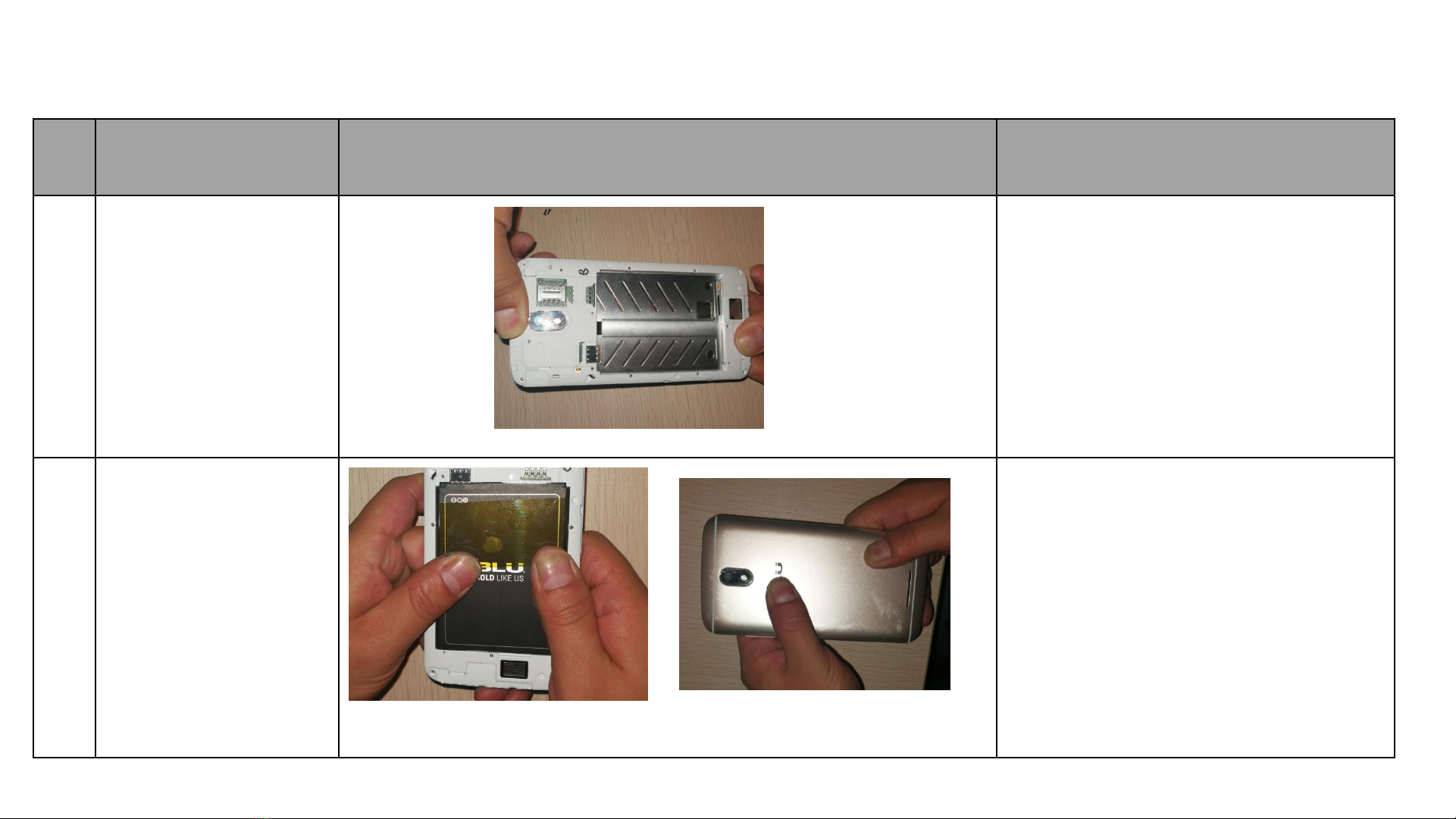

Chart 5 Disassembling procedure and Assembling procedure

NO.

Operation

name


Operation

and note

1

Remove

Battery

Cover &

Battery

2

Remove 13 Screws

on the Middle Cover

5.1 Disassembling procedure

NO.

Operation

name


Operation

and note

3

Remove

Middle

Cover

Remove RF Cable

& Side

-Key

Remove

Front

Camera & LCD

FPC

5.1 Disassembling procedure

NO.

Operation

name


Operation

and note

4

Remove TP

& VIB

Remove

PCB, and

Remove Rear

Camera

5.1 Disassembling procedure

NO.

Operation

name


10

All Components

5.1 Disassembling procedure

NO.

Operation

name


Operation

and note

1

Assemble Rear

Camera ,PCBA

and

Vibrator

2

Assemble TP,

Front

Camera,Side-

key,RF

Cable, LCD

FPC.

5.2 Assembling procedure

NO.

Operation

name


Operation

and note

3

Assemble Middle

Cover

4

Assemble

Battery &

Battery Cover

5.2 Assembling procedure
