Bloom 25 GPM Manuel d'installation

BLOOM 1.5 INSTALLATION AND STARTUP

GUIDE

REFER TO OPERATING MANUAL FOR IMPORTANT SAFETY

INFORMATION

- 2 -

PAGE INTENTIONALLY LEFT BLANK

- 3 -

CONTENTS
GENERAL INFORMATION .........................................................................................................4
LOCATION REQUIREMENTS.....................................................................................................4
PARTS AND ACCESSORIES......................................................................................................5
INSTALLATION GUIDELINES.....................................................................................................6
Installation Parts and Materials..................................................................................................6
Pipe Assembly..............................................................................................................................6
Gas Connection ..........................................................................................................................7
Flooded Suction Installation ......................................................................................................7
Suction Lift Installation.................................................................................................................8
Table 4. Recommended Suction and Discharge Pipe. .................................................................9
Frame Dimensions and Components Descriptions.......................................................................9
Suction Piping Installation..........................................................................................................10
Discharge Piping Installation......................................................................................................11
CIP Valve Installation (Optional) ................................................................................................12
Connect Power to Control Box. ..............................................................................................12
QUICK STARTUP GUIDELINES................................................................................................13
Flooded Suction Applications: Pump Priming Instruction............................................................13
Suction Lift Applications: Pump Priming Instructions...........................................................15
Suction and Discharge Operation............................................................................................17
Operating Parameter Ranges...................................................................................................17

- 4 -

PAGE INTENTIONALLY LEFT BLANK

- 4 -

GENERAL INFORMATION

Read instructions thoroughly prior to assembly and installation.

All Bloom products are factory adjusted for optimal nanobubble production. Do not

adjust factory setpoints.

LOCATION REQUIREMENTS

Carefully select the BLOOM installation location based on the requirements specified in this

section. Locate and secure the BLOOM on a concrete pad or other firm, level surface that is

at least 44 in long x 23 inches wide. Maintain a clearance of at least 30 inches on all sides to

allow access for servicing and maintenance to the front and back of the BLOOM. Select a

sheltered, (weatherproof), well-ventilated area that is protected from excess moisture (i.e.,

rain, splashing, washdown water, etc.), dust and flooding. Use the schematic shown in

Figure 1 for mounting hole placement.

Figure 1. Plan view of BLOOM frame showing mounting hole placement.

The BLOOM power, suction and discharge pipe requirements are summarized in Table 1 and

Table 4 respectively.

Failure to install BLOOM within the limits specified in Tables 1 and 4 may void the

system warranty and result in poor nanobubbles production and pump cavitation.

- 5 -

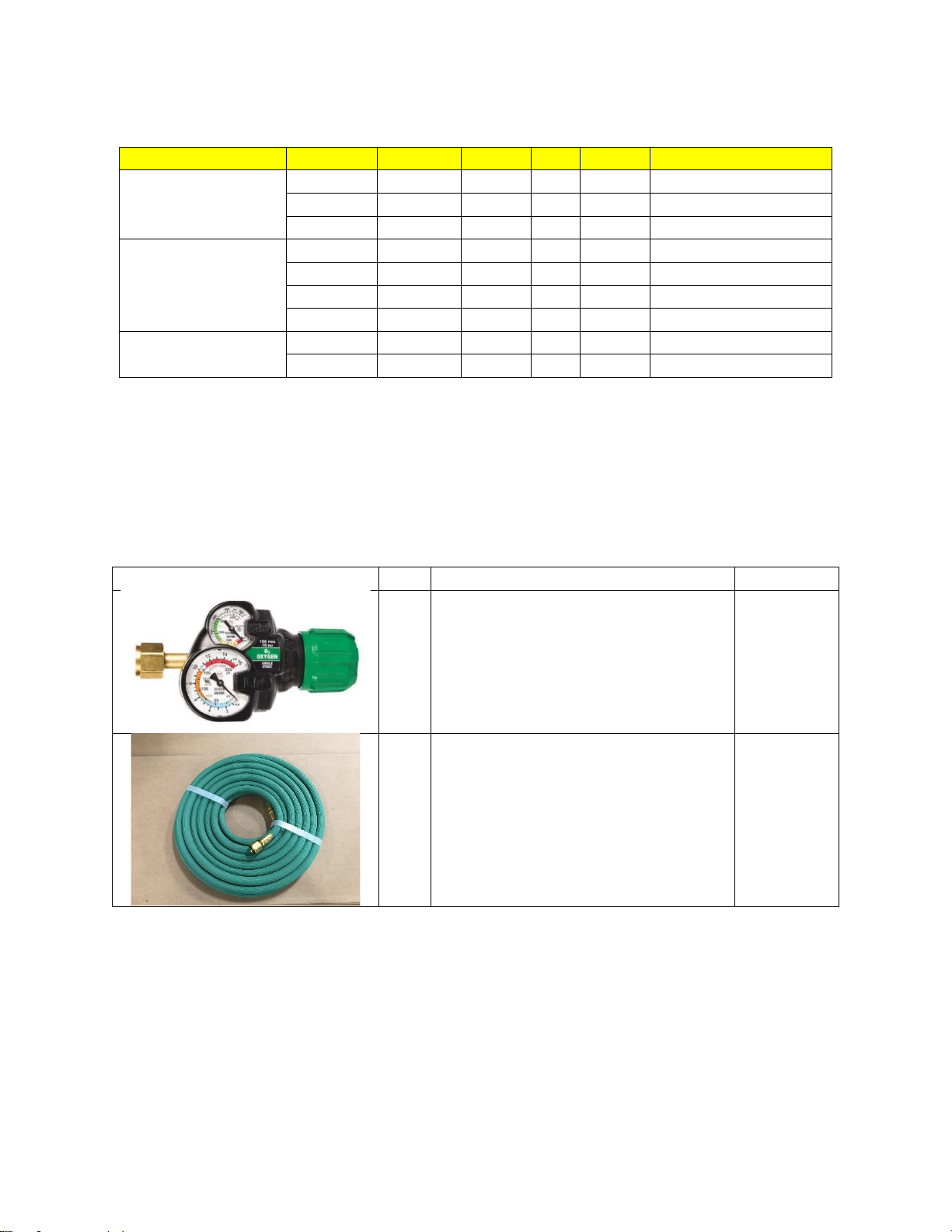

Table 1. Power Requirements

PARTS AND ACCESSORIES

The parts shown in Table 2 are offered as accessories available for purchase with all BLOOM

models.

Table 2. High Pressure Oxygen Regulator Kit Parts List (P/N:99K0-001)


QTY

Part Description

P/N

Regulator Oxygen

99J0-050

Hose, Welding Gas, Grade R, Green.

99C0-084

Unit

Version

Voltage

Phase

Amps

Pump Manufacturer

BLOOM 25 GPM

115

10.2

Pentair

230

6.0

Pentair

230

6.9

Pentair

BLOOM 50 GPM

115

12.7

Pentair

230

6.8

Pentair

230

16.9

Pentair

115

12.7

DAB

BLOOM 150 GPM

230

15.8

Pentair

230

16.9

Pentair

- 6 -

NOTE: The parts shown in Table 3 are offered as accessories to the DAB pump and are only

available for purchase with the US BLOOM 50.

Table 3. Power Converter


QTY

Part Description

P/N

Step Up- Down Transformer

99E0-235

Adapter

99E0-234

INSTALLATION GUIDELINES

The site conditions unique to each irrigation reservoir, irrigation room, or commercial

greenhouse project, etc., should be carefully considered when identifying the BLOOM

installation location. Refer to the Location Requirements section for addition details.

The following guidelines are recommendations for tanks with intake structure submergence.

depths less than15 ft (4.5m).

Upon delivery, unscrew the shipping screws to remove the BLOOM unit from the shipping crate.

Inspect the BLOOM for any damage or loose parts that may have occurred during transport.

Hand tightens any loose parts, make sure don’t over tight.

Installation Parts and Materials

The parts and materials required to install the BLOOM include:

•3/8 in wrench (US models) or 14mm wrench (EU models).

•7/8 in wrench (US models) or 34mm wrench (EU models). Wrench required to install the

regulator kit.

Pipe Assembly

- 7 -

Use only Schedule 40 or Schedule 80 polyvinyl chloride (PVC) pipe and fittings. Use only PVC

cement formulated for wet condition and fast installation to ensure connection between PVC

pipe to PVC fittings. Follow PVC cement manufacturer’s recommendations on cure time before

wet testing the system. Do not use black, ABS piping or mix ABS pipe with PVC pipe or fittings.

All PVC pipe connections must be airtight and leakproof. Failure to provide airtight suction

pipe connections may negatively impact nanobubble generator performance. Large

bubbles visible at the pump strainer basket are an indication of suction pipe leaks. Difficulty with

pump priming may also be the result of suction pipe leaks.

Gas Connection

For BLOOM models without onboard gas generation, connect a high pressure rated oxygen gas

line to the standard CGA-022 fitting connection. Adjust the oxygen gas regulator on the gas

supply to 100 –120 PSIG.

DO NOT EXCEED 140 PSIG SUPPLY GAS PRESSURE. Excessive pressure may

void warranty and compromise gas seals resulting in a sudden drop in backpressure.

Flooded Suction Installation

Refer to Figures 2 and 3 to determine whether the installation has a flooded suction pipe. A

flooded suction exists when the pipe between the tank and the BLOOM pump completely fills

with water when the pump is off and isolation valves are open (i.e., when the tank water

surface level is above the suction intake and the BLOOM pump). Refer to Figure 7 for BLOOM

enclosure dimensions and suction and discharge fitting locations.

Figure 2. Isometric View a Flooded Suction BLOOM installation.

- 8 -

Figure 3. Plan View of BLOOM Discharge Pipe Orientation in a Tank.

Suction Lift Installation.

Refer to Figures 5 to determine whether the installation has a suction lift pipe. A

suction lift exists when the source of liquid is located below the BLOOM centerline. The suction

pipe leading to the pump and the pump must primed to lift liquid from the tank to the BLOOM.

Figure 4. Isometric View Suction Lift Installation

Do not run the pump dry. Impeller may melt and seize, and the pump will stop running.

See Figure 3 for plan view of BLOOM suction lift pipe orientation in a Tank.

- 9 -

Table 4. Recommended Suction and Discharge Pipe.

UNIT

MAIN PIPE

TANK FITTING

ISO VALVE

CIP VALVE

UNIT INLET

BALL CHECK VALVE

25 BLOOM

50 BLOOM

150 BLOOM

1 - 1/2"

Piping connections for all sizes of BLOOM are provided below. Verify the type of pump provided

with your BLOOM before beginning installation. These materials are not included with a

purchase of a BLOOM, but can be found at most hardware stores.

Frame Dimensions and Components Descriptions.

Figure 5 shows the overall BLOOM frame dimensions and the location of the suction and

discharge ports of the pump in metric and imperial units.

Figure 8 shows the major components of the BLOOM.

Figure 7. BLOOM with suction and discharge connection locations

Figure 5. BLOOM with suction and discharge connection locations
