Blomberg WM98220SX Document technique

To prevent accidents and machine damage, read these

instructions before installation or use. Use the washer only as

instructed in this owner’s guide and installation instructions

included with your washer. Keep this guide for future reference

As an ENERGY STAR® partner,

BLOMBERG has determined that this

product meets the ENERGY STAR®

guidelines for energy efficiency.

Front-Loading Automatic Washer

Owner’s Guide & Installation Instructions

WM98220SX

2820530004_EN / 17-08-22.(10:03)Document Number :

2 / English Front-Loading Automatic Washer

Please read this guide first!

Dear Customer,

We hope that your product which has been manufactured in modern

facilities and passed through a strict quality control procedure will give

you the best results.

Therefore, we advise you to read through this document carefully

before using your product and keep it for future reference.

This guide will…

…help you use your washer in a fast and safe way.

• Please read the guide before installing and starting your washer.

• Particularly follow the instructions related to safety.

• Keep this guide within easy reach. You may need it in the future.

• Please read all additional documents supplied with this washer.

Please note that this owner’s guide & installation instructions may be

applicable for several other models. Differences between models will

be identified in the guide.

Owner’s Guide & Installation Instructions 3 / English

Explanation of symbols

Throughout this guide the following symbols are used:

CCAUTION

• Important information or useful hints about usage.

AWARNING

• Warning for hazardous situations with regard to life and property.

BWARNING

• Warning for electrical shock

If you have questions, call:

Call Center (toll free number)

1-800-459-9848 (USA)

or send e-mail to:

[email protected]

For the list of dealers/retailers, distributors and authorized service

agents, visit:http://www.blombergappliances.com

Please fill in the information below for future reference.

Model no.:

Serial no.:

Purchase date:

4 / English Front-Loading Automatic Washer

TABLE OF CONTENTS

1 Your Washer 6

Overview .......................................................6

Specifications ....................................................7

2 Important Safety Instructions 8

3 Installation Instructions 13

The Right Location of Installation ....................................13

Installation Clearances ............................................14

Allowable Clearances for Undercounter Installation.......................15

Allowable Clearances for Closet Installation ............................16

Stacked Installation ..............................................16

Assembly of bottom panel covers....................................16

Removing shipping bolts ..........................................17

Leveling the washer ..............................................18

Electrical Connection .............................................18

Power supply and circuit ..........................................20

Water Supply Connection..........................................21

Drainage.......................................................23

Installation Checklist ..............................................24

Transportation ..................................................24

Disposal Information..............................................25

Appliance Disposal ...............................................25

4 Operating Instructions 26

First Use.......................................................26

Laundry Tips ...................................................27

Preparing the laundry .............................................28

Loading the washer ..............................................29

Detergent Use ..................................................30

Detergent Quantity ...............................................31

Detergent Dispenser..............................................32

(II) Main Wash Detergent Compartment ...............................33

Using liquid detergents ............................................34

(III) Liquid Fabric Softener Compartment ..............................34

(I) Liquid Chlorine Bleach Compartment ...............................35

Water Consumption ..............................................35

Owner’s Guide & Installation Instructions 5 / English

TABLE OF CONTENTS

5 Selecting a Program and Operating Your Washer 36

Control panel ...................................................36

Display symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Programs .....................................................38

Program selection ...............................................43

Program and consumption table.....................................44

Temperature selection ............................................47

Spin speed selection .............................................48

Auxiliary function selection .........................................49

End Time ......................................................54

Changing the selections after programme has started ....................55

HomeWhiz Feature and Remote Control Function .......................56

Drum Illumination ................................................63

6 Preparation 64

Starting the program .............................................64

Door locking system..............................................64

Adding laundry after the programme has started .....................66

Cancelling the programme .........................................66

Re-spinning the laundry ...........................................67

End of programme ...............................................67

Energy saving mode..............................................68

7 User maintenance instructions 69

Cleaning detergent dispenser .......................................69

Cleaning the door seal ............................................70

Cleaning the drum ...............................................70

Cleaning the outer cabinet and control panel ...........................71

Cleaning the water inlet strainers ....................................71

Cleaning the drain pump filter ......................................72

Descaling the washer .............................................74

8 Troubleshooting 75

9 WARRANTY STATEMENT FOR THE BLOMBERG CLOTHES

WASHERS 87

10 HOW TO GET SERVICE 88

6 / English Front-Loading Automatic Washer

1Your Washer

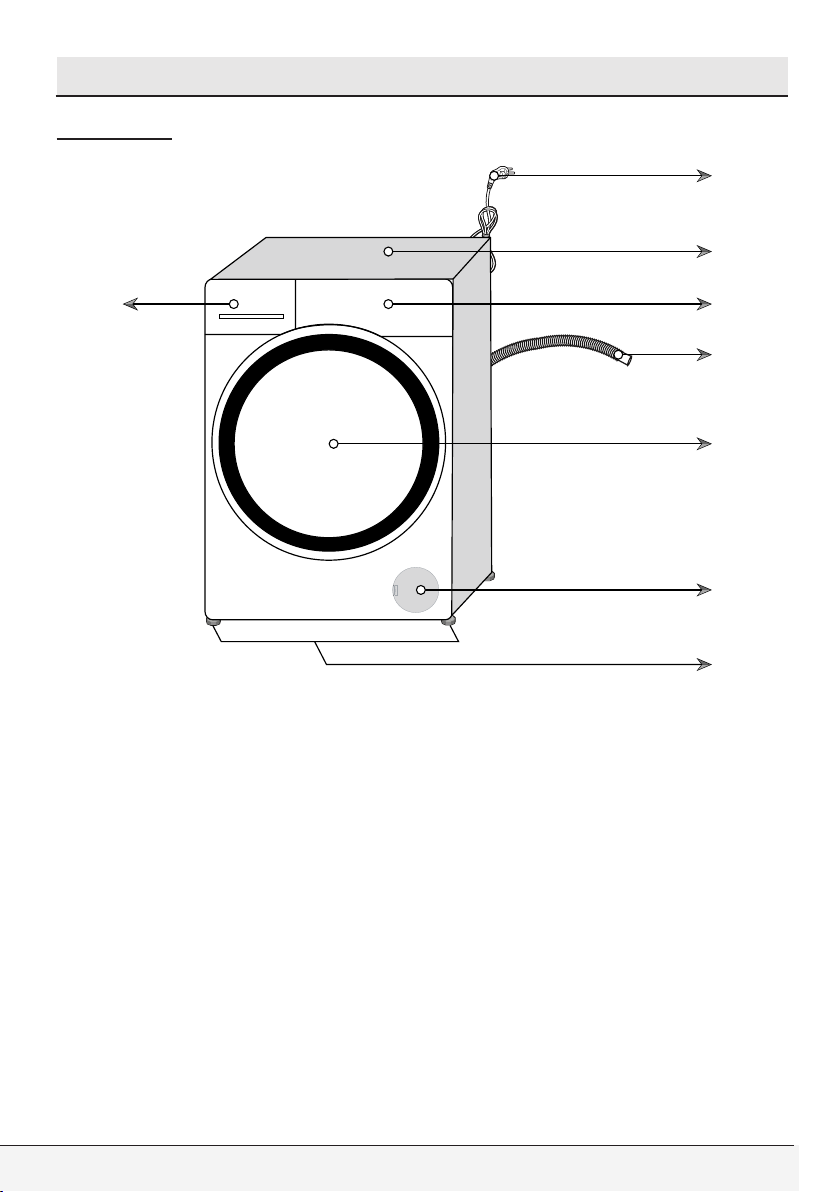

Overview

1- Power cable

2- Top panel

3- Control panel

4- Drain hose

5- Loading door

6- Filter cap

7- Adjustable feet

8- Detergent drawer

Owner’s Guide & Installation Instructions 7 / English

Your Washer

Specifications

Specifications of this appliance may change without notice to improve

the quality of the product. Figures in this guide are schematic and

may not match your product exactly.

Values stated on the washer labels or in the documentation

accompanying it are obtained in laboratory in accordance with the

relevant standards. Depending on operational and environmental

conditions of the appliance, these values may vary.

Front Loading Automatic

Washer

Models WM98220SX

Height (in) / (cm) 33.1 / 84

Width (in) / (cm) 23.6 / 60

Depth (in) / (cm) 22.8 / 58

Electricity (V/Hz.) 120 / 60

Total Current (A) 10

Total Power (W) 1100

Water pressure (psi) / (bar) (15-145) / (1-10)

Drain height (ft.) / (m.) 4.9 / 1.5

Wash capacity (cu. Ft.) 2.3

Dry Load Capacity (lbs)/(kg) 22.05 / 10

8 / English Front-Loading Automatic Washer

2Important Safety Instructions

BWARNING

• To reduce the risk of fire, electric shock or injury to persons while

using your appliance follow basic safety precautions, including

the following:

• Read all instructions before using the washer.

• Do not wash articles that have been previously cleaned in, washed

in, soaked in, or spotted with gasoline, dry-cleaning solvents,

or other flammable or explosive substances (acetone, alcohol,

kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes and wax removers) as they give off vapors that

could ignite or explode.

• Do not add gasoline, dry-cleaning solvents, or other flammable or

explosive substances to the wash water. These substances give off

vapors that could ignite or explode.

• Under certain conditions, hydrogen gas may be produced in a

hot-water system that has not been used for 2 weeks or more.

HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not

been used for such a period, before using a washing machine, turn

on all hot-water faucets and let the water flow from each for several

minutes. This will release any accumulated hydrogen gas. As the

gas is flammable, do not smoke or use an open flame this time.

• Do not allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is used

near children.

• Before the appliance is removed from service or discarded, remove

the door and the power cord / main plug to prevent accidents.

• Do not reach into the appliance if the drum is moving. Wait until the

drum has completely stopped before opening the door.

• Do not install or store this appliance where it will be exposed to the

weather and direct sunlight.

• Do not tamper with controls.

Owner’s Guide & Installation Instructions 9 / English

Important Safety Instructions

• Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-maintenance

instructions or in published user-repair instructions that you

understand and have the skills to carry out.

• This appliance must only be used for the purpose of washing,

rinsing and spinning machine-washable items using laundry

additives that are suitable for use in washers . The appliance

manufacturer cannot be held responsible for damage caused by

improper or unintended use of the appliance.

• Only detergents, softeners and additives suitable for use in

HE (High-efficiency) washers may be used. Always follow the

instructions and information given by the laundry detergent

manufacturers when using these products.

• Always follow the fabric care instructions of garment manufacturers.

• Do not touch the door glass while washing at high temperatures.

Danger of burning!

• Do not sit on top of the washer.

• Do not climb onto the washer.

• Destroy the shipping carton, plastic bag and other packing

materials after the washer is unpacked. Keep children away from

these packing materials. Danger of suffocation from plastic sheets

and cartons!

• Do not mix chlorine bleach with ammonia or acids such as vinegar

and/or rust remover when washing. This mixture can produce

hazardous fume which may cause death.

• Do not operate this appliance if it is damaged, malfunctioning,

partially disassembled, or has missing or broken parts, including a

damaged cord or plug.

10 / English Front-Loading Automatic Washer

Important Safety Instructions

• Store laundry detergents and additives in a cool, dry place out

of children’s reach due to danger of chemical poisoning and skin

irritation. Follow the manufacturers’ instructions when using laundry

products.

• Do not machine wash fiberglass materials. Small particles can stick

to fabrics washed in following cycles and may lead to skin irritation.

• Do not wash items stained with vegetable oil, cooking oil or

petroleum. These items may contain some flammable oils after

laundering and the fabric may smoke or catch fire by itself.

• Be sure to unplug the power cable before attempting maintenance

or cleaning of your appliance to minimize the risk of electric shock.

Always unplug the cable by grasping the plug, not the cord.

• Do not use wet hands when plugging/unplugging the power cable.

• Check the water inlet and drain hose connections regularly for any

leakage. Hoses should be replaced every 5 years.

• Do not leave the washer door open to prevent children hurt

themselves by hanging on the door or going inside the drum.

• Be careful when the appliance is draining hot water. Danger of

burning!

• At the end of a washing day, turn off the water faucets to prevent

any leakage that may occur due to a faulty condition of the

appliance.

• Check the appliance and inlet hose connections for water leakage

after each use. If there is leakage, turn off the appliance and water

faucets and call service.

• Do not machine wash items having large or heavy metal parts such

as buttons or buckles. These items could severely damage the

appliance.

• Always be sure to empty all foreign materials from the pockets of

your clothing as small items such as coins, pins etc. could severely

damage the appliance.

• Do not install and operate the appliance in places exposed to

temperatures below freezing. Frozen water may cause severe

damage by bursting hoses and pump.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Blomberg Rondelle

Blomberg

Blomberg WM77110NBL01 Document technique

Blomberg

Blomberg WNF 8543 AE20 Manuel utilisateur

Blomberg

Blomberg WNF 9422 ACE20 Manuel utilisateur

Blomberg

Blomberg WNF 6241 WE20 Manuel utilisateur

Blomberg

Blomberg WNF 6100 WEN Manuel utilisateur

Blomberg

Blomberg LWF28441 Manuel utilisateur

Blomberg

Blomberg LBF1623W Manuel utilisateur

Blomberg

Blomberg LWF27441W Manuel utilisateur

Blomberg

Blomberg WAF 1300 Manuel utilisateur

Blomberg

Blomberg LWF1114520W Manuel utilisateur

Blomberg

Blomberg WNF 8447 A40 Manuel utilisateur

Blomberg

Blomberg WNF 6441 AE20 Manuel utilisateur

Blomberg

Blomberg WM 67121 NBL00 Manuel utilisateur

Blomberg

Blomberg LWF411452AW Manuel utilisateur

Blomberg

Blomberg LWI842 Manuel utilisateur

Blomberg

Blomberg WNF 7361 A Manuel utilisateur

Blomberg

Blomberg WNF 6421 WEN20 Manuel utilisateur

Blomberg

Blomberg WM 77110 NBL00 Manuel utilisateur

Blomberg

Blomberg LWI284410 Manuel utilisateur

Blomberg

Blomberg WNF 9422 SC20 Manuel utilisateur

Blomberg

Blomberg WMF 8629 WZE40 Manuel utilisateur

Blomberg

Blomberg LWF184610W Manuel utilisateur

Blomberg

Blomberg WNF 8441 AE20 Manuel utilisateur

Blomberg

Blomberg WAF 7200 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
