Fully Integrated Larder Fridge

User Manual

TSM1750u

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in a 1st-class

manufacturing facility and checked under the most meticulous quality control

procedures, will provide you with years of good service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future reference.

This manual

•Will help you use your appliance quickly and safely.

•Read the manual before installing and operating your product.

•Follow the instructions, especially those for safety.

•Keep the manual in an easily accessible place as you may need it later.

•Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

1 Your Refrigerator 3

For models with water dispenser .......6

Electrical Requirements .....................6

Warning! This Appliance Must Be

Earthed .............................................7

Energy Saving Tips............................8

Compliance with WEEE Directive and

Disposing of the Waste Product: .......8

Compliance with RoHS Directive: ......9

Package information..........................9

3Installation 10

Points to be considered when re-

transporting your refrigerator ...........10

Before operating your refrigerator ....10

Electric connection ..........................10

Disposing of the packaging .............11

Disposing of your old refrigerator .....11

Placing and Installation ....................11

Important.........................................12

Installation Instructions ....................12

Changing the illumination lamp .......13

Placing the refrigerator under the

counter and adjusting the legs.........14

Reversing The Doors .......................15

Installation Instructions - Detailed Step

By Step ...........................................17

4 Before operating 23

5 Using your refrigerator 24

Temperature setting button..............24

Defrosting........................................24

6 Maintenance and cleaning 25

Protection of plastic surfaces ..........25

7 Do's and Don'ts 26

8 Guarantee Details 28

CONTENTS

1Your Refrigerator

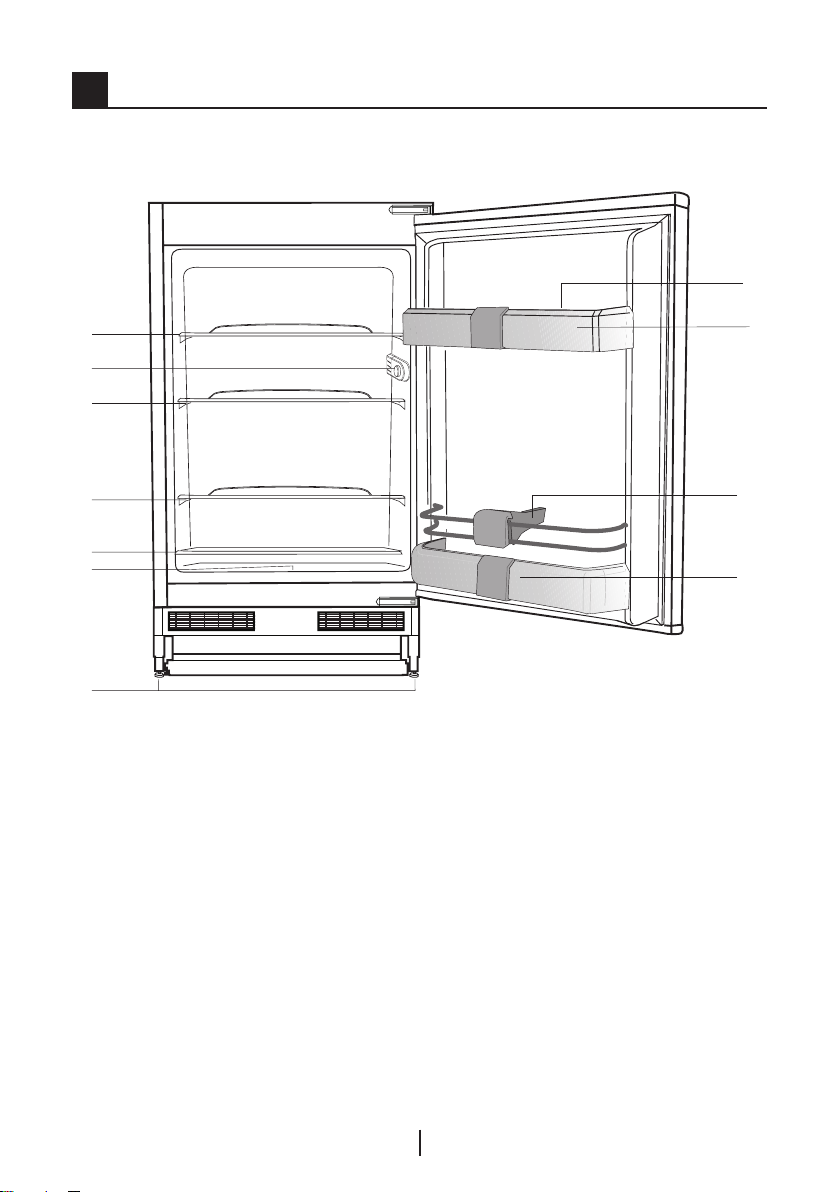

1. Body shelves

2. Bulb thermostate box

3. Sliding crisper cover

4. Food storage cabin

5. Adjustable front legs

6. Egg compartment

7. Door shelf

8. Bottle shelf

9. Bottle holder

CThe figures in this manual are schematic, and they may not be in exact

accordance with your product. If the product you purchased does not have the

related parts, then they are valid are for other models.

Congratulations on your choice of a BLOMBERG quality Appliance which has

been designed to give you service for many years.

2 Warnings

•DO NOT connect

your appliance to the

electricity supply until

all packing and transit

protectors have been

removed.

•Leave to stand for at

least 4 hours before

switching on to allow

compressor oil to settle if

transported horizontally.

•If you are discarding an

old refrigerator with a

lock or latch fitted to the

door, disable the lock/

latch, ensure that it is

left in a safe condition to

prevent the entrapment

of young children.

•This appliance must only

be used for its intended

purpose i.e the storing of

edible foodstuff.

•Do not dispose of the

appliance on a fire.

At BLOMBERG, the

care and protection of

our environment is an

ongoing commitment.

This appliance which

is among the latest

range introduced is

particularly environment

friendly. Your appliance

contains non CFC /

HFC natural substances

in the cooling system

(Called R600a) and in

the insulation (Called

cyclopentane) which are

potentially flammable

if exposed to fire.

Therefore, take care

not to damage, the

cooling circuit / pipes

of the appliance in

transportation and in

use. In case of damage

do not expose the

appliance to fire or

potential ignition source

and immediately ventilate

the room where the

appliance is situated.

•We suggest you contact

your local authority for

disposal information and

facilities available.

•To obtain the best

possible performance

and trouble free

operation from your

appliance it is very

important to carefully

read these instructions.

•On delivery, check to

make sure that the

product is not damaged

and that all the parts

and accessories are in

perfect condition.

•Ensure that the

plug remains readily

accessible. Do not use

multiple adapter or

extension cable.

•Failure to observe

these instructions may

invalidate your right to

free service during the

guarantee period.

•Keep ventilation

openings, in the

appliance enclosure or

in the built-in structure,

clear of obstruction.

•Do not use mechanical

devices or other means

to accelerate the

defrosting process,

other than those

recommended by the

manufacturer.

•Do not damage the

refrigerant circuit.

•Do not use electrical

appliances inside

the food storage

compartments of the

appliance, unless

they are of the type

recommended by the

manufacturer.

•We suggest you keep

these instructions in

a safe place for easy

reference.

•This appliance can

be used by children

aged from 8 years and

above and persons

with reduced physical,

sensory or mental

capabilities or lack

of experience and

knowledge if they have

been given supervision

or instruction concerning

use of the appliance

in a safe way and

understand the hazards

involved.

•Children should be

supervised to ensure

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

that they do not play with

the appliance.

For models with water

dispenser

•Pressure for cold water

inlet shall be maximum

90 psi (6.2 bar). If your

water pressure exceeds

80 psi (5.5 bar), use a

pressure limiting valve

in your mains system. If

you do not know how

to check your water

pressure, ask for the

help of a professional

plumber.

•If there is risk of water

hammer effect in your

installation, always

use a water hammer

prevention equipment in

your installation. Consult

Professional plumbers

is you are not sure

that there is no water

hammer effect in your

installation.

•Do not install on the

hot water inlet. Take

precautions against

of the risk of freezing

of the hoses. Water

temperature operating

interval shall be 33°F

(0.6°C) minimum and

100°F (38°C) maximum.

•Use drinking water only.

Electrical

Requirements

Before you insert the plug

into the wall socket make

sure that the voltage and

the frequency shown on

the rating plate inside the

appliance corresponds to

your electricity supply.

Rating label is on the left

hand side of inner liner.

We recommend that this

appliance be connected

to the mains supply via a

suitable switched

and fused socket. The

appliance must be

positioned so that the plug

is accessible.

Should the mains lead

of the appliance become

damaged or should it need

replacing at any time,

it must be replaced by a

special purpose made

mains lead which can

only be obtained from a

BLOMBERG Authorised

Service Agent.

Warning! This

Appliance Must Be

Earthed

If the fitted moulded plug

is not suitable for your

socket, then the plug

should be cut off and an

appropriate plug fitted.

Destroy the old plug which

is cut off as a plug with

bared cord could cause

a shock hazard if inserted

into a socket elsewhere in

the house.

The moulded plug on this

appliance incorporates

a 13 A fuse. Should the

fuse need to be replaced

an ASTABEAB approved

BS 1362 fuse of the same

rating must be used. Do

not forget to refit the fuse

cover. In the event of losing

the fuse cover the plug

must not be used until a

replacement fuse cover

has been fitted. Colour

of the replacement fuse

cover must be the same

colour as that visible on

the pin face of the plug.

Fuse covers are available

from any good electrical

store.

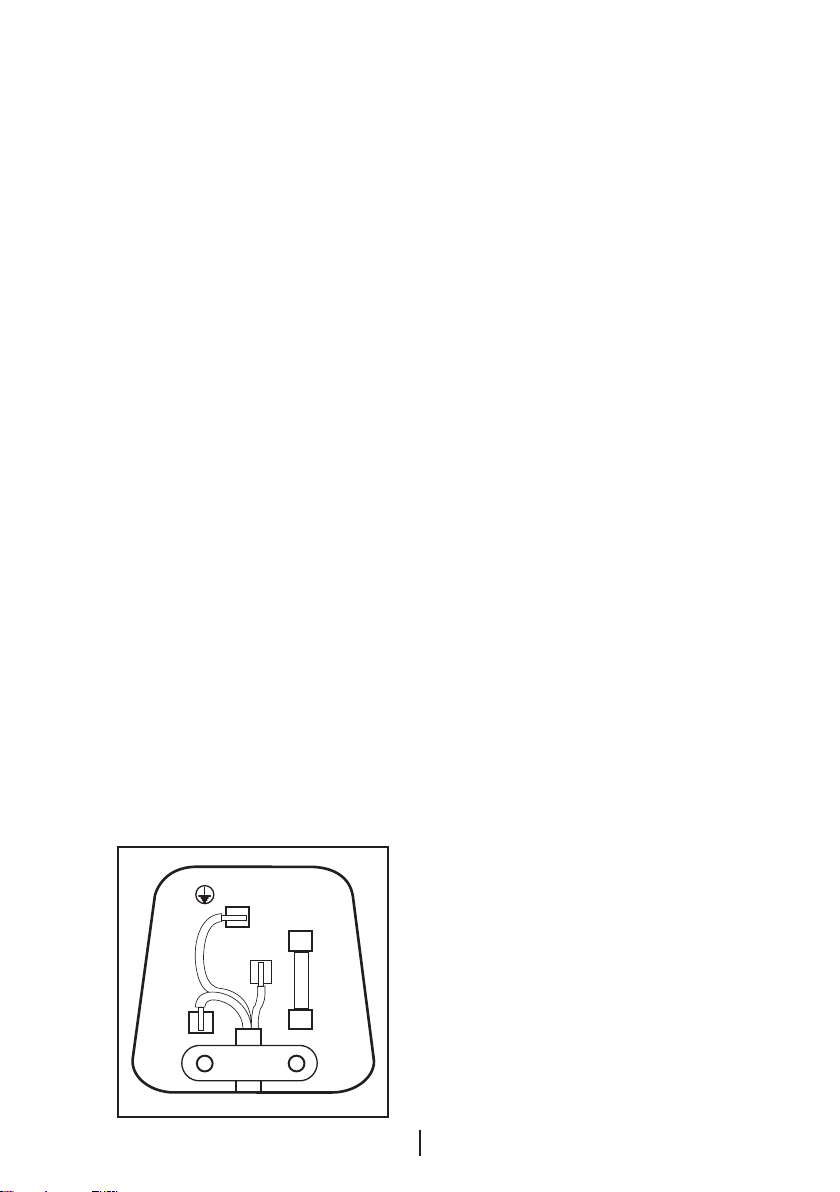

Important! Fitting A

Different Plug

As the colours of the

wires in the mains lead

of this appliance may

not correspond with

the coloured markings

identifying the terminals

in your plug proceed as

follows: (See diagram).

1. Connect the green-

yellow or green (Earth)

wire to the terminal in the

plug marked ‘E’ or with

the symbol or coloured

green and yellow or

green.

2. Connect the blue

(Neutral) wire to the

terminal in the plug

marked ‘N’ or coloured

black.

3. Connect the brown

(Live) wire to the terminal

in the plug marked ‘L’ or

coloured red.

4. With alternative plugs

a 13 A fuse must be

fitted either in the plug or

adaptor or in the main

fuse box. If in doubt

contact a qualified

electrician.

Energy Saving Tips

1. Ensure your appliance

is installed in a well

ventilated area.

2. Ensure the time

between buying chilled/

frozen food and placing

them in your appliance

is kept at minimum,

particularly in summer.

We recommend you use

a cool bag or a special

carrier bag to carry

perishable food.

3. Do not leave the door (s)

of your appliance open

longer than necessary

and ensure they are

closed properly after

each opening.

4. Defrost frozen food in

the fridge, so that frozen

food acts as an ice pack

to assist cooling in fridge.

Compliance with

WEEE Directive and

Disposing of the Waste

Product:

T h i s p r o d u c t

complies with EU

WEEE Directive

(2012/19/EU).

This product

bears a classification

symbol for waste electrical

and electronic equipment

(WEEE).This product has

been manufactured with

high quality parts and

materials which can be

reused and are suitable

for recycling. Do not

dispose of the waste

product with normal

domestic and other

wastes at the end of its

service life. Take it to the

collection center for the

recycling of electrical and

electronic equipment. Please

consult your local

authorities to learn about

these collection centers.

Compliance with RoHS

Directive:

The product you have

purchased complies

with EU RoHS Directive

(2011/65/EU). It does

not contain harmful and

prohibited materials

specified in the Directive.

Package information

Packagingmaterialsofthe

product are manufactured

from recyclable materials

in accordance with our

National Environment

Regulations. Do not

dispose of the packaging

materials together with the

domestic or other wastes.

Takethemtothepackaging

material collection points

designated by the local

authorities.

Autres manuels pour TSM1750u

Table des matières

Autres manuels Blomberg Réfrigérateur

Blomberg

Blomberg TSM 1541 i A+ Manuel utilisateur

Blomberg

Blomberg KND 9950 XDA+ Manuel utilisateur

Blomberg

Blomberg BRFB 1450 Manuel utilisateur

Blomberg

Blomberg KGM 9680 Manuel utilisateur

Blomberg

Blomberg IWD 1004 ET Manuel utilisateur

Blomberg

Blomberg KND 9950 XA+ Manuel utilisateur

Blomberg

Blomberg brfd2230ss Manuel utilisateur

Blomberg

Blomberg BRFB 1040 Manuel utilisateur

Blomberg

Blomberg BRFB1044SS Manuel utilisateur

Blomberg

Blomberg DND 1977 XT Manuel utilisateur

Blomberg

Blomberg BRFD2650SS Manuel utilisateur

Blomberg

Blomberg BRFB1044WH Manuel utilisateur

Blomberg

Blomberg DSM 1510 Manuel de la liste des pièces

Blomberg

Blomberg KSM 9520 A+ Manuel utilisateur

Blomberg

Blomberg FNT4550 Manuel utilisateur

Blomberg

Blomberg FNM1541I Manuel utilisateur

Blomberg

Blomberg DNE 1870 Manuel utilisateur

Blomberg

Blomberg KND 9651 A Plus Manuel utilisateur

Blomberg

Blomberg KSM 1510 Manuel utilisateur

Blomberg

Blomberg SSM 1550 X Manuel utilisateur

Blomberg

Blomberg KFD 9952 PXD Manuel utilisateur

Blomberg

Blomberg DNM 1860 Manuel utilisateur

Blomberg

Blomberg MDND 1880 Manuel utilisateur

Blomberg

Blomberg DSM 9630 A++ Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
