Blomberg DHP24404W Manuel utilisateur

Front-Loading Dryer

Owner’s Guide:

Installation and Operation Instructions

DHP24404W

2960313289_EN/180722.1028

Dear Customer,

Please read this guide prior to use this product!

Thank you for choosing Blomberg product. We would like you to achieve the optimal efficiency

from this high quality product which has been manufactured with state of the art technology.

Please make sure you read and understand this guide and supplementary documentation fully

before use.

Observe all warnings and information herein. Therefore you can protect both yourself and your

product against potential damages.

Keep the manual. Include this guide with the unit if you hand it over to someone else.

Symbols and Remarks

The following symbols are used in the user guide:

Danger that may cause death or injury

Read the manual

Important information or useful usage tips

Warning against hot surfaces

BWarning against electric shock

Warning against UV Radiation hazard

Warning against scalding

The product's packaging is made of recyclable materials, in accordance with the

National Environment Legislation.

Warning against fire

NOTICE Danger that may cause material damage on the product or surrounding area

1 Your Dryer 4

1.1 Overview ..............................................4

1.2 Technical Specifications........................5

2 Important Safety Instructions 6

3Installation Instructions 11

3.1 Electrical connection...........................11

3.2 Grounding Instructions .......................12

3.3 Appropriate installation location ..........13

3.4 Minimum Installation Clearances.........13

3.5 Use on top of a washer ......................13

3.6 Adjusting the feet................................13

3.7 Destroying packaging material............14

3.8 Connecting to the drain ......................14

4 Preparation 15

4.1 Laundry suitable for drying in drying

machine ...................................................15

4.2 Laundry not suitable for drying in drying

machine ...................................................15

4.3 Preparing the laundry to be dried........15

4.4 What to do for energy saving..............15

4.5 Correct load capacity .........................16

5 Running the product 17

5.1 Control Panel......................................17

5.2 Symbols .............................................17

5.3. Preparation of drying machine ...........18

5.4 Program selection and consumption

chart.........................................................19

5.5 Auxiliary functions...............................22

5.6 Warning indicators..............................23

5.7 Starting the program...........................23

5.8 Child Lock ..........................................23

5.9 Changing the program after it is started23

5.10 Cancelling the program.....................24

5.11 End of program ................................24

5.12 Odour feature ...................................24

5.13 General Description of Steam

Programs ................................................24

5.14 HomeWhiz Function .........................25

Getting the Homewhiz Application ............26

6 Maintenance and cleaning 27

6.1 Loading Door Inner Surface................27

6.2 Cleaning the sensor ...........................29

6.3 Cleaning the condenser......................29

7 Troubleshooting 32

8 Warranty Statement 34

4 / EN Dryer / User Manual

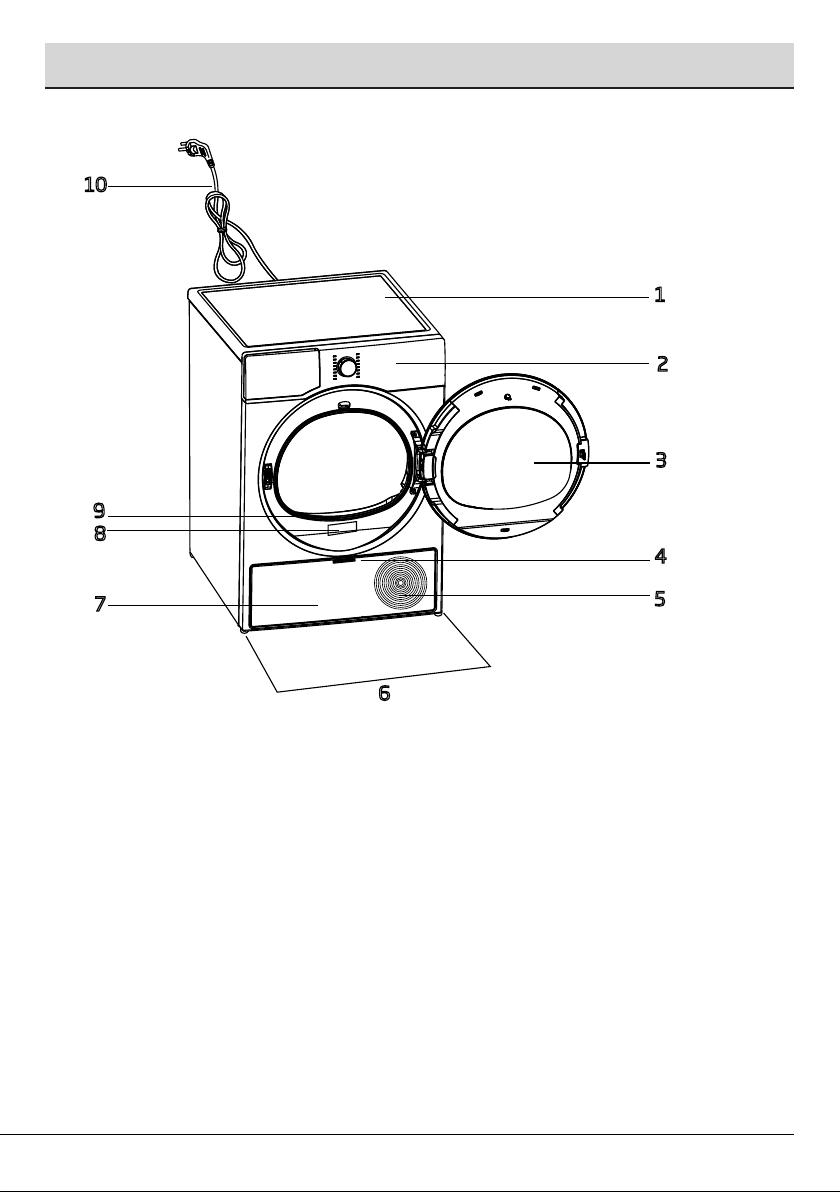

1. Top panel

2. Control panel

3. Loading door

4. Kick plate opening tab

5. Ventilation grids

6. Adjustable feet

7. Kick plate

8. Type label

9. Lint filter

10.Power cable

1.1 Overview

1 Your Dryer

5 / EN

Dryer / User Manual

1.2 Technical Specifications

Model Heat Pump Dryer with

electronic sensor control

Height (in) 33 5/16

Width (in) 23 3/4

Depth (in) 27 1/2

Height adjustment of feet (in) 1/5

Net weight (lbs) 102

Voltage / Frequency 208-240V ~ 60 Hz

Connected load 800 W - 4 A

Dry Load Capacity 8kg / 18 lb

Capacity 4,5 cu-ft

6 / EN Dryer / User Manual

2 Important Safety Instructions

WARNING: To reduce the risk of fire or electric shock

resulting in serious injury or death when using this

appliance, follow the basic precautions including the

following:

• Read all instructions before using the appliance. Failure

to follow these instructions will increase the risk of fire or

electric shock and will void the warranty.

AWARNING:This product has been designed for home

use only.

• The appliance must be operated at temperatures between

+5°C and +35°C. (41°F and +95°F)

• The appliance must not be installed behind a lockable door,

a sliding door or a door with the hinges on the opposite

side to that of the tumble dryer.

• Do not install or store this appliance where it will be

exposed to weather.

• Do not tamper with the controls.

• Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended

in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills

to carry out.

• Never wash the appliance with water.

• Never touch the plug with wet hands.

• Never pull from the cable to unplug the dryer.

• Do not operate the appliance if the power cord or plug is

damaged.

• For malfunctions that cannot be solved by information in

the operating manual: Turn off and unplug the appliance

and call an authorized service provider.

7 / EN

Dryer / User Manual

• This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce the risk

of electric shock by providing a path of least resistance

for electric current. This appliance is equipped with a cord

having an equipment-grounding conductor and a grounded

plug. The plug must be plugged into an appropriate outlet

that is properly installed and grounded in accordance with

all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or service

representative or personnel if you are in doubt as to

whether the appliance is properly grounded.

• Power cord plug must be within easy reach after

installation.

• To reduce the risk of fire or electric shock, do not use

extension cords, multi-plugs or an adapter to connect the

dryer to electrical mains.

• Do not modify the plug provided with the appliance: if it

will not fit the outlet, have a proper outlet installed by a

qualified electrician.

• If the power supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified

persons in order to avoid an electrical hazard.

• The appliance must not be operated unless it is repaired!

• Ventilation openings in the base must not be obstructed by

carpets, etc.

• Exhaust air must not be discharged into a flue used for

exhausting fumes from appliances burning gas or other

fuels.

• Adequate ventilation must be provided to avoid the back

flow of gases into the room from appliances burning other

fuels, including open fires.

8 / EN Dryer / User Manual

• Do not dry articles that have been previously cleaned in,

washed in, soaked in or spotted with gasoline, dry-cleaning

solvents or other flammable or explosive substances as

they give off vapors that could ignite or explode.

• Do not use the tumble dryer if industrial chemicals have

been used for cleaning what you want to dry.

• Do not dry unwashed items in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber-backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in

the tumble dryer.

• Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric

softener or product.

• Blomberg does not recommend the use of fabric softening

dryer sheets in our Electric Dryers. The contents of these

sheets can clog the units filters, causing reduced air flow

and possible damage to the heating system. You may use

fabric softeners in the washing machine but not the dryer

• The appliance may only be used for the drying of textiles

that are marked accordingly.

• Undergarments that contain metal reinforcements should

not be placed in a tumble dryer. Damage to the tumble

dryer can result if any of the metal reinforcement come

loose during drying.

• Before loading check all garments for lighters, coins, metal

pieces, needles, etc.

• The use of fabric softener sheets is not recommended.

• Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

To reduce the risk of fire due to contaminated loads, the

final part of a tumble dryer cycle occurs without heat (cool

down period). Avoid stopping a tumble dryer before the

end of the drying cycle unless all items are quickly removed

and spread out so that the heat is dissipated.

9 / EN

Dryer / User Manual

AWARNING: Never stop the tumble dryer before the

end of the drying cycle unless all items are quickly

removed and spread out to dissipate heat.

• Do not reach into the appliance if the drum is moving.

• Do not allow children to play on or in the appliance.Close

supervision of children is necessary when the appliance is

used near children.

• Keep pets away from the appliance during the drying cycle.

• Before the appliance is removed from service or discarded,

remove the door to the drying compartment.

• Close the loading door when you leave the area where the

dryer is located.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they are supervised or have been given instructions

concerning the use of the appliance by a person

responsible for their safety.

• Clean lint filter before or after each load.

• Keep area around the exhaust vent and adjacent

surrounding areas free from the accumulation of lint, dust,

and dirt.

• The interior of the appliance and exhaust ductwork should

be cleaned periodically by qualified service personnel.

• Never use the dryer without the lint filter.

• When your dryer is not in use or after the laundry is taken

out following the completion of drying process, turn off by

using the On/Off button. In cases when the On/Off button

is in the On position while the dryer is plugged in, keep the

door of the dryer closed.

• For power saving in models with lamps, when your dryer is

not in use, keep the door closed if the On/Off button is in

the On position and the dryer is energized.

10 / EN Dryer / User Manual

• Do not use replacement parts that have not been

recommended by the manufacturer (e.g. parts made at

home using a 3D printer).

Also R290 is a flammable refrigerant. Therefore ensure

that the system and pipes are not damaged during

operation and transportation.

Keep the product from heat sources, otherwise it may

catch fire if damaged.

Do not dispose of the product by throwing it into fire.

AWARNING: In the appliance enclosure, keep ventilation

epenings clear of obstruction.

WARNING:Do not damage the refrigerant circuit.

WARNING: This product can expose you to chemicals

including Nickel (Metallic) which is known to the State

of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note : Nickel is a component in all stainless steel and

some other metal components.

SAVE THESE INSTRUCTIONS

Table des matières

Autres manuels Blomberg Séchoir

Blomberg

Blomberg TKF 8451 Manuel utilisateur

Blomberg

Blomberg DHP 24400W Mode d’emploi

Blomberg

Blomberg TAF 7239 Manuel utilisateur

Blomberg

Blomberg TKF 1330 Manuel utilisateur

Blomberg

Blomberg LTA09020W Manuel utilisateur

Blomberg

Blomberg LTS2932W Manuel utilisateur

Blomberg

Blomberg TKF 1230 Manuel utilisateur

Blomberg

Blomberg TAF 7239 Manuel utilisateur

Blomberg

Blomberg TKF 7449 Z Manuel utilisateur

Blomberg

Blomberg LTH 38420 W Manuel utilisateur

Blomberg

Blomberg TKF 1350 Manuel utilisateur

Blomberg

Blomberg TROCKNER TAF 7230 A Manuel utilisateur

Blomberg

Blomberg LTK310030W Manuel utilisateur

Blomberg

Blomberg TKF 7350 Manuel utilisateur

Blomberg

Blomberg LTIP07310 Manuel utilisateur

Blomberg

Blomberg TKF 8451 SGC 30 Manuel utilisateur

Blomberg

Blomberg TKF 8431 A Manuel utilisateur

Blomberg

Blomberg TKF 8451 ZGC 50 Manuel utilisateur

Blomberg

Blomberg DV 16540 NBL00 Mode d’emploi

Blomberg

Blomberg TKF 7431 A Manuel utilisateur

Blomberg

Blomberg DV 17540 NBL00 Mode d’emploi

Blomberg

Blomberg LTP18320W Manuel utilisateur

Blomberg

Blomberg DV 16540 NBL00 Mode d’emploi

Blomberg

Blomberg TROCKNER TKF 7330 A Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
