Blomberg GSN 9580 A Manuel utilisateur

Dishwasher

Instruction Manual

Dear customer,

Please read carefully right through this instruction booklet before installing or

operating your dishwasher. The following instructions should prevent the risk of

personal injury and/or damage to the appliance.

Please keep these documents in a safe place for later reference.

This operating manual has been written for several different machines, and some

of the features mentioned here may not apply to your particular model.

TABLE OF CONTENTS

1 Getting To Know Your

Machine 2

View of the Machine 2

Technical Speciﬁcations 3

2 Safety Instructions 3

Before Installation 3

Before First Use 3

Child Safety 3

For daily operation 4

Problems 4

What should not be washed

in your dishwasher 4

3 Directions for Assembly 5

Safety notes for installation 5

Installing Your Dishwasher 5

Water connection 6

Connect water inlet hose 6

Water drainage 7

Electrical connection 7

Disposal 7

4 Using Your Dishwasher 8

Filling the dishwasher salt 8

When operating for the ﬁrst time 9

Filling the Rinse Aid Dispenser 10

Filling the Detergent Dispenser 10

Detergent 11

Multipurpose Detergents 12

Loading the dishwasher 12

Suggestions for loading the

dishwasher 13

Loading suggestions 18

Removable 3rd basket 21

5 Program Selection and

Operating Your Machine 23

Buttons 24

Auxiliary Functions 24

Starting Your Machine 24

Program Selection 25

Adding Auxiliary Functions

to the Program 25

Changing a Program 27

Conﬁguration of menus 27

Scheduling the washing time 29

Canceling a Program 30

Program Follow-up 30

Child (Key) Lock 31

Warning Messages 31

Salt Indicator 32

Rinse Agent Indicator 32

6 How to clean your

dishwasher 34

Cleaning the ﬁlters 34

Cleaning the spray arms 35

7 Troubleshooting: 36

What to do if the dishwasher will

not run 36

The cleaning results are

unsatisfactory 36

Service 41

2GB

1Getting To Know Your Machine

View of the Machine

1. Upper dish basket with shelf

2. Guide rail for the upper dish

basket

3. Salt container

4. Cutlery basket

5. Detergent dispenser

6. Door

7. Control panel

8. Filters

9. Lower sprayer arm

10. Lower basket

11. Upper sprayer arm

12. Housing (depends on the model)

13. Turbo fan heat drying system

(depends on the model)

14. Removable 3rd basket

15. Additional upper spray arm

3GB

Technical Speciﬁcations

Permitted water pressure: 0,3 –10

bar (= 3 – 100 N/cm² = 0,01-1,0Mpa)

Electrical connection: 220-240 Volts,

10 Amps (see type plate)

Output: 1900-2200 W

Heat output: 1800 W

This device corresponds to the

following EU directives:

2006/95/EC: Low Voltage Directive

2004/108/EC: EMV Directive

DIN EN 50242: Electrical dishwasher

for home use Testing procedures for

practical service conditions

Because we continually strive to

improve our products, we may change

our speciﬁcations and designs without

prior notice.

Note for Testing Institutes

The necessary information for

performance testing will be provided

upon request. The request can be

done by e-mail through:

Please do not forget to write the model

code and stock code information of

the appliance besides your contact

information in the e-mail. The model

code and stock code information can

be found on the rating label, which is

placed on the side of the door.

2Safety Instructions

Before Installation

Check the appliance for transit

damage. Never install or use damaged

machines. If in doubt, contact your

supplier.

Before First Use

 See Notes for Installation on page

 Have the grounding system

installed by a qualiﬁed electrician.

The manufacturer cannot be held

liable for any damage caused by

operating the appliance without

proper grounding.

 Before operating the system,

please check that the information

on the type plate corresponds to

the information on your power

supply.

 The dishwasher must be

disconnected from the mains

during installation.

 The appliance must not be

connected to the mains using

an extension cable. Extension

cables do not provide the

necessary safety (e.g. danger of

overheating).

 Always use the original plug

delivered with the appliance.

 The plug must be freely accessible

after the appliance has been

installed.

Child Safety

 Do not allow children to play with

the appliance.

 Dishwasher detergents are caustic

and may cause injury to the eyes,

[email protected]

4GB

mouth and throat. Please note the

safety instructions provided by the

manufacturers of the detergents.

 Never leave children unsupervised

while the appliance is open, as

the appliance may still contain

detergent leftovers.

 The water in the dishwasher is not

drinking water. Danger of caustic

injuries.

 Always place long and sharp/

pointed objects (e.g. serving forks,

bread knives) into the cutlery

basket with the pointed end down

or ﬂat on the upper basket to avoid

possible injuries.

For daily operation

 Use your appliance only for the

following domestic uses: Washing

household dishes.

 Do not use chemical solvents in

the appliance; there is a danger of

explosion.

 Do not sit or stand on the opened

door or place other objects on it.

The appliance may tip over.

 Do not open the door while the

appliance is running, as hot water

or steam may escape.

 Do not leave the door open – an

open door can be a hazard.

Problems

 Repairs and modiﬁcations to the

appliance may only be carried

out by qualiﬁed customer service

personnel.

 In the event of a problem, or

before performing a repair,

disconnect the appliance from the

mains supply:

- disconnect the appliance by

pulling out the mains plug

- shut off the power.

 Do not pull on the cable – pull on

the plug. Turn off the water supply

tap.

What should not be washed in

your dishwasher

 Rust sensitive steel parts

 Cutlery with wooden or horn

handles

 Cutlery with mother of pearl or

porcelain handles

 Non heat resistant plastic parts

 No glued dish or cutlery parts

 No items made out of copper, tin

or aluminium

 Sensitive decorative glasses and

porcelain parts

 Lead crystal glasses

 Art and crafted articles

 Aluminium and silver tend to

discolour

 Glass and crystal articles may lose

their shine over time

 Sponges and dishcloths

Note

Do not wash items soiled with cigarette

ash, candle wax, varnish, paints or

chemicals.

Recommendation:

When buying new dishes, note whether

they are suitable for the dishwasher.

(marked as dishwasher proof)

5GB

3Directions for Assembly

Safety notes for installation

Prior to installing and using your

appliance, please check it for possible

transit damage.

If the appliance is damaged, please

contact your supplier.

Never install or use a damaged

appliance.

The following directions must be

followed to connect the dishwasher

properly.

 Before operating your dishwasher,

please ensure that the information

on the type plate corresponds to

the current and voltage of your

power supply.

 The appliance may only be

connected using a properly

grounded socket. Ensure that the

appliance is grounded according

to regulations.

 The grounded socket must be

easily accessible and close to the

appliance.

 Do not use extension cables or

multiple adapters, as this can lead

to overheating, which can be a ﬁre

hazard.

 Hardwiring may only be carried out

by a qualiﬁed electrician.

 Check the power cable, the

water inlet hose and the drainage

hose. Damaged parts may only

be replaced by customer service

personnel or by a qualiﬁed

electrical service expert.

Installing Your Dishwasher

 Choose a suitable location for your

dishwasher. Take care to ensure

that the appliance is stable on a

level surface.

 Unevenness in the ﬂoor can be

equalised by adjusting the screw

feet. When the appliance is

standing correctly, the door can be

closed without difﬁculty.

 Water inlet and drainage hoses

must be positioned so that they

can move freely without bending

or squeezing.

 The appliance may not be installed

in a room where the temperature

is below 0° Celsius.

6GB

2550

tap with a ¾ inch external thread. If

required, use a ﬁlter insert to ﬁlter

deposits from the pipes.

Check that the connection does not

leak.

Important

For safety reasons, turn off the tap

after every rinse process.

Water connection

 There are two different types of

water inlet hoses:

- Cold water inlet hose (up to

25°C)

- Hot water inlet hose (up to

60°C)please check which one is

applicable to your model.

If you are willing to connect

your machine to natural

energy resources or to the central

hot water supply, ﬁrst check out

whether your water inlet hose

type is suitable by checking the

temperature values written on the

hose. If your hose is not suitable,

apply to your authorized service to

change the hose.

 The dishwasher may not be

connected to open warm water

devices or ﬂow-through water

heaters.

Permitted water pressure:

Lowest permitted water pressure: 0.3

bars = 3 N/cm² = 30 kPa

When the water pressure is below 1

bar, please contact your technician.

Highest permitted water pressure: 10

bar = 100N/cm² = 1Mpa

When the water pressure is above 10

bars, a pressure reduction valve must

be installed (available in trade supply

stores).

Connect water inlet hose

Ensure that the water inlet hose is not

bent or squeezed. Do not install a used

hose set.

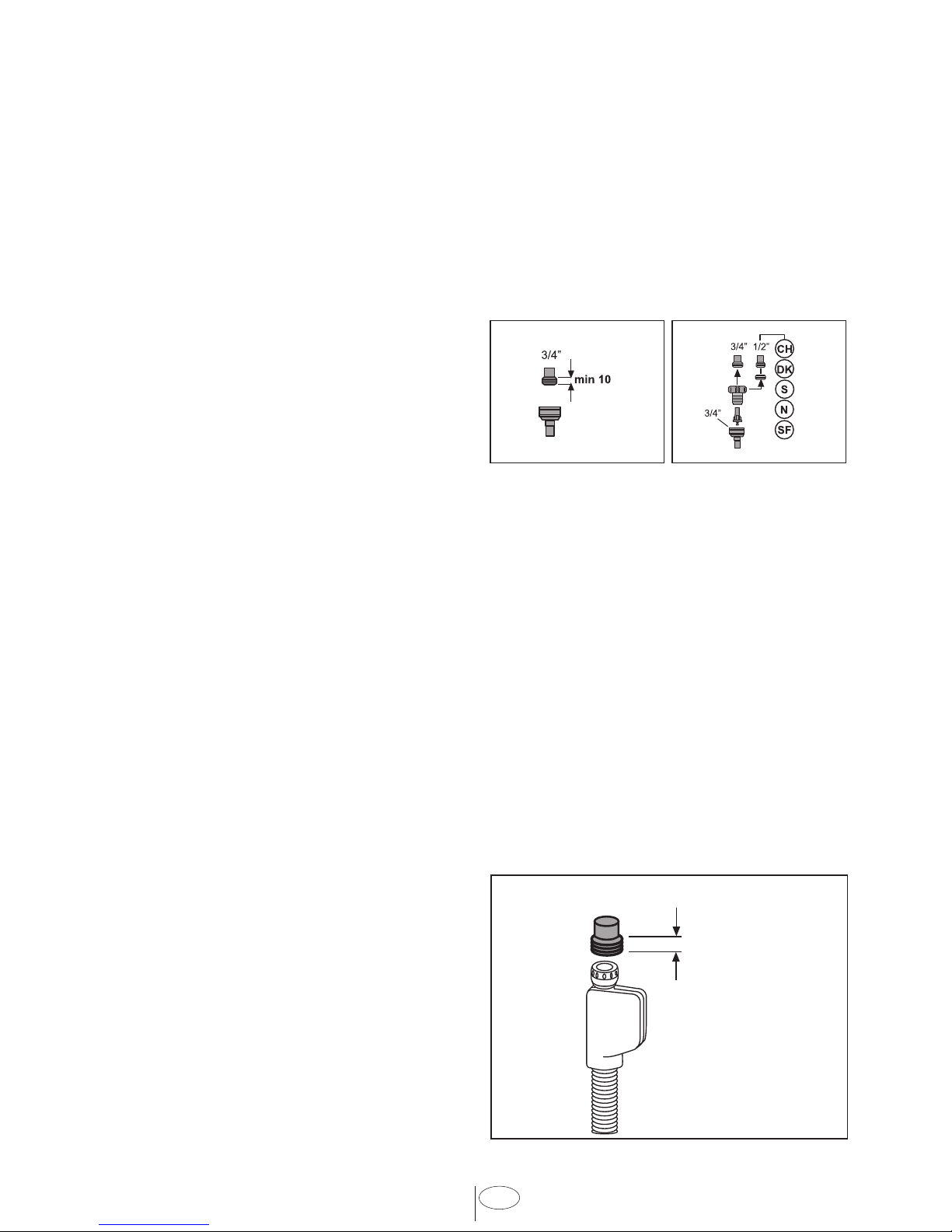

Use a screw-on hose connector to

connect the water inlet hose to a water

1009

aquAvoid™ plus (some models)

The aquAvoid™ plus System protects

against water damage hich may be

caused at the water inlet hose.

Do not immerse the system’s valve

box into water; it contains electrical

components.

In case of damage, pull out the power

supply plug.

Do not shorten or lengthen the hose

insert as it contains electrical cables

and components.

3/4

min 10

aquAvoid plus

7GB

Water drainage

Connecting the drainage hose.

Take care to ensure that the drainage

hose is not bent or squeezed.

Check that the drainage hose is ﬁrmly

seated.

1011

Extension hoses

If a hose extension is required, a

drainage hose of equal quality must be

used.

The maximum length must not exceed

4m. Using a longer hose will produce

poorer cleaning results.

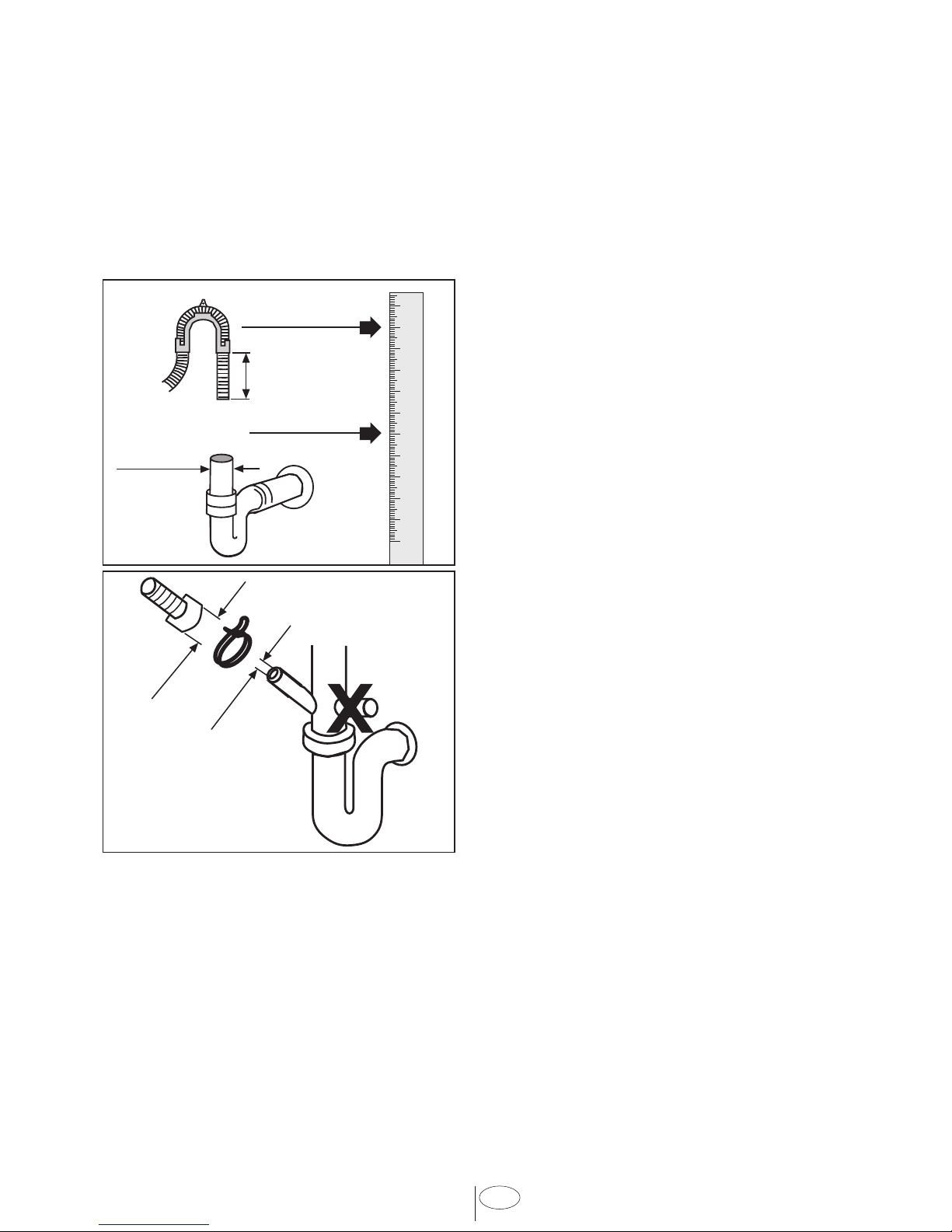

Siphon connection

The drainage height must be between

50 and 100cm above the ﬂoor.

Use hose clamps to fasten the

drainage hose to the siphon.

Electrical connection

Please refer to the type plate for

information on current type, mains

voltage, and fuse protection.

The type plate is located on the inside

of the door.

The mains plug must be freely

accessible after installation.

Power cables and insulated cables

must not be accessible (exposed) after

installation.

Disposal

Packaging

The packaging and some parts of your

appliance are made from recyclable

materials. These materials are marked

with the recycling symbol and the

relevant material type (PE, PS, POM).

Before operating your appliance,

remove the packaging material and

dispose of it in accordance with

regulations.

01020 30 40 50 60 70 80 90 100 110

min 50 cm

12cm

max 100 cm

min 4cm

Ø 18

Ø 21

8GB

will damage the softening device.”

Remove the lower basket from the

appliance.

Open the screw-in cap of the salt

container by turning it counter

clockwise (ﬁg. A,B).

4Using Your Dishwasher

Important

The electricity and water connections

of the dishwater must be in compliance

with the instructions in this booklet.

Filling the dishwasher salt

Important

Only use special dishwasher salt in

your appliance.The manufacturer is

not liable for damage resulting from the

use of the wrong type of salt.

Use Diswasher salt only. Moderate or

coarse grained and easily soluble salts

are recommended. Don’t use table

salt, or any other type, these types of

salt do not dissolve in water easily and

Warning

Packaging materials may be

dangerous to children.Reusable

substances may be dropped off at your

local disposal facilities. You may obtain

further information from your local

authorities and disposal facilities.

Used appliances –

Environmental notice

This product must not

be disposed of with your

regular household waste.

Instead, you need to dispose of the

waste equipment by handing it over

to a designated collection point for

the recycling of waste electrical

and electronic equipment. This is

indicated by a symbol to be found on

the product, it’s packaging or in the

manual.

Materials used are recyclable

according to their labelling. Reuse,

recycling of materials and further

reutilization of used products are

important contributions to protect our

environment.

Please ask your local town council for

the nearest collection point.

To avoid possible dangers, disable

your waste appliance prior to

discarding it. Pull the mains plug and

cut the power cord. Disable any door

locks.

Table des matières

Autres manuels Blomberg Lave-vaisselle

Blomberg

Blomberg DWT 28500 SS Manuel utilisateur

Blomberg

Blomberg DWT 81900 FBI Manuel utilisateur

Blomberg

Blomberg DW 14110 NBL00 Manuel utilisateur

Blomberg

Blomberg Dishwasher Manuel utilisateur

Blomberg

Blomberg DIT39432 Manuel utilisateur

Blomberg

Blomberg DIN26410 Manuel utilisateur

Blomberg

Blomberg DDT25400B Manuel utilisateur

Blomberg

Blomberg DWT 23100 B Manuel utilisateur

Blomberg

Blomberg DWT 28500 W Manuel utilisateur

Blomberg

Blomberg LDF30211W Manuel utilisateur

Blomberg

Blomberg DWT 71600 SS Manuel utilisateur

Blomberg

Blomberg DWT 28500 SS Manuel utilisateur

Blomberg

Blomberg DWT37200 Manuel utilisateur

Blomberg

Blomberg DWT25504SS Manuel utilisateur

Blomberg

Blomberg DWT25504SS Manuel utilisateur

Blomberg

Blomberg EDIN Series Manuel utilisateur

Blomberg

Blomberg DWT 52800 WIH Manuel utilisateur

Blomberg

Blomberg DWT56502SS Manuel utilisateur

Blomberg

Blomberg DW 25200 WWS Manuel utilisateur

Blomberg

Blomberg Dishwasher Manuel utilisateur

Blomberg

Blomberg DW 14110 NBL00 Manuel utilisateur

Blomberg

Blomberg DW 55502 FBI Manuel utilisateur

Blomberg

Blomberg GIN 1580 Manuel de la liste des pièces

Blomberg

Blomberg DWT 58500 SS Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
