Blodgett KTT-10E Manuel utilisateur
Project
Item No.
Quantity
Model KTT-6E - 6 gallon (23 litres) electric tilting kettle
Model KTT-10E - 10 gallon (38 litres) electric tilting kettle
Model KTT-12E - 12 gallon (45 litres) electric tilting kettle
CONSTRUCTION
Water resistant construction
304 stainless steel construction
316 stainless steel interior cooking surface for added corrosion
resistance
2/3 jacketed with factory sealed distilled water enclosure
Hemispherical design on bottom of kettle for superior heat circulation
Stainless steel control housing
Concealed mounting lugs for bolting unit to counter top
OPERATION
Electrically self-generated closed steam system
Integrally mounted controls
Power switch
Thermostat
Cook indicator light
Pressure gauge
Safety valve
Low water light
Low water shut off
165-285°F (75-140°C) temperature range
STANDARD FEATURES
Removable elements
Removable operating handle with heat proof knob
“Clean Lock” holds kettle in cooking position or 105° for ease of
cleaning
Manual control
Mounts to countertop (optional stand available)
Stainless steel faucet bracket
Standard voltage options
208 VAC, 1 or 3 phase, 60 hz
240 VAC, 1 or 3 phase, 60 hz
One year parts and labor warranty*
* For all international markets, contact your local distributor.
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Voltage options
220 VAC, 1 phase, 60 hz
220 VAC, 3 phase, 60 hz
380 VAC, 3 phase, 60 hz
415 VAC, 3 phase, 60 hz
480 VAC, 3 phase, 60 hz
415/240 VAC, 3 phase, 4 wire, 60 hz
380/220 VAC, 3 phase, 4 wire, 60 hz
600 VAC, 3 phase, 60 hz
Faucets
Single pantry faucet with swing spout
Double pantry faucet with swing spout
Etched markings
Gallons
Litres
18” (46 mm) high stainless steel stand with sliding
drawer and stationary drain
One piece stainless steel lift off cover
Stainless steel perforated basket
Graduated measuring strip
Pour strainer
KTT-E
Electric Table Top Tilting Kettle
KTT-E TABLE TOP TILTING KETTLE
KTT-10E shown
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
KTT-E TABLE TOP TILTING KETTLE
SHORT FORM SPECIFICATIONS
Provide Blodgett model KTT-6E (6 gallon), KTT-10E (10 gallon), or KTT-12E (12 gallon) electrically heated counter tilting kettle. The unit shall have a double wall interior to form a steam
jacket around the lower 2/3 of the kettle. The jacket enclosure shall contain distilled water which is factory sealed. The bottom of the kettle shall be of hemispherical design for superior
heat circulation. The unit base shall include the kettle mounting lugs condealed inside a rectangular enslosure and a stainless steel mechanism housing. The unit shall have a removable
operating handle with heat proof knob mounted on the right. Construction shall be of all welded satin finish 304 stainless steel. The interior cooking surface shall be 316 stainless steel.
The controls shall be integrally mounted, water resistant, and shall include a power switch, thermostat with range of 165-285°F (75-140°C), a cook indicator light, pressure gauge, safe-
ty valve, low water light and low water shut off. Unit shall be ASME constructed and National Board registered. Provide options and accessories as indicated.
MAXIMUM INPUT:
KTT-6E 7.5 kW
KTT-10E 12 kW
KTT-12E 12 kW
POWER CONNECTION:
Refer to data plate.
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice.
APPROVAL/STAMP
P/N S00011 Rev E (12/06)
MAXIMUM PRESSURE:
All models 50 PSI (345 kPa)
SHIPPING INFORMATION:
Approx. Weight:
KTT-6E 155 lbs. (70 kg)
KTT-10E 205 lbs. (93 kg)
KTT-12E 220 lbs. (100 kg)

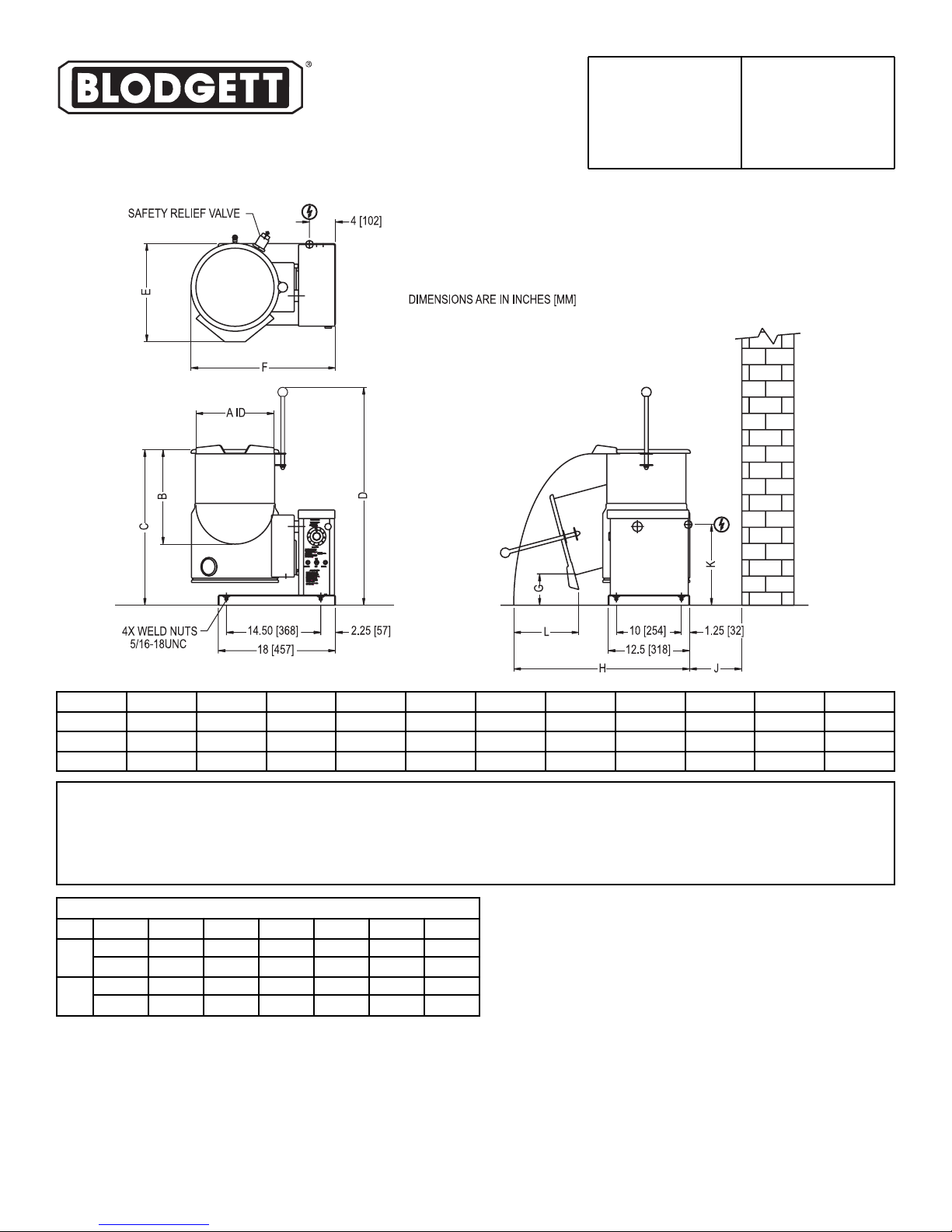

MODEL A B C D E F G H J K L
KTT-6E 12[305] 14.38[365] 24[610] 33.5[851] 15.25[387] 22.25[565] 4.5[114] 27[686] 4.25[108] 12.38[314] 10[254]
KTT-10E 16[406] 15[381] 26[660] 34.88[886] 17.25[438] 26.25[667] 4.62[117] 28[711] 6.12[156] 14.75[375] 12.75[324]
KTT-12E 16[406] 17[432] 28[711] 36.88[937] 17.25[438] 26.25[667] 4.12[105] 30[762] 6.12[156] 14.75[375] 12.75[324]
AMPS PER LINE
KW PHASE 208V 220V 240V 380V 415V 480V
7.5 1 36.0 34.1 31.3 N/A N/A N/A
3 20.8 19.7 18.1 11.4 10.4 9.0
12 1 57.6 54.6 50.0 N/A N/A N/A
3 33.3 31.5 28.9 18.3 16.7 14.5
