Blizzard Lighting Node:b RGBAL Manuel utilisateur
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2022
Page 2
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of the Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the node:b RGBAL 5
Main Features 5
DMX Quick Reference 5
Node:b™ RGBAL Pin-Up Picture 6
The Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Node:b Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
Take It To The Next Level: Setting Up DMX Control 8
Installing a Lens Barrel 8
Insert the Gobo Holder (Prole Lens Barrels Only) 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
Static Mode 12
Dimming Curves 12
Dimming Speed 12
Dimming Frequency 13
DMX Fail 13
Fan Settings 13
System Reset 13
DMX Values In-Depth 13
5. Appendix 14
Keeping Your Node:b™ RGBAL As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs! 15
Dimensional Drawings 15
Page 3
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Node:b RGBAL Engine
• Mounting Brackets and Locking Knobs
• Lens Attachment Thumbscrew
• Gobo Holder
• This Lovely User Manual
Optional Accessories (sold separately)
The following accessories are available for this xture. But the lone wolves that
they are, they must be purchased separately. Contact your authorized Blizzard
Lighting dealer for pricing.
• Node:b-LENS-15-30: 15-30° Prole Zoom Lens
• Node:b-LENS-25-50: 25-50° Prole Zoom Lens
• Node:b-LENS-FRESNEL: 16-65° Fresnel Zoom Lens
Getting It Out Of the Box
Congratulations on purchasing the node:b RGBAL. Now that you’ve got your
xture, you should carefully unpack the box and check the contents to ensure
that all parts are present and in good condition. If anything looks as if it has
been damaged in transit, notify the shipper immediately and keep the packing
material for inspection. Again, please save the carton and all packing materials.
If a xture must be returned to the factory, it is important that the xture be
returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
Warning! All xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something happens to go wrong, visit blizzardpro.com/support and
open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are subject to change without
notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may
appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or
to create a new document to correct any errors or omissions at any time. You can download the latest
version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 1/4/2022 J. Thomas 9/6/2022
Page 4
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
Safety Instructions
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please open a support ticket at www.blizzardpro.com/support.
Page 5
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
2. MEET THE NODE:B RGBAL
Main Features
• Light source: 200W RGBAL COB LED
• Engine accommodates prole or fresnel lens barrels (sold separately)
• Small in size, 10cm xture diameter
• Lens: glass optical lens
• 1-25Hz strobe eects
• Flicker-free resolution, perfect for video
• Adjustable LED refresh rates (1000-8000 Hz)
• 16-bit dimming, with 4 user-selectable dimming curves
• User selectable dimming speeds (low/medium/high)
• Dual mounting brackets for exible positioning
• M12 sized bracket holes
• Heavy-duty, xed power cord
• Quiet fan cooling
• 3-pin male/female XLR input & output connections
Control
• Protocol: USITT DMX-512
• DMX channels: 6/9-channels
• Easy-to-use 4-button control panel with OLED display
• Operating modes: DMX-512, standalone
DMX Quick Reference (6/9-Channel Mode)
6-CH 9-CH What It Does
1 1 Dimmer (0% <--> 100%)
2 2 Red Intensity (0% <--> 100%)
3 3 Green Intensity (0% <--> 100%)
4 4 Blue Intensity (0% <--> 100%)
5 5 Amber Intensity (0% <--> 100%)
6 6 Lime Intensity (0% <--> 100%)
-- 7 Strobe (slow <--> fast)
-- 8 Dimming Speed
-- 9Dimming Curves
Page 6
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
The Rear Connections
Node:b™ RGBAL Pin-Up Picture
Locking Knobs
Power CordFuse Holder
DMX OutDMX In
Safety LoopControl Menu
Locking
Knob
Locking
Knob
Dual Mounting
Brackets
200W RGBAL
COB LED
Light Source
Page 7
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
Fuse Replacement
Remove the fuse holder from of its housing. Then take out the damaged fuse
from its holder and replace with exact same type of fuse. Reattach the fuse
holder, and then reconnect power.
Connecting A Bunch of Node:b Fixtures
You can use a serial data link to run light shows when using a DMX-512
controller with two or more xtures. The combined number of channels required
by all the xtures on a serial data link determines the number of xtures the
data link can support.
Fixtures on a serial data link must be daisy chained in one single line. Also,
connecting more than 32 xtures on one serial data link without the use of a
DMX optically-isolated splitter may result in deterioration of the digital DMX
signal. The maximum recommended cable-run distance is 500 meters (1640
ft). The maximum recommended number of xtures on a serial data link is 32
xtures.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-grade
cables that can carry a high quality signal and are less prone to electromagnetic
interference.
For instance, Belden© 9841 meets the specications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but note that
they cannot transmit DMX data as reliably over long distances. The cable should
have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
Before replacing the fuse, disconnect the power cord.
ALWAYS replace it with the same type and rating.
3. SETUP
Page 8
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
12
33
INPUT OUTPUT
Common
DMX +
DMX -
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of
the DMX cable to the rst xture’s male
connector (input).
Note: It doesn’t matter which xture address is the rst
one connected. We recommend connecting the xtures
in terms of their proximity to the controller, rather than
connecting the lowest xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input. You should place a
DMX terminator on the output of the nal
xture to ensure best communication.
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
A Word on Termination:
DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal
errors, and therefore best practices include use of a
terminator in all circumstances. If you are experiencing
problems with erratic xture behavior, especially over
long signal cable runs, a terminator may help improve
performance.
Installing a Lens Barrel
1.) Align the notch of the lens barrel with the marked line on the engine.
2.) Insert the and turn the lens barrel counterclockwise to the secured position.
3.) Fully secure the lens barrel to the xture using the included thumbscrew.
Page 9
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is enough
room for ventilation. The fan or vent pathway must never be obstructed.
Mount the xture using a suitable "C" or "O" type clamp. The clamp should be
rated to hold at least 10x the xture’s weight to ensure structural stability. Do
not mount to surfaces of unknown strength, and ensure properly rated rigging
is used when mounting xtures overhead.

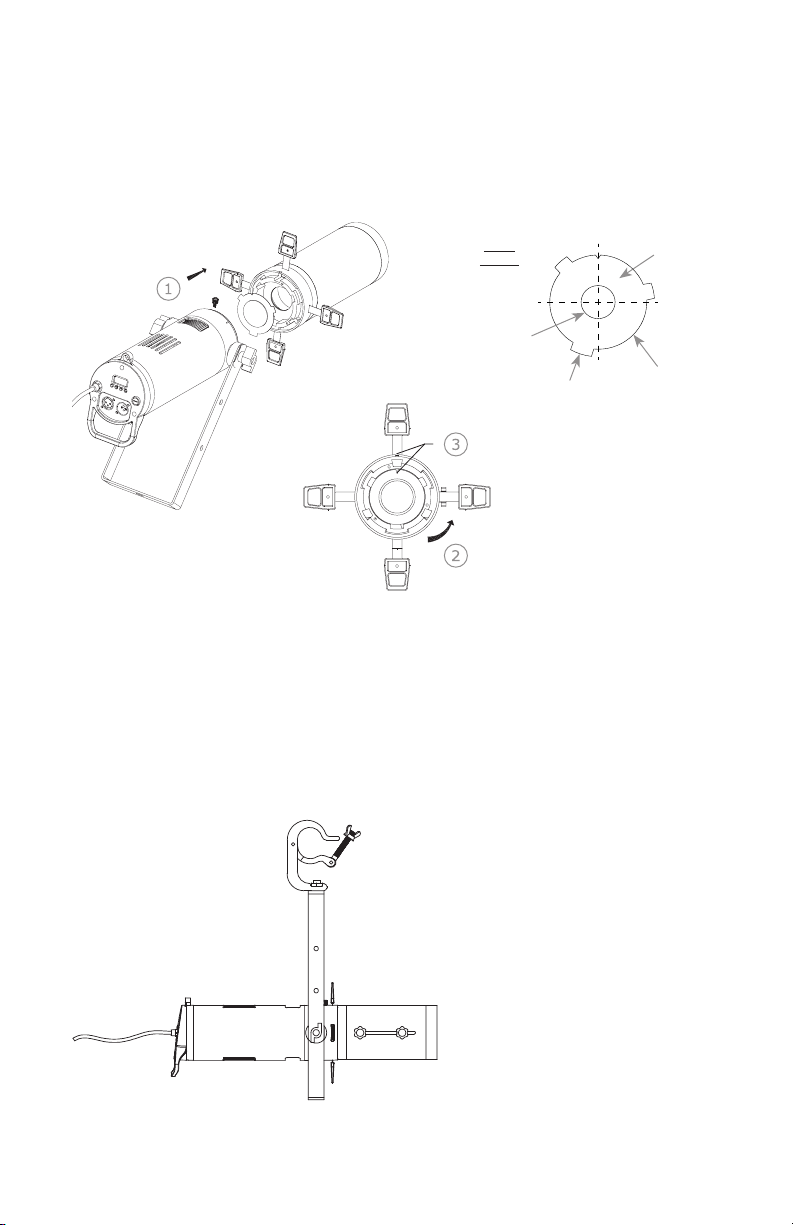

Insert the Gobo Holder (Prole Lens Barrels Only)
1.) Remove the prole lens barrel, align the gobo holder with the barrel slots.
2.) Insert the gobo holder into the slot, and turn counterclockwise to secure.
3.) Align the V-shape on the holder with the marked spot on the lens barrel.
Gobo
Holder
Outer:
Ø 68.6 mmØ 79.4 mm
Inner:
Ø 24 mm
0.4 mm
thick
IMPORTANT: Regardless of the
rigging option you choose for
your xtures, always be sure to
secure your xture with a safety
cable.
Page 10
node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC
The control panel display shows the menu items you select from the menu map
on page #11. When a menu function is selected, the display will show immedi-
ately the rst available option for the selected menu function. To select a menu
item, press <ENTER>.
Use the <UP> and <DOWN> buttons to navigate the menu options. Press the
<ENTER> button to select the menu function currently displayed, or to enable
a menu option. To return to the previous option or menu without changing the
value, press the <MENU> button.
4. OPERATING ADJUSTMENTS
The Control Panel
All the features and dierent modes possible with the node:b™ are accessed by
using the control panel on the rear of the xture. There are 4 control buttons
under to the menu display which allow you to navigate through the various
control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
Table des matières
Autres manuels Blizzard Lighting Équipement d'éclairage
Blizzard Lighting
Blizzard Lighting Colorise Quadra Manuel utilisateur
Blizzard Lighting
Blizzard Lighting BladeRunner RGBW Manuel utilisateur
Blizzard Lighting
Blizzard Lighting ROCKER PANEL RGBAW Manuel utilisateur
Blizzard Lighting
Blizzard Lighting MAX L Manuel utilisateur
Blizzard Lighting
Blizzard Lighting Flurry Spot Manuel utilisateur
Blizzard Lighting
Blizzard Lighting PixelStorm COB Mini Manuel utilisateur
Blizzard Lighting
Blizzard Lighting ToughPar V12 Manuel utilisateur
Blizzard Lighting
Blizzard Lighting Pocket Rocket Manuel utilisateur
Blizzard Lighting
Blizzard Lighting The Puck 3NX Manuel utilisateur
Blizzard Lighting
Blizzard Lighting the puck pro zoom Manuel utilisateur
Blizzard Lighting
Blizzard Lighting Pocket Nebula Manuel utilisateur
Blizzard Lighting
Blizzard Lighting THE PUCK RGBA LED PAR Can Manuel utilisateur
Blizzard Lighting
Blizzard Lighting the puck Manuel utilisateur
Blizzard Lighting
Blizzard Lighting Tournado SKY W-DMX Manuel utilisateur
Blizzard Lighting
Blizzard Lighting ToughStick 5 Manuel utilisateur
Blizzard Lighting
Blizzard Lighting mikrokassette Manuel utilisateur
Blizzard Lighting
Blizzard Lighting G-Mix 200 Manuel utilisateur
Blizzard Lighting
Blizzard Lighting PixlStik Manuel utilisateur
Blizzard Lighting
Blizzard Lighting Torrent 90 Beam Manuel utilisateur
Blizzard Lighting
Blizzard Lighting ICE 30 Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Qazqa
Qazqa Suplux SL 3 Black 103062 Manuel utilisateur
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
