Blaupunkt BPS004BTS Manuel utilisateur

Note: Specifications are subject to change for improvements.

SPECIFICATIONS WIRELESS OPERATION GUIDE

1.Power Supply.................................................................... AC 230V/50Hz

2.Total Power Consumption......................................................................100W

3.Subwoofer Power Output ........................................................................50W

4.Soundbar Power Output ....................................................................2 x 25W

5.Input Sensitivity (Subwoofer).................................................300mV 20mV

6.Input Sensitivity (Soundbar)...................................................750mV 50mV

7.Speaker Impedance (Subwoofer)..........................................................8 Ohm

8.Speaker Impedance (Soundbar)............................................................8 Ohm

9.S/N (AWeight)........................................................................................80dB

10.THD (1kHz, 1W)...................................................................................0.5%

11.Frequency Response(Subwoofer)...................................30Hz~150Hz 3dB

12.Frequency Response (Soundbar).................................200Hz~20KHz 3dB

13.L/R Separation (1kHz)..........................................................................30dB

14.L/R Balance (Stereo)........................................................................... 2dB

...... If the subwoofer is not linking properly with the soundbar or there is no

sound coming from the subwoofer please follow the below steps:

1) Switch off the soundbar and subwoofer.

3) Please repeat the above steps if the soundbar is not connecting to the

subwoofer wirelessly.

4) Once the above steps have been completed and the soundbar is

connected to the subwoofer the settings will automatically save and there

should be no need to follow the above steps again unless the product is

disconnected from the mains power.

2) Switch on the soundbar and then press the "STANDBY" button on the

remote control, this will put the soundbar into play-mode. Within 10

seconds you will need to switch on the subwoofer. Please wait a further

15 seconds while the coding is completed for the subwoofer to connect to

the soundbar wirelessly. (You can confirm this by the blue light on the front

of the subwoofer. If the soundbar and subwoofer are connected the blue

light will be solid but if it is flashing then the subwoofer is not wirelessly

connected to the soundbar).

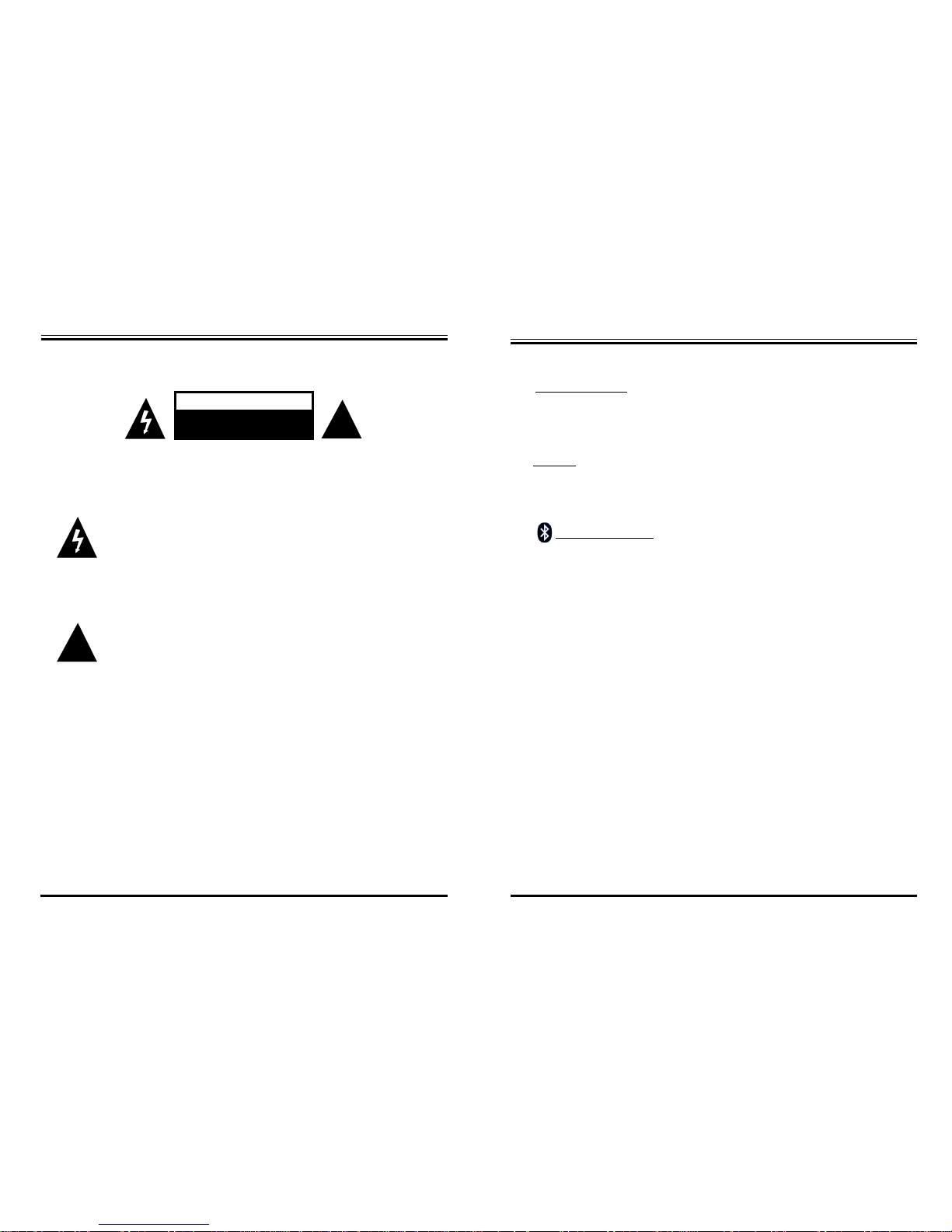

CAUTION !

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SAFETY INFORMATION

THE LIGHTNING FLASH WITHARROWHEAD SYMBOL,

WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED

TOALERT THE USER TO THE PRESENCE OF

UNINSULATED, "DANGEROUS VOLTAGE", WITH IN THE

PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT

MAGNITUDE TO CONSTITUTE ARISK OF ELECTRIC

SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL

TRIANGLE IS INTENDED TO ALERT THE USER TO THE

PRESENCE OF IMPORTANT OPERATING AND MAINTE-

NANCE (SERVICING) INSTRUCTIONS IN THE LITERA-

TURE ACCOMPANYING THE APPLIANCE.

Safety Precautions

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK. DO NOT

EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE.

G. SelectionBluetooth

OPERATION

E. MUTE Selection

1.Press the MUTE button on the remote controller once to keep the

performance silent.

1.Press the RESET button on the remote control and it will reset all settings

including main unit output, Sound bar output to factory default settings.

F. RESET

1.Please press the 'INPUT' Button on the remote control, the speaker

will then display 'BT' on the front display which means Bluetooth

mode has been selected. Please use any Bluetooth capable device to

connectwith theBPS004BTS.A sound will be made from the soundbar

when your Bluetooth capable device is connected to the BPS004BTS.

Caution: Please read carefully all the following important safeguards to en-

sure safe operation.

1. Read Instructions - All the safety and operating instructions should be

read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be

retained for future reference.

3. Follow Instructions - All operating instructions should be followed.

4. Heed Warnings - All warnings on the appliance and in the operating

instructions should be adhered to.

5. Power Source - The appliance should be connected to a power supply

only of the type specified in the operating instructions or as marked on

the appliance.

6. Power-cord Protection - Power-supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or

against them, pay particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the appliance.

7. Water and Moisture - The appliance should not be used near water

(for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a

wet basement, or near a swimming pool, etc.)

8.Ventilation - The appliance should be situated so that its location or

position does not interfere with its proper ventilation. Do not use the

appliance on a bed, sofa, rug or similar surface that may block the

ventilation openings.

IMPORTANT SAFEGUARDS

A. Switch On/Off the Product

2. Connect AC power supply with this product.

(Caution: Power source must be consistent with this product.)

3. Press onthe POWER switchbutton onthe RearPanel of themainunittoswitch

on the system, the standby indicator will light up. Then press the

STANDBYbutton on the remote controller to enter the normal status. Press

the button on the remote controller once again to keep power in standby

status.

B. VOLUME Selection

1.Press the VOL+ on the front panel of the main ubutton nit or VOL +

button on the remote controller to maximize the sound output.

2. Press the VOL- on the front panel of the mainbutton unit or VOL -

button on the remote controller to minimize the sound output.

OPERATION

C. TREBLE Selection

1.Press the TREBLE + button on the remote control to increase the treble

level.

2.Press the TREBLE - button on the remote control to decrease the treble

level.

D. BASS Selection

1.Press the BASS + button on the remote control to increase the bass level.

2.Press the BASS - button on the remote control to decrease the bass level.

1.Before turning on the system, please follow the previous instructions to

setup the units connections.

SYSTEM CONNECTION INSTRUCTIONS

Video In

Video Out

Rear -R

Cent er

Woof er Rear -L Fron t-L

Fron t-R

DVD Player

Optical

Audio Out

Rear-R

Center

Woofer Re ar-L Front-L

Coaxial F ront-R

Video Out Scart out

Video S-Vi deo UVY

Manufacturedunder license from Dolby Laboratories.

"Doldy","DolbyDigital", and the double-D symbol are

trademarksof Dolby Laboratories. Confidential

UnpublishedWorks.

@1992-1997Dolby Laboratories, Inc.

Allrights reserved.

Apparatus Claimsof U.S. PatentNos.

4,631,603;4,577,216;4,819,098and 4,907,093

licensed forlimitedviewinguses only.

RISKOF ELECTRIC SHOCK

DO NOT OPE N

WARNIN G !AC100V~240V

50/60Hz

Video

RCA Cable

To Stereo Output

Audio Out

registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Nonuse Periods - The power cord of the appliance should be unplugged

from the outlet when left unused for a long period of time.

11. Damage requiring service - The appliance should be serviced by qualified

service personnel when:

a/ The power-supply cord or the plug has been damaged;

b/ Objects have fallen or liquid has been spilled into the appliance;

c/ The appliance has been exposed to rain;

d/ The appliance does not appear to operate normally or exhibits a marked

change in performance;

e/ The appliance has been dropped, or the enclosure damaged.

12. Servicing - The user should not attempt to service the appliance beyond

that specified in the operating instructions. All other servicing should be

referred to qualified service personnel.

13. Clean only with dry cloth.

14. Do not defeat the safety purpose of the polarized or grounding type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the provided plug

does not fit into your outlet, consult and electrician for replacement of the

obsolete outlet.

15. Unplug this apparatus during lightning storms or when unused for

long periods of time.

9. Heat - Keep the appliance away from heat sources such as radiators, heat

IMPORTANT SAFEGUARDS

REMOTE CONTROL

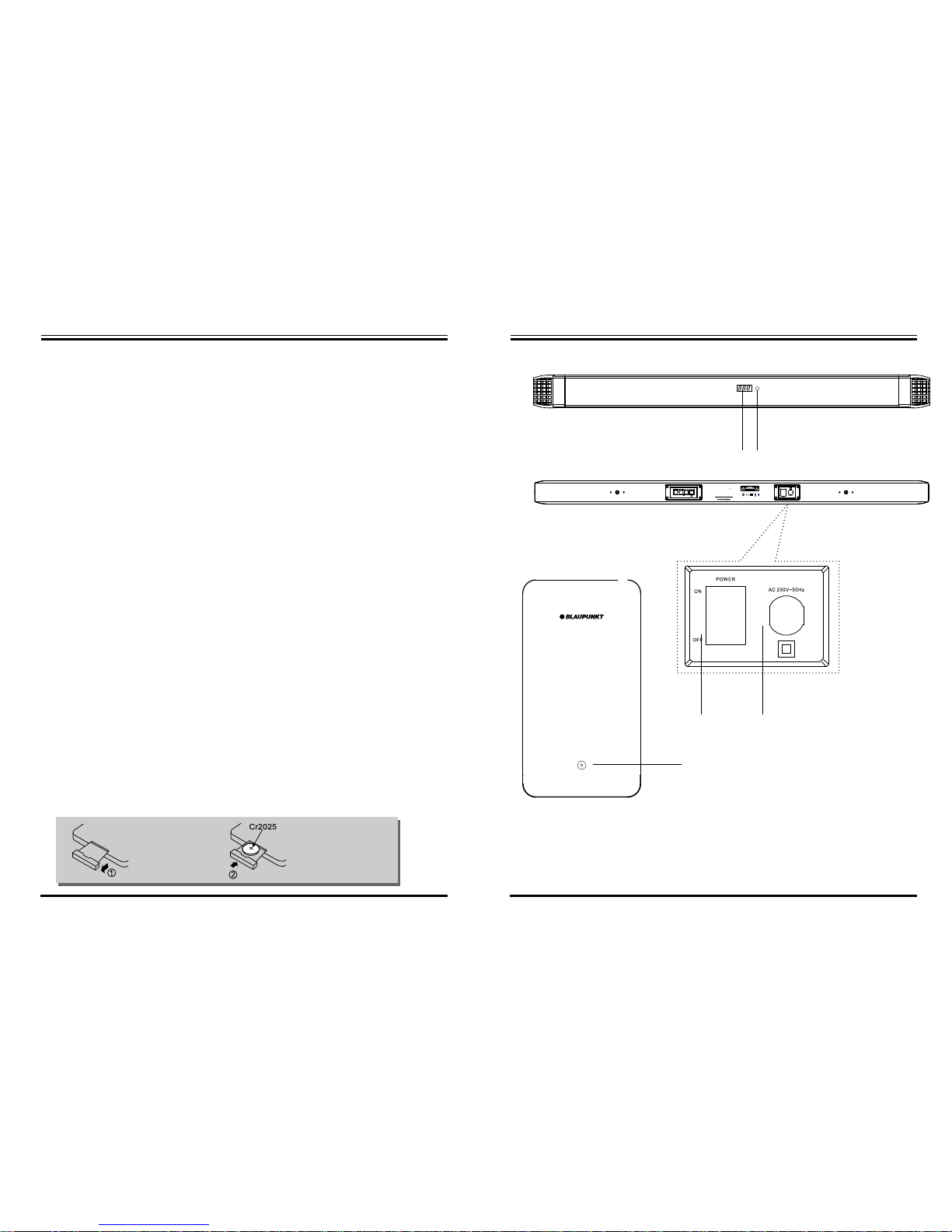

FRONT PANEL - CONTROLS AND FUNCTIONS

1. : Power Standby.STANDBY

6.VOL-: Volume Downward Adjustment Button.

9.INPUT: Input Button .Selection

2.MUSIC: Music Mode .Selection

3.NORMAL: Normal Mode .Selection

7.BASS-: Bass Downward Adjustment Button.

8.TREBLE-: Treble Downward Adjustment Button.

11.RESET: Reset sound settings to default.

12.MOVIE: Movie Mode .Selection

10.MUTE: Mute Function Button .

4.PREV.

5.NEXT.

15.VOL+: Volume Upward Adjustment Button.

16.BASS+: Bass Upward Adjustment Button.

17.TREBLE+: Treble Upward Adjustment Button.

14.PLAY and PAUSE.

1.Replace the remote control battery when it no longer operates the

unit, or the range is reduced considerably.

2.Use only Cr2025 3V lithium batteries

3.Bear in mind that lighting & other room conditions, in addition to

battery age, can affect the operating range of an infrared remote control.

REMOTE CONTROL BATTERY REPLACEMENT

5.STANDBY:Subwoofer Standby

Input Indicator.

2. Remote Sensor.

1 2

1. LED Display.

3.Power On/Off Switch.

4.AC Power Cord.

MadeIn China

BLAUPUNKTWARRANTY 1300 055 518

2.4GHzDIGITAL WIRELESS SOUNDBAR SYSTEM

MaxTotal Power Consumption:100W

OutputPower: Sound bar:25W x 2

Subwoofer:50W x 1

PowerSupply: AC 230V~50Hz

SpeakerUnit :Sound bar : 2

Subwoofer: 5.25 x1

Impedance :Sound bar : 4( )

Subwoofer: 8( )

x 4

BPS004BTS

13.BT ESC: Bluetooth Secede (in the connected state)

BPS004BTS

REAR PANEL - CONTROLSAND FUNCTIONS

2. AUX Stereo Audio Input.Right

1. AUX Stereo Audio Input.Left

REAR PANEL - CONTROLSAND FUNCTIONS

4. OPTICALAudio Input.

3. COAXIALAudio Input.

5. AC Power Cord.( )SUBWOOFER

6. Power On/Off Switch.(SUBWOOFER)

REMOTE CONTROL

1 2

Mad e In Chin a

BLA UPUNK T WARRAN TY 1300 0 55 518

2.4 GHz DIG ITAL WIRE LESS SO UNDBA R SYSTE M

Max Tot al Powe r Consu mptio n:100 W

Out put Pow er: Sou nd bar: 25W x 2

Sub woofe r :50W x 1

Pow er Supp ly: AC 230 V~50H z

Spe aker Un it : So und bar : 2

Sub woofe r : 5.25 x 1

Impedance : Sou nd bar : 4( )

Sub woofe r : 8( )

x 4

BPS004BTS

MadeIn China

BLAUPUNKTWARRANTY 1300 055 518

2.4GHzDIGITAL WIRELESS SOUNDBAR SYSTEM

MaxTotal Power Consumption:100W

OutputPower: Sound bar:25W x 2

Subwoofer:50W x 1

PowerSupply: AC 230V~50Hz

SpeakerUnit :Sound bar : 2

Subwoofer: 5.25 x1

Impedance :Sound bar : 4( )

Subwoofer: 8( )

x 4

BPS004BTS

Table des matières

Autres manuels Blaupunkt Intervenants

Blaupunkt

Blaupunkt PS11DB Manuel utilisateur

Blaupunkt

Blaupunkt BLP3020 Manuel utilisateur

Blaupunkt

Blaupunkt BPT6021BT Manuel utilisateur

Blaupunkt

Blaupunkt BT02WH Manuel utilisateur

Blaupunkt

Blaupunkt BT10 Manuel utilisateur

Blaupunkt

Blaupunkt BT 10e Manuel utilisateur

Blaupunkt

Blaupunkt MPS 2300F Manuel utilisateur

Blaupunkt

Blaupunkt Q SERIES Manuel du propriétaire

Blaupunkt

Blaupunkt IC 170 Marine Dual Cone Manuel utilisateur

Blaupunkt

Blaupunkt Voss Manuel utilisateur

Blaupunkt

Blaupunkt GTx 1 Series Manuel utilisateur

Blaupunkt

Blaupunkt Rock & Roll PS75 Manuel utilisateur

Blaupunkt

Blaupunkt PCb 1200 Double Manuel utilisateur

Blaupunkt

Blaupunkt BT50BB Manuel utilisateur

Blaupunkt

Blaupunkt BT026 Manuel utilisateur

Blaupunkt

Blaupunkt BTS10 Manuel utilisateur

Blaupunkt

Blaupunkt BLP3795-001 Manuel utilisateur

Blaupunkt

Blaupunkt BT15 Manuel utilisateur

Blaupunkt

Blaupunkt BT08LED Manuel utilisateur

Blaupunkt

Blaupunkt BLP3200 Manuel utilisateur

Blaupunkt

Blaupunkt LS 180 Manuel utilisateur

Blaupunkt

Blaupunkt BP1476 Manuel utilisateur

Blaupunkt

Blaupunkt BLP6110-001 Manuel utilisateur

Blaupunkt

Blaupunkt BLP3790-001 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
