Thank you for purchasing your BLAUPUNKT TV. The following instructions will assist you in operating any of the

models in the BLAUPUNKT range.

You may already be familiar with using a similar unit, but please take the time to read the instructions relevant for

your model.

Your safety is very important. Please ensure you read the “Safety Instructions” before you operate this unit.

The BLAUPUNKT range has been designed to give you many years of trouble-free service. In the unlikely event that

your product fails to work normally, please call one of our qualified service engineers on the below free warranty line

- 1300 055 518.



CONTENTS

Unpacking & Installation Notes.……………………………………………………………….……………..........-2-

TV Stand Installation……………………………………………………………………………..………………..-3-

Wall Mount Bracket Installation…………………………………………………………………………………...-4-

View of the TV & Functions…………………………………………………………………….…………………..-4-

Remote Control…………………………………………………………………………………………………….-7-

Installation & Connection………………………………………………………………………………………….-10-

Basic Operations………………………………………………………………………………………………….-10-

Main Menu Operations………………………………………………………………………………………..…..-12-

Media Player……………………………………………………………………………………..………………..-22-

EPG Menu……………………………………………………………………….…………………………………-23-

DTV Recording……………………………………………………………………………………………….…….-25-

Time Shift…………………………………………………………………………….…………………………….-26-

PC………………………………………………………………………………….………………………………-26-

Troubleshooting…………………………………………………………………….………………………………-28-

Specifications…………………………………………………………………………..………………………….-29-

Display Modes (VGA only)……………………………………………………………………..………………......-31-

Safety Instructions…………………………………………………….…………………………………………..-32-

Warranty………………………………………………………………………..…………………………………-33-

- 2 -

Unpacking

The following items will be included with the purchase of a BLAUPUNKT TV. Please refer to the correct model

number outlined below for your specific accessories. If any items are missing from the below list, please contact

the warranty line on 1300 055 518.



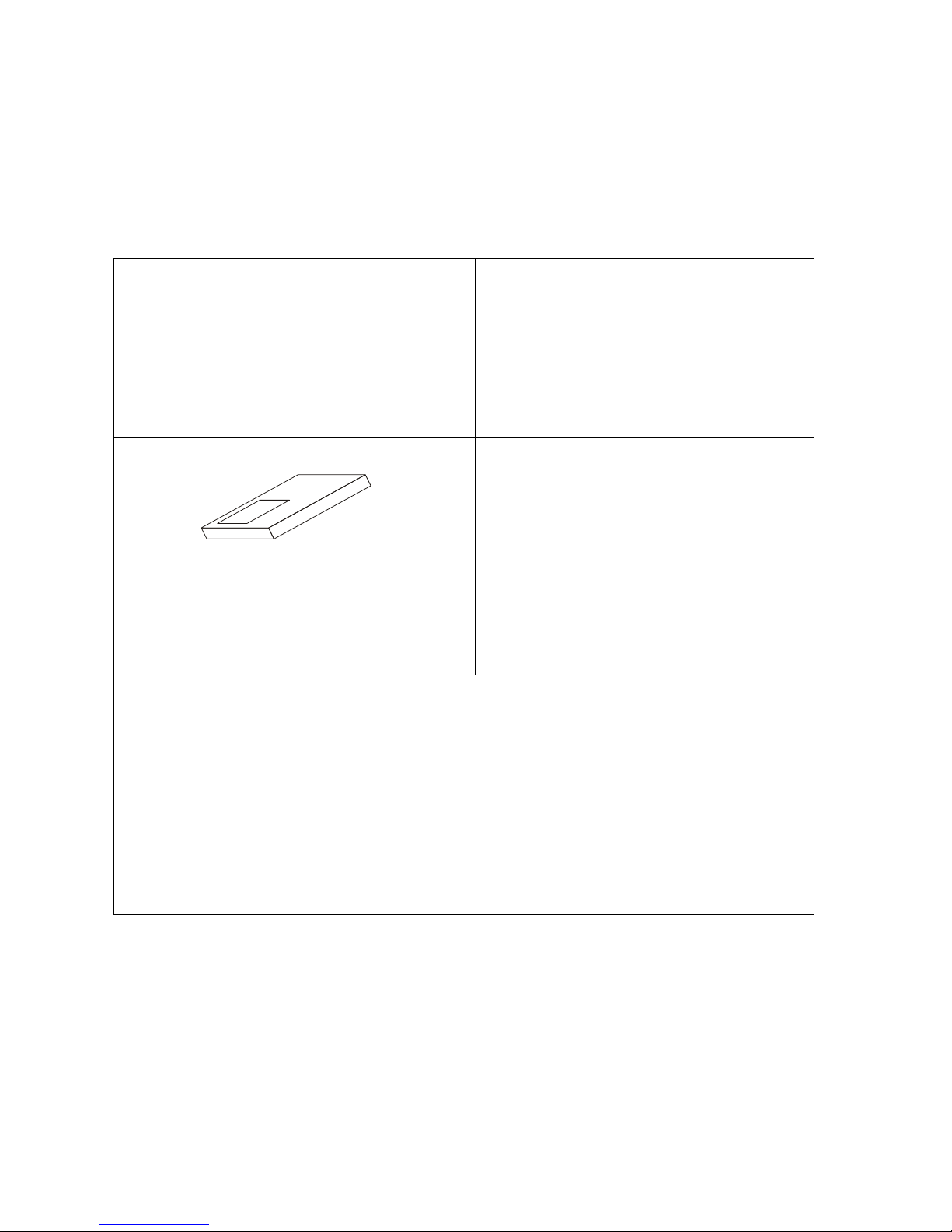

 LED LCD



Remote Control



Operation Manual



Stand and 3 Screws

For BP2914HD



Stand and 4 Screws

For BP3914FHD



- 3 -

Installation Notes

Connect your TV to your Mains Power (AC 100-240 Volts, 50/60). Please only connect this TV to a

Mains Power that matches the power specifications (AC 100-240 Volts, 50/60) of this TV.

Locate the TV in the room where light does not directly strike the screen.

Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is

recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature

component failure.

Do not cover the ventilation openings when using the TV.

TV Stand Installation

The BLAUPUNKT TVs come with a separated panel and base stand. Please see below detailed

instructions of how to connect your stand to your TV.

1. Place the TV with the display side down on a flat surface. Use a cloth or soft mat to protect your

TV during installation.

2. Attach the base stand at the neck as per the process outlined below.

3. Fix the base stand with the screw(s) supplied.

BP2914HD



BP3914FHD



- 4 -

Wall Mount Bracket Installation

This TV is VESA Standard wall mountable. There are 4 VESA standard holes (BP2914HD - 200mm x

100mm) (BP3914FHD - 200mm x 200mm) on the back panel of the TV. The wall mount bracket and

screws are not included with your TV as they may be purchased together from your local retailer. To

attach your bracket use the 4 holes provided to screw your bracket to your TV. You will also have to

remove the base stand and neck.

View of the TV & Functions

Front View



Buttons View







BP2914HD   BP3914FHD

- 5 -

Sockets View (BP2914HD)



LED Back View (BP3914FHD)



-1-

TV Key Functions



Remote Sensor: Receives the remote signals from the remote control.

Power Switch: Please press the power switch at the Bottom right of the panel to power on the TV.

Standby: Press the STANDBY Button to turn on or off the TV.

Power Indicator: In Standby mode the LED indicator will turn red. In Power on mode the indicator will turn off. The

red LED will blink when receiving commands from the remote control.

Source: Press the SOURCE Button to display the input source list and then press Vol+/- to select the input source.

MENU: Press the MENU Button to display the Main Menu. In main Menu, you can use the Vol+/- or CH+/- Buttons

to find and select different sub menus and then press the SOURCE Button to confirm.

CH+ / CH- : Press the CH+ / CH- Buttons to scroll through the channel list.

VOL+ / VOL- : Press the VOL+ / VOL - Button to increase or decrease the volume level.

RF Input: To connect the external aerial.

HDMI Inputs: The HDMI inputs allow you to connect your HDMI cable for greater definition.

YPbPr Input: The YPbPr Input must be connected for a component connection.

AV Input: The AV Input must be connected with the yellow cable in composite connection.

AV Output: The AV Output allows you to connect the unit to external video system.

HEADPHONE Output: For private listening to the TV (BP2914HD).

VGA Input: The VGA Input allows you to connect your TV to your PC to use as a monitor.

PC Audio Input: The PC Audio Input allows you to connect your TV to your PC to use as a monitor and enable the

sound for movies etc.

USB Input: The USB Input enables you to insert your USB or Hard Disc to record live TV or to play Music, Video or

Image files. It can also be used for software upgrades.



‐6‐

-1-

Remote Control Layout



‐7‐

- 8 -

Remote Control Layout

1. MUTE: Press to disable or enable the sound output.

2. ASPECT: Press to change the picture aspect ratio.

3. FAV: Press to access your favourite channels list.

4. NUMERIC KEY: Press for direct access to channels.

5. AD: Press to turn Audio Description function on or off (if available).

6. TV/RADIO: Press to switch between TV and Radio modes.

7. SUBPAGE: This is used in TELETEXT whereby certain pages contain sub-pages which are automatically displayed and used to stop or

resume sub-page information.

8. INDEX: This is used in TELETEXT which will open or return you to the contents page. Or press it to view your recorded programs list.

9. INFO: To display the program information of the show you are watching, press the Info Button.

10. REVEAL: This is used in TELETEXT to display or hide the concealed information.

11. HOLD: This is used in TELETEXT which to freeze the page.

12. MENU: Press to display the TV main menu.

13. CURSOR: Press to scroll through the menu.

14. OK: Press to confirm your selections.

15. CH.LIST: Press to display the channel list.

16. SLEEP: Press to set Sleep Timer.

17. VOL+/- : Press to adjust the sound level.

18. PIC: Press to switch between picture modes.

19. REWIND: Press to rewind play in USB Mode and timeshift Mode.

20. FAST FORWARD: Press to Fast Forward play in USB mode or timeshift Mode.

21. PLAY: Press the Play Button in USB Mode or Time Shift Mode to begin or continue Playback.

22. PAUSE: Press the Pause Button to pause play in Time Shift or USB Mode or pause recording in Record Mode.

23. POWER: Press to turn the unit on or off.

24. EPG: Press to display the 7 Day Electronic Program Guide for information on the show you are watching.

25. FREEZE: Press to freeze the picture you are watching.

26. RECALL: Press to return to the previously viewed channel.

27. MIX: To set the background of TELETEXT to be transparent.

28. SIZE: To zoom the page in TELETEXT.

29. SUBTITLE: Press to turn subtitles on.

30. SOUND: Press to switch between the sound modes.

31. TEXT: Press to enter or exit TELETEXT mode.

32. LIST: The user can set four favorite pages to be directly linked to the four colour keys in TELETEXT. While list mode is activated, it is not

- 9 -

possible to use navigation with the colour keys.

33. SOURCE: Press to display the Input Source List, to switch between the different inputs to the television.

34. EXIT: To exit the main menu, press the Exit Button or to cancel setting selections.

35. CH+/CH-: Press to scroll through your Channel List.

36. SKIP FORWARD: Press to skip the next file or track in USB Mode.

37. SKIP BACKWARD: Press to skip the previous file or Track in USB Mode.

38. REC/REP: Press to record the TV program you are watching in DTV Mode or press to repeat play in USB Mode.

39. STOP: Press to Stop play in USB Mode.



Remote Control Battery Installation

The remote control requires two AAA batteries to operate. Below are steps to assist you with replacing the batteries.

1. Open the back cover of the battery compartment.

2. Install the batteries into the battery tray. There are +/- polarity markings in the battery compartment. Please ensure

the polarity is correct.

3. Close the battery cover.

Caution:

1. Keep the batteries out of the reach of children.

2. Don’t attempt to recharge, short-circuit, disassemble, heat up or throw batteries into a fire.

3. Always replace both batteries at the same time and never mix new and old batteries.

4. Remove the batteries if unused for a long period of time to prevent possible corrosion.

Notes:

Do not drop, shake or step on the remote control.

Do not spill water on the remote control.

For best use aim the remote control directly at the remote sensor.

If the remote control does not operate from a close range replace the batteries.
