Congratulations on your purchase of this Blaupunkt Cassette Receiver.

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr1

Table of Contents

English

Features ........................................................... 3

Traffic Safety and Precautions ......................... 3

Detachable Face ...............................................4

Electrical Connections and Installation ............ 5

Installation .........................................................7

Maintenance ......................................................9

Specifications ..................................................10

Location of Controls ........................................11

Instructions - General Operation .................... 12

Audio Operation ..............................................13

Radio Operation ..............................................14

Cassette Tape Player Operation .................... 15

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr2

Features

Congratulations on your purchase of this Blaupunkt Cassette Receiver. Its Codem III FM/AM

Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimate in sound

reproduction.

•Codem III Tuner Features:

–Multipath Management

–ASU Electrical Impulse Noise Reduction

– Superior AM Frequency Response

–15 FM/5 AM Presets, Including 5 FM &

5 AM Travel Store Presets

–Station Scan

–Local/Distant Seek & Manual Tuning

•Cassette Tape Player Features

–Auto-Reverse Cassette Mechanism

– True Fast-Forward/Rewind

–Hard Permalloy Tape Head

–Radio Monitor with Radio Preset Access

Your unit’s detachable front faceplate makes the

unit useless to would-be thieves.

Designed, Engineered and Manufactured

By Blaupunkt.

Traffic Safety and Precautions

•Do not adjust your unit in difficult driving conditions that demand your full attention.

•As the driver of a motor vehicle, it is your responsibility to pay attention to the traffic situation

at all times. Never use your unit in a way that could distract you.

•Always make sure that you are still able to hear any warning signals coming from outside of

the vehicle, such as police or fire engine sirens, so that you can react accordingly.

•If your vehicle was parked in direct sunlight resulting in a considerable rise in temperature

inside the vehicle, allow the unit to cool off before operating your unit.

•You are cautioned that any changes or modifications not expressly approved in this manual

could void your warranty.

ENGLISH

•Audio Features:

–15 Watts x 4 Channel Integrated Amplifier

–Adjustable Maximum Turn-On Volume

– Bass, Treble, Balance and Fader Control

–Loudness Button

–Mute Button

•Other Features:

–Partially Detachable Face

–Green Illumination

–Display Priority Control

–Temporary Display Change Control

–Clock/Ignition-Off Clock Recall

–179 x 50 x 150 mm

DIN/ISO Chassis

–Detachable Wire Harness (ISO)

–Snap-In DIN Sleeve & Mounting Hardware

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr3

Detachable Face

Detaching & Attaching the Face:

The face of this unit can be detached and taken with you to prevent it from being stolen.

Detaching the Face:

Press the REL (Release) Button and detach the face by gently pulling it off as illustrated.

Note: Do not pull it straight out from the chassis. Be sure not to drop the face when detaching it

from the chassis.

Attaching the Face:

Apply the right hand side of the face to the chassis by sliding (part B) of the face to (part A) at

the front of the chassis. Gently push the left side of the face against the front of the chassis until

it snaps into place.

Note: Make sure that the face is inserted right side up. Do not press against the display window.

Do not press hard against the face when attaching it to the chassis, it may be easily attached

with gentle pressure. Do not expose the face to direct sunlight, heat sources such as hot air

ducts or leave it in a humid place. Never leave it on the dash board of a vehicle parked in direct

sunlight, where there may be a considerable rise in temperature inside the vehicle.

Affixing Faceplate For Retail Display:

The faceplate can be affixed to the unit’s chassis, which is desirable for a retail display, for

example. This should only be done in situations where the unit can be accessed from

behind the mounting surface. Once the faceplate is affixed, the release keys cannot be

used to remove the chassis.

To affix the faceplate:

Insert the black bolt into the hole at the left front of the top of the radio. See* below.

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr4

Electrical Connections and Installation

Please carefully read all of the instructions before you begin. Carefully follow all instructions.

You’ll be glad you did!

GENERAL RECOMMENDATIONS

•If you’re not confident that you can install the unit correctly, have it installed by a qualified

Blaupunkt installation technician.

•Use this unit only with negative ground 12 Volt (11-16 Volt) direct current (DC).

•Be sure to detach the faceplate before you start to connect or install the unit.

•We recommend making and testing all electrical connections before installing the unit.

Connect the leads (wires) according to instructions and diagram below.

ELECTRICAL CONNECTION INSTRUCTIONS

1. Disconnect the vehicle battery’s negative terminal before making connections.

2. Connect the speakers and/or external amplifiers (if you have any) following the guidelines in

the SPEAKER CONNECTION section below.

3. Connect the blue (trigger output) lead to the antenna motor trigger input terminal (if you

have one). The total amperage required of the blue lead must not exceed 300 mA. DO NOT

connect the blue lead to the antenna’s power supply input.

4. Connect the black (power ground) lead to a grounded metal part on the vehicle. We

recommend grounding all audio system black ground leads (head unit, external amplifier,

etc.) to a common grounding point, preferably a non-painted surface under the instrument

panel.

5. Connect the yellow (constant power) input lead to a source of constant battery power,

preferably a terminal to an appropriate slot in the fuse box.

6. Connect the red (turn-on power) input lead only after the other leads are connected. Be sure

to connect the red lead to a positive (+) 12 Volt power terminal that is energized only when

the ignition key is set to the on position or accessory position.

7. Cover the ends of any unused leads with electrical tape. This will prevent them from

touching the vehicle or each other and causing a short-circuit and damage to the radio or

vehicle.

8. Reconnect the vehicle’s battery.

9. Verify that no fuses have blown.

10. Plug the harness into the unit.

11. Attach the faceplate and test the unit.

Once the connections have been successfully made, you can begin to mount the unit.

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr5

SPEAKER CONNECTIONS

•You can connect a speaker (regular, co-axial or tri-axial speakers or component speaker

system, all hereafter referred to simply as “speaker”) to each of the units’ four pairs of

speaker leads.

IGNITION

+12V

BATTERY

red

blue

black

yellow

GROUND

ANTENNA

+(12V)

Power connections

Speaker connections

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr6

Installation

Recommendations

•Carefully choose the mounting location so that the unit won’t interfere with normal driving.

•Avoidmountinglocationswheretheunitwouldbesubjecttohightemperatures,suchasfromdirect

sunlight or hot air from the heater, or where it would subject to dust, dirt or excessive vibration.

•The illustration below shows a typical installation, however, you may need to adjust the

installation, depending on the unit. If you have questions or need additional installation

hardware, consult your Blaupunkt dealer.

•Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.

Mounting Hardware

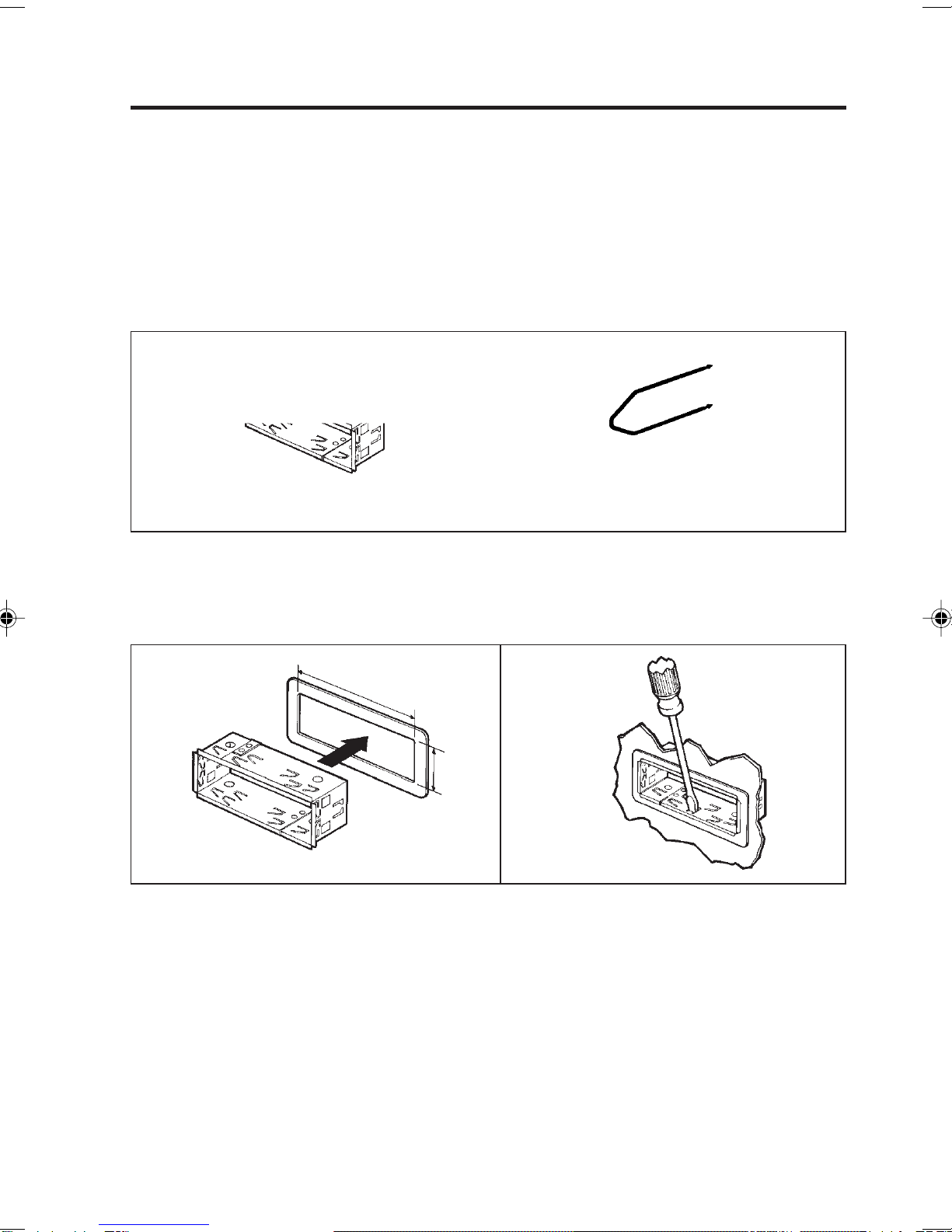

Mounting The Unit in Most Dashboards

1 Install the Sleeve in the dashboard.

2 Select and bend the appropriate tabs to hold the sleeve firmly in place.

Sleeve Release Keys

Bend these tabs

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr7

Slit

Bracket

Support

max. size

M5x8

max. size M5x8

Mounting the Unit in a Japanese Car

You may have difficulty mounting this unit in some Japanese cars that have ISO mounting

features.

In this case, consult your Blaupunkt dealer.

1Run a blade along the slits on the back of the front trim ring, unscrew the two side screws,

and separate it from the unit. Save the trim ring and related hardware in case you ever want

to install the unit in another vehicle.

2Use the vehicle’s own mounting hardware to attach the unit.

to dashboard/center console

2 TOYOTA

Bracket

Support

max. size

M5x8

max. size M5x8

2 NISSAN

to dashboard/center console

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr8

Maintenance

Removing the Unit

Use the Release Keys as shown below. Keep them in a safe place in case you need them in the

future.

Fuse Replacement

When replacing the fuse, be sure to use one with the correct amperage, which will be stated on

the fuse case. Never use a fuse that has a stated amperage exceeding the one supplied for this

unit, as this could cause malfunction and serious damage to the unit.

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr9

Specifications

Audio Power Specifications

Power Output and Total Harmonic Distortion: 10 watts per channel minimum continuous

average output into 4 ohms, 4 channels driven, from 30-15 000 Hz with no more than 1% total

harmonic distortion.

Other Specifications

Tuner

Tuning Range: 87.5 - 108 MHz

FM Mono Sensitivity: 1.3 µV

Selectivity: 80 dB at 400 kHz

Signal-to-Noise Ratio: 65 dB (stereo), 70 dB (mono)

Harmonic distortion at 1 kHz: 0.7% (stereo), 0.5% (mono)

Separation: 30 dB

Frequency Response: 30-15.000 Hz ±3 dB

Tuning Range: 531 - 1.602 kHz

Signal-to-Noise Ratio: 50 dB

Frequency Response: 30-5.000 Hz

Audio

Speaker Impedance: 4-8 ohms

Maximum Amp Power: 4 x 15 Watts (at 4 ohms)

RMS Power: 4 x 10 Watts (at 4 ohms)

Bass Control: ±10 dB by 100 Hz

Treble Control: ±10 dB by 10 kHz

Loud: + 8 dB by 60 Hz, + 2 dB by 8 kHz

Cassette

Signal-to-Noise Ratio: 55 dB

Tape Wow and Flutter: 0.3 %

Tape Frequency Response: 30-16.000 Hz

General

Dimensions (w/o projecting parts/controls):

179 x 50 x 150 mm

Mass: Approx. 1.4 kg

Power Requirement (neg. grnd.): 12 V DC car battery (11-16 V DC allowable)

Operating Temperature: -10°C to 50°C

Supplied Accessories: • Unit

• Faceplate

• Wire Harness

• DIN Sleeve

• Mounting Hardware

Design and specifications subject to change without notice.

BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr10

Autres manuels pour HANNOVER CR 67

Table des matières

Autres manuels Blaupunkt Récepteur de voiture

Blaupunkt

Blaupunkt Ravenna RCM 168 Manuel utilisateur

Blaupunkt

Blaupunkt Boston CC 22 Manuel utilisateur

Blaupunkt

Blaupunkt Acapulco MP52 Manuel utilisateur

Blaupunkt

Blaupunkt Newport CD85 Manuel utilisateur

Blaupunkt

Blaupunkt Bremen CD72 Manuel utilisateur

Blaupunkt

Blaupunkt Miami Beach CD52 Manuel utilisateur

Blaupunkt

Blaupunkt FRANKFURT 100 Manuel utilisateur

Blaupunkt

Blaupunkt Arizona DJ73 Manuel utilisateur

Blaupunkt

Blaupunkt Daytona Beach C34 Manuel utilisateur

Blaupunkt

Blaupunkt RDM 169 US Manuel utilisateur

Blaupunkt

Blaupunkt Laguna CD36 Manuel utilisateur

Blaupunkt

Blaupunkt CASABLANCA Casablanca CD51 Manuel utilisateur

Blaupunkt

Blaupunkt HEIDELBERG CD52 Manuel utilisateur

Blaupunkt

Blaupunkt B910AU Manuel utilisateur

Blaupunkt

Blaupunkt Portland CM85 Manuel utilisateur

Blaupunkt

Blaupunkt Hamburg CD70 Manuel utilisateur

Blaupunkt

Blaupunkt Nashville DAB35 Manuel utilisateur

Blaupunkt

Blaupunkt Woodstock DAB54 Manuel utilisateur

Blaupunkt

Blaupunkt Montreux RCR 44 Manuel utilisateur

Blaupunkt

Blaupunkt Stuttgart Manuel utilisateur

Blaupunkt

Blaupunkt CCU 02 MP3 PROFESSIONAL Manuel utilisateur

Blaupunkt

Blaupunkt Brisbane SD48 Manuel utilisateur

Blaupunkt

Blaupunkt SYDNEY Sydney RCM 126 Manuel utilisateur

Blaupunkt

Blaupunkt Ravenna C32 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
