Blaupunkt CHICAGO IVDM-7002 Manuel utilisateur
In Car Video In-Dash Monitor/DVD/CD/MP3/Receiver
Chicago IVDM-7002
Operating instructions
www.blaupunkt.com
2
Remote control – general functions
2
1
6
8
10
11
12
13
15
18
23
29
27
25
31
3

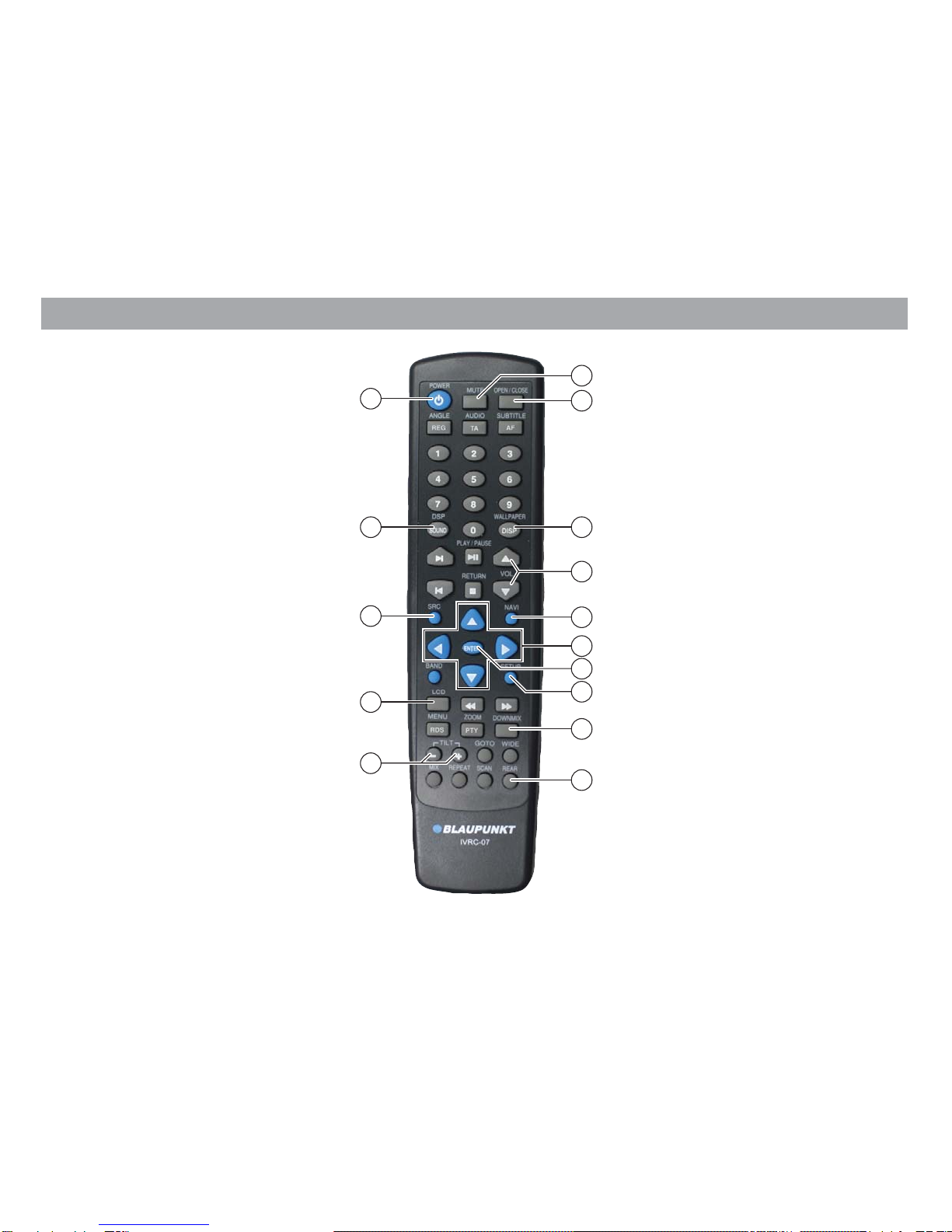

Remote control – general functions
1MUTE key
Key to mute the loudspeakers
2OPEN/CLOSE key
Extend/retract the monitor
6DISP / WALLPAPER key
Monitor retracted: Switches between displaying the time
and the active audio source
Monitor extended: Changes the screen background (wall-
paper)
8VOL /key
Increase/ decrease the volume
:NAVI key
Activate navigation mode
;/and /keys
Keys for browsing through the on-screen menu
<ENTER key
Confirm the chosen menu item
=SETUP key
Open and close the setup menu
?DOWNMIX key
Switch the audio downmix on/off
BREAR key
Display the image from an optional reversing camera
GTILT
-
/ +key
Adjust the monitor’s tilt
ILCD key
Adjust the colour of the display
KSRC key
Select a different signal source
In the setup menu: Open the sub-menu
MSOUND / DSP key
Display the settings of the audio functions
O/ POWER key
Key for switching the device on and off
4

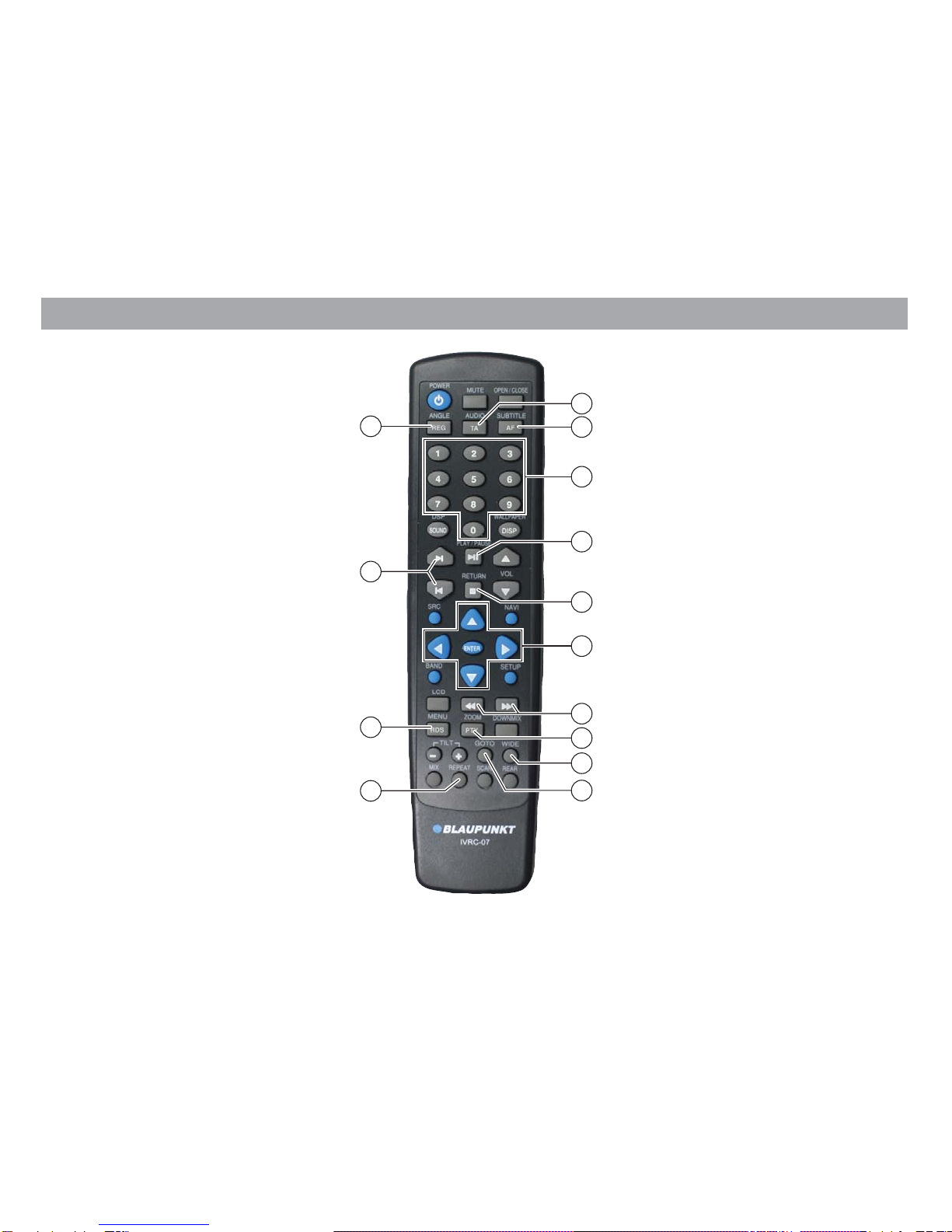

Remote control – DVD mode
30
5
7
9
11
14
16
19
28
24
21
17
4
3
5
3TA / AUDIO key
Select the audio track
4AF / SUBTITLE key
Select the subtitle on DVDs that offer multilingual subtitles
5Numeric keys 0 - 9
Press the numeric keys to enter title or chapter numbers
7/ PLAY/PAUSE key
Key to interrupt and resume playback
9/ RETURN key
Stop key to stop playback
;/and /keys
Keys for browsing through the main menu
>/keys
Hold these keys down for fast forward or reverse
@PTY / ZOOM keys
Zoom (+) or zoom (-)
AWIDE key
Swap formats 16:9 / 4:3
CGOTO key
Selection menu for directly selecting a chapter
EREPEAT key
Repeat a chapter or title
HRDS / MENU key
Display a DVD’s main menu
L/keys
Skip to the previous or following chapter
NREG / ANGLE key
Select the camera perspective on DVDs offering the multi-
angle function
Remote control – DVD mode
6

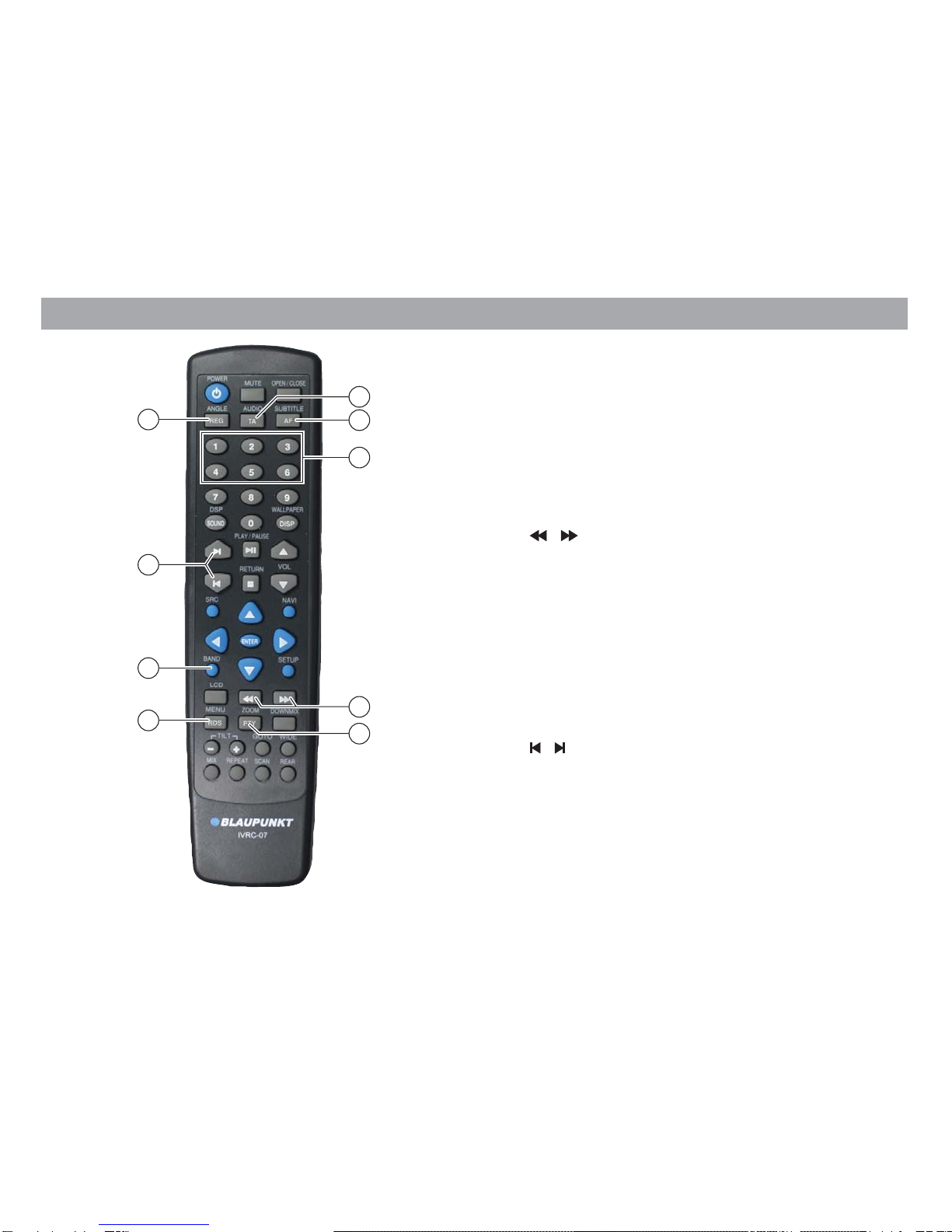

Remote control – radio
3TA / AUDIO key
Switch the TA function on or off
4AF / SUBTITLE key
Switch the AF function on or off
5Numeric keys 1 - 6
Tune into stations that have been stored automatically or
manually.
Press a key and hold it down for 1 second or longer to
store the station that is currently tuned.
>/keys
Manually search for stations upwards/downwards
@PTY / ZOOM key
Open the PTY menu
HRDS / MENU key
Open the radio menu
JBAND key
Change the waveband
Press the key and hold it down for 1 second or longer to
search for stations and save them automatically
L/key
Search upwards/downwards automatically
NREG / ANGLE key
Switch the REG function on or off
30
5
14
16
28
26
24
4
3
7

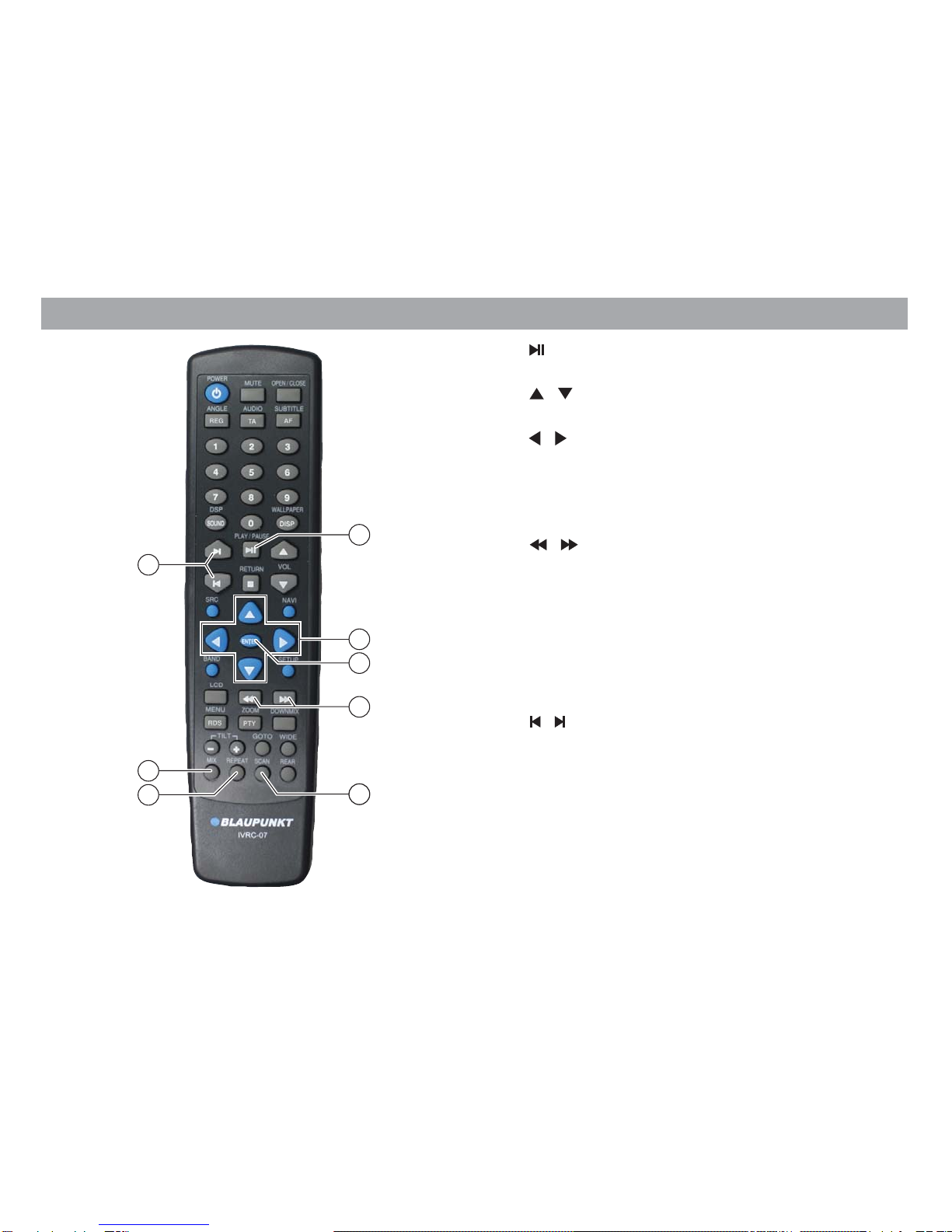

Remote control – CD/CD changer/MP3 mode
7/ PLAY/PAUSE key
Key to interrupt and resume playback
;/key
Choose the track or file in MP3 mode
/key
Select the following or previous disc/file in CD changer
and MP3 mode
<ENTER key
Confirm the selection of the track or file
>/keys
Hold these keys down for fast forward or reverse
DSCAN key
Play a 10-second sample of each of the files or tracks
EREPEAT key
Play a disc, track or file again
FMIX key
Play tracks or files in random order
L/keys
Skip to the following or previous track or file
21
7
11
12
14
20
28
22
21
8
Controls – Chicago IVDM-7002
32 33 35 3634 37
4548 40 39 3847 46 43 4242 44 41
9

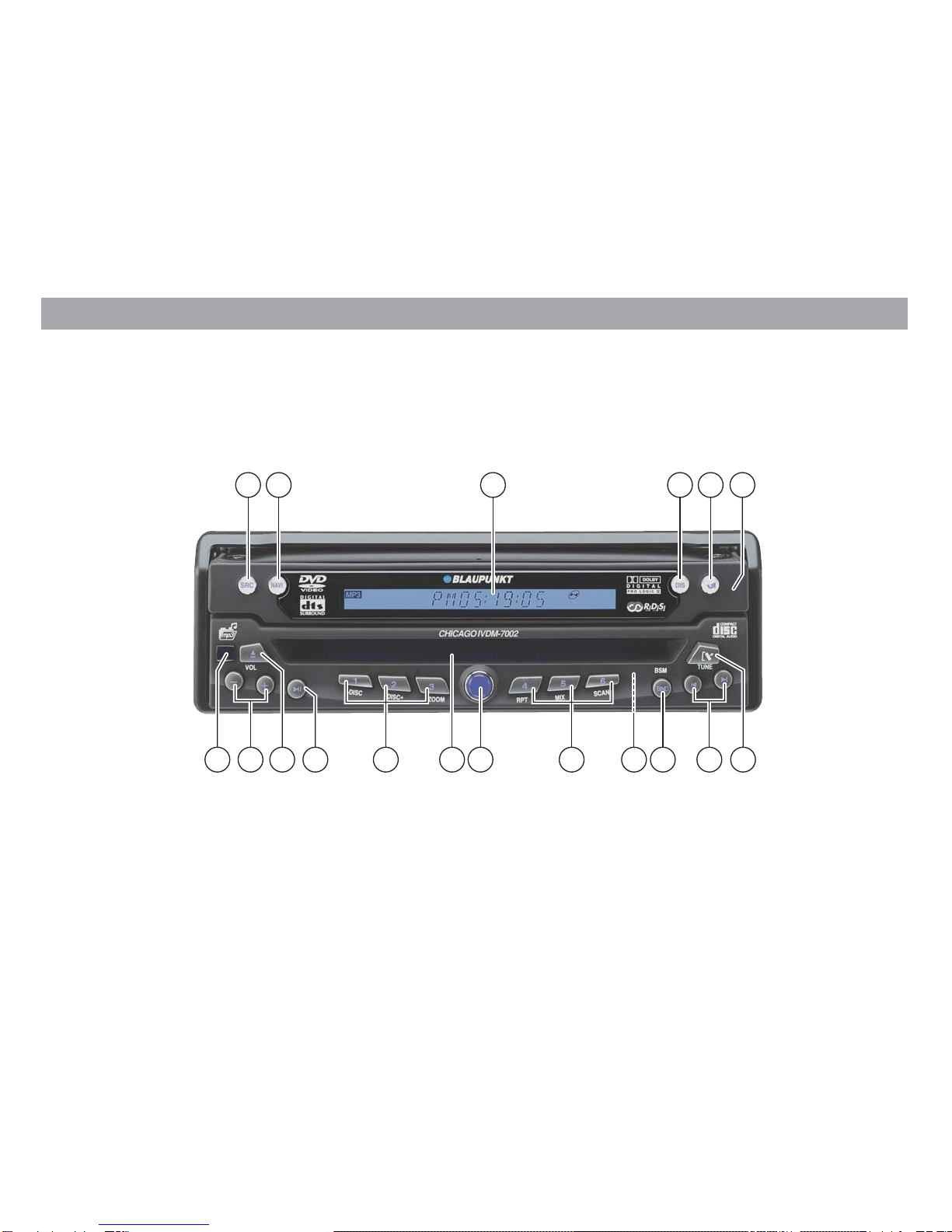

Controls – Chicago IVDM-7002
PSRC key
Choose the signal source you want.
QNAVI key
Switch to navigation mode (assuming an optional naviga-
tion system is installed).
RLCD display
SDIS / FLIP multi-function key
Monitor retracted
Short press: Switch between displaying the time and au-
dio source.
Long press: Change the background colour of the display.
Monitor extended
Fold the monitor up/down
Tkey
Retract/extend the monitor
URetractable TFT monitor
Vkey
Key to unlatch the front cover.
WTUNE /key
This key can be used in radio/CD/DVD mode to change to
the previous or the following station, title/track or pro-
gramme.
XBND / BSM key
Short press: Change between the three FM memory
banks and the AM waveband
Long press: Start the Travelstore function.
YReset key
ZKey 1 / -DISC:Change to the previous CD or previous di-
rectory in CD changer/MP3 mode.
Key 2 / DISC+: Change to the next CD or next directory in
CD changer/MP3 mode.
Key 3 / ZOOM:This key activates the zoom function in
DVD mode.
Key 4 / RPT:In CD/CD changer /MP3 mode this key is
used to repeat individual tracks or the whole CD.
Key 5 / MIX:In CD/CD changer/MP3 mode this key is
used to start playing individual tracks in random order.
Key 6 / SCAN:You can listen to short samples from the
current CD by pressing this key in CD/CD changer/MP3
mode.
[key
Switch the device on or off and mute the loudspeakers.
\CD/DVD compartment
]key
Key for playing and pausing in CD/DVD mode
akey
Eject the inserted CD/DVD.
bVOL
-
/ +key
Increase or decrease the volume.
cInfrared receiver for the remote control
10
Safety comments
Operating while driving
You can cause serious accidents if you do not pay attention to the traffic.
Observe the following points to avoid being distracted by the Chicago IVDM-7002:
•Familiarise yourself with the controls before setting off on your journey.
•Stop somewhere suitable if you want to reprogram the Chicago IVDM-7002.
•Only operate the controls of the Chicago IVDM-7002 when driving if traffic conditions permit.
CD/DVD
•For reasons of safety, a CD/DVD must only be inserted or removed when the vehicle is stationary.
•ADVD can only be played when the vehicle is stationary.
