OPERATING MANUAL BMS-280LP

VERSION 1.0

www.blastrac.com 1-800-256-3440

Table of Contents

1. Introduction ..........................................................................................................................................3

2. Machine Description ...............................................................................................................................3

3. Safety ..................................................................................................................................................4

Safety Precautions ...............................................................................................................................4

Safety Regulations ...............................................................................................................................4

Safety Instructions ............................................................................................................................4-7

4. Initial Operation.....................................................................................................................................8

Checkpoints of Gas Cylinder Safety: .......................................................................................................8

Checkpoints of Machine Safety: .............................................................................................................8

5. Operation .............................................................................................................................................9

Driving the Machine............................................................................................................................ 10

Controlling Tool Position Cylinder ......................................................................................................... 11

6. Maintenance................................................................................................................................... 12-13

Hydraulic System Instruction............................................................................................................... 14

7. Cutting Head & Blades..................................................................................................................... 15-17

8. Blade Application ............................................................................................................................ 18-22

9. Ditching......................................................................................................................................... 23-24

10. Technical Data ................................................................................................................................... 25

11. Contact............................................................................................................................................. 26

1. Introduction

It is important that all persons who are working or maintaining this machine read the manual carefully and

understand it fully. Keep this manual near to the machine, so it can always be consulted.

Only authorized and trained personnel may operate this machine.

2. Machine Description

The Blastrac BMS-280 ride-on scraper is ideally suited for medium and large sized applications with the added

benefit of being gas operated for increased versatility. It is very maneuverable with zero turn radius, non-marking

tires and complete hydraulic control.

Main advantages of the BMS-280:

- Fast and easy removal of all types of flooring material

- Very compact, goes through standard doors & elevators

- Zero turn radius, ergonomic design for safe maneuvering, non–marking tires

- Very versatile, total freedom of movement, no electric cable.

- Complete hydraulic control (drive and tool control)

- Powered by a heavy duty motor delivering strong power with no worries of charging.

- Very high output compared to manual material removal.

Propane Tank (Vapor Propane Type)

Left Wheel Drive Lever

Engine Housing/Cover

Right Wheel Drive Lever

Tool Holder

Tool Lift/Lower Lever

3. Safety

It is important that all persons who are working with or maintaining this machine must read the manual carefully

and understand it fully.

Always keep this manual with the machine, so it can be referenced to at any time.

Safety Precautions

Make sure that persons who are not operating the machine are not in the surrounding area of the

machine.

Make sure that there is nothing standing or situated on the surface to be treated

Make sure that there are no cables or hoses in the driving direction of the machine.

Always drive backwards when driving up to a ramp or grade, and forwards when driving down the ramp.

Do not consume drugs or alcohol prior to or during the use of this machine.

Safety Regulations

Never change anything from the safety devices on the machine!

Persons who are not operating the machine must not be permitted to stay within 20 feet of the machine.

Always call a skilled electrician or your distributor when you have questions about the safety of the

electrical components.

Work on electrical equipment or operating materials may only be undertaken by a skilled electrician or by

trained persons under the guidance and supervision of a skilled electrician as well as in accordance with

the electrical engineering regulations.

The following sticker is placed on the machine.

Personnel must tie back long hair and not wear loose clothing or jewellery including rings.

Wear gloves and dust mask during operation of the machine.

Safety Instructions

Turn key to OFF when machine is parked.

oPark the machine always on a flat horizontal and levelled surface.

oCover the sharp blade or remove it when the machine is off.

Make sure the machine is clean and that the footrests are dry and free of grease and oil.

NEVER lift the machine with the mounted tool for maintenance! This sharp tool can be very dangerous!

The weight of the BMS-280 is 2900 pounds. Only use an appropriately sized lift or crane to move/hoist the

BMS-280. The lift points are as shown below.

Meanings of these symbols are:

Ear protection is required

Safety glasses with lateral

protection are required

CE-mark on this machine

Safety shoes required

Consult the manual before

operating the machine

Chock wheels for transport and keep control handles in neutral position.

Don’t leave the machine unsecured on jobsites.

Machine can be lifted by a forklift. For this use forklift pockets (1) in the middle of the machine:

Be aware of your surroundings and machine operating level. Do not run across hill, do not run on steep

incline, this could cause machine to tip over.

Always drive backwards when driving up to a ramp or grade, and forwards when driving down the ramp.

Do not run the machine in unsafe environments.

Engine Safety

DANGER: Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide

is odorless and colorless and can cause injury or death if inhaled. Do not use equipment

indoors without adequate ventilation. Refer to OSHA guidelines and regulations

concerning maximum levels of exposure to carbon monoxide gases and other hazards

associated with using internal combustion engines. It is highly recommended that a CO

(carbon monoxide) detector be used to warn the user if levels become unsafe.

Warning: Engine, exhaust system and hydraulic component temperatures could be in

excess of 200F causing severe burns if touched.

4. Initial Operation

Befor each use it is essential to inspect the machine.

It is not permitted to use the machine if it does not pass all of the checkpoints below.

Checkpoints of Gas Cylinder Safety:

Check the bottle for any damage before use.

Ensure hose to gas cylinder is fully seated and sealed before turning on the bottle.

Always turn the bottle completely on before starting the engine.

Always turn the bottle completely off after using the machine.

Checkpoints of Machine Safety:

Control levers should be in neutral position.

All hydraulic hose connections are tightened and there is no leakage of oil.

The safety functions and operating functions work correct.

There are not any loose nuts or bolts.

5. Operation

During the operation of the BMS-280, the following additional safety instructions must be followed closely.

Switching on the Machine:

Turn the valve on the propane tank CCW until it stops.

Take place on the seat (2) and put feet on the footrests. Operating the machine without being seated is

not possible because of the safety switch of the seat.

Turn the key contact switch (1) to the right.

Driving the Machine

The wheels of the machine are controlled by the two outside handles (1 and 3). Pushing both handles forwards,

the machine drives forwards. Pulling both handles backwards, the machine drives backwards. The driving speed

depends on the position of the handles. Pushing the right handle forwards the machine turn to the left. Pushing

one handle forwards and pulling another handle backwards the machine will turns around its axis. Correcting

direction while moving is accomplished by slightly reducing pressure on one handle or the other while moving.

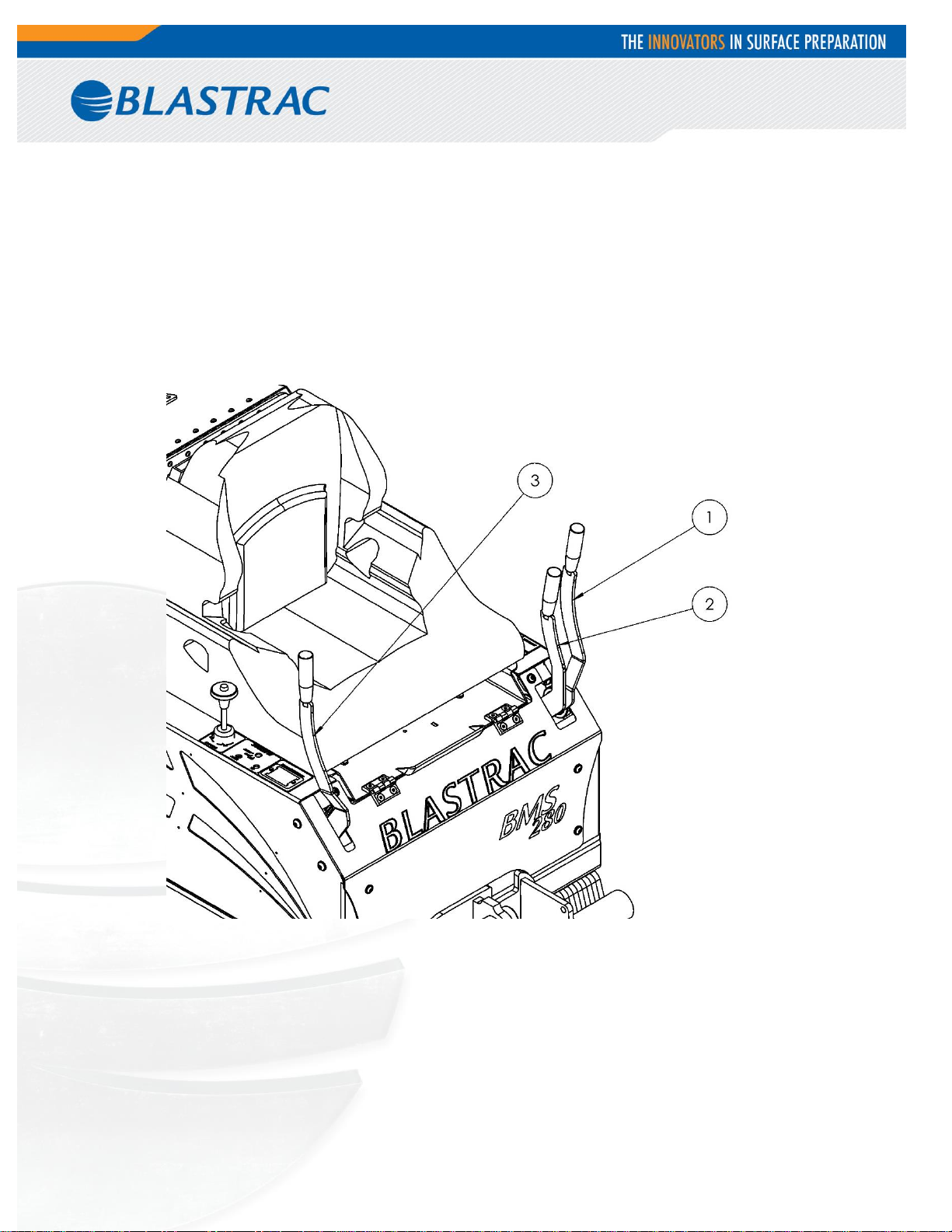

1) Left wheel control handle.

2) Tool positioning control handle.

3) Right wheel control handle.
