BlackPed RedPed 2 Manuel utilisateur

E Bike Tuning App

RedPed 2

September 2019

E Bike Tuning App
1
E Bike Tuning App
CONTENTS
Information on road traffic regulations and disclaimer 2.............................................
Compatibility 2............................................................................................................
Android 3....................................................................................................................
1. Start screen 3......................................................................................................
2. Optical speedometer settings 4...........................................................................
3. RedPed 2 for PWXSE 5.......................................................................................
iOS 7..........................................................................................................................
1. Start screen 7......................................................................................................
2. Optical speedometer settings 8...........................................................................
3. RedPed 2 for PWXSE 9.......................................................................................
Explanation and notes 11...........................................................................................
1. Pairing 11.............................................................................................................
2. Visibility 11...........................................................................................................
3. Reset module 12..................................................................................................
4. Divide | freeze and maximum speed 12..............................................................
5. Pin 12...................................................................................................................
6. Tuning activation 12.............................................................................................
7. Total distance and information on the removal of the module 13........................
8. E-bike display offset 13........................................................................................
Hardware - Module 14................................................................................................
4. RedPed 2 for PWXSE 14.....................................................................................
5. Functionality 15....................................................................................................
Attachment 16............................................................................................................

E Bike Tuning App

2. INFORMATION ON ROAD TRAFFIC REGULATIONS AND

DISCLAIMER

The use of the RedPed 2 module is only allowed in private, gated areas, for example for

sports or marketing purposes. It manipulates the maximum speed settings of your

pedelec or s-pedelec, set by the manufacturer, which is prohibited by the road/streets’

laws. The RedPed 2 module manipulates the speed sensor signal and therefore the total

distance display of your e-bike. The use of the RedPed 2 module falls under own risk.

No liability is assumed for any present and future damage caused to property and/or

persons by the installation/removal and/or use. The guarantee of the e-bike is

completely extinguished by the use or application of the RedPed 2, because the

installation or use represents a modification or manipulation of the e-bikes (pedelec or s-

pedelec). If your e-bike has an operating license, it will extinguish. Always drive carefully,

use protective clothing such as helmets or protectors and do not bring yourself and

others in danger. Talk beforehand with your insurance company, so that all areas of your

actions are protected. Please note further that other statutory provisions apply in other

countries. This is especially true when you are driving with the e-bike in your holidays.

Please inform yourself beforehand about possible restrictions and keep principles in

mind.

3. COMPATIBILITY

Module

Motor

Display

Year

RedPed 2 for PWXSE FW1.0

Yamaha PW-X, PW-SE

Display A, Display C

Ab 2019

E Bike Tuning App

4. ANDROID

The app is compatible with the following modules:

PumaPed 1, PumaPed 2, BlackPed, BlackPed+, GreenPed, BluePed, RedPed, RedPed 2

The app works with Android from version 7.0.

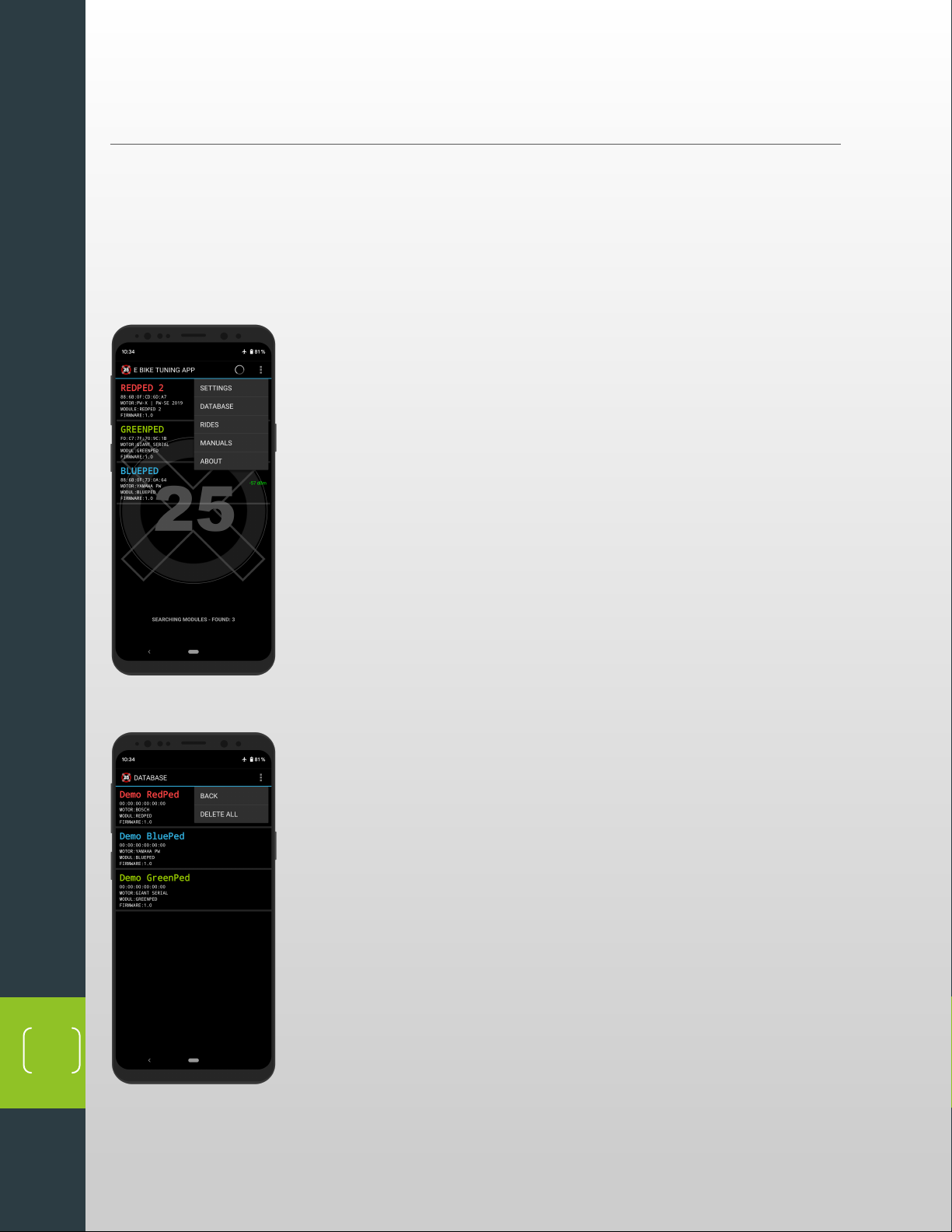

4.1. START SCREEN

4.1.1. Module search

After launching the app scans for nearby modules. If a

module is found, the name, UUID, motor, module and firmware version

are displayed.

If the signal of a module is no longer received, it will be removed from

the list.

The dBm value indicates the signal strength.

Each module has a unique UUID.

With a tap on a found module, the app connects to the module and

opens the appropriate screen.

4.1.2. Database

The app creates an image for each module it connects to and stores it in

a database. The image is refreshed each time before the app is closed.

When the app is reinstalled, demo modules are created that display the

module's screen when the app is connected. Individual modules can be

deleted with a long tap, in the options menu all modules can be deleted.

E Bike Tuning App

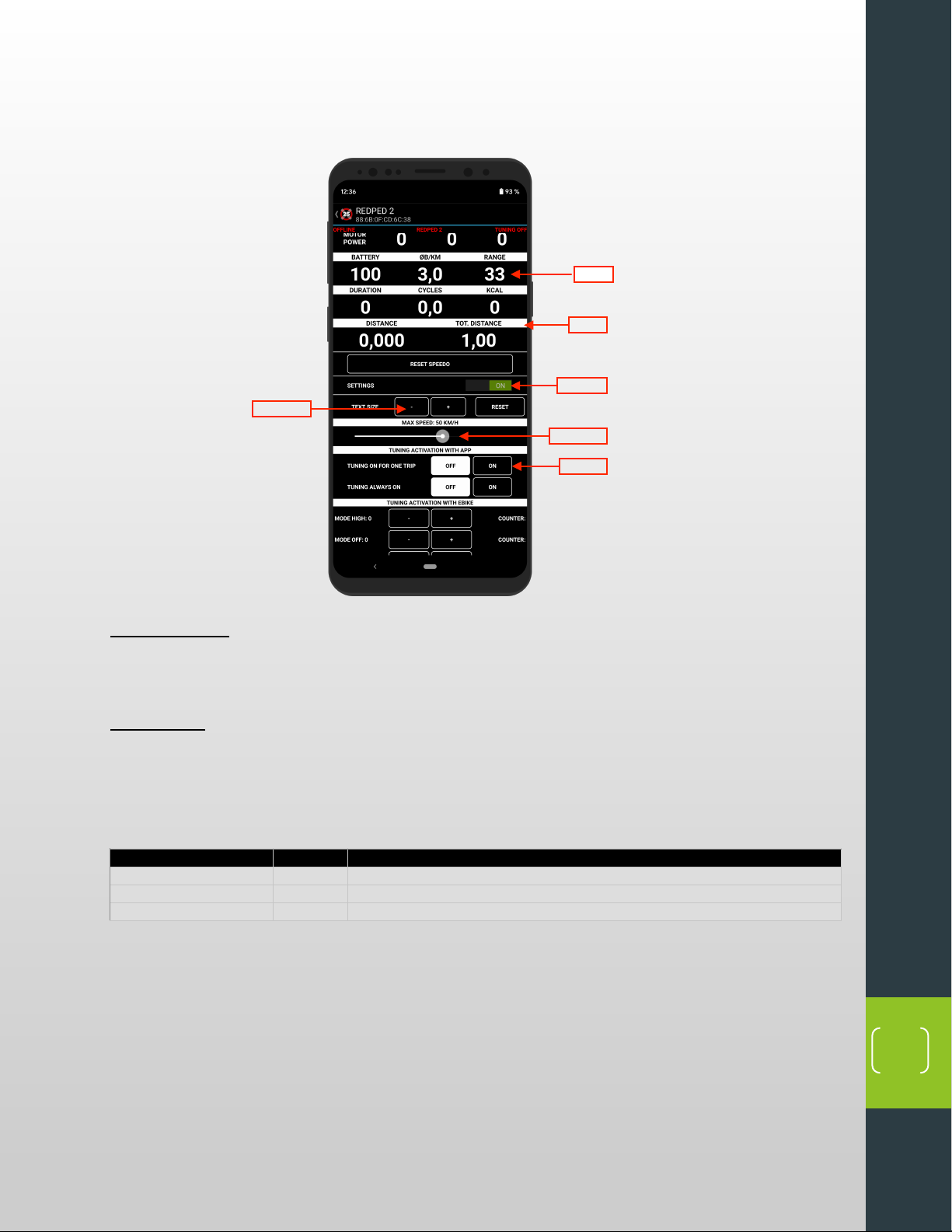

4.2. OPTICAL SPEEDOMETER SETTINGS

Change colors

A quick tap on the label changes the color of the underlying value. A tap on „CURRENT,

„AVERAGE“ or „MAXIMUM“ will change the color of the column below. A tap on „SPEED“,

„RPM", „TORQUE“, „USER POWER“ or „MOTOR POWER“ changes the color of the line.

Hide values

A long tap on the label makes the label disappear and the associated value. A long tap on „STD“,

„CURRENT“, „AVERAGE“ or „MAXIMUM“ causes the label and the underlying column to

disappear. A long tap on „SPEED“, „RPM“, „TORQUE“, „USER POWER“ or „MOTOR POWER“

makes the label and the line disappear

All settings are stored permanently and can also be made offline in the database.

Label

Value

Button

Switch

Stepper

Slider

LABEL

TYPE

FUNCTION

SETTINGS

Switch

Shows or hides the area with the settings.

TEXT SIZE

Stepper

Gradually changes the font size of the speedometer.

RESET

Button

Resets all optical settings of the speedometer.

E Bike Tuning App

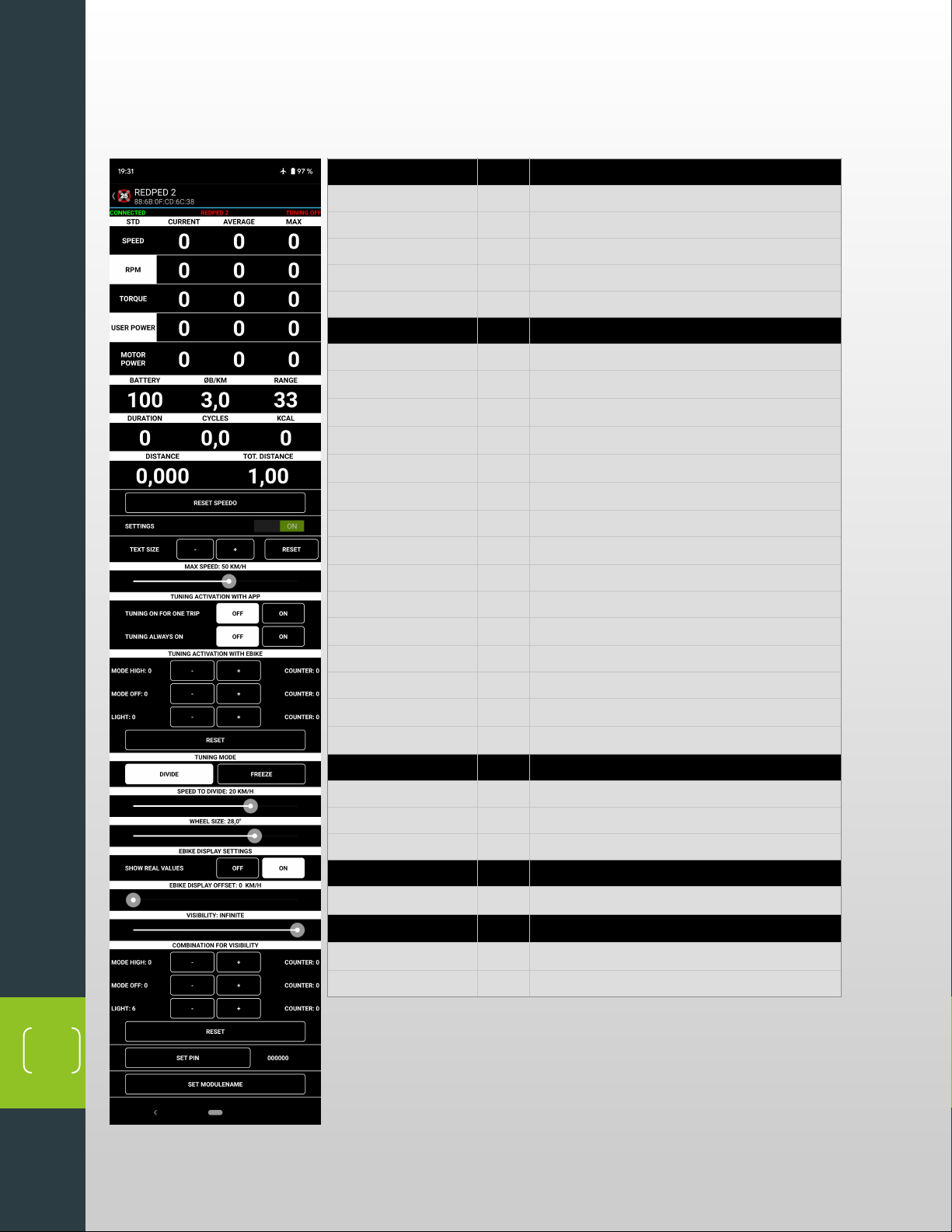

4.3. REDPED 2 FOR PWXSE

LABEL

TYPE

FUNCTION

BACK

Button

Disconnects and starts the search screen.

REDPED

Label

Name of the connected module.

88:3F:4A:E0:C2:EF

Label

Unique ID of the module.

CONNECTED

Label

Displays the current connection status to the module.

TUNING OFF

Label

Shows if the tuning is activated.

STD

Label

Support level of the e-bike.

SPEED

Label

Shows in the line the current, middle and maximum

speed in km/h.

RPM

Label

Displays in the line the current, average and maximum

speed of the crank. (Revolutions per minute)

TORQUE

Label

Shows in the line the current, average and maximum

torque of the crank in Nm.

USER POWER

Label

Displays in the row the current, middle and maximum

user power in Watts.

MOTOR POWER

Label

Displays in the line the current, average and maximum

motor power in percent.

BATTERY

Label

Battery charge level of the e-bike in percent.

ØB/KM

Label

Battery discharge per KM in percent, averaged over

the last 10 km. A long tap sets the value back to 3.0.

RANGE

Label

Calculated range of RedPed.

DURATION

Label

Travel time in minutes.

BATTERY CYCLES

Label

Number of battery cycles, with a long tap, the value

can be changed.

KCAL

Label

Burned KCAL of the rider.

TRIP DISTANCE

Label

Currently driven route.

TOTAL DISTANCE

Label

Total distance of the module, can be changed with a

long tap by entering a new value.

SPEEDO RESET

Button

A tap resets the entire speedometer, except battery

cycles and total distance.

SETTINGS

Switch

Shows or hides the area with the settings.

TEXT SIZE

Stepper

Gradually changes the font size of the speedometer.

RESET

Button

Resets all optical settings of the speedometer.

MAX: 50 KM/H

Slider

Sets the theoretically maximum possible speed of the

e-bike when the tuning is active.

TUNING AKTIVIERUNG

WITH APP

TUNING ON FOR ONE

RIDE

Button

Tuning activated until the e-bike is switched off.

TUNING ALWAYS ON

Button

Tuning activated, even when the e-bike is restarted.

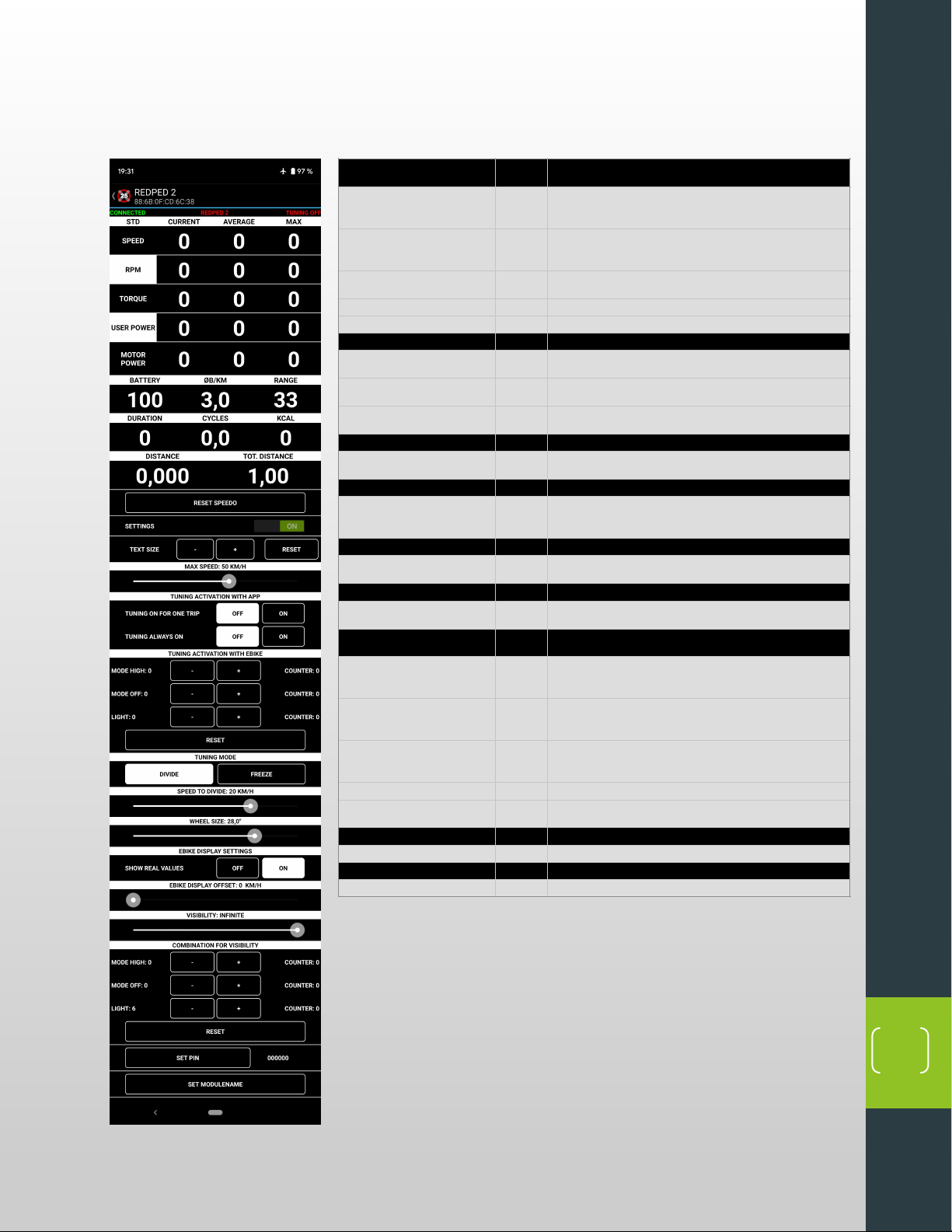

E Bike Tuning App

TUNING AKTIVIERUNG

WITH EBIKE

MODE HIGH

Stepper

Sets how often you need to toggle between the e-

bike support levels "STD" and "HIGH" to enable

tuning. Maximum number 10.

MODE OFF

Stepper

Sets how often you need to toggle between the e-

bike support level "OFF" and "ECO +" to activate the

tuning. Maximum number 10.

LIGHT

Stepper

Sets the number of times the light button must be

pressed to activate the tuning. Maximum number 10.

COUNTER: 0

Label

Counts the rider’s input.

RESET

Button

Resets all steppers to 0.

TUNING MODE

DIVIDE

Button

Divides the speed internally for the engine control

unit.

FREZE

Button

Freezes the speed internally for the engine control

unit.

SPEED TO DIVIDE

Slider

The speed is internally divided at the set value or

kept constant.

WHEEL SIZE

Slider

Sets the wheel diameter in inches. Setting applies to

the module and not to the e-bike.

SHOW REAL VALUES

Button

Here you can set whether the e-bike display shows

the values of the e-bike control unit or the

manipulated values of the RedPed.

EBIKE DISPLAY OFFSET

Slider

Decreases the speed display by the e-bike display by

the set value.

VISIBILITY

Slider

Sets how long a smartphone can connect to the

module after turning on the e-bike.

COMBINATION FOR

VISIBILITY

MODE HIGH

Stepper

Sets how often does it have to switch back and forth

between the e-bike support level "STD" and "HIGH"

to make the module visible. Maximum number 10.

MODE OFF

Stepper

Sets how often does it have to switch back and forth

between the e-bike support level "OFF" and "ECO +"

to make the module visible. Maximum number 10.

LIGHT

Stepper

Sets the number of times the light button must be

pressed to make the module visible. Maximum

number 10.

COUNTER: 0

Label

Counts the rider’s input.

RESET

Button

Set the stepper MODE HIGH to 0, MODE OFF to 0

and LIGHT to 6.

SET PIN

Button

Here the 6-digit PIN code can be entered.

SETZE MODULNAME

Button

Here you can enter the 9-digit module name.

E Bike Tuning App

5. IOS

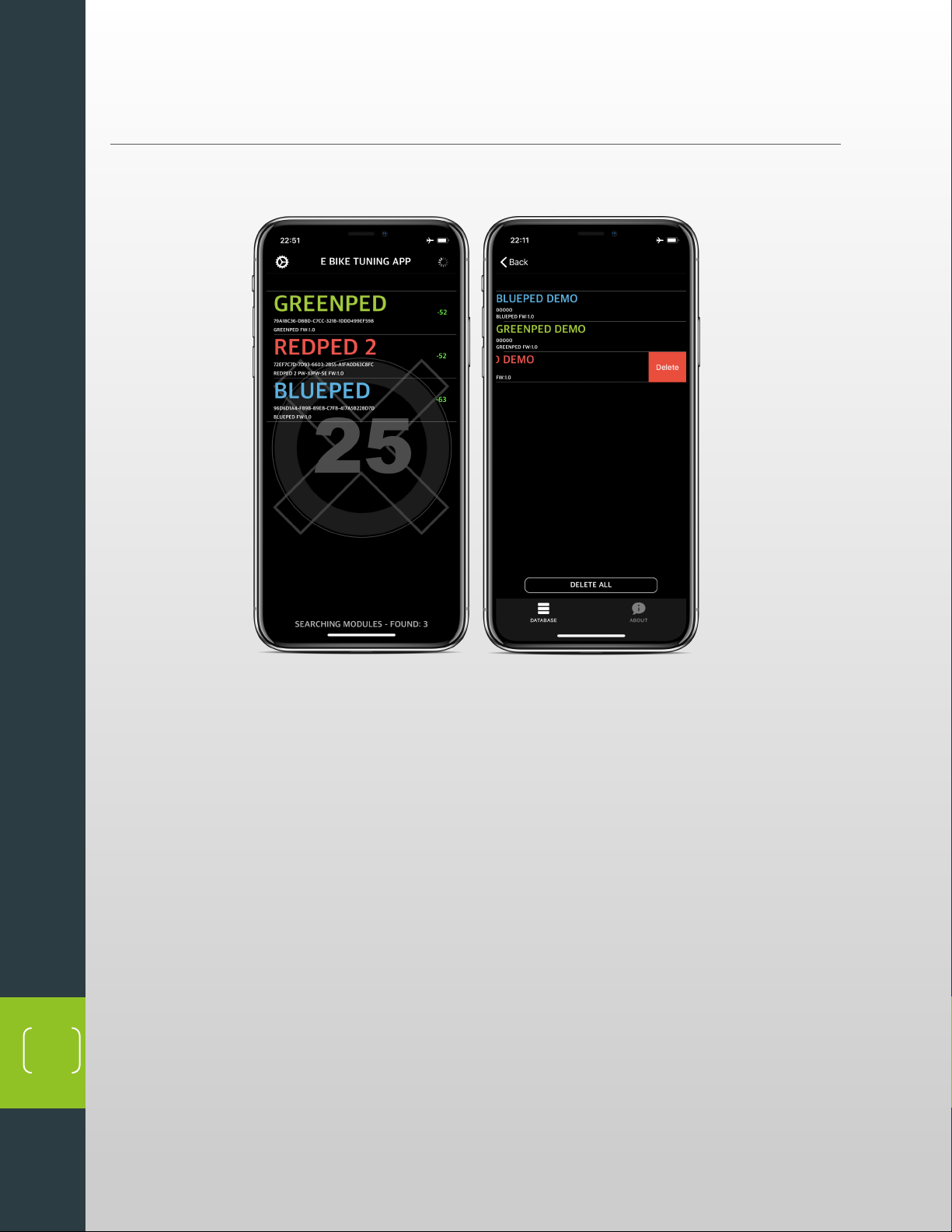

5.1. START SCREEN

After launching, the app will search for modules nearby. If a module is found, the name, UUID,

module and firmware version are displayed.

If the signal of a module is no longer received, it will be removed from the list after 3 seconds.

The dBm value indicates the signal strength.

Each module has a unique UUID. However, the UUID does not match the one displayed in the

Android app.

Clicking on the gear symbol will bring you to the database screen, where the last received

values of the modules with which the app was connected are saved.

When you first start the app demo modules are created, you can click to see the app in the

connected state, if you have no module. You can delete modules by wiping from right to left.

E Bike Tuning App

5.2. OPTICAL SPEEDOMETER SETTINGS

Change colors

A quick tap on the label changes the color of the underlying value. A tap on „CURRENT,

„AVERAGE“ or „MAXIMUM“ will change the color of the column below. A tap on „SPEED“,

„RPM", „TORQUE“, „USER POWER“ or „MOTOR POWER“ changes the color of the line.

Hide values

A long tap on the label makes the label disappear and the associated value. A long tap on „STD“,

„CURRENT“, „AVERAGE“ or „MAXIMUM“ causes the label and the underlying column to

disappear. A long tap on „SPEED“, „RPM“, „TORQUE“, „USER POWER“ or „MOTOR POWER“

makes the label and the line disappear All settings are stored permanently and can also be

changed offline in the database.

It can be zoomed in into the speedometer.

Label

Value

Button

Switch

Stepper

Slider

LABEL

TYPE

FUNCTION

SETTINGS

Switch

Shows or hides the area with the settings.

TEXT SIZE

Stepper

Gradually changes the font size of the speedometer.

RESET

Button

Resets all optical settings of the speedometer.

E Bike Tuning App

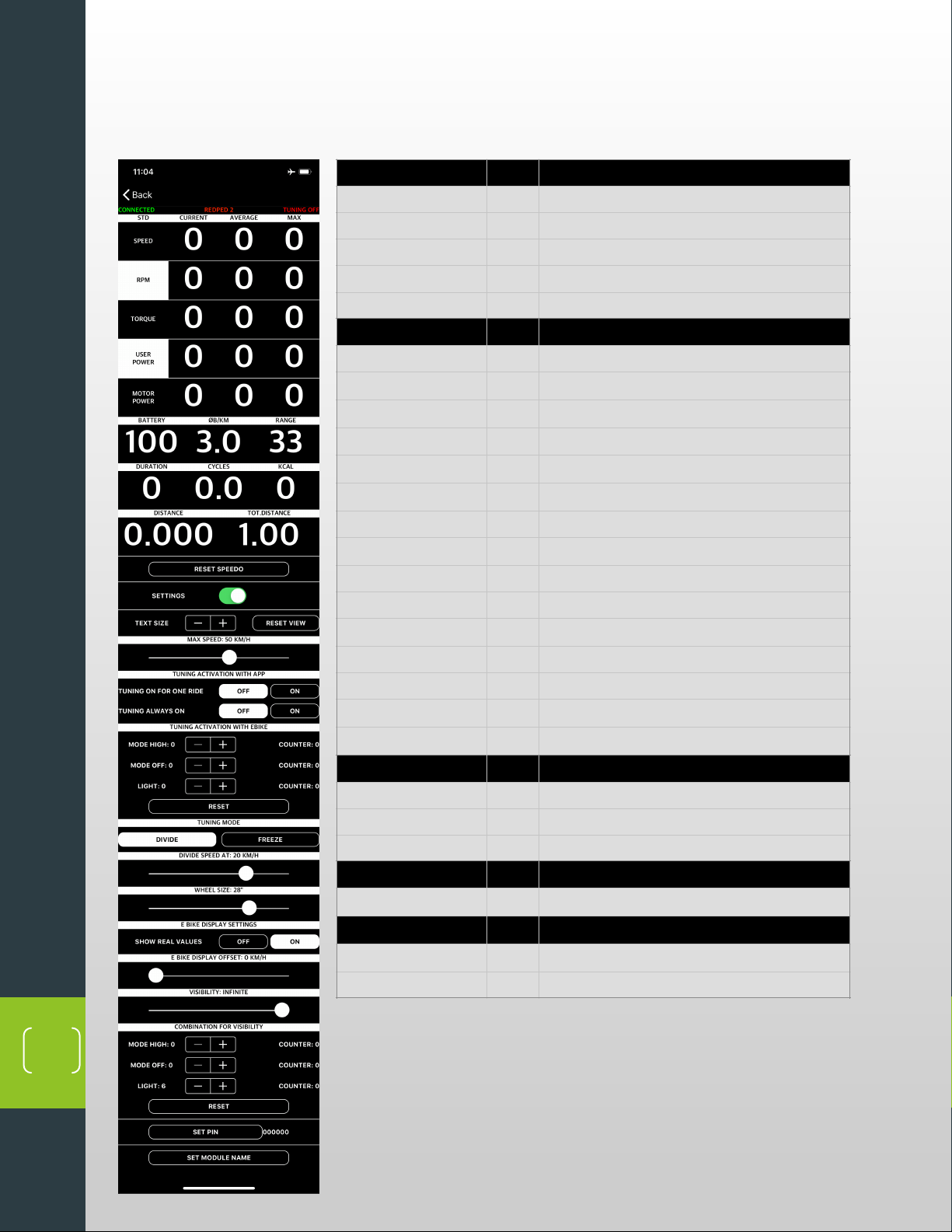

5.3. REDPED 2 FOR PWXSE

LABEL

TYPE

FUNCTION

BACK

Button

Disconnects and starts the search screen.

REDPED

Label

Name of the connected module.

88:3F:4A:E0:C2:EF

Label

Unique ID of the module.

CONNECTED

Label

Displays the current connection status to the module.

TUNING OFF

Label

Shows if the tuning is activated.

STD

Label

Support level of the e-bike.

SPEED

Label

Shows in the line the current, middle and maximum

speed in km / h.

RPM

Label

Displays in the line the current, average and maximum

speed of the crank. (Revolutions per minute)

TORQUE

Label

Shows in the line the current, average and maximum

torque of the crank in Nm.

USER POWER

Label

Displays in the row the current, middle and maximum

driver power in Watts.

MOTOR POWER

Label

Displays in the line the current, average and maximum

motor power in percent.

BATTERY

Label

Battery charge level of the e-bike in percent.

ØB/KM

Label

Battery discharge per KM in percent, averaged over

the last 10 km. A long tap sets the value back to 3.0.

RANGE

Label

Calculated range of RedPed.

DURATION

Label

Travel time in minutes.

BATTERY CYCLES

Label

Number of battery cycles, with a long tap, the value

can be changed.

KCAL

Label

Burned KCAL of the rider.

TRIP DISTANCE

Label

Currently driven route.

TOTAL DISTANCE

Label

Total mileage of the module, can be changed with a

long tap by entering a new value.

SPEEDO RESET

Button

A tap resets the entire speedometer, except battery

cycles and total distance.

SETTINGS

Switch

Shows or hides the area with the settings.

TEXT SIZE

Stepper

Gradually changes the font size of the speedometer.

RESET

Button

Resets all optical settings of the speedometer.

MAX: 50 KM/H

Slider

Sets the theoretically maximum possible speed of the

e-bike when the tuning is active.

TUNING AKTIVIERUNG

WITH APP

TUNING ON FOR ONE

RIDE

Button

Tuning activated until the e-bike is switched off.

TUNING ALWAYS ON

Button

Tuning activated, even when the e-bike is restarted.

Table des matières

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
