Blackmagicdesign UltraStudio Pro Manuel utilisateur

Operation Manual

UltraStudio Pro

Windows™

April 2011

USB 3.0

Contents

UltraStudio Pro

How to Install

Installation 5

Product Diagram 5

Before Connecting UltraStudio to your USB 3.0 computer 6

Connecting UltraStudio Pro 7

Installing Desktop Video software 8

Software

Blackmagic Software 10

Setting Blackmagic Preferences 10

Blackmagic Media Express 18

Blackmagic Disk Speed Test 29

Disk arrays 29

Third Party Applications 30

Adobe Premiere Pro 30

Adobe After Effects 33

Adobe Photoshop 34

Sony Vegas Pro 9 35

Helpful Information

Support 37

USB 3.0 Frequently Asked Questions 37

Uncompressed data rates for capture and playback 39

Troubleshooting 40

04 41

Connection Diagrams

Betacam SP analog deck 42

SDI digital deck 43

Sony HDCAM SR deck in 4:2:2 44

Composite monitor 45

YUV component monitor 46

Connecting to an HDTV 47

HDMI Workﬂow 48

Warranty

Warranty Terms and Conditions 50

Welcome

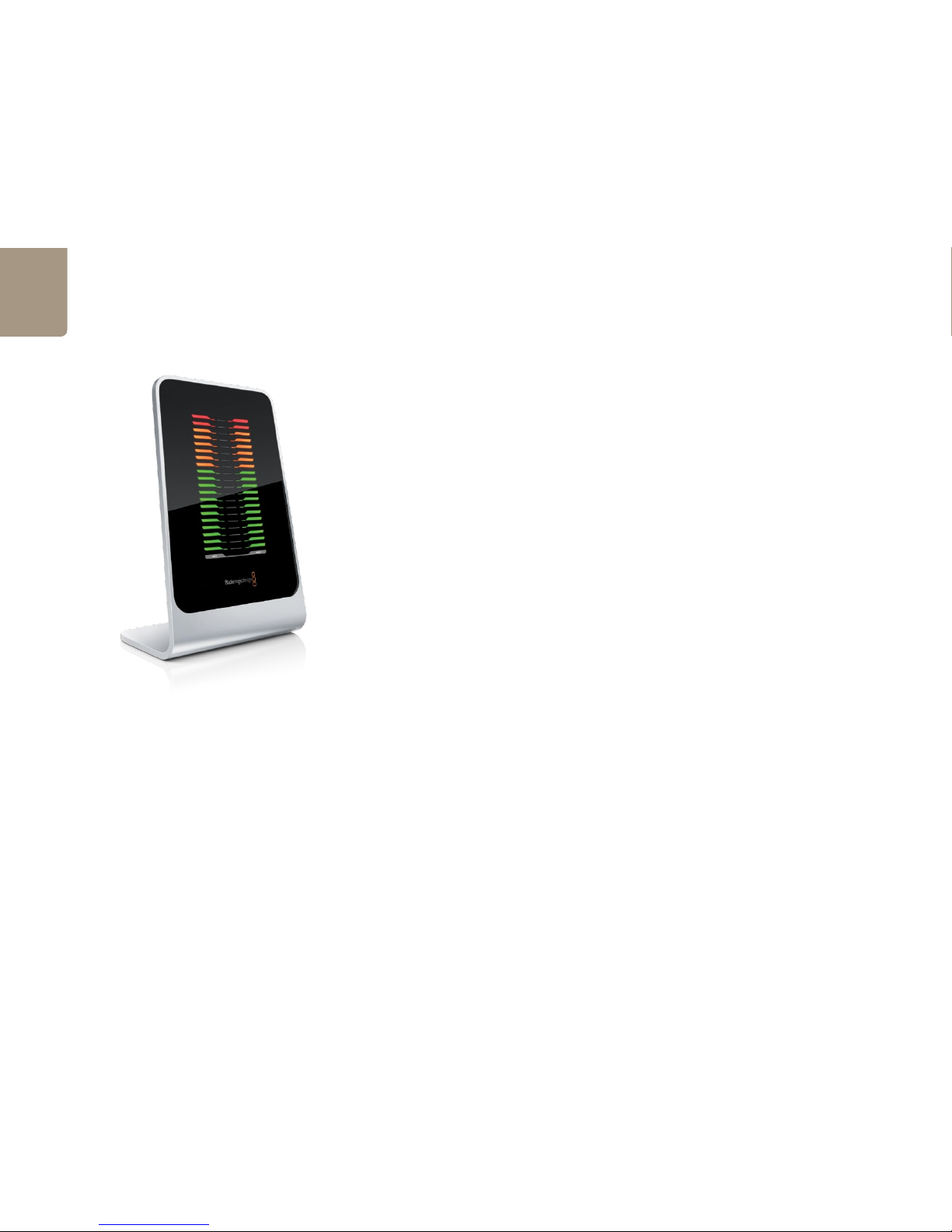

Welcome to UltraStudio Pro.

We hope you share our dream for the television industry to become a truly creative industry by allowing

anyone to have access to the highest quality video.

Blackmagic UltraStudio Pro is the ﬁrst uncompressed editing solution that connects via the new

SuperSpeed USB (USB 3.0) found on the latest computers. USB 3.0 is easy and you can just plug in your

UltraStudio Pro. Previously high end television and post production required investment in millions of

dollars of hardware. However with UltraStudio Pro and USB 3.0, even 10 bit uncompressed high deﬁnition

TV is now easily affordable.

We hope you get years of use from your new UltraStudio Pro and have fun working with some of the world’s

hottest television and design software!

This instruction manual should contain all the information you’ll need to connect UltraStudio Pro to your

computer and video hardware. As UltraStudio Pro uses uncompressed video and the data rates are quite

high, you’ll need fast disk storage.

We think it should take you approximately 5 minutes to complete installation. Before you connect

UltraStudio Pro, please check our website at www.blackmagic-design.com and click the support page

to download the latest updates to this manual and UltraStudio Pro driver software. Lastly, please register

your UltraStudio Pro when downloading software updates. We would love to keep you updated on new

software updates and new features for your UltraStudio Pro. Perhaps you can even send us your latest show

reel of work completed on your UltraStudio Pro and any suggestions for improvements to the software.

We are constantly working on new features and improvements, so we would love to hear from you!

Grant Petty

CEO Blackmagic Design

How to Install

Installation

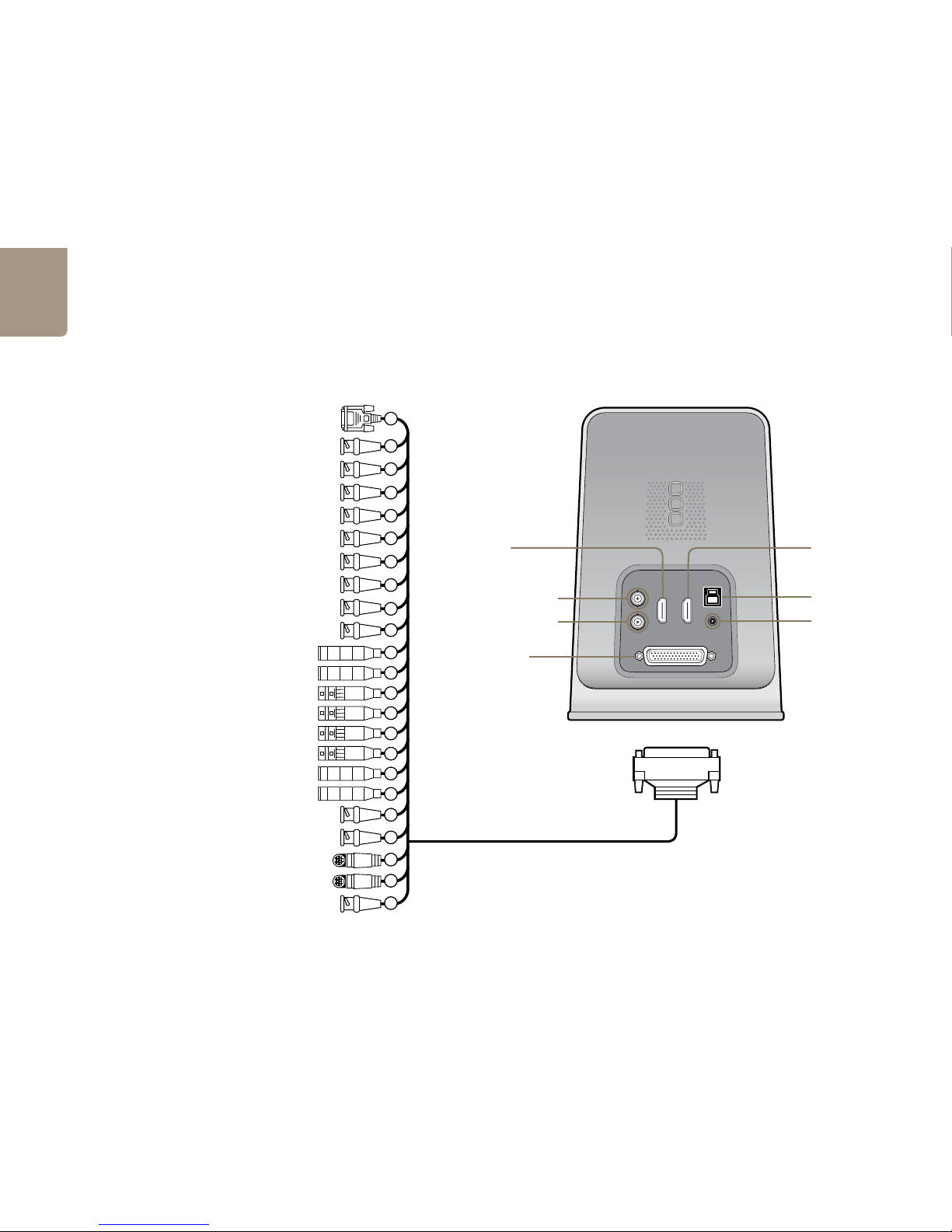

3G/HD/SD-SDI Output USB 3.0

3G/HD/SD-SDI Input

Breakout cable

connector

Power

2. RS-422 Deck Control

3. R-Y Out

4. Y Out

5. B-Y Out

6. Ref In

7. R-Y In

8. Y In

9. B-Y In

10. AES / EBU Out CH1&2

11. AES / EBU In CH1&2

12. Analog Audio Out 1

16. Analog Audio In 3

14. Analog Audio In 1

18. Analog Audio Out 3 or AES/EBU CH3&4 Out

20. Composite In

22. S-Video In

13. Analog Audio Out 2

17. Analog Audio In 4

15. Analog Audio In 2

19. Analog Audio Out 4 or AES/EBU CH5&6 Out

21. Composite Out

23. S-Video Out

24. Standard Deﬁnition SDI Out

UltraStudio Pro

HDMI Input HDMI Output

UltraStudio Pro Breakout Cable

Installation

Before Connecting UltraStudio Pro to your USB 3.0 computer

IMPORTANT INFORMATION

USB 3.0 hardware requires the latest versions of USB 3.0 software drivers and ﬁrmware to enable the

high speed performance required for high deﬁnition video capture and playback.

While most new motherboards and computers are now shipping with suitable versions of USB 3.0

software drivers and ﬁrmware, it is very important to ensure you have installed the latest versions

before installing your Blackmagic Design USB 3.0 product. Please download the latest USB 3.0 drivers

and ﬁrmware, for your USB 3.0 motherboard or computer, from the vendor’s website.

Installation

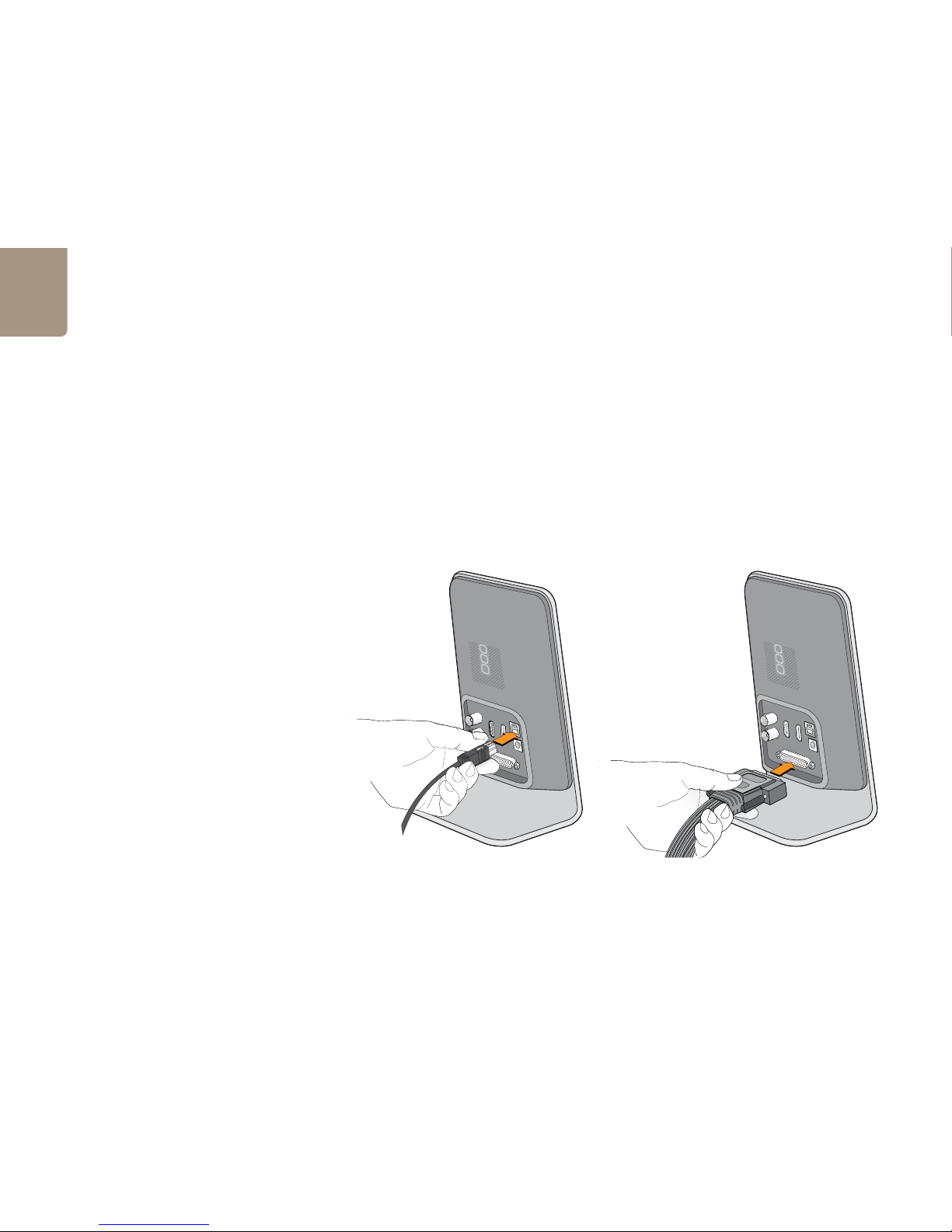

Connect the included SuperSpeed USB 3.0 cable to

UltraStudio Pro and to your computer.

Connect the professional breakout cable to UltraStudio Pro.

Connecting UltraStudio Pro

1. Connect the included power supply to UltraStudio Pro. Switch on the power.

2. Use the included SuperSpeed USB 3.0 cable to connect UltraStudio Pro directly to a dedicated

USB 3.0 port on your computer.

3. If UltraStudio Pro software has previously been installed and offers to update the ﬁrmware, click

Update to run the update. When the ﬁrmware update is ﬁnished, the onscreen instructions will

prompt you to power the UltraStudio Pro off and on.

UltraStudio Pro is now ready for use. The professional breakout cable can be connected to UltraStudio Pro

at any time using the multi-pin connector. The connection diagrams toward the end of this manual show

how to connect UltraStudio Pro to many kinds of video equipment.

Installation

Installing Desktop Video software

Contents

The Desktop Video software installer will install the following components:

Blackmagic Desktop Video drivers

Blackmagic Design Control Panel

Blackmagic Media Express application

Blackmagic AVI and QuickTime™codecs

Blackmagic Disk Speed Test

Adobe®presets and plug-ins

Desktop Video software

1. The CD supplied with UltraStudio Pro contains the Desktop Video software. Before you install,

ensure you have the very latest driver. Visit www.blackmagic-design.com/support

2. Open the “Desktop Video” folder and launch the “Desktop Video” application.

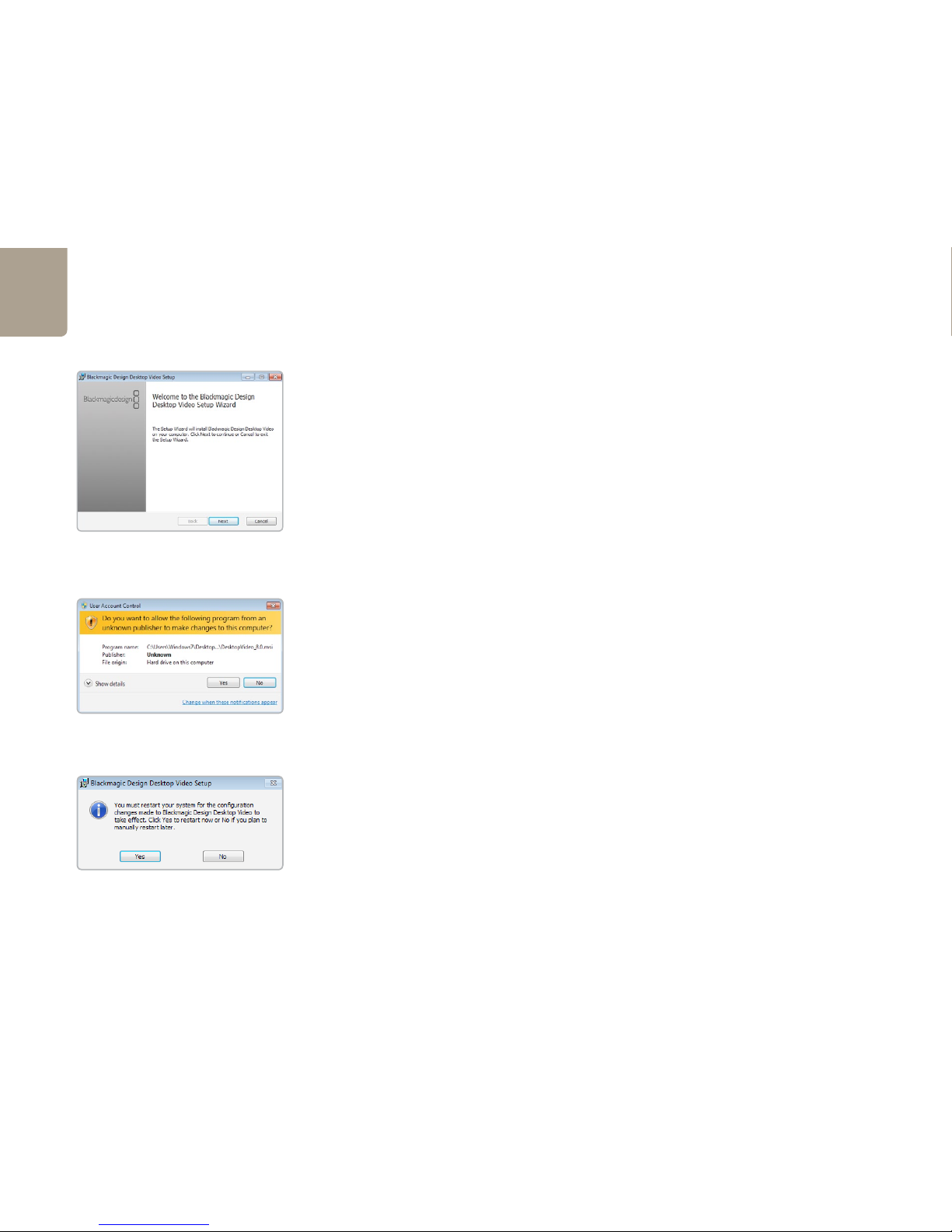

3. The drivers will now be installed on your system. An alert will appear: “Do you want to allow

the following program from an unknown publisher to make changes to this computer?”

Click Yes to continue.

4. You will see a dialog bubble saying “found new hardware” and the hardware wizard will appear.

Select “install automatically” and the system will ﬁnd the required Desktop Video drivers. You will

then receive another dialog bubble saying “your new hardware is ready for use.”

5. Now restart your machine to enable the new software drivers.

Automatic ﬁrmware updating

After your computer has restarted, the software will check the UltraStudio Pro hardware to see what

ﬁrmware the card contains. If the ﬁrmware version does not match the software version, Desktop Video will

offer to update the ﬁrmware. This is automatic and all you need to do is click OK to start the update. After

the ﬁrmware has updated, restart your computer to complete the process.

Programmable ﬁrmware can provide new features, compatibility with new hardware and support for

new formats.

Click “Yes”.

Desktop Video Setup Wizard

Restart your PC!

Software

Blackmagic Software

Setting Blackmagic Preferences

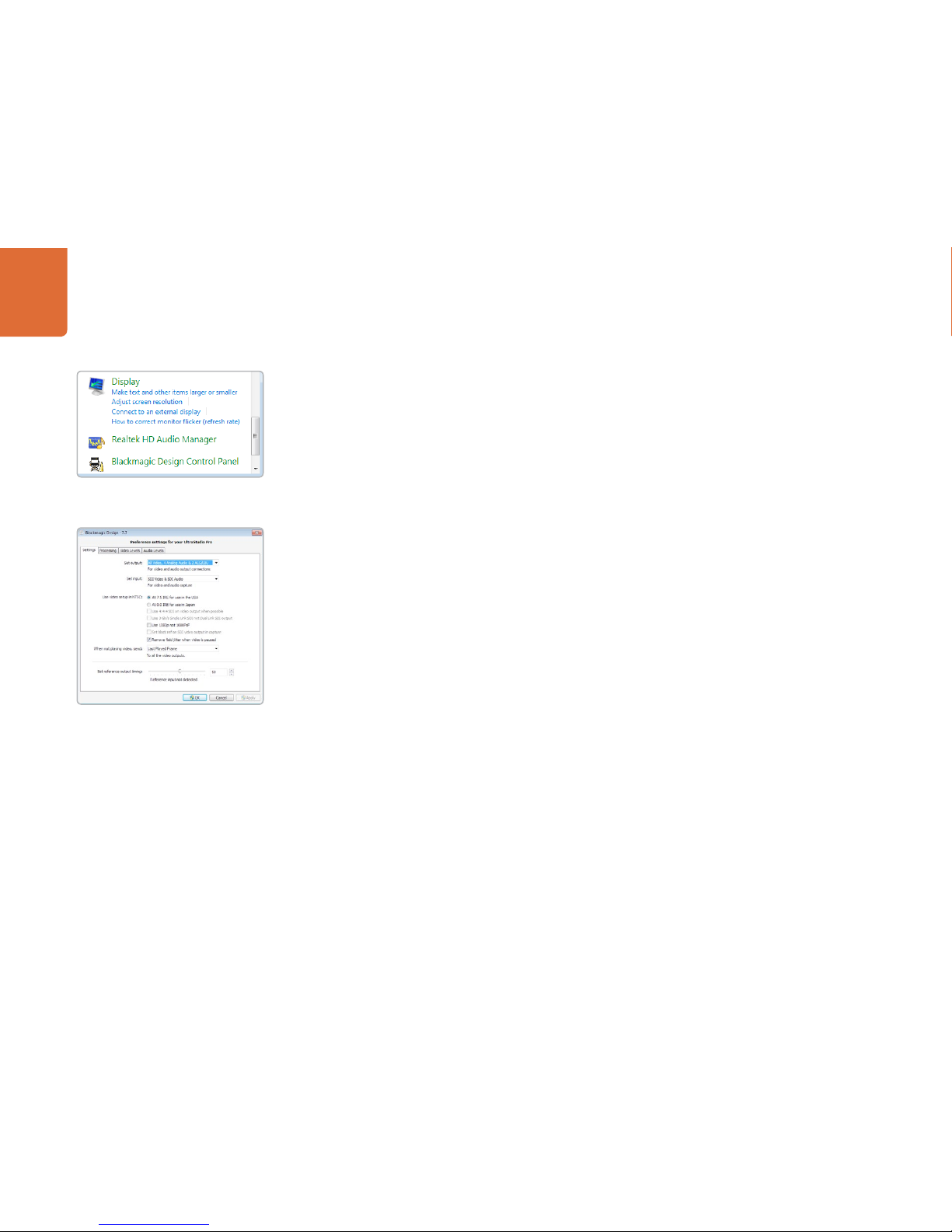

UltraStudio Pro preferences are located in the Blackmagic Design Control Panel. The Blackmagic Design

Control Panel is used with all UltraStudio Pro, DeckLink, Multibridge and Intensity hardware. Any preferences

which are not applicable to UltraStudio Pro will be grayed out and unavailable. The following preferences

contain options for setting up your UltraStudio Pro.

Settings

Input and Output connections

NTSC Setup

1080p/1080PsF switch

Remove Field Jitter

Output black/last played frame switch

Reference Output Timing (Genlock)

Processing

Output processing

Input processing

VITC Reader A Frame - 3:2 Pulldown Removal

VANC input

Video Levels

Calibrate Analog Video In

Calibrate Analog Video Out

Betacam/SMPTE level switch

Audio Levels

HiFi/Professional Audio Levels

Analog Audio Input Levels

Analog Audio Output Levels

AES/EBU Input Reference Level

AES/EBU Output Reference Level

Blackmagic Design Control Panel

Blackmagic Design Control Panel.
