Blackbird 15650 Manuel utilisateur

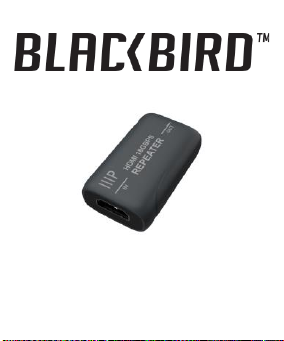

4K Pro HDMI® 2.0 Repeater

P/N 15650

User's Manual

SAFETY WARNINGS AND

GUIDELINES

Please read this entire manual before using this

device, paying extra attention to these safety

warnings and guidelines. Please keep this manual

in a safe place for future reference.

•This device is intended for indoor use only.

Do not expose this device to water or

moisture of any kind.

•Do not expose this device to excessive

vibration or extreme force, shock, or

fluctuations in temperature or humidity.

•Do not expose this device to excessively

high temperatures.

•Clean using a soft, dry cloth only. Do not use

chemical cleaners, solvents, or detergents.

For stubborn deposits, moisten the cloth

with warm water.

•This device has no user serviceable parts. Do

not attempt to open, service, or modify this

device.

INTRODUCTION

This Blackbird™ 4K Pro HDMI® 2.0 Repeater

amplifies and equalizes an HDMI signal, allowing

it to be extended further than otherwise

possible. It can extend 4K@60Hz 4:4:4 signals up

to 26 feet (8 meters), 4K@60Hz 4:2:0 up to 49

feet (15 meters), or 1080p@60Hz up to 65 feet (20

meters). It provides up to 18Gbps bandwidth and

supports Clock Data Recovery (CDR) to ensure no

signal loss.

FEATURES

•Complies with the HDMI® 2.0, HDCP™ 2.2,

and DVI™ 1.0 standards

•Provides 18Gbps video bandwidth

•Supports resolutions up to 4K@60Hz 4:4:4

•Supports HLG, HDR 10, HDR 10+, and Dolby

Vision™

•Can extend 4K@60Hz 4:4:4 signals up to 26

feet (8 meters), 4K@60Hz 4:2:0 up to 49

feet (15 meters), or 1080p@60Hz up to 65

feet (20 meters)

•Built-in TMDS® equalization and Clock Data

Recovery (CDR)

•Bus powered - no external power required

ONLINE SUPPORT

Monoprice is pleased to provide free online

support. For order related issues, contact the

Customer Service department through the Live

Chat link on our website www.monoprice.com or

via email at [email protected]

For technical issues, contact the Technical

Support department through the online chat

button on our website www.monoprice.com or

by sending an email to [email protected]

Check the website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents

to ensure you have all the items listed below. If

anything is missing or damaged, please contact

Monoprice Customer Service for a replacement.

•1x HDMI® 2.0 Repeater

•1x User's Manual

PRODUCT OVERVIEW

1. IN: HDMI® port for connecting the video

source device.

2. OUT: HDMI port for connecting the video

display.

SAMPLE CONNECTION

DIAGRAM

SPECIFICATIONS

P/N

15650

Maximum

Resolution

4K@60Hz YCbCr

4:4:4

HDMI® Version

2.0

HDCP™ Versions

2.2 / 1.x

Video Bandwidth

18Gbps

Supported Color

Depths

1080p@60Hz: 8-bit,

10-bit, 12-bit

4K@60Hz 4:4:4:

8-bit

4K@60Hz

4:2:2/4:2:0: 8-bit,

10-bit, 12-bit

Supported Color

Spaces

RGB, YCbCr 4:4:4,

YCbCr 4:2:2/4:2:0
