Black Stone GRIDDLE 1554 Manuel utilisateur

1-AA Battery required for ignitor

(not included)

VIDEO ASSEMBLY

Watch an actual

BLACKSTONE 36” Griddle assembly.

Use a QR code app and scan the QR

code above. You will be taken to the

36” Griddle resource page.

www.blackstoneproducts.com/36griddle

FOR OUTDOOR USE ONLY

! !

WARNING

Please read manual carefully before assembly

Retain this manual for future reference

Owner’s Manual

36” Griddle

Cooking Station

MODEL #1554

Français p. 25

Español p. 49

North Atlantic Imports LLC | 513 West 2500 North, North Logan UT 84341 | www.blackstoneproducts.com

WARNING:

Before proceeding, make certain that you understand the IMPORTANT INFORMATION section of

this manual.

Hazardous re or explosion may result if instructions are ignored.

It is the consumer’s responsibility to see that the griddle is properly assembled, installed, and

maintained. Failure to follow the instructions in this manual could result in bodily injury and/or property

damage.

FOR YOUR SAFETY IF YOU SMELL GAS:

1. Turn off gas supply at tank.

2. Extinguish all open ames; do not operate any electrical appliances.

3. Ventilate the area.

4. Check for leaks as detailed in this manual.

PRECAUTIONS:

1. Leak test all connections after each tank rell.

2. Never check for leaks with a match or open ame.

3. Do not store gasoline or other ammable vapors and liquids in the vicinity of this or any

other appliance.

4. Any LP cylinder not connected for use shall not be stored in the vicinity of this or any

other appliance.

5. Do not store a spare LP-gas cylinder under or near this appliance.

6. Never ll the cylinder beyond 80 percent full.

7. If the information in the above two statements is not followed exactly, a re causing death or

serious injury may occur.

8. Do not operate grill any closer than 36 inches from any combustible construction, including walls

and ceilings.

9. Do not use this appliance under overhead combustible surfaces.

10. The regulator used in this unit is ZHENDAR T3. If this regulator fails, it must be replaced with the

exact model and must only be replaced by a professionally licensed, authorized dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open ame.

3. If odor continues, keep away from the appliance

and immediately call your gas supplier or your

re department.

WARNING

1. Do not store or use gasoline or other ammable

liquids or vapors in the vicinity of this or any

other appliance.

2. An LP cylinder not connected for use shall not be

stored in the vicinity of this or any

other appliance.

! !

DANGER

! !

DANGER

! !

WARNING

! !

WARNING

! !

CALIFORNIA PROPOSITION 65

WARNING

! !

CAUTION

! !

CAUTION

! !

CAUTION

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open ame.

3. If odor continues, keep away from the appliance

and immediately call your gas supplier or your

re department.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or

serious injury.

1. Do not store or use gasoline or other ammable

liquids or vapors in the vicinity of this or any

other appliance.

2. An LP Tank not connected for use shall not be

stored in the vicinity of this or any

other appliance.

WARNING: Be alert to the possibility of serious

bodily injury if the instructions are not followed.

Be sure to read and carefully follow all of

the messages.

WARNING: This product contains chemicals known to

the State of California to cause cancer and birth defects

or other reproductive harm. (California law requires this

warning be given to customers in the State of California.)

For more information: www.watts.com/prop65

Some parts may contain sharp edges, especially as

noted in these instructions.

Wear protective gloves if necessary.

CAUTION: Indicates a potentially hazardous

situation which,if not avoided, may result in minor or

moderate injury.

For residential use only. Do not use for

commercial cooking.

Model Number ________________________

Serial Number _________________________

Date Purchased _______________________

To Installer/Assembler: Leave these instructions with

consumer.

To Consumer: Keep this manual for future reference.

Call the BLACKSTONE Patio Oven Information

Center for Help and Parts

Missing Parts? Assembly Questions? Operation Problems?

Before returning Patio Oven to store, call:

USA (435) 252-3030 | Canada (801) 656-2041

or email us at [email protected]

Installation Safety Precautions

• Use griddle, as purchased, only with LP (propane)

gas and the regulator/valve assembly supplied.

• Griddle installation must conform with local codes,

or in the absence of local codes, with either the

National Fuel Gas Code, ANSI Z223.1/ NFPA 54,

Natural Gas and Propane Installation Code, CSA

B149.1, or Propane Storage and Handling Code,

B149.2, or the Standard for Recreational Vehicles,

ANSI A 119.2/NFPA 1192, and CSA Z240 RV

Series, Recreational Vehicle Code, as applicable.

• Griddle is not for use in or on recreational vehicles

and/or boats.

• This griddle is safety certied for use in the United

States and/or Canada only. Do not modify for use

in any other location. Modication will result in a

safety hazard.

Safety Symbols

The symbols and boxes shown below explain what

each heading means. Read and follow all of the

messages found throughout the manual.

TABLE OF CONTENTS

FOR YOUR SAFETY.............................. 2-3

USE AND CARE.................................. 5-11

ILLUSTRATED PARTS LIST................... 12

HARDWARE........................................... 13

ASSEMBLY........................................ 14-18

CARE AND MAINTENANCE.................. 19

WARRANTY............................................ 20

GRIDDLE CARE & SEASONING...... 21-22

CUSTOMER SERVICE........................... 23

REORDERING PARTS........................... 23

CONTACT INFO..................................... 23

! !

DANGER

• NEVER store a spare LP cylinder under or near the

appliance or in an enclosed area.

• Never ll a cylinder beyond 80% full.

• If the information in the two points above is not fol-

lowed exactly, a re causing death or serious injury

may occur.

• An overlled or improperly stored cylinder is a

hazard due to possible gas release from the safety

relief valve. This could cause an intense re with

risk of property damage, serious injury or death.

• If you see, smell or hear gas escaping,

immediately get away from the LP cylinder and

appliance and call your re department.

LP Tank Removal, Transport And Storage

• Turn OFF all control knobs and LP tank valve. Turn

coupling nut counterclockwise by hand

only - do not use tools to disconnect. Lift LP tank wire

upward off of LP tank collar, then lift LP tank up and

off of support bracket. Install safety cap onto LP tank

valve. Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious

personal injury and/or property damage.

• A disconnected LP tank in storage or being trans-

ported must have a safety cap installed (as shown).

Do not store an LP tank in enclosed spaces such as a

carport, garage, porch, covered patio or other build-

ing. Never leave an LP tank inside a vehicle which

may become overheated by the sun.

• Do not store an LP tank in an area where

children play.

LP Tank

• The LP Tank used with your grill must meet the following

requirements:

• LP Tanks must be constructed and marked in ac-

cordance with specications for LP Tanks of the U.S.

Department of Transportation (DOT) or for Canada,

CAN/CSA-B339, tanks, spheres and tubes for

transportation of dangerous goods. Transport

Canada (TC). See LP Tank collar for marking.

• LP Tank valve must have:

• Type 1 outlet compatible with regulator or grill.

• Safety relief valve.

• UL listed Overll Protection Device (OPD). This OPD

safety feature is identied by a

unique triangular hand wheel. Use

only LP Tanks equipped with this

type of valve.

• LP Tank must be arranged for

vapor withdrawal and include

collar to protect LP Tank valve.

Always keep LP Tanks in upright

position during use, transit

or storage.

LP Tank in upright position for vapor withdrawal

LP (Liqueed Petroleum Gas)

• LP gas is nontoxic, odorless and colorless when

produced.

• For Your Safety, LP gas has been given an odor

(similar to rotten cabbage) so that it can be smelled.

• LP gas is highly ammable and may ignite

unexpectedly when mixed with air.

LP Tank Filling

• Use only licensed and experienced dealers.

• LP dealer must purge new tank before lling.

• Dealer should NEVER ll LP Tank more than 80% of

LP Tank volume. Volume of propane in tank will vary

by temperature.

• A frosty regulator indicates gas overll. Immediately

close LP Tank valve and call local LP gas dealer for

assistance.

• Do not release liquid propane (LP) gas into the

atmosphere. This is a hazardous practice.

• To remove gas from LP Tank, contact an LP dealer

or call a local re department for assistance. Check

the telephone directory under “Gas Companies” for

nearest certied LP dealers.

If “growing” bubbles appear do not use or move the LP

tank. Contact an LP gas supplier or your

re department!

LP Tank Exchange

• Many retailers that sell grills offer you the option of

replacing your empty LP tank through an exchange

service. Use only those reputable exchange companies

that inspect, precision ll, test and certify their tanks.

Exchange your tank only for an OPD safety

feature-equipped tank as described in the “LP Tank”

section of this manual.

• Always keep new and exchanged LP tanks in upright

position during use, transit or storage.

• Leak test new and exchanged LP tanks BEFORE

connecting to grill.

• Place dust cap on cylinder valve outlet whenever the

cylinder is not in use. Only install the type of dust cap on

the cylinder valve outlet that is provided with the cylinder

valve. Other types of caps or plugs may result in leakage

of propane.

LP Tank Leak Test

For your safety

• Leak test must be repeated each time LP tank is

exchanged or relled.

• Do not smoke during leak test.

• Do not use an open ame to check for gas leaks.

• Griddle must be leak tested outdoors in a

well-ventilated area, away from ignition sources such

as gas red or electrical appliances. During leak test,

keep griddle away from open ames or sparks.

• Use a clean paintbrush and a 50/50 mild soap and

water solution. Brush soapy solution onto areas

indicated by arrows in gure below. Leaks are

indicated by growing bubbles.

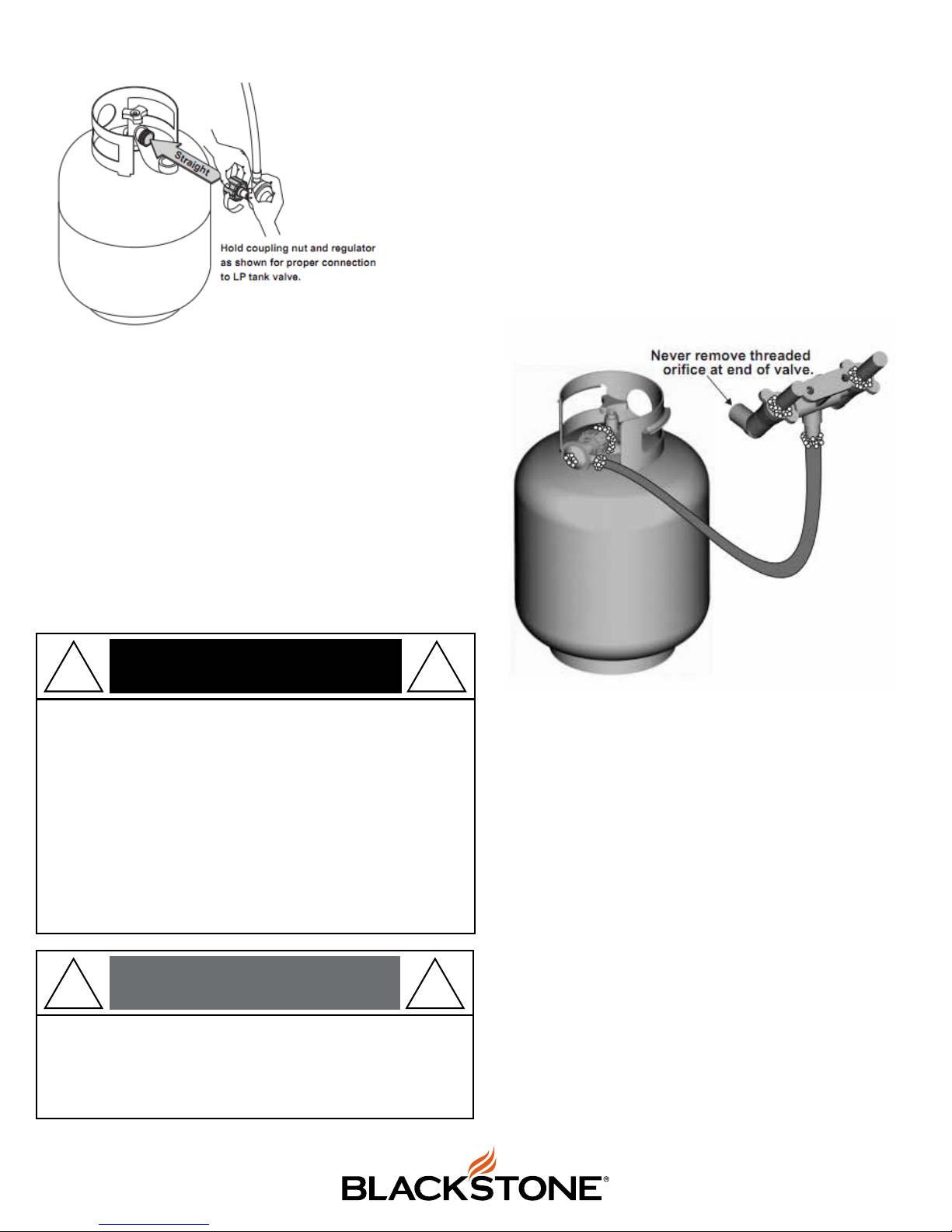

Connecting Regulator To The LP Tank

1. LP tank must be properly secured onto griddle.

(Refer to assembly section.)

2. Turn all control knobs to the OFF position.

3. Turn LP tank OFF by turning OPD hand wheel

clockwise to a full stop.

4. Remove the protective cap from LP tank valve.

Always use cap and strap supplied with valve.

Do not insert a POL transport

plug (plastic part with external

threads) into the Type 1 tank

valve outlet. It will defeat the

Safety Relief Valve feature.

5. Hold regulator and insert

nipple into LP tank valve.

Hand-tighten the coupling nut,

holding regulator in a straight line

with LP tank valve so as not to

cross thread the connection.

Do not use household cleaning agents. Damage

to gas valve/hose/regulator components can result.

! !

WARNING

6. Turn the coupling nut clockwise and tighten to a full

stop. The regulator will seal on the back-check feature in

the LP tank valve, resulting in some resistance. An

additional one-half to three-quarters turn is

required to complete the connection. Tighten by

hand only – do not use tools.

NOTE:

If you cannot complete the connection, disconnect

regulator and repeat steps 5 and 6. If you are still unable

to complete the connection, do not use this regulator!

Call (435) 252-3030 for identical replacement parts.

Leak Testing Valves, Hose and Regulator

1. Turn all griddle control knobs to OFF.

2. Be sure regulator is tightly connected to

LP tank.

3. Completely open LP tank valve by turning OPD

hand wheel counterclockwise. If you hear a

rushing sound, turn gas off immediately. There

is a major leak at the connection. Correct

before proceeding by calling for replacement

parts at (435) 252-3030.

4. Brush soapy solution onto areas where bubbles

are shown in picture below:

5. If “growing” bubbles appear, there is a leak.

Close LP tank valve immediately and retighten

connections. If leaks cannot be stopped

do not try to repair. Call for replacement

parts at (435) 252-3030.

6. Always close LP tank valve after performing

leak test by turning hand wheel clockwise.

! !

DANGER

• Do not insert any tool or foreign objects into the

valve outlet or safety relief valve. You may

damage the valve and cause a leak. Leaking

propane may result in explosion, re, severe

personal injury, or death.

• If a leak is detected at any time, STOP and call

the re department.

• If you cannot stop a gas leak, immediately close

LP tank valve and call LP gas supplier or your

re department!

• Never attempt to attach this grill to the

self-contained LP gas system of a camper trailer

or motor home.

• Do not use grill until leak-tested.

! !

WARNING

Safety Tips

1. Before opening LP cylinder valve, check the coupling nut for tightness.

2. When griddle is not in use, turn off all control knobs and LP cylinder valve.

3. Never move griddle while in operation or still hot.

4. Use long-handled barbecue utensils and oven mitts to avoid burns and splatters.

5. Maximum on side shelf is 10 lbs.

6. The grease tray must be inserted into griddle and emptied after each use. Do not remove grease tray until

grill has completely cooled.

7. Clean griddle often, preferably after each cookout. If a bristle brush is used to clean any of the grill cooking

surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling.

8. If you notice grease or other hot material dripping from grill onto valve, hose or regulator, turn off gas

supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before

continuing. Perform a leak test.

9. Keep ventilation openings in cylinder enclosure (grill cart) free and clear of debris.

10. The regulator may make a humming or whistling noise during operation. This will not affect safety or use

of grill.

11. If you have a griddle problem see the “Troubleshooting Section”.

12. If the regulator frosts, turn off griddle and LP cylinder valve immediately. This indicates a problem with the

cylinder and it should not be used on any product. Return to supplier!

! !

CAUTION

• Do not use water on a grease re. Personal

injury may result. If a grease re develops,

turn knobs and LP cylinder off.

• Do not leave grill unattended while

preheating or burning off food residue on

HI. If grill has not been regularly cleaned, a

grease re can occur that may damage

the product.

Ignitor Lighting the Griddle

Do not lean over grill while lighting.

1. In order for the igniter switch to work,

please make sure the battery is properly

installed.

2. Turn OFF gas burner control valves.

3. Turn ON gas at LP cylinder.

4. To ignite, push and turn the IGNITION

BURNER knob to MAX.

5. Push and hold ELECTRONIC IGNITION

button until the IGNITION BURNER lights.

6. If ignition does NOT occur in 5 seconds, turn

the burner controls OFF, wait 5 minutes and

repeat the lighting procedure.

7. To ignite remaining burners, turn each

burner knob in sequence to the position,

starting with the burner closest to the

IGNITION BURNER.

8. Once each burner has ignited, turn knobs to

desired setting.

Turn controls and gas source or tank OFF

when not in use.

! !

WARNING

! !

CAUTION

If ignition does NOT occur in 5 seconds,

turn the burner controls OFF, wait 5

minutes and repeat the lighting

procedure. If the burner does not ignite

with the valve open, gas will continue to

ow out of the burner and could

accidently ignite with risk of injury.

Burner Flame Check

• Light burners, rotate knobs from to low. You

should see a smaller ame in low position than

seen on. Perform burner ame check on

side burner, also. Always check ame prior

to each use. If only low ame is seen refer to

“Sudden drop or low ame” in

the Troubleshooting.

Turning Grill Off

• Turn all knobs to the OFF position. Turn LP

cylinder OFF by turning hand-wheel clockwise

to a full stop.

Ignitor Check

• Turn gas off at LP cylinder. Press and hold

electronic ignitor button. “Click” should be

heard and spark seen each time between each

collector box or burner and electrode. See

“Troubleshooting” if no click or spark.

Valve Check

• Important: Make sure gas is off at LP cylinder

before checking valves. Knobs lock in OFF

position. To check valves, rst push in knobs

and release, knobs should spring back. If

knobs do not spring back, replace valve

assembly before using griddle. Turn knobs to

low position then turn back to OFF position.

Valves should turn smoothly.

Hose Check

• Before each use, check to see if hoses are cut

or worn. Replace damaged hoses before using

griddle. Use only identical replacement part

valve/hose/regulator as specied in the Parts

List of this Use and Care Guide.

General Griddle Cleaning

• Do not mistake brown or black accumulation

of grease and smoke for paint. Interiors of gas

grills are not painted at the factory (and should

never be painted). Apply a strong solution of

detergent and water or use a griddle cleaner

with scrub brush on insides of griddle lid and

bottom. Rinse and allow to completely air dry.

Do not apply a caustic griddle/oven cleaner to

painted surfaces.

• Plastic parts: Wash with warm soapy water and

wipe dry. Do not use Citrisol, abrasive

cleaners, degreasers or a concentrated griddle

cleaner on plastic parts. Damage to and failure

of parts can result.

• Painted surfaces: Wash with mild detergent or

nonabrasive cleaner and warm soapy water.

Wipe dry with a soft nonabrasive cloth.

• Stainless steel surfaces: To maintain your

griddle’s high quality appearance, wash with

mild detergent and warm soapy water and wipe

dry with a soft cloth after each use.

• Baked-on grease deposits may require the use

of an abrasive plastic cleaning pad. Use only in

direction of brushed nish to avoid damage. Do

not use abrasive pad on areas with graphics.

• Cooking surfaces: If a bristle brush is used

to clean any of the griddle cooking surfaces,

ensure no loose bristles remain on cooking

surfaces prior to grilling.

Autres manuels pour GRIDDLE 1554

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Black Stone Plaque

Black Stone

Black Stone 1517 Manuel utilisateur

Black Stone

Black Stone PRO Series Manuel utilisateur

Black Stone

Black Stone 1836 Manuel utilisateur

Black Stone

Black Stone E Series 8003 Manuel utilisateur

Black Stone

Black Stone 1945 Manuel utilisateur

Black Stone

Black Stone 1935 Manuel utilisateur

Black Stone

Black Stone OMNIVORE 2287 Manuel utilisateur

Black Stone

Black Stone 8001 Manuel utilisateur

Black Stone

Black Stone 2142EU Manuel utilisateur

Black Stone

Black Stone 1967 Manuel utilisateur

Black Stone

Black Stone Culinary 1916 Manuel utilisateur

Black Stone

Black Stone On The Go 1968 Manuel utilisateur

Black Stone

Black Stone 1665 Manuel utilisateur

Black Stone

Black Stone 1517 Manuel utilisateur

Black Stone

Black Stone E Series Manuel utilisateur

Black Stone

Black Stone 1650 Manuel utilisateur

Black Stone

Black Stone ADVENTURE Ready 2246 Manuel utilisateur

Black Stone

Black Stone 2061 Manuel utilisateur

Black Stone

Black Stone Culinary 2230 Manuel utilisateur

Black Stone

Black Stone 5015 Manuel utilisateur

Black Stone

Black Stone Culinary Pro XL 1963 Manuel utilisateur

Black Stone

Black Stone 2154 Manuel utilisateur

Black Stone

Black Stone PRO Series Manuel utilisateur

Black Stone

Black Stone Culinary 2022 Manuel utilisateur

Manuels Plaque populaires d'autres marques

Proctor-Silex

Proctor-Silex 25340 Manuel utilisateur

New House Kitchen

New House Kitchen NH33-C Manuel utilisateur

Magikitch'n

Magikitch'n 24 Manuel utilisateur

Anvil

Anvil FTA7116 Manuel utilisateur

Presto

Presto 07030 Manuel utilisateur

Pit Boss

Pit Boss PB2BGT1 Manuel

Dyna-Glo

Dyna-Glo DGL260SNP Manuel utilisateur

Char-Broil

Char-Broil 19952085 Manuel utilisateur

APW Wyott

APW Wyott HMG-2424 Manuel utilisateur

Pit Boss

Pit Boss Ultimate Griddle PB2BGD2 Manuel utilisateur

Airxcel

Airxcel Suburban Elite SOP-1005A Manuel utilisateur

Keating Of Chicago

Keating Of Chicago MIRACLEAN PRE-2000 Manuel utilisateur

Nexgrill

Nexgrill 720-0786A Manuel utilisateur

Outwell

Outwell FH-3047C Manuel utilisateur

Rankam

Rankam Member's Mark GR2298901-MM-02 Guide de référence rapide

Star

Star Ultra Max 760TA Manuel utilisateur

NuWave

NuWave Precision Cast Iron Griddle Manuel d'utilisation

BERJAYA

BERJAYA EG 1750 Manuel utilisateur
