Get convenient in-line surge protection for access

points on your wireless Ethernet network.

Put avalanche diode and thyristor protection

where you need it.

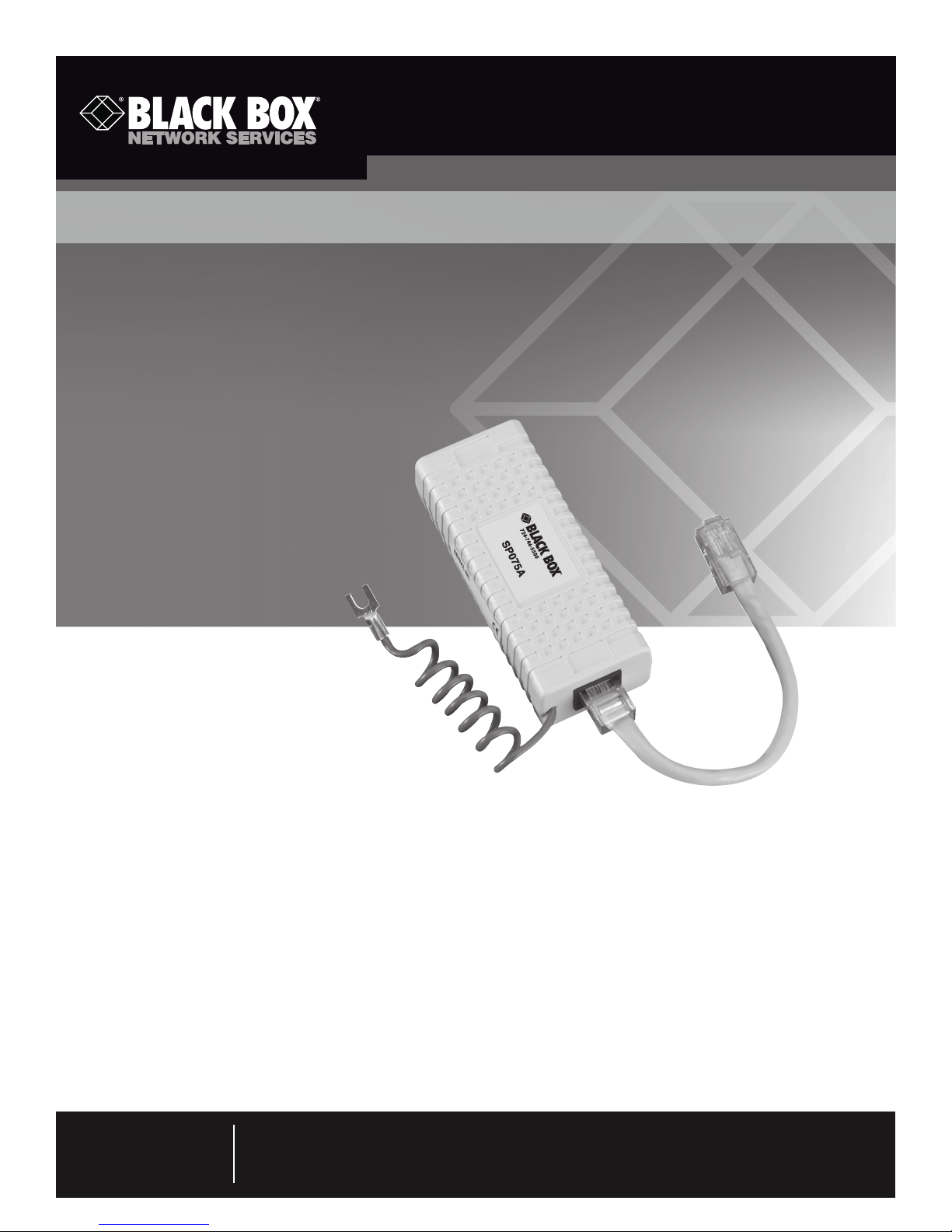

In-Line Surge Protector, PoE, Mode B (RJ-45 8-Wire)

SP075A

For installation instructions, turn this page over…

Overview

This in-line surge protector protects datalines for both line-to-

line and ground-to-line surges. It will also protect wireless

access points that are typically installed in remote locations,

which is important because the remote access points may

expose devices to severe transients and surges.

What’s included

• In-Line Surge Protector

• 6" RJ-45 patch cable

• Specification sheet

Specifications

Application: PoE (Mode B)

Ground Wire: Yes

Maximum Shunt Capacitance: <25 pF (Ethernet lines only)

Peak Pulse Current: Pins 1, 2, 3, and 6: 132 amps;

Pins 4, 5, 7, and 8: 50 amps

Pins Protected: All

Protection Type: Avalanche diode and thyristor technology

Response Time: <5 ns

Standard Clamping Voltage: Pins 1, 2, 3, and 6: 7.5 volts;

Pins 4, 5, 7, and 8: 60 volts

Connectors: (2) RJ-45 F

BL A C K BOX®

FREE, live, 24/7 Tech Support is just 30 seconds away.

724-746-5500 | blackbox.com

Installation Steps

1. Disconnect the RJ-45 line from the equipment you wish to protect.

2. If the equipment you wish to protect is metal, plug the surge protector into the unit and attach the ground wire to the unit’s

chassis. If the unit is plastic, connect the ground wire to the electrical outlet ground for the unit.

3. Connect the network-side RJ-45 cable to the surge protector and connect the patch cable included with the surge protector

between the surge protector and the equipment you are protecting.

is a trademark of BB Technologies, Inc. Any third-party trademarks appearing in this publication are acknowledged to be the property of their respective owners.

SP075A, rev. 1
