IC906C

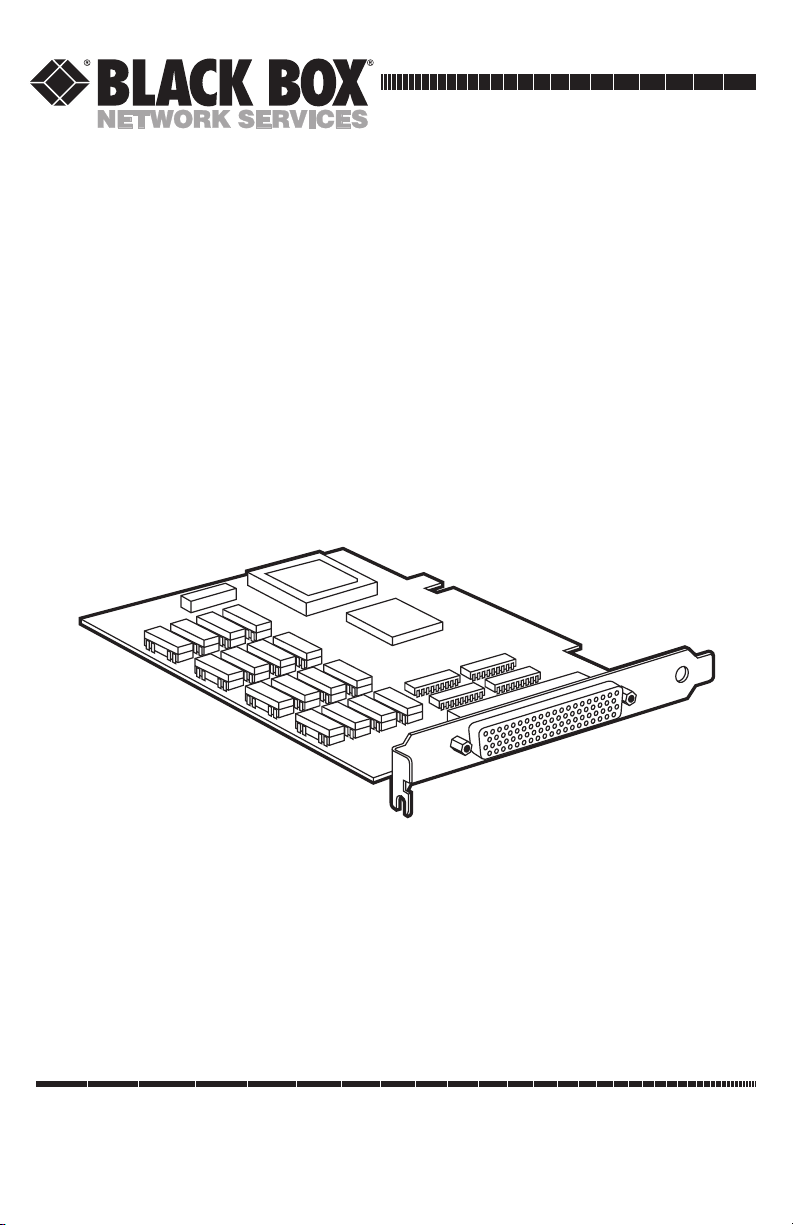

Digital I/O Card–16

FCC AND IC RFI STATEMENTS

FEDERAL COMMUNICATIONS COMMISSION

AND

INDUSTRY CANADA

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio frequency energy and if not

installed and used properly, that is, in strict accordance with the manufacturer’s

instructions, may cause interference to radio communication. It has been tested

and found to comply with the limits for a Class A computing device in accordance

with the specifications in Subpart B of Part 15 of FCC rules, which are designed to

provide reasonable protection against such interference when the equipment is

operated in a commercial environment. Operation of this equipment in a

residential area is likely to cause interference, in which case the user at his own

expense will be required to take whatever measures may be necessary to correct the

interference.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital

apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le

brouillage radioélectrique publié par Industrie Canada.

DIGITAL I/O CARD–16

CE Compliance

Products bearing the CE label fulfill the requirements of the EMC directive

(89/336/EEC) and of the low-voltage directive (73/23/EEC) issued by the

European Commission.

To obey these directives, the following European standards must be met:

•EN55022 Class A — “Limits and methods of measurement of radio

interference characteristics of information technology equipment.”

•EN50082-1 — “Electromagnetic compatibility—Generic immunity standard.”

• Part 1: Residential, commercial, and light industry.

•EN60950 (IEC950) — “Safety of information technology equipment, including

electrical business equipment.”

WARNING

This is a Class A Product. In a domestic environment, this product may

cause radio interference in which case you may be required to take

adequate measures.

Always use cabling provided with this product if possible. If no cable is provided or

if an alternate cable is required, use high-quality shielded cabling to maintain

compliance with FCC/EMC directives.

NOM STATEMENT

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de

que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar

en libreros o gabinetes que impidan el flujo de aire por los orificios de

ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el aparato.

DIGITAL I/O CARD–16

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen del

aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

TRADEMARKS USED IN THIS MANUAL

Linux is a registered trademark of Linus Torvalds.

Windows and Windows NT are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

Any other trademarks mentioned in this manual are acknowledged to be the property of the

trademark owners.

DIGITAL I/O CARD–16

Contents

Chapter Page

1. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 What’s Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Technical Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3.2 Input Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3.3 Output Ports (Reed Relay) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3.4 Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3. Card Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Appendix A. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

A.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

A.2 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Appendix B. Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CHAPTER 1: Specifications

1. Specifications

Compliance: CE approval; FCC Part A, Class A

Channels: 16 input/16 output

Input Range: 3 to 12 VDC

Input Isolation: 400 V optical

Output Relay: 200 million closures

Throughput: 600 Hz

Relay Contact Power Ratings: 10 watts maximum

Relay Contact Voltage: 100 volts DC or AC maximum

Relay Contact Current: 0.5 amps DC or AC RMS maximum

Relay Contact Resistance:Initial: 0.15 ohms

Relay Rated Life:Low load: 200 million closures;

Maximum load: 100 million closures

Relay Contact Speed:Operate: 0.5 mS; Release: 0.5 mS; Bounce: 0.5 mS

Relay Maximum Operating Speed: 600 Hz

MTBF: Greater than 150,000 hours, excluding relays; relay life expectancy depends

on actual application

Connectors: (1) DB78 female on card; (1) DB37 female and (1) DB37 male on “Y”

cable

Temperature Tolerance:Operating: 32 to 122°F (0 to 50°C);

Storage: -4 to +158°F (-20 to +70°C)

Humidity Range: 10 to 90% noncondensing

Power: From the bus

Power Consumption:Supply line: +12 VDC, +5 VDC; Rating: 450 mA

Size:Including goldfingers: 4.2"H x 6"W (10.7 x 15.2 cm);

Excluding goldfingers: 3.8"H x 6"W (9.7 x 15.2 cm)

DIGITAL I/O CARD–16

2. Introduction

2.1 Overview

The Digital I/O Card–16 provides 16 reed relays that can latch power, data, or

other electronic signals for control applications and 16 optically isolated inputs to

allow monitoring of off-board switch closures, relays, or for any other general-

purpose monitoring needs. The card is PCI 2.1 bus compliant. Addressing, data,

and control signals are TTL compatible.

2.2 What’s Included

The Digital I/O Card–16 is shipped with the following items. If any of these items

are missing or damaged, contact Black Box at 724-746-5500.

• Digital I/O Card–16

• Systems software (on a CD-ROM)

• This users’ manual

2.3 Technical Description

The Digital I/O Card–16 provides four parallel input/output (I/O) ports. The

ports are organized as ports A, B, C, and D. Ports A and B are input ports

interfaced to optically-isolated inputs, while ports C and D are reed relay output

ports. Assuming an I/O address of 300 Hex, Table 2-1 shows the port addresses.

Table 2-1. Port addresses.

Base Address Hex Decimal Mode

Port A Address 300 768 Input Port (Opto-Input)

Port B Address 301 769 Input Port

Port C Address 302 770 Output Port (Reed Relays)

Port D Address 303 771 Output Port

CHAPTER 2: Introduction

2.3.1 F

EATURES

• Selectable I/O port addressing from 100H through 3FFH.

• Two sets SPST relays (each set has eight relays).

• Two eight-bit input ports.

• DB37 male connector for relay outputs.

• DB37 female connector for optically isolated inputs.

• Highly reliable 10-VA DIP reed relays used.

• Multiple adapters can reside in same computer.

• All address, data, and control signals are TTL compatible.

2.3.2 I

NPUT

ORTS

Ports A and B are 8-bit input ports connected to optically isolated input sensors.

Each sensor can be used to interface a voltage input and then sense whether the

voltage is on or off. Each sensor is isolated (with respect to a common ground)

from every other sensor, and it’s also isolated with respect to the host PC ground.

This means that signals such as low-level AC line voltage, motor servo voltage, and

control relay signals can be “sensed,” or read by the PC, without the risk of damage

due to ground loops or ground faults.

Each sensor input pair has a current-limiting resistor that is used to limit the input

current to the opto-isolator. The opto-isolator has two “back-to-back” diodes

internally. This allows AC or DC signals to be sensed, regardless of polarity. When

the applied voltage is high enough to cause the LED in the opto-isolator to power

on, the output of the opto-isolator goes low (0 volts) and the signal is read as a low

logic level (binary 0) by the PC. When the input signal is too low to power on the

opto-isolator, the output goes high and the port bit is read by the PC as a high

logic level (binary 1).

Table des matières

Autres manuels Black Box Carte PCI

Black Box

Black Box IC136C Manuel utilisateur

Black Box

Black Box IC128C-R3 Manuel utilisateur

Black Box

Black Box IC142C Manuel utilisateur

Black Box

Black Box LH1390C-SC-R2 Manuel utilisateur

Black Box

Black Box IC142C Manuel utilisateur

Black Box

Black Box USB Director RS-232 Manuel utilisateur

Black Box

Black Box IC132C Manuel utilisateur

Black Box

Black Box IC970C Manuel utilisateur

Black Box

Black Box IC126C Manuel utilisateur

Black Box

Black Box RS-422 Manuel utilisateur

Black Box

Black Box USB Director RS-232 Manuel utilisateur

Black Box

Black Box USB Director RS-232 Manuel utilisateur

Black Box

Black Box IC142C Manuel utilisateur

Black Box

Black Box IC904C Manuel utilisateur

Black Box

Black Box IC907C Manuel utilisateur

Manuels Carte PCI populaires d'autres marques

ERMA

ERMA SSI 1417 Manuel utilisateur

SIIG

SIIG CyberSerial Dual PCI Instructions de montage

Moxa Technologies

Moxa Technologies CP-102E Manuel utilisateur

I-Bus

I-Bus IBC2602 Manuel utilisateur

Exsys

Exsys EX-60102 Manuel utilisateur

Chelsio Communications

Chelsio Communications T5 Series Manuel utilisateur

Conrad Electronic

Conrad Electronic 97 46 71 Manuel utilisateur

Micro Innovations

Micro Innovations USB650A Manuel utilisateur

KTI Networks

KTI Networks KF-310 Manuel utilisateur

Asus

Asus SpaceLink WL230 Manuel utilisateur

SIIG

SIIG SC2475 Manuel utilisateur

TRENDnet

TRENDnet TEW-703PI Manuel utilisateur

Belkin

Belkin F5D7000F Manuel utilisateur

Pericom

Pericom PI7C7100 Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3548 Manuel utilisateur

Digium

Digium TE200 Series Manuel utilisateur

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur

Western Digital

Western Digital FireWire PCI Adapter Manuel utilisateur
