Black Box LHC201A Manuel utilisateur

BL A C K B O X®

Link a 10/100BASE-TX segment to a 100BASE-FX

segment on your network, and extend the 328 foot

(100 m) distance limit of copper-based Ethernet.

Pure Networking™Fast Ethernet Media Converters

LHC201A

LHC202A

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.

call 724-746-5500) • FREE technical support 24 hours a day, 7 days

a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:

Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

Customer

Support

Information

724-746-5500 | blackbox.com

Page 2

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

724-746-5500 | blackbox.com Page 3

FCC and IC RFI Statements

FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY

CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

Class B Digital Device. This equipment has been tested and found to comply with

the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. This equipment generates,

uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. If this equipment does cause harmful interference to radio or

telephone reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult an experienced radio/TV technician for help.

Caution:

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

To meet FCC requirements, shielded cables and power cords are required to

connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class B limits for radio noise emission

from digital apparatus set out in the Radio Interference Regulation of Industry

Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de classe B prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

724-746-5500 | blackbox.com

Page 4

NOM Statement

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar

en libreros o gabinetes que impidan el flujo de aire por los orificios de

ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el aparato.

724-746-5500 | blackbox.com Page 5

NOM Statement

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen del

aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com

Page 6

Table of Contents

1. Specifications.............................................................................................. 7

2. Overview .................................................................................................... 8

2.1 Introduction.................................................................................... 8

2.2 Features .......................................................................................... 8

2.3 What’s Included.............................................................................. 8

2.4 Connectors and Network Cables Supported ................................. 9

2.5 Hardware Description..................................................................... 9

2.5.1 LHC201A .............................................................................. 9

2.5.2 LHC202A............................................................................ 11

3. Configuration ........................................................................................... 13

4. Installation ................................................................................................ 15

4.1 Typical Installation......................................................................... 15

4.2 Installation Procedure ................................................................... 15

5. Operation ................................................................................................. 17

5.1 LEDs on the Media Converter ...................................................... 17

5.2 Switch ........................................................................................... 19

5.3 Link Fault Passthrough Function................................................... 22

6. Troubleshooting........................................................................................ 24

6.1 Contacting Black Box.................................................................... 24

6.2 Shipping and Packaging ............................................................... 24

724-746-5500 | blackbox.com Page 7

Chapter 1: Specifications

1. Specifications

Maximum Distance — LHC201A: Multimode fiberoptic: 2 km,

LHC202A: Single-mode fiberoptic: 20 km

Standards — IEEE 802.3, IEEE 802.3u

Connectors — (1) dual SC, (1) RJ-45

Temperature Tolerance — Operating: +32 to +104° F (0 to +40° C);

Storage: -40 to +158° F (-40 to +70° C)

Humidity — Operating: 10 to 90% relative humidity, noncondensing;

Storage: 5 to 90% relative humidity, noncondensing

Power — External: 100–240 VAC, 50–60 Hz, 0.3 A;

Output: 9 VDC, 0.6 A, 5.4 W max.

Size — 1.1"H x 3.7"W x 2.9"D (2.7 x 9.4 x 7.4 cm)

Weight — 1.1 lb. (0.5 kg)

724-746-5500 | blackbox.com

Page 8

Chapter 2: Overview

2. Overview

2.1 Introduction

The Pure Networking Fast Ethernet Media Converters connect a 10/100BASE-TX

network segment and a 100BASE-FX network segment. Use these units to join a

10/100BASE-TX segment to a 100BASE-FX segment on your network, or use them

in pairs to extend the 328-foot (100-m) distance limitation of copper based

Ethernet.

The converters also feature LFP (Link Fault Passthrough, as described in Section 5.3).

Two converter models are available:

• LHC201A: This fiber SC media converter transmits/receives data by 1310-nm

short-wave laser over multimode fiber.

• LHC202A: This fiber SC media converter transmits/receives data by 1310-nm

short-wave laser over single-mode fiber.

2.2 Features

• Complies with 802.3u 10/100BASE-TX and 100BASE-FX standards.

• Provides one SC connector and one RJ-45 connector.

• Supports autonegotiation of duplex mode on the twisted-pair port.

• Supports autonegotiation of 10/100 Mbps and auto MDI/MDI-X for the

twisted-pair port.

• Supports Link Fault Passthrough (LFP) and Far End Fault (FEF) functions.

• Extends fiber distance up to 2 km for multimode fiber and 20 km for single-mode

fiber.

• Easy-to-view LED indicators provide status to easily monitor network activity.

• Uses an external power supply (included).

2.3 What’s Included

Your package should contain the following items. If anything is missing or damaged,

contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.

• (1) Pure Networking Fast Ethernet Media Converter

• (1) DC adapter

• This user’s manual

724-746-5500 | blackbox.com Page 9

Chapter 2: Overview

2.4 Connectors and Network Cables Supported

The connectors and network cables supported by the converter are listed as follows.

• Connectors: RJ-45, SC.

• Network cables: CAT5 twisted-pair (TP), 1310-nm 62.5/125-µm, 50/125-µm

single-mode/multimode fiber.

Table 2-1. Connectors and network cable supported.

Part

Number Interface

Transmission

Distance

Transmission

Media

Output

Center

Wavelength

LHC201A

RJ-45 TP

and SC

fiber

2 km Multimode

fiber, TP 1310 nm

LHC202A

RJ-45 TP

and SC

fiber

20 km Single-mode

fiber, TP 1310 nm

2.5 Hardware Description

Figures 2-1 through 2-4 show the front and back panels of the media converters.

Tables 2-2 and 2-3 describe their components.

2.5.1 LHC201A

1 2 3 4 5 6 7

8 9

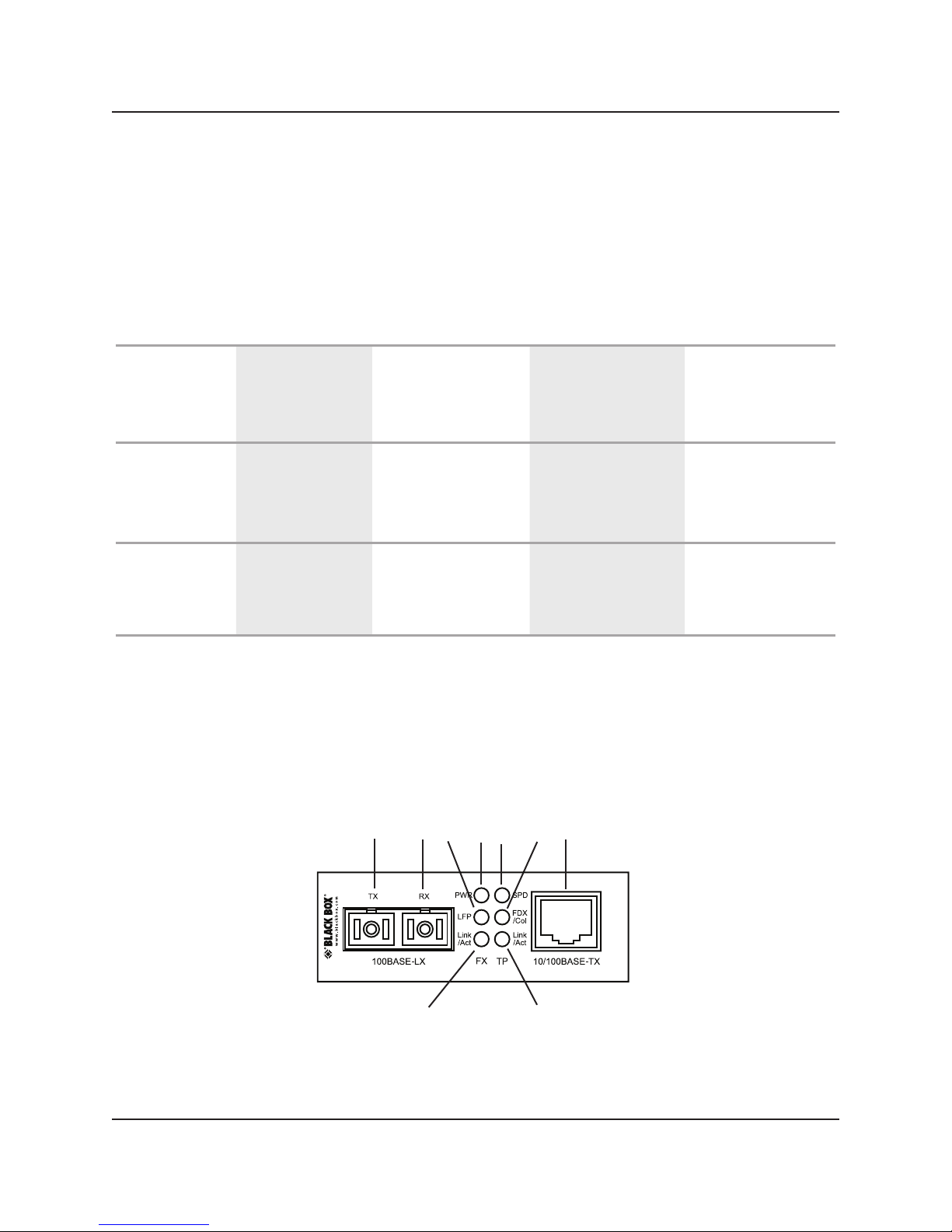

Figure 2-1. Front panel of the LHC201A.

724-746-5500 | blackbox.com

Page 10

Chapter 2: Overview

10 11

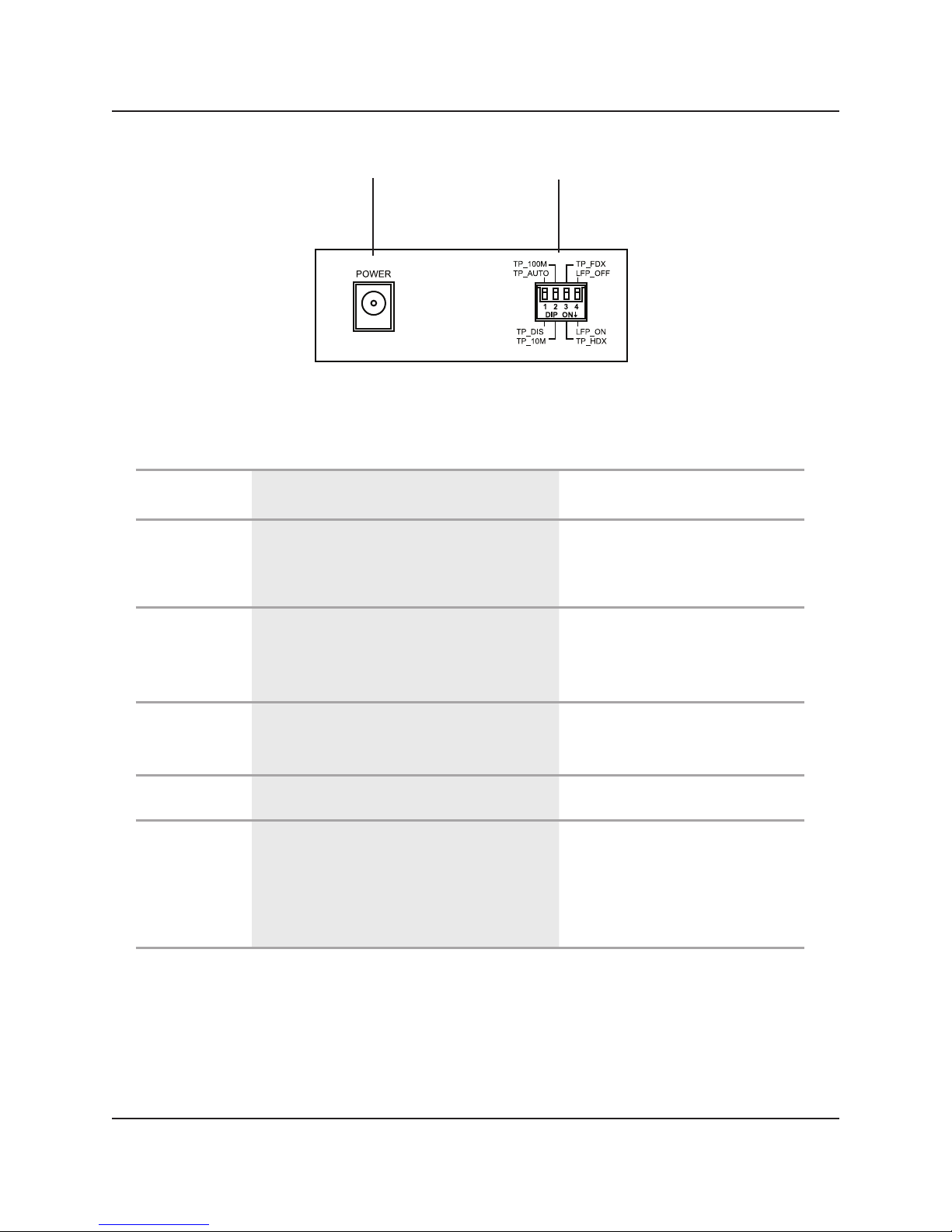

Figure 2-2. Back panel of the LHC201A.

Table 2-2. LHC201A components.

Number Component Description

1, 2 (1) dual SC connector (TX/RX) Links to multimode

fiber segment

3, 4, 5, 6,

8, 9 (6) LEDs

PWR, LFP, LINK/ACT

FX, SPD, FDX/COL,

LINK/ACT TP

7RJ-45 connector Connects to

10/100BASE-TX device

10 (1) barrel connector Links to power

11 (1) 4-position DIP switch

TP-Auto or TP-Dis,

TP-100M or TP10M,

TP FDX or TP-HDX,

LFD-ON or LFD-OFF

*See Tables 5-1 and 5-2 for LED and DIP switch functions.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black Box Convertisseur de média

Black Box

Black Box LE1605A-ST-US Manuel utilisateur

Black Box

Black Box LRA1200A-1PS Manuel utilisateur

Black Box

Black Box LH1500 Manuel utilisateur

Black Box

Black Box DVI2VGA Manuel utilisateur

Black Box

Black Box IC152A Manuel utilisateur

Black Box

Black Box LGC5134A-R4 Manuel utilisateur

Black Box

Black Box HP Series Manuel utilisateur

Black Box

Black Box MultiLink LB1350A-ST Manuel utilisateur

Black Box

Black Box IE GIGA MC TX/SFP Manuel utilisateur

Black Box

Black Box ICD110A Manuel utilisateur

Black Box

Black Box G.703/V.35 Manuel utilisateur

Black Box

Black Box ICD114A Manuel utilisateur

Black Box

Black Box PCD50A Manuel utilisateur

Black Box

Black Box SP385A-R3 Manuel utilisateur

Black Box

Black Box LGC135A Manuel utilisateur

Black Box

Black Box IC700A Manuel utilisateur

Black Box

Black Box LHC013A Manuel utilisateur

Black Box

Black Box RS-422 Manuel utilisateur

Black Box

Black Box SP385A-R2 Manuel utilisateur

Black Box

Black Box AC340A-R2 Manuel utilisateur

Black Box

Black Box VSC-HDMI-SDI Manuel utilisateur

Black Box

Black Box twister 7000 Manuel d'utilisation

Black Box

Black Box LMC009A-R4 Manuel utilisateur

Black Box

Black Box MED101A Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
