RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

TRADEMARKS

All applied-for and registered trademarks are the property of their respective

owners.

RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

CONTENTS

1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4. The Current-Loop Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.1 Testing for Other Active Devices on the Current Loop . . . . . . .11

4.1.1 LED Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.1.2 Voltmeter Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.2 Connecting the Current Loop Wires to the CL050A . . . . . . . . .12

4.2.1 4-Wire Current Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.2.2 2-Wire Current Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

4.3 Switch SWA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

4.4 Switch SWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

5. The RS-232C Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

5.1 The RS-232C Interface Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . .18

5.2 Switch SWC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

5.2.1 DCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

5.2.2 DTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

6. Operations and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

6.1 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

6.2 Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

7. Current Loop Rack and Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

7.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

7.2 Specifications for RM005 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

Connectors — RS-232/CCITT V.24: DB25 (female)

Current Loop: 4 screw terminals

Indicators — (2) LEDs indicating RS-232 port activity:

RX for Receive Data from an RS-232 external device

TX for Transmit Data to an RS-232 external device

Switches — 10-position DIP switch for current-loop transmission mode

10-position DIP switch for RS-232 DTE or DCE configuration

4-position DIP switch for electrical current in the current loop

Maximum Transmission

Distance — (based on using 24-AWG solid copper wire):

at 9600 bps: 300 to 400 meters

(984 to 1,312 feet)

at 300 bps: 1000 to 3000 meters

(3,281 to 9,843 feet)

Power — Input — 115/220 VAC, 50 to 60 Hz, 12W

Output — 18 VAC, center tapped, 8VA

Size — 1.75"H x 5.5"W x 8.5"D (4.4 x 14 x 21.6 cm)

Weight — 1.5 lb. (0.7 kg)

CAUTION

Make sure you have the right power supply for your local power. If not,

call Technical Support to get a replacement power supply.

1. Specifications

RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

The RS-232 ↔Current Loop Interface

Converter (CL050) is a bidirectional

self-contained unit that enables the

interconnection of a digital

20/30/60mA unipolar current-loop

interface with an RS-232 interface. The

CL050 cannot be used with an analog

current loop (4 to 20 mA) or bipolar

current loop.

Current loop was designed to transfer

data in a noisy environ-ment with as

much integrity as possible. The

maximum distance that the CL050 can

be placed from other devices on the

current loop (see Chapter 1) is based

on using 24 AWG under ideal

conditions, with the CL050 designated

as the active device in a point-to-point

configuration.

The CL050 can act as either an active

or passive device on the current loop.

As an active device, the CL050 supplies

20, 30, or 60 ma loop current at 18

VDC for operation. As a passive device,

the CL050 will not supply loop current,

but it will operate with 20, 30, or 60 ma

unipolar current at up to 30 VDC.

WARNING!

Only one device on the current

loop may be active. If more than

one device is active, each of the

devices will be permanently

damaged.

Refer to Sections 4.1 and 4.2 for

instructions on testing the current loop

and connecting it to the CL050.

Switch selections allow for half-duplex

or full-duplex operation; 20, 30, or 60

mA loop current; and configuring the

CL050 as either DTE or DCE.

Two LEDs monitor data flow.

If you ordered the CL050A-R2, you

should have received cables with it.

A 220-volt power supply (CL050E) is

also available.

2. Introduction

Figure 2-1. With the CL050, you can interconnect a

current loop interface and an RS-232 interface.

Current

Loop

Device

CL050

Device using

RS-232 Interface

RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

1. Remove the screw located at the

center of the bottom cover.

2. Remove the top cover.

3. Lift the back panel from its guide.

4. Insert the power supply receptacle

into the 4-prong plug (See Figure

7-1 on page 16. The 4-prong plug

is near W1). The receptacle

should be aligned so that the lip is

on the upward side. DO NOT

PLUG THE POWER SUPPLY

INTO AN AC OUTLET!

5. Test your current loop for active

devices. See Section 4.1 on page

11.

6. Connect your current loop to the

CL050. See Section 4.2 on page

12.

7. Insert the back panel into its

guide, making sure the power-

supply cable and current-loop

cable exit through the holes

provided for them.

8. Set switches SWA, SWB and SWC

to the desired positions. The

CL050 is shipped with SWA set to

Full-Duplex, Passive; SWB set to

20mA receive; 20mA transmit; and

SWC set to DTE. See Sections 4.3,

4.4, and 5.2, respectively, on pages

11 and 13 for more information

on these switches.

9. Replace the top cover.

10. Replace the screw.

11. Attach your RS-232C cable.

12. Plug the power supply into an AC

outlet. The CL050 is now ready

for operation.

3. Installation

RS-232 ↔CURRENT LOOP INTERFACE CONVERTER

4.1 Testing for Other Active Devices

on the Current Loop

You must test for an active device on

the current loop if you plan to have the

CL050 supply loop current.

WARNING!

Only one device on the

current loop may be active.

If more than one device is

active at the same time,

each device will be

permanently damaged.

There are two tests that you can run.

Either is sufficient.

4.1.1 LED T

EST

(1) Unplug the CL050 from the AC

outlet.

(2) Set the SWA switch to full duplex,

passive.

(3) Attach the T- of the 4-wire current

loop device (or “-” in a 2-wire current

loop) to R- of the CL050A.

(4) Attach the T+ of the 4-wire current

loop device (or “+” in a 2-wire current

loop) to R+ of the CL050A. See Figure

4-1 (4-wire current loop) or Figure 4-2

(2-wire current loop).

(5) Plug the CL050 into the AC outlet.

4. The Current-Loop Interface

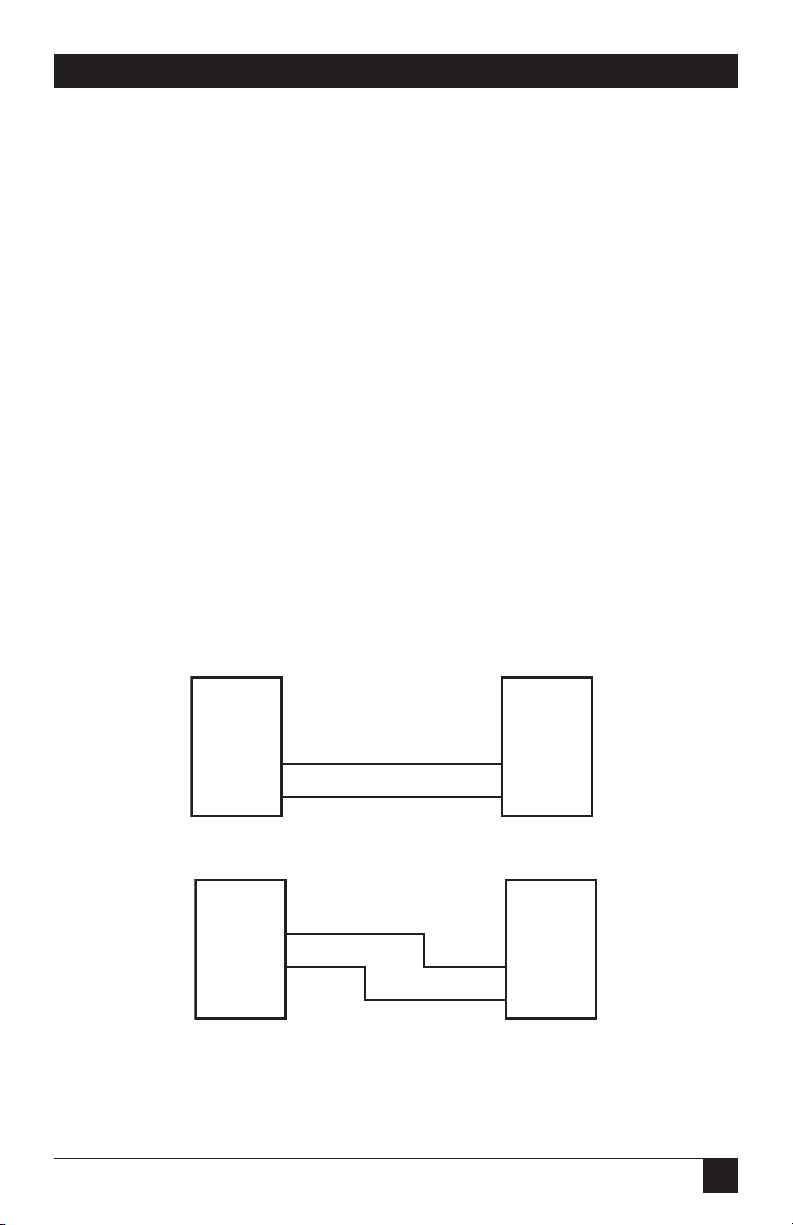

Figure 4-1. Wiring configuration for a 4-wire current loop LED test.

Figure 4-2. Wiring configuration for a 2-wire current loop LED test.

T+

T-

R+

R-

T+

T-

R+

R-

T+

R-

T+

T-

R+

R-

CL050A

R+

R-

T+

T-

Table des matières

Autres manuels Black Box Convertisseur de média

Black Box

Black Box twister 7000 Manuel d'utilisation

Black Box

Black Box LHC030A-R3 Manuel utilisateur

Black Box

Black Box MediaCento AVX-VGA-RF Manuel utilisateur

Black Box

Black Box LGC121A-R3 Manuel utilisateur

Black Box

Black Box AC336A Manuel utilisateur

Black Box

Black Box LHC042A-R4 Manuel utilisateur

Black Box

Black Box Radian VWP-2090 Manuel utilisateur

Black Box

Black Box IC350A Manuel utilisateur

Black Box

Black Box 488 Controller Manuel utilisateur

Black Box

Black Box AC154A-2 Manuel utilisateur

Black Box

Black Box SP385A-R3 Manuel utilisateur

Black Box

Black Box IC716A Manuel utilisateur

Black Box

Black Box IC714A-449-R2 Manuel utilisateur

Black Box

Black Box LE1605A-ST-US Manuel utilisateur

Black Box

Black Box DataBuffer Plus Manuel utilisateur

Black Box

Black Box LE2120A-R4 Manuel utilisateur

Black Box

Black Box LBMC300-MMST Manuel utilisateur

Black Box

Black Box LMC001A-R5 Manuel utilisateur

Black Box

Black Box LH1700A-SC-US Manuel utilisateur

Black Box

Black Box IC821A Manuel utilisateur

Black Box

Black Box MT1100A Manuel utilisateur

Black Box

Black Box LMC11002A Manuel utilisateur

Black Box

Black Box LH1706A-SC-US Manuel utilisateur

Black Box

Black Box PCW22A-R3 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
