Black Box FaxReceiver MC200A Manuel utilisateur

MAY 2007

MC200A

Version 3

FaxReceiver MC200A ®

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746

2 of

of of

of 49

4949

Table of Contents

Table of Contents 2

Introduction 4

Easy Configuration 4

Features 4

System Architecture 4

Menu Map 5

Important Information

Connections 7

Reset Button 11

Configuration 12

TELNET 20

The FaxViewer 32

Troubleshooting 35

Glossary 39

Technical Specifications 41

Trademark Recognition 41

Legal Notices 42

Technical Support 48

The Process 6

FAX CONFIGURATION UTILITY 12

General Settings 13

TCP/IP Settings 14

e-mail Settings 16

FAX Settings 17

TelNet Settings 19

Benefits of using Telnet: 20

UNIT IP SETTINGS 23

UNIT EMAIL SETTINGS 25

UNIT FAX SETTINGS 28

3 of

of of

of 49

4949

repro uce , transmitte , transcribe , store in a retrieval system, or translate into any

language or any computer language, in any form or by any thir party, without prior

permission of Black Box.

DISCLAIMER

Black Box reserves the right to revise this publication an to make changes from time to

time to the contents hereof without obligation to notify any person or organization of

such revision or changes. Black Box has en eavore to ensure that the information in

this publication is correct, but will not accept liability for any error or omission.

TRADEMARKS

All tra emarks are hereby acknowle ge .

VERSIONS

This manual is for FaxReceivers with co e version A9.50 an higher, with FaxConfig up to

version 1.08 or higher. The FaxViewer is version 1.05 or higher.

CODE CHANGES

Version a9.50 Uses DNS to etermine the SMTP IP A ress from it's URL.

Version b9.50 A s a final confirmation message in the bo y of the email.

Version c9.50 allows you to set whether to notify the sen ing fax of an error (so that it

will resen ). Also states at the en of the email that the remote fax was or was not

notifie in the event of an error in transmission.

9.50 Increase the ring elay timeout. It was 5 secon s, increase it to 15 secon s.

4 of

of of

of 49

4949

Introduction

The Black Box FaxReceiver MC200A is esigne to receive a fax an convert it into

an email to allow istribution that is more convenient an unwante faxes can be

electronically elete . The Black Box Fax-Receiver receives the fax an puts it into a

mail-server mailbox. From there, you or an a ministrator can rea an re- istribute

the fax to the appropriate email recipient on the network or print it if necessary.

This re uces paper waste, spee s up the communication an istribution of

information, allows automatic backup of receive faxes an eliminates the nee to

maintain a fax machine solely for the purpose of receiving faxes.

Easy Configuration

The setup is one using Telnet, which allows configuration in any network

environment like Win ows, Unix or Apple. Any Workstation or PC with Telnet

capabilities an access to the network can be use to configure the unit.

Features

External all voltage power supply (100-240 Volts, 50-60 Hz)

Extremely low power consumption of less than 5 watts.

Remote management from any PC

Retains its setup in Flash memory.

Powers up in less than 10 secon s.

Three login types, CRAM-MD5, LOGIN (AUTH=LOGIN) an non-authenticate .

System Architecture

The FaxReceiver MC200A uses a PCMCIA car to connect to the Fax Line; this allows the

FaxReceiver MC200A to be use in any country in the worl for which there is a PCMCIA

fax/mo em car available that fulfills the local stan ar s.

The FaxReceiver MC200A connects irectly to an Ethernet 10/100baseTx network via fixe IP

or DHCP. Before operating the evice a number of parameters have to be set up in the

FaxReceiver MC200A to allow log on to your company or Internet provi er's mail server.

3 ifferent login types, CRAM-MD5, LOGIN (AUTH=LOGIN) an non-authenticate . It will try

CRAM-MD5, first. If that fails, it falls back to insecure authentication (same as

Outlook Express uses), an it will fall back further to non-authenticate login if that

fails.

Setting up is achieve using the Telnet protocol an a telnet application is available for any

operating system. Check your PC, Apple or Unix operator manual.

Since the evice only relies on TCP/IP an SMTP it will work in any common network

environment.

5 of

of of

of 49

4949

Menu Map

The menu riven setup allows the following parameters to be set up:

MENU ITEM # CHARS

DEFAULT FORMAT REQD?

1) Setup IP 1

2) Setup SMTP Mailserver 2

3) Setup Fax 3

4) Reboot after quitting (Disabled) toggle

5) Change Telnet port 4 23 23 Y

6) Change Telnet session time-

out

2 2 (0 to 50 minutes) N

P) Change Telnet password 253 N

!) Redirect debug to this screen toggle

Unit IP settings

1) Unit IP address 16 11.22.33.44 xxx.xxx.xxx.xxx Y

2) Subnet Mask 16 255.255.255.0 xxx.xxx.xxx.xxx Y

3) DNS Address 1 16 0.0.0.0 xxx.xxx.xxx.xxx N

4) DNS Address 2 16 0.0.0.0 xxx.xxx.xxx.xxx N

5) Unit Gateway address 16 0.0.0.0 xxx.xxx.xxx.xxx Y

6) DHCP/RARP Disabled toggle N

7) Timeserver 1 address 16 192.043.244.018

xxx.xxx.xxx.xxx Y

8) Timeserver 2 address 16 000.000.000.000

xxx.xxx.xxx.xxx N

9) Timeserver 3 address 16 000.000.000.000

xxx.xxx.xxx.xxx N

Unit Email settings

1) Mailserver SMTP address 58 0.0.0.0 xxx.xxx.xxx.xxx

URL.

2) Mailserver SMTP IP port 4 25 ### Y

3) Mailserver login name 58 name@company.com

4) Mailserver login password 58 password99 Y

5) Destination Email address 80 *1 fax@null name2@company.com

6) Reply email address 58 fax@null name@company.com

7) Reply Name 58 Fax Any text up to 58 char

6) Check Mailserver connection

Unit Fax settings

1) Fax reply I.D. 20 Black Box (R) Fax

Black Box (R) Fax N

2) Fax number 20 <phone number>

724-746-0746

3) Fax location 28 <location>

Lawrence, PA

4) Company Name 28 <company> Black Box N

5) Scaling Percentage 3 100 (10-150 in incs of 5) Y

6) Number of rings before answer

2 1 1-30 Y

7) Signal Transmission Errors Yes Toggle N

8) Time Zone Offset 3 +0 (+/-0 to 13 hours) Y

9) Daylight Saving (Off) toggle N

*1 For FaxConfig enter each a ress on a separate line. For Telnet, separate with commas or

semicolons.

6 of

of of

of 49

4949

Requirements

 AC power outlet within 10 feet.

 Telephone wall jack an cable to reach the FaxReceiver

 An Ethernet cable for the connection from the FaxReceiver to an Ethernet hub

or switch connection that will connect to the mail server.

Important Information

NOTE: The device is desi ned to operate in a typical office environment. Choose a location

that is:

 Well-ventilated and away from sources of heat including direct sunlight.

 Away from sources of vibration or physical shock.

 Isolated from strong electromagnetic fields produced by electrical devices.

 Provided with a properly grounded wall outlet.

 The modem/card can be installed in either the top or bottom slot.

WARNING NOTES:

 o not attempt to modify or use the supplied AC power cord if it is not the

exact type required.

 Whenever the chassis cover is to be removed, ensure that the system is

disconnected from its power source and from all telecommunications links,

networks, or modem lines.

 o not operate the system with the cover removed.

T H E P R O C E S S

A fax is receive , a connection with the mail server is establishe , the fax is eco e an sent

to the mail server as a GIF file for each page embe e in the email.

If you are private in ivi ual use your email account an passwor as you use for your existing

mail client on your computer, this is all you nee .

If you are a corporate user we recommen to set up a e icate email account for

the FaxReceiver i.e. fax1@my omain.com an then copy the people to be informe

of incoming faxes from this account. This allows you to keep a copy of every receive

fax in this account for recor ing purposes. It is up to you if you want to give each

FaxReceiver its own mail account or if you want to use the Location Name to

istinguish which evice actually receive the fax.

7 of

of of

of 49

4949

Installation

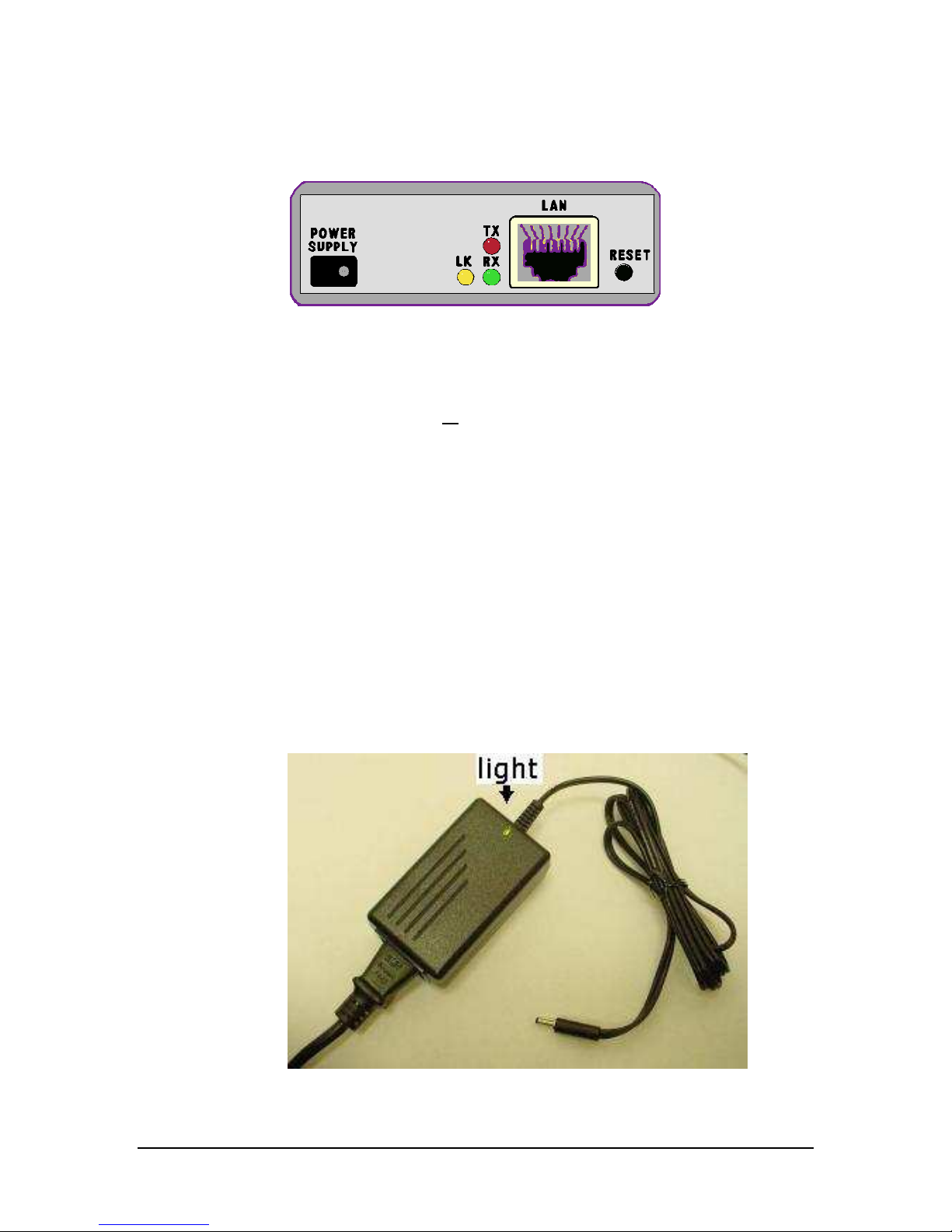

The illustration shows the setup of the ports an the iagnostic LEDs.

Connections

See the rawings on page 7 for installation examples.

Plug the PCMCIA mo em car into the top or bottom slot.

Insert your Ethernet RJ45 connection into the LAN jack on the front.

NOTE: If you o not have your Ethernet connection plugge in, there will be no lights on

power up.

The Mo em’s RJ11 phone line cable an a apter will plug into the mo em car at the rear of

the unit, with the other en into the RJ11 phone jack on the wall. Alternatively you may

plug the FaxReceiver into a phone splitter.

NOTE: If you aisy chain from an outgoing fax machine, it shoul be set to either

on't answer or answer after 4 rings or more so that the FaxReceiver will pickup

first.

Connect the power cor to the Switch Mo e Power Supply unit socket.

Plug the AC cor from the Switch Mo e Power Supply into the 110V wall socket. There is a

green light on the power brick that will come on.

Plug the DC wires from the Switch Mo e Power Supply unit into the FaxReceiver.

8 of

of of

of 49

4949

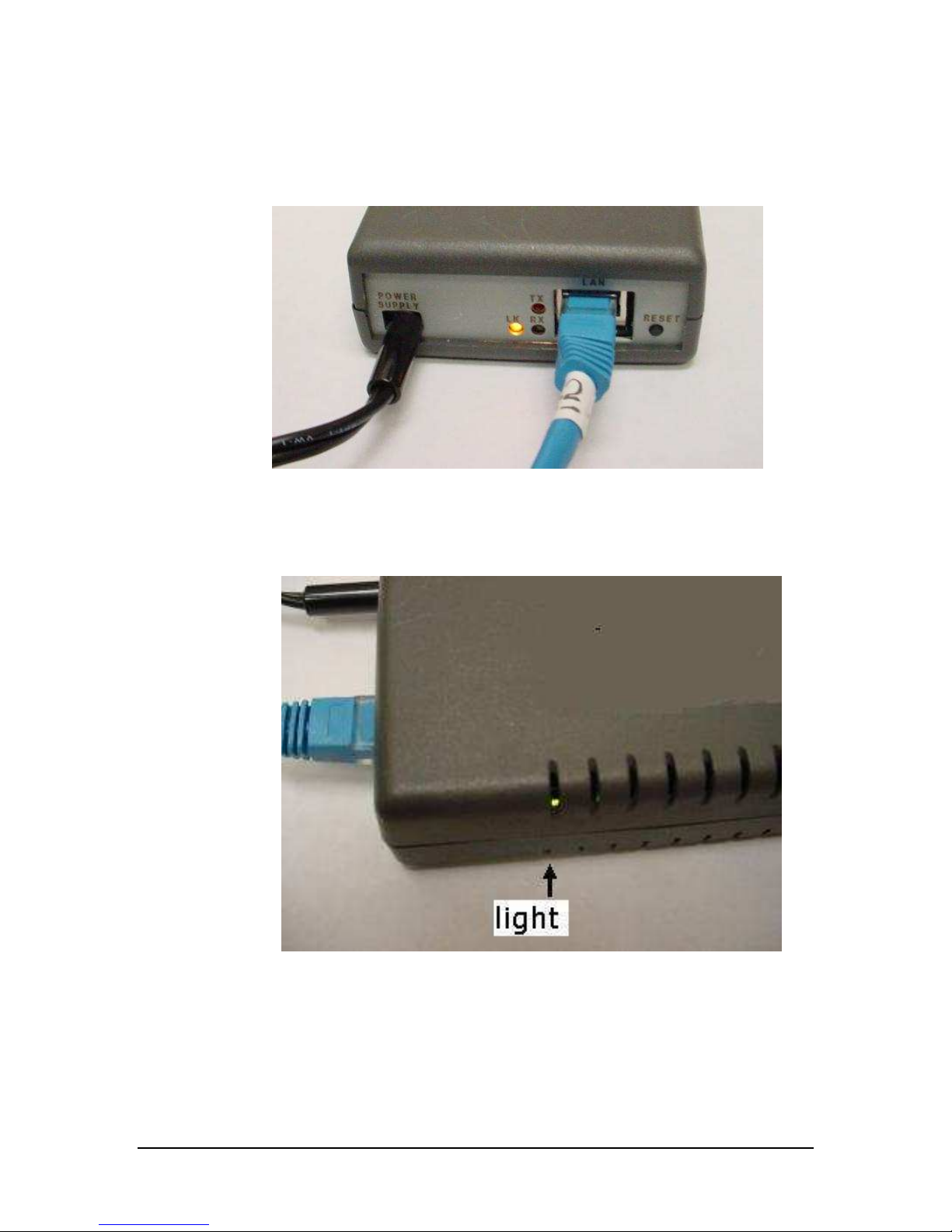

NOTE: It will take about 10 secon s for the FaxReceiver to be rea y to accept a fax

or telnet connection.

When your Ethernet cable is connecte to a network, the link light will be on.

NOTE:

There is a green light insi e the unit that can be seen. See the picture

below.

9 of

of of

of 49

4949

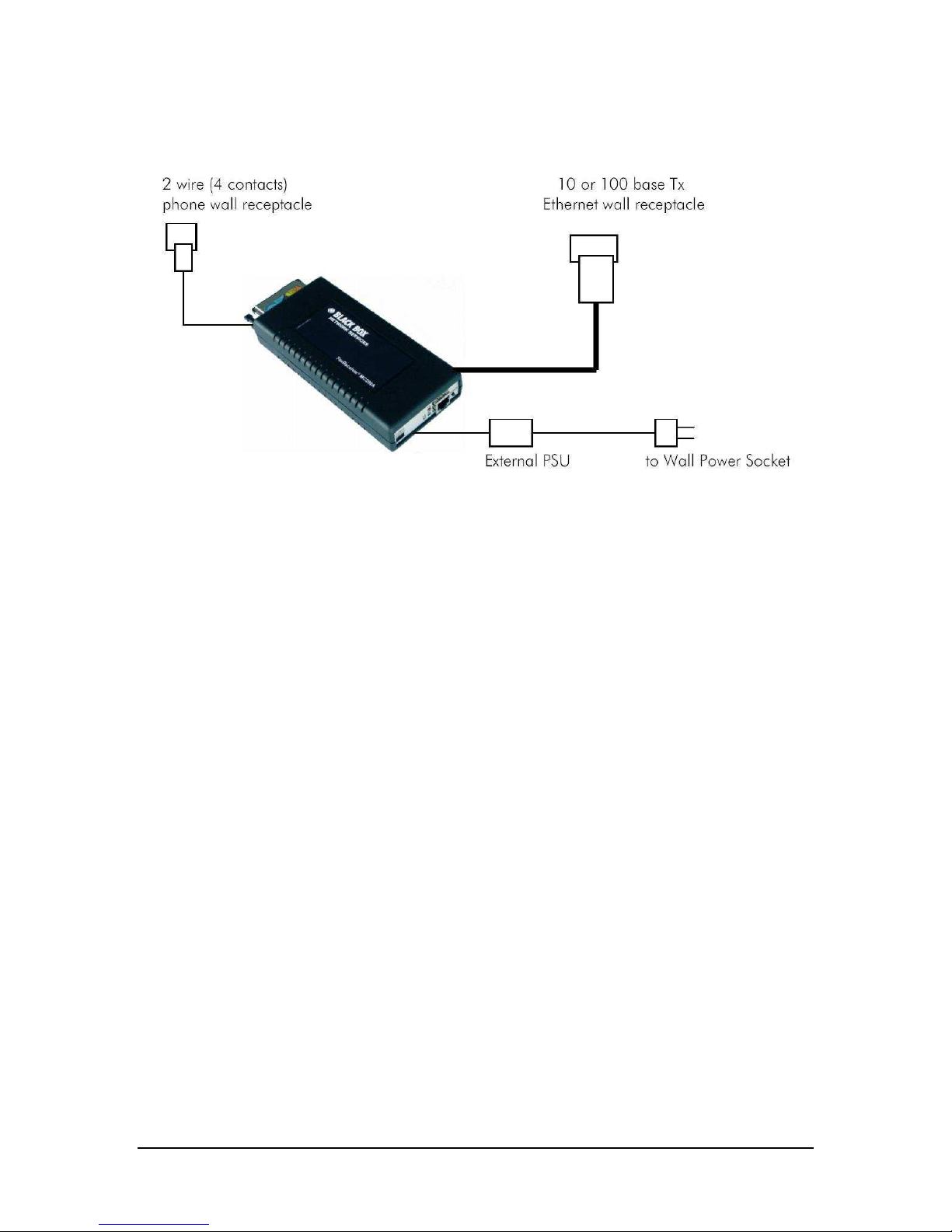

Typical installation replacing an incoming fax machine:

1010

10 of

of of

of 49

4949

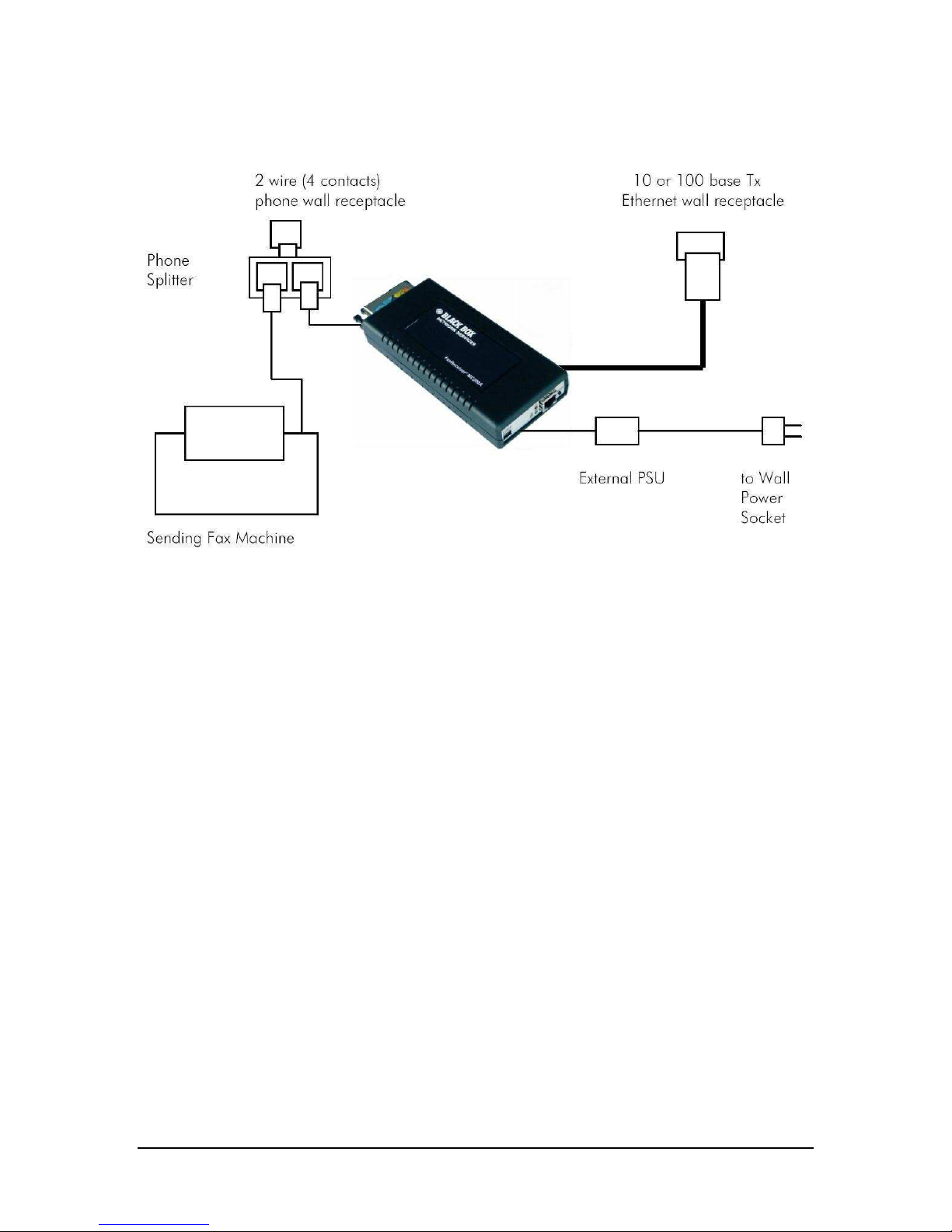

Installation where an outgoing fax machine is require on incoming line:

NOTE: If you aisy chain from an outgoing fax machine, it shoul be set to either

not auto answer or answer after 4 rings or more so that the FaxReceiver will pickup

first.

NOTE: You shoul also set the fax machine to tone ialing an not pulse ialing.

Pulse ialing causes voltage spikes on the line that can be mistaken for an incoming

ring, an the FaxReceiver will attempt to answer.
