Quick Start Guide

Increase the distance between a source

(computer, CPU) and its console (keyboard,

monitor, and mouse) and other peripheral

devices.

ServSwitch™DKM Compact Extenders

ACX1T, ACX1R Series

Black Box Tech

Support: FREE! Live.

24 / 7. Tech support

the way it should be.

Great tech support is just 30 seconds

away at 724-746-5500 or blackbox.com.

Order toll-free in the U.S.:

Call 877-877-BBOX

(outside U.S. call 1-724-746-5500)

FREE technical support

24 hours a day, 7 days a week:

Call 724-746-5500 or

fax 724-746-0746

Mailing address:

Black Box Corporation

1000 Park Drive

Lawrence, PA 15055-1018

Web site: www.blackbox.com

E-mail: info@blackbox.com

Customer

Support

Information

BL A C K B O X®

ServSwitch DKM Quick Start Guide

ACX1T Quick Start Guide, rev. 1

ACX1T

1. What’s Included

Your packages should contain the following

items. If anything is missing or damaged,

contact Black Box Technical Support at

724-746-5500 or info@blackbox.com.

• DKM Compact Extender CPU Unit

• DKM Compact Extender CON Unit

• (2) 5-VDC international power supply units

Table 3-1. Component descriptions.

Number Description

1Source (computer, CPU)

2CPU Unit

3Interconnect cable

4CON Unit

5Console (monitor, keyboard, mouse)

4. DDC Information Download

By default, data from the internal DDC list is reported

to the source (computer, CPU). If these settings do not

work properly, you can download and store the con-

sole monitor’s DDC information internally. The devices

must be configured accordingly.

On all KVM Extenders with USB-HID support, users

can load the console monitor’s DDC information by

using keyboard commands.

1. Enter Command Mode with the “hotkey.”

2. Press the <a> key to download the console

monitor’s DDC information.

The screen will go black for a short time.

Command Mode is now closed, and the keyboard

LEDs return to previous status.

This re-adjusts the video mode and should give you

optimal screen quality. The CPU should now show the

console monitor as the current screen, together with

the available video resolutions.

The DDC information of the console monitor was

loaded once.

To re-load the DDC information, repeat the operation.

During DDC transfer, the status LEDs on both CON

and CPU units flash while reading (CON unit) and

copying (CPU unit) information.

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

ServSwitch DKM Quick Start Guide ServSwitch DKM Quick Start GuideServSwitch DKM Quick Start Guide

Page 3Page 2 Page 4

• (1) country-specific power cord

• This printed Quick Start Guide

The Single-Head devices also include:

• DVI video cable (6 ft. [1.8 m], DVI-D, male to male)

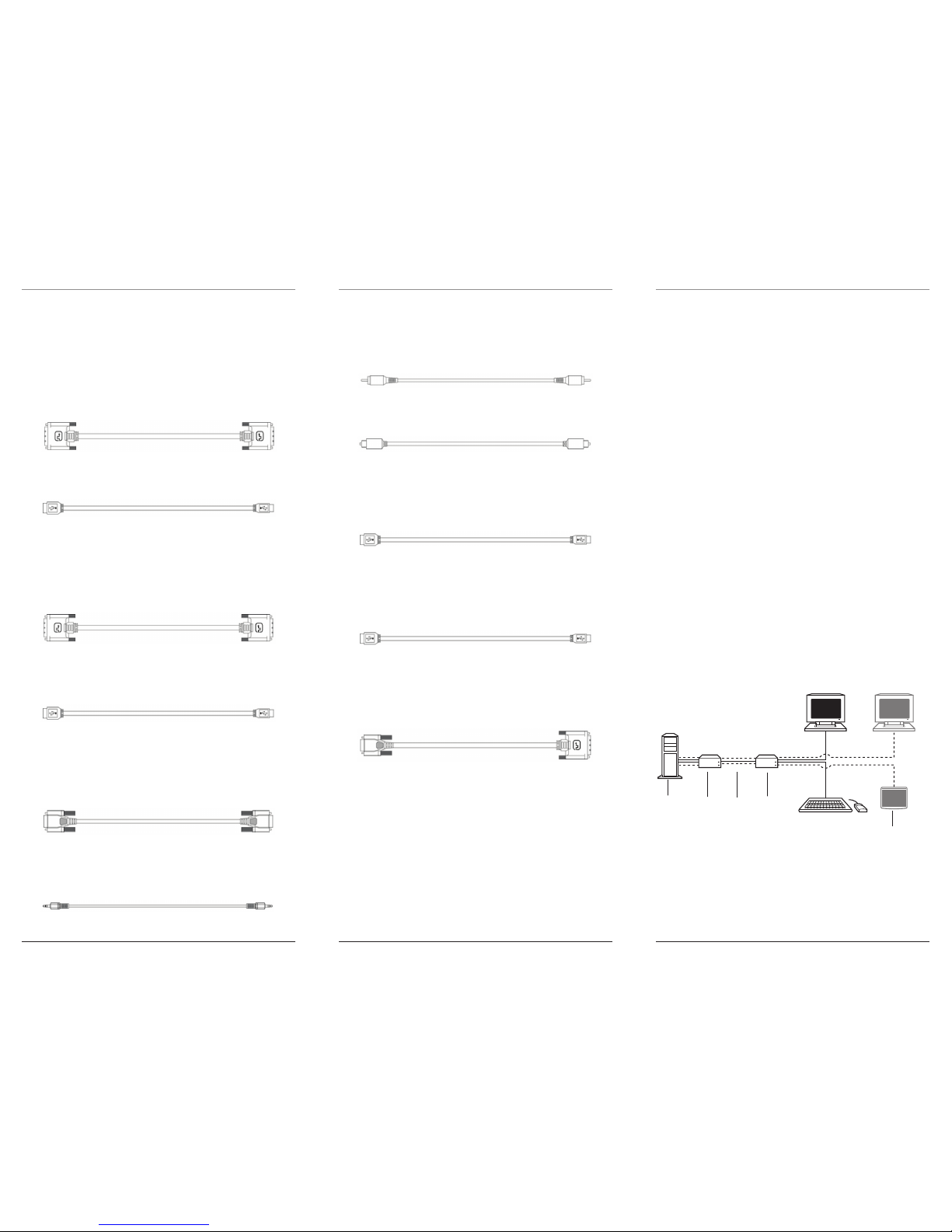

Figure 1-1. DVI video cable.

• (1) USB cable (6 ft. [1.8 m], Type A to Type B)

Figure 1-2. USB cable.

The Dual-Head devices also include:

• DVI video cable (6 ft. [1.8 m], DVI-D male to male)

Figure 1-3. DVI cable.

• USB cable (6 ft. [1.8 m], Type A to Type B)

Figure 1-4. USB cable.

The Analog Audio/Serial option also includes:

• Serial cable (6 ft. [1.8 m], RS-232 male connector)

Figure 1-5. Serial cable.

• Stereo jack cable (5.2 ft. [1.6 m], 3.5-mm male

connector)

Figure 1-6. Stereo jack cable.

ACX1T ACX1TACX1T

The Digital Audio option also includes:

• RCA cable (8.2 ft. [2.5 m], Cinch male connector)

Figure 1-7. RCA cable.

• TOSLINK® cable (6 ft. [1.8 m], F05 male connector)

Figure 1-8. TOSLINK cable.

The USB-HID Add-on option also includes:

• USB cable (6 ft. [1.8 m], USB Type A to Type B)

Figure 1-9. USB cable.

The USB 2.0 Add-on option also includes:

• USB cable (6 ft. [1.8 m], USB Type A to Type B)

Figure 1-10. USB cable.

The VGA option also includes (instead of DVI-D):

• VGA cable (6 ft. [1.8 m], VGA male to DVI-I male)

Figure 1-11. USB cable.

• Infrared remote control

2. System Setup

NOTE: If you are a first-time user, we recommend that

you set up the system as a test setup. This will

enable you to identify and solve any cabling

problems, and experiment with your system

more conveniently.

1. Switch off all devices.

CON Unit installation

2. Connect your monitor(s), keyboard and mouse to

the CON Unit.

3. Connect the CON Unit with the interconnect

cable(s).

4. Connect the 5-VDC power supply to the CON Unit.

CPU Unit Installation

5. Connect the source (computer, CPU) with the

supplied cables to the CPU Unit. Make sure the

cables are not strained.

6. Connect the CPU Unit to the interconnect cable(s).

7. Connect the 5-VDC power supply to the CPU Unit.

8. Power up the system.

NOTE: To power up the system, we recommend the

following sequence: Monitor – CON Unit – CPU

Unit – source.

3. System Overview

1 2 3 4

Figure 3-1. System components.
