Intended use

Your Black & Decker Dustbuster®hand-

held vacuum cleaner has been designed

for light dry vacuum cleaning purposes.

This appliance is intended for household

use only.

Design and Patentinformation

EC Design Registration Numbers:

X607643-0001

X607668-0001

X607650-0001

X897764-0001

Safety instructions

Warning! When using battery-powered

appliances, basic safety precautions,

including the following, should always be

followed to reduce the risk of fire, leaking

batteries, personal injury and material

damage.

XRead all of this manual carefully

before using the appliance.

XThe intended use is described in this

manual. The use of any accessory or

attachment or the performance of

any operation with this appliance

other than those recommended in

this instruction manual may present

a risk of personal injury.

XRetain this manual for future

reference.

Using your appliance

XDo not use the appliance to pick up

liquids or any materials that could

catch fire.

XDo not use the appliance near water.

XDo not immerse the appliance in

water.

XNever pull the charger lead to

disconnect the charger from the

socket. Keep the charger lead away

from heat, oil and sharp edges.

XThis appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to

ensure that they do not play with the

appliance.

After use

XUnplug the charger before cleaning

the charger or charging base.

XWhen not in use, the appliance

should be stored in a dry place.

XChildren should not have access to

stored appliances.

Inspection and repairs

XBefore use, check the appliance for

damaged or defective parts. Check

for breakage of parts, damage to

switches and any other conditions

that may affect its operation.

XDo not use the appliance if any part

is damaged or defective.

XHave any damaged or defective

parts repaired or replaced by an

authorized repair agent.

XRegularly check the charger lead for

damage. Replace the charger if the

lead is damaged or defective.

XNever attempt to remove or replace

any parts other than those specified

in this manual.

Battery and charger

XNever attempt to open the battery.

XDo not expose the battery to water.

XDo not incinerate the battery.

XDo not expose the charging base to

water.

XDo not open the charging base.

Electrical safety

Your charger has been designed for a

specific voltage. Always check that the

mains voltage corresponds to the voltage

on the rating plate. Never attempt to

replace the charger unit with a regular

mains plug.

Symbols on the charger

Features

1. Dust collector

2. Release button

3. On/Off switch

4. Charging indicator

5. Filter cleaning button

6. Charging base

7. Powered brush head

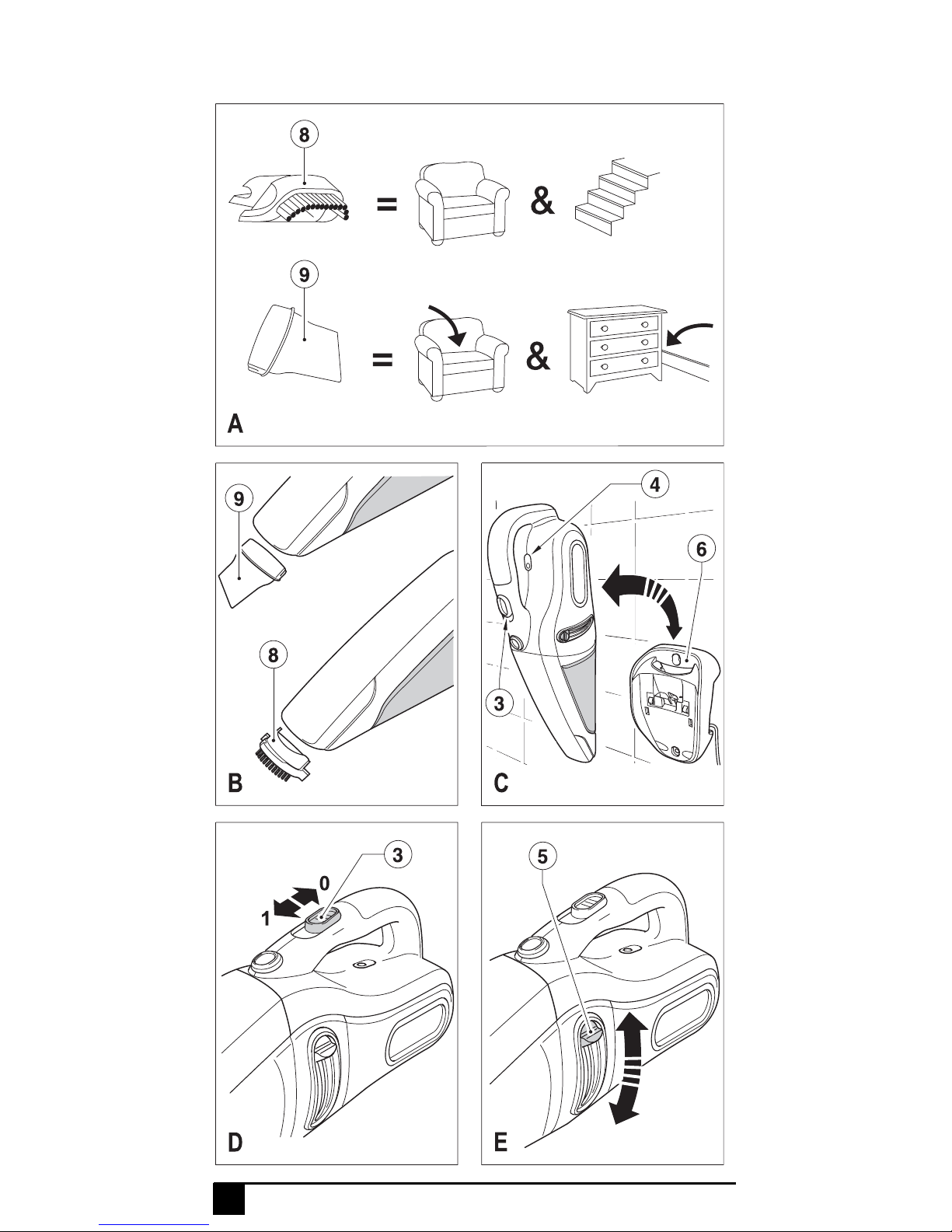

Fig. A

8. Brush tool

9. Crevice tool

Identifying your product

The model design can be determined

from the suffix codes used in the

catalogue number. The following

catalogue numbers are described in this

manual:

XDV96VXZ or DV12VXZ.

The suffix code V corresponds to the

following designs:

X05: All units, supplied with a small

crevice tool and a brush tool.

The suffix code W is used to identify the

range of colour/finish options.

The suffix code X represented by the

letter T is used for models fitted with a

turbo brush

The suffix code Y represented by the

letter H is used for models fitted with a

HEPA filter.

The suffix code Z represented by the

letter N is used for models fitted with a

NiMH battery.

Installation

Fitting the charging base to the wall

The charging base can be placed on a

work top or fitted to the wall to provide a

convenient storage and charging point for

the appliance.

When fixing to a wall, make sure that the

fixing method is suitable for the wall type

and is appropriate to the weight of the

appliance.

Note:Please note, that the unit will not fit

onto the wall mounted charging base with

the powered head attached.

Assembly

Fitting the powered brush head

The brush head (7) allows for vacuuming

on cut pile carpeting. The brush head is

particularly useful for picking up hair,

threads, etc.

XInsert the brush head (7) into the

front of the appliance. Make sure

that the brush head is pushed fully in.

Fitting the accessories (fig. A & B)

These models are supplied with some or

all of the following accessories:

XA crevice tool (9) for confined

spaces.

XA brush tool (8) for furniture and

stairs.

To fit an accessory, proceed as follows:

XTake the accessory from its storage

position on the appliance (fig. J).

XInsert the appropriate accessory into

the front of the appliance.

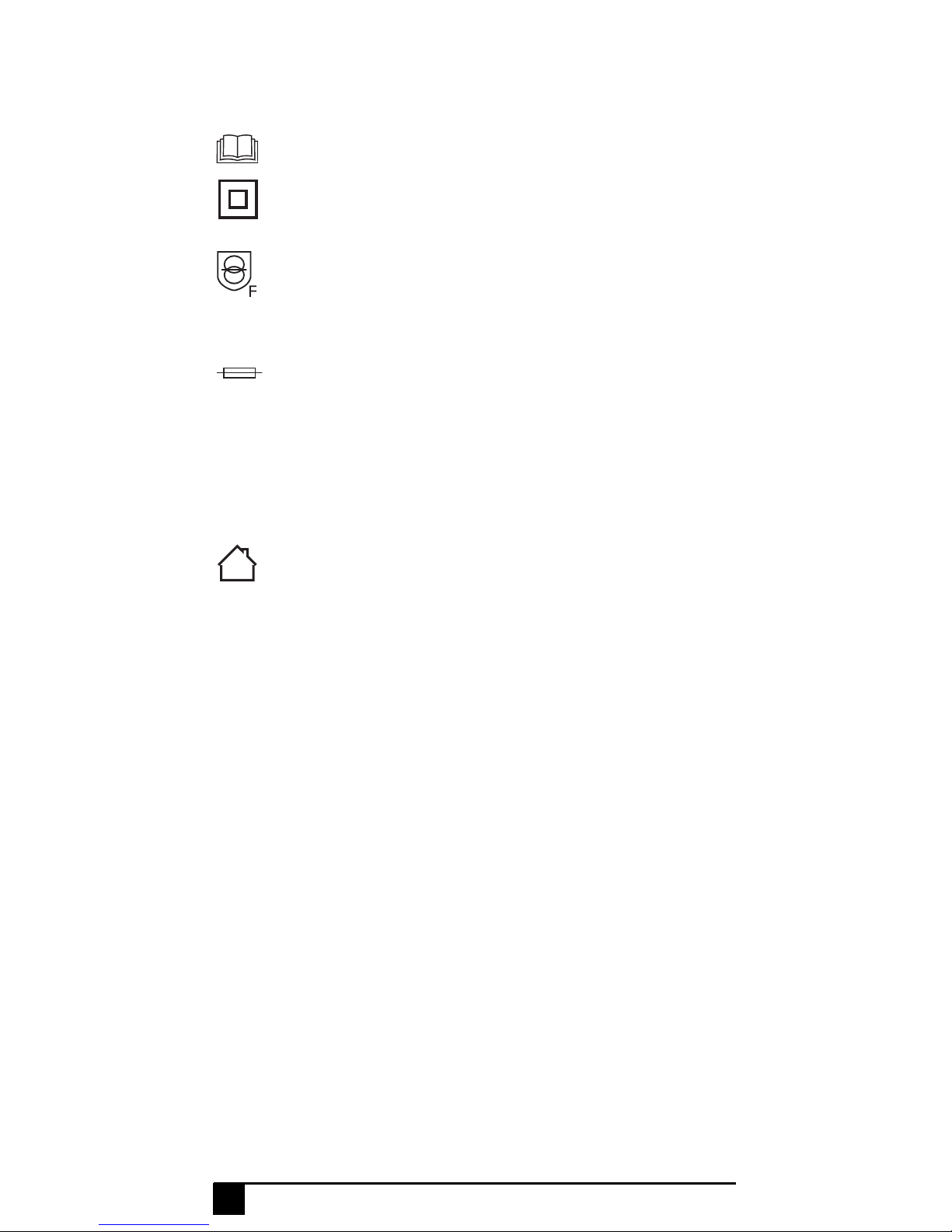

Read all of this manual

carefully.

Your charger is double

insulated; therefore no earth

wire is required.

Fail-safe isolating transformer.

The mains supply is electrically

separated from the transformer

output.

The charger automatically shuts

off if the ambient temperature

becomes too high. As a

consequencethe charger will be

inoperable. The charging base

must be disconnected from the

mains supply and taken to an

authorised service centre for

repair.

The charging base is intended

for indoor use only

130oC

Use

XBefore first use, the battery must be

charged for at least 16 hours.

XPlace the appliance on the charging

base whenever it is not in use.

Charging the battery (fig. C)

Before charging the battery:

XMake sure that the appliance is

switched off. The battery will not be

charged with the on/off switch (3) in

the on position.

XPlace the appliance on the charging

base (6) as shown.

XPlug in the charger. Switch on at the

mains.

The charging indicator (4) will be lit.

XLeave the appliance to charge for at

least 16 hours.

While charging, the charger may become

warm. This is normal and does not

indicate a problem. The appliance can be

left connected to the charger indefinitely.

The charging indicator (4) will be lit as

long as the appliance is connected to the

plugged-in charger.

Warning! Do not charge the battery at

ambient temperatures below 4 °C or

above 40 °C.

Switching on and off (fig.D)

XTo switch the appliance on, slide the

on/off switch (3) forward.

XTo switch the appliance off, slide the

on/off switch (3) back.

Optimising the suction force (fig. E)

In order to keep the suction force

optimised, the filters must be cleared

regularly during use.

XSlide the filter cleaning button (5) up

and down a few times to shake out

dust clogging the filters (10 & 11).

Cleaning and maintenance

Warning!Regularly clean the filters (10 &

11).

Cleaning the brush head

XRemove any hair or other debris that

is wrapped around or is trapped near

the brush bar to make sure that it can

rotate freely. Use a pair of scissors if

necessary.

Cleaning the dust collectorand filters

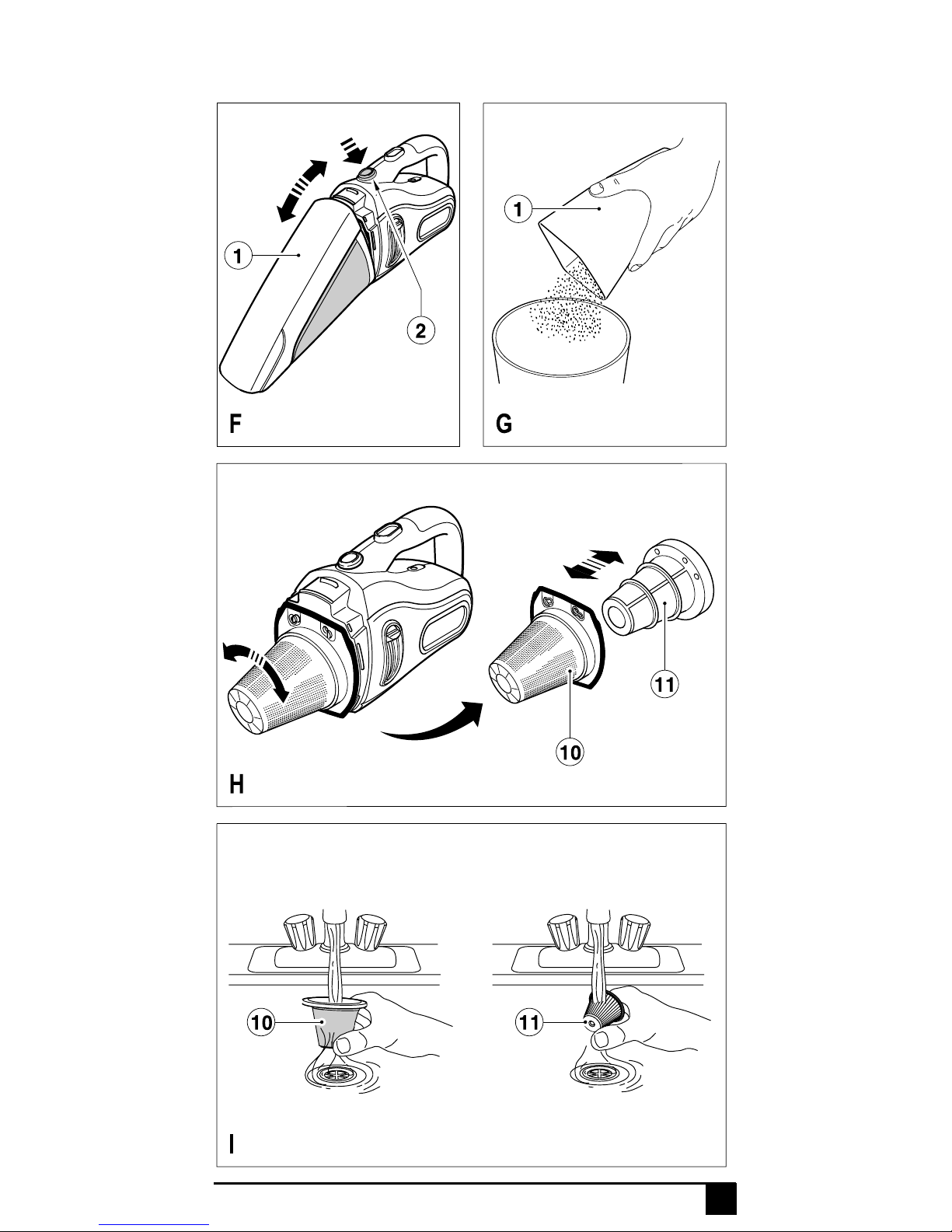

(fig. F - I)

The filters are re-usable and should be

cleaned regularly.

XPress the release button (2) and

remove the dust collector (1).

XEmpty the dust collector (1) (fig. G).

XRemove the filters (10 & 11) by

twisting them clockwise (fig. H).

XSeparate the filters (10 & 11)

XBrush any loose dust from the filters

(10 & 11).

XWash the filters in warm, soapy

water (fig. I).

Warning! Do not immerse the appliance

in water.

XMake sure that the dust collector (1)

and the filters (10 & 11) are dry.

XRefit the filters (10 & 11) on to the

appliance, twisting them counter-

clockwise until they lock into place.

XRefit the dust collector (1) onto the

appliance. Make sure that the dust

collector clicks into place.

Warning! Never use the appliance

without the filters. Optimum dust

collection will only be achieved with clean

filters.

Replacing the filters

The filters should be replaced every 6 to

9 months and whenever worn or

damaged. A replacement filter is

available from your Black & Decker

dealer (cat. no. VF70):

XRemove the old filters as described

above.

XFit the new filters as described

above.

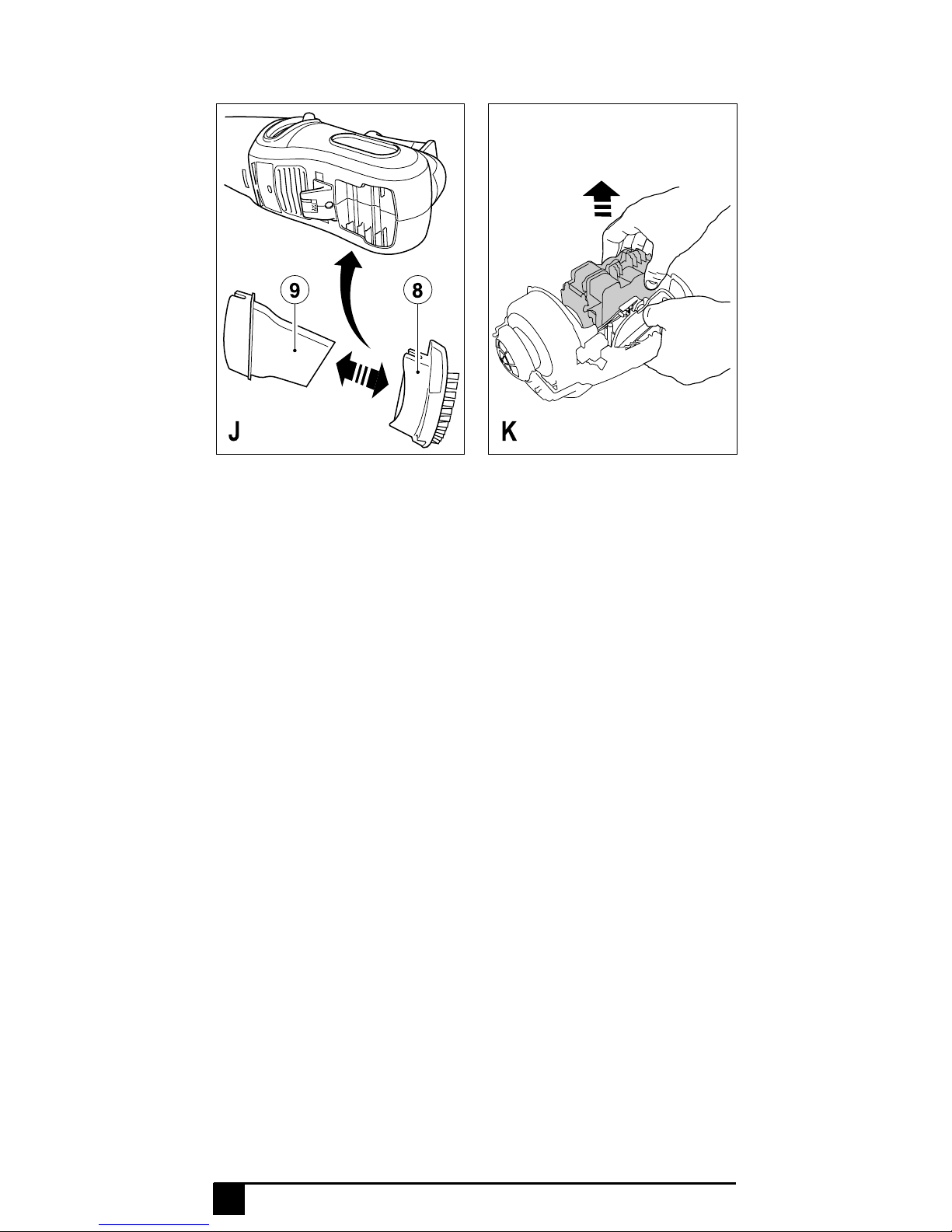

Storing the accessories (fig. J)

XPress the accessories into the

corresponding holders until they click

into place.

Protecting the environment

Should you find one day that your Black &

Decker product needs replacement, or if it

is of no further use to you, do not dispose

of it with household waste. Make this

product available for separate collection.

Separate collection of used

products and packaging allows

materials to be recycled and

used again. Re-use of recycled

materials helps prevent

environmental pollution and

reduces the demand for raw

materials.

Local regulations may provide for

separate collection of electrical products

from the household, at municipal waste

sites or by the retailer when you purchase

a new product.

Black & Decker provides a facility for the

collection and recycling of Black & Decker

products once they have reached the end

of their working life. To take advantage of

this service please return your product to

any authorised repair agent who will

collect them on our behalf.

You can check the location of your

nearest authorised repair agent by

contacting your local Black & Decker

office at the address indicated in this

manual. Alternatively, a list of authorised

Black & Decker repair agents and full

details of our after-sales service and

contacts are available on the Internet at:

www.2helpU.com.

Battery (fig. K)

XPreferably discharge the battery by

operating the appliance until the

motor stops.

XPress the release button (2) and

remove the dust collector (1).

XRemove the filters (10 & 11) by

twisting them clockwise (fig. H).

XRemove the seven screws holding

the body of the appliance together.

XPull the cover half away from the

location half.

XFor catalogue numbers DV96VXZ &

DV12VXZ,

- prise the small cover from the filter

cleaning slider and remove the

slider securing screw.

- lift out the full motor/fan/battery

assembly

XUnplug the battery assembly from

the main assembly.

XPlace the battery in a suitable

packaging to ensure that the

terminals cannot be short-circuited.

XTake the battery to your service

agent or to a local recycling station.

Once removed, the battery cannot be

refitted.

Separate collection. This

product must not be disposed of

with normal household waste.

If you want to dispose of the

product yourself, the battery

must be removed as described

below and disposed of in

accordance with local

regulations.

Technical data

EC declaration of conformity

DV96VXZ, DV12VXZ

Black & Decker declares that these

products conform to:

2006/95/EC, EN 55014, EN60335,

EN 61000

Level of sound pressure, measured

according to EN60704-1: <70 dB

The undersigned is responsible for

compilation of the technical file and

makes this declaration on behalf of

Black & Decker

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham

DL16 6JG,

United Kingdom

19-03-2008

Guarantee

Black & Decker is confident of the quality

of its products and offers an outstanding

guarantee. This guarantee statement is in

addition to and in no way prejudices your

statutory rights. The guarantee is valid

within the territories of the Member States

of the European Union and the European

Free Trade Area.

If a Black & Decker product becomes

defective due to faulty materials,

workmanship or lack of conformity, within

24 months from the date of purchase,

Black & Decker guarantees to replace

defective parts, repair products subjected

to fair wear and tear or replace such

products to make sure of the minimum

inconvenience to the customer unless:

XThe product has been used for trade,

professional or hire purposes.

XThe product has been subjected to

misuse or neglect.

XThe product has sustained damage

through foreign objects, substances

or accidents.

XRepairs have been attempted by

persons other than authorised repair

agents or Black & Decker service

staff.

To claim on the guarantee, you will need

to submit proof of purchase to the seller

or an authorised repair agent. You can

check the location of your nearest

authorised repair agent by contacting

your local Black & Decker office at the

address indicated in this manual.

Alternatively, a list of authorised Black &

Decker repair agents and full details of

our after-sales service and contacts are

available on the Internet at:

www.2helpU.com

Please visit our website

www.blackanddecker.co.uk to register

your new Black & Decker product and to

be kept up to date on new products and

special offers. Further information on the

Black & Decker brand and our range of

products is available at

www.blackanddecker.co.uk.

DV96VXZ DV12VXZ

Voltage Vdc 9.6 12.0

Battery Type NiCD/NiMH NiCD/NiMH

Weight kg 1.3 1.4

Head

Weight kg 1.6 1.7

Charger

Input voltage Vac 230

Approx. charging time

(minimum) h16

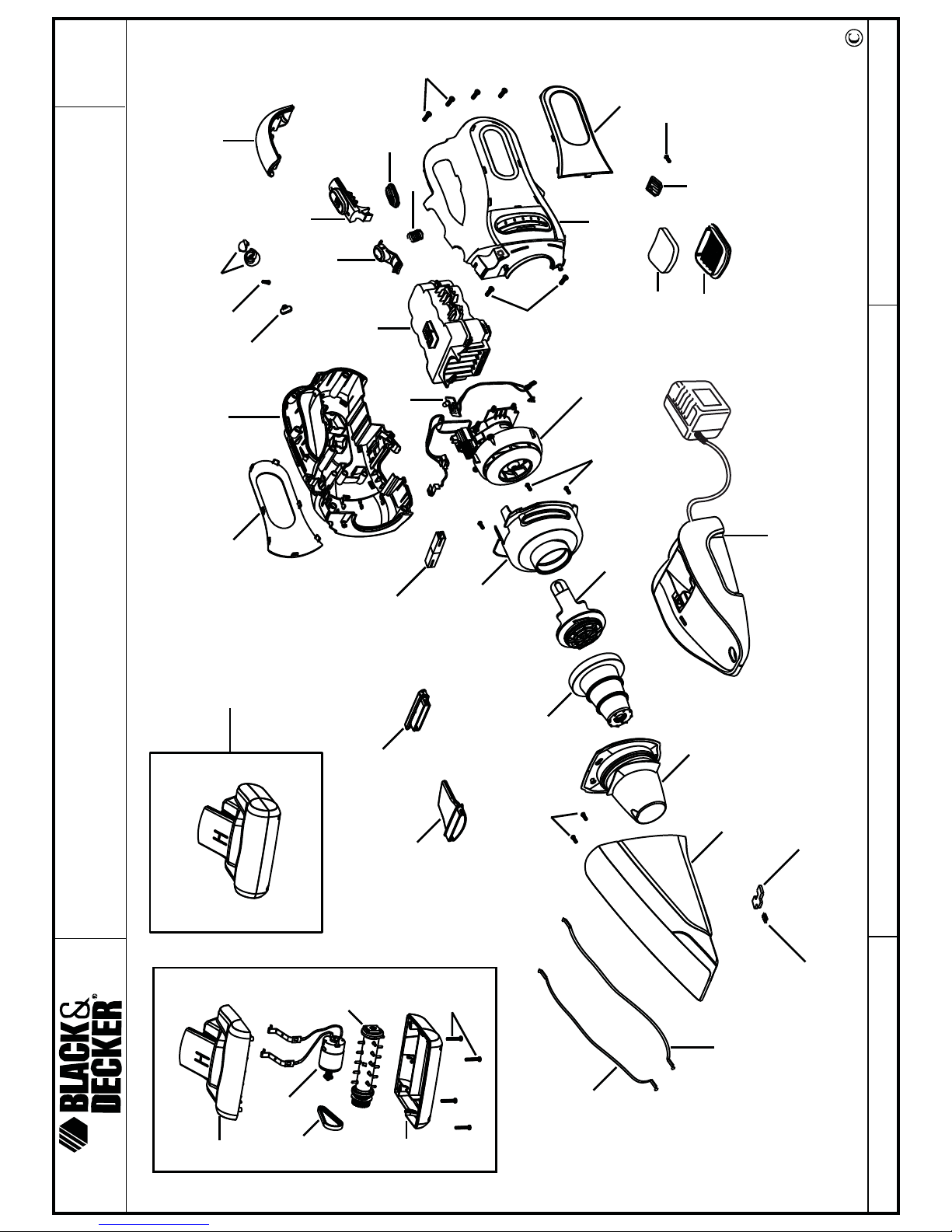

TYP.

www.2helpU.com 20 - 06 - 08

E15411

DV9605TN - DV1205TN

30 24

13 14

35 1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black & Decker Aspirateur

Black & Decker

Black & Decker PD1820LF Manuel utilisateur

Black & Decker

Black & Decker BXVMB700E Manuel utilisateur

Black & Decker

Black & Decker ORB4810-CA Series Manuel utilisateur

Black & Decker

Black & Decker BDH1600PL Manuel utilisateur

Black & Decker

Black & Decker PDB315JB Manuel utilisateur

Black & Decker

Black & Decker HHVK515JP Manuel utilisateur

Black & Decker

Black & Decker Dust Buster CHV1408P Manuel utilisateur

Black & Decker

Black & Decker PD1200AV Dustbuster Manuel utilisateur

Black & Decker

Black & Decker Powerful Solutions Dustbuster Flexi PD1080 Manuel utilisateur

Black & Decker

Black & Decker DVJ215J Manuel utilisateur

Black & Decker

Black & Decker Hand-held vacuum cleaner Manuel utilisateur

Black & Decker

Black & Decker DV 1205 Manuel utilisateur

Black & Decker

Black & Decker BDWDS20 Manuel utilisateur

Black & Decker

Black & Decker BDH1850SM Manuel utilisateur

Black & Decker

Black & Decker 188214-00 Manuel utilisateur

Black & Decker

Black & Decker HHVI315JO Manuel utilisateur

Black & Decker

Black & Decker BHFEB520D1 Manuel utilisateur

Black & Decker

Black & Decker HLVA320JP Manuel utilisateur

Black & Decker

Black & Decker Dustbuster V1999 Manuel utilisateur

Black & Decker

Black & Decker VH900 Dustbuster Manuel utilisateur

Black & Decker

Black & Decker BDH2000SL Manuel utilisateur

Black & Decker

Black & Decker DUST BUSTER CHV4802 Manuel utilisateur

Black & Decker

Black & Decker HHVJ315JDP Manuel utilisateur

Black & Decker

Black & Decker BDH1800PL Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
