Lawnmower

GRC730

This manual provides operating and maintenance

instructions for the Black & Decker GRC730

cordless lawnmower.

Know your machine

Read this manual carefully. Observe all the

recommended safety instructions before,

during and after using your machine, and

maintain your machine in good working order.

Familiarise yourself with the controls on your

machine before attempting to operate it, but

above all, be sure you know how to stop

your machine in an emergency.

Retain this manual and all other literature

supplied with your machine for future

reference.

Safety instructions

Training

•Never allow children or persons who are

unfamiliar with this type of machine to

use it, nor anyone who has not read

this leaflet.

360

6m / 20ft

Do not allow children, animals

or other persons near your

machine when in use - always

keep them at least 6m (20ft)

away from the cutting area.

•Remember that the operator/user is

responsible for accidents or hazards

occurring to other people or their property.

Preparation

•To protect your feet, always wear stout

shoes or boots - freshly cut grass is

damp and slippery.

•Use protective equipment. Wear safety

spectacles or goggles whilst mowing.

Use a face mask if dusty.

•Do not operate in gaseous explosive

atmospheres.

•Do not mow barefoot or in open sandals.

•Wear long trousers to protect your legs -

any debris left on the lawn or cutting path

may be picked up and ejected by the

blades.

•Always be sure your machine is in a safe

operating condition.

•Before using your machine, remove

safety key and visually check that the

blade, blade nut and cutter assembly are

not worn or damaged. Damaged blades

and worn blade nuts must be replaced.

Also check that the blade nut is securely

fastened.

•Always check that your lawn or cutting

path is clear of all sticks, stones, wire

and other debris. Contact with such

debris may damage your machine.

Operation

•When tilting the handle downwards for

starting, do not tilt it more than is

absolutely necessary. Always ensure that

both hands are in the operating position

and feet are well away from the blades

before returning the mower to the ground.

•Avoid accidental starting. Ensure switch

is off when inserting safety key.

•Release switch lever to turn mower off

and remove the safety key:

•Whenever you leave your machine

unattended.

•Before checking, cleaning or working

on the mower.

•Before clearing a blockage.

•If the mower starts to vibrate

abnormally (check immediately).

•After striking a foreign object.

Inspect the mower for damage and

make repairs as necessary.

•Never run the unit whilst on its’ side or

attempt to stop the blade - always allow

it to stop on its own.

•Do not put hands or feet near or under

rotating parts.

•Keep clear of discharge openings at all

times.

•Start your machine carefully according to

the instructions and with your feet well

away from the blades.

•Avoid using the machine during rain and

avoid wet grass if possible.

•Mow only in daylight or good artificial light.

•Do not pull your machine towards you or

walk backwards when mowing.

•Do not cross gravel paths or roads whilst

the blade is rotating.

Instruction Manual

ENGLISH

•Always be sure of your footing,

particularly on slopes.

•Always mow across the face of slopes,

never up and down. Exercise extreme

caution when changing direction on slopes.

•Do not cut excessively steep slopes and

always wear non-slip footwear.

•Check the grassbag frequently for wear

or damage, and replace if necessary.

•Walk, never run. Do not force the mower.

•Never pick up or carry your mower while

the motor is running. Ensure the blades

have stopped rotating when tilting for

transporting the mower to and from the

area to be mowed.

•When transporting your unit, always

remove the safety key, adjust the cut

height setting to a mid position and take

extreme care when lifting.

•Never operate the mower with defective

guards or shields.

Maintenance and storage

•Store your machine in a dry place when

not in use, remove the safety key and

place out of the reach of children.

•Do not use solvents or cleaning fluids to

clean your machine - use a blunt scraper

to remove grass and dirt. Always remove

the safety key before cleaning.

•Do not charge or store the unit outdoors.

•Do not operate your machine if any parts

are defective; discard all defective parts

and fit new parts before use.

•Replace worn or damaged parts for safety.

•Keep all nuts, bolts and screws tight to

be sure your mower is in a safe working

condition.

•Use only Black & Decker recommended

replacement parts and accessories.

Features (Fig. A)

AYour purchase of the Black & Decker

GRC730 lawnmower gives you a product

combining quality with modern design and

the following features, to provide safe,

efficient and easy mowing.

•Cordless - there is no need for extension

cables while mowing.

•Gasless - there is no need for petrol and

oil to buy, mix, store or transport.

•Clean - there are no emissions, the

mower is environmentally friendly.

•Rechargeable 12V battery - provides

reliable power that will cut approx. 300m2.

•Easy to start - starts first time every time.

•Specially designed switch box (16) and

safety key (24) to prevent accidental

starting of the mower.

•Ergonomically designed upswept handle

for comfortable use and ease of

pushing (10).

•A blade brake (autostop) for added

safety - stops the blade from rotating

within 3 seconds once the switchbox

lever is released.

•Large handle wing nuts for easy

assembly and storage.

•Single lever height of cut adjustment for

quick and easy operation (20).

•Five height of cut positions which

provides the flexibility to deal with most

grass conditions.

•The in line wheels allowing cutting right

up to the edge of the lawn.

•Large capacity grass bag (30 litres) for

longer cutting periods (19).

•Easy grassbag removal.

•Smooth bottom deck design giving you a

better cut performance and an improved

quality of cut.

•Tough, durable plastic deck which will

not rust and contributes to low noise and

low vibration.

•Rear roller (UK only) which produces the

traditional, striped effect on the lowest

height of cut.

•Powerful and efficient 12V permanent

magnet motor which gives effective

cutting and bagging in all reasonable

conditions and a low noise level.

•The GRC730 will have a run time under

average cutting conditions of

approximately 300m2. This run time will

vary upwards and downwards

dependant upon grass conditions, cut

height used and push speed.

Black & Decker policy is one of continuous

improvement to their product and as such

they reserve the right to change product

specification without prior notice.

B3•When both handles are assembled, fit

one cable clip (18) onto the upper handle

and one onto the lower handle. Clip the

cable into these ensuring the grassbox

can be removed and positioned freely.

Grassbag assembly (Fig. C)

Note: Ensure the battery is disconnected.

Read the safety instructions at the beginning

of this manual before using this accessory.

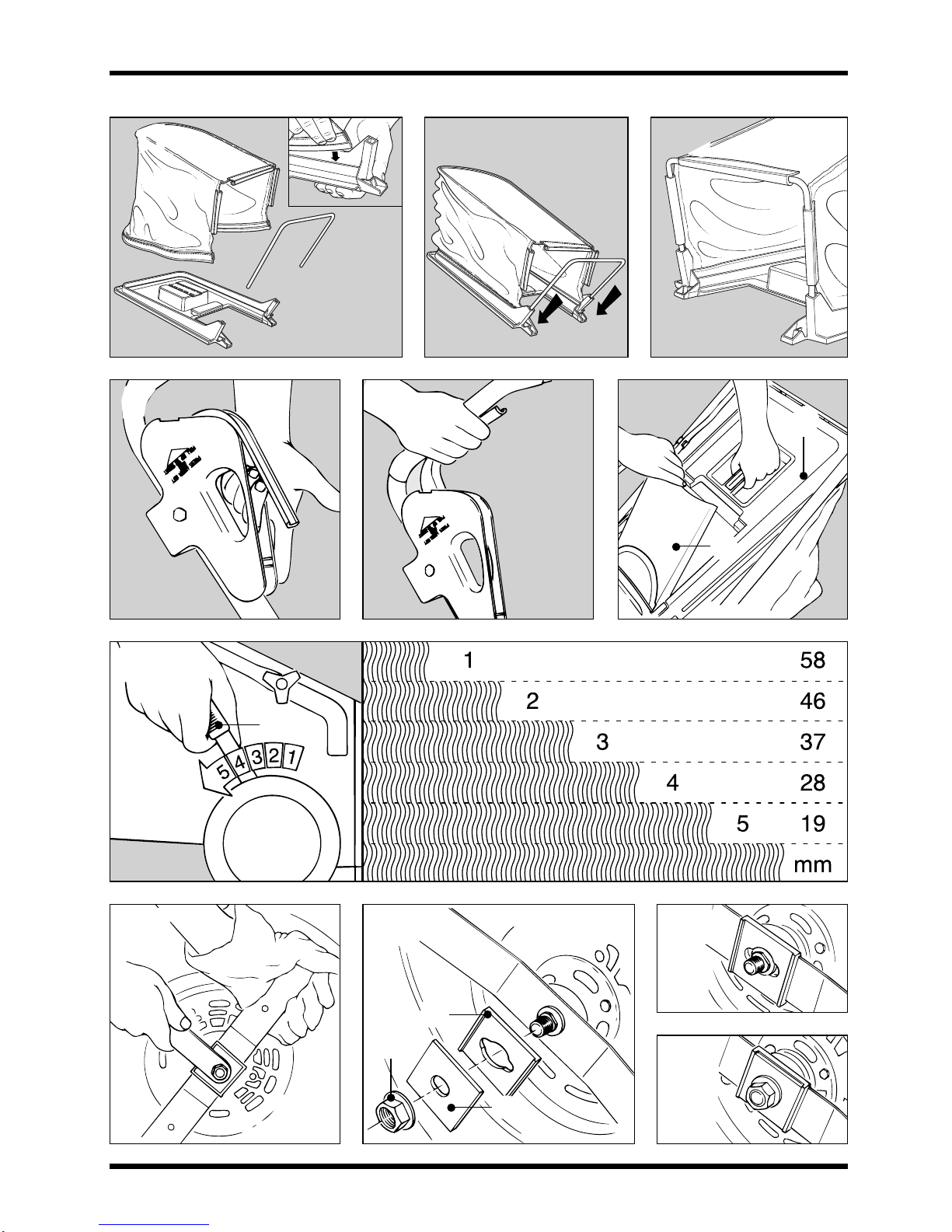

C1•Before starting to assemble the grassbag,

check that the parts are similar to those

shown in Fig. C1.

•Secure the grassbag by inserting the bag

rim into the channel and pushing down

firmly until the clip feature locks onto the

bag rim (inset).

C2•Push the support frame firmly into place.

C3•Assemble the two side clips to the

support frame, then assemble the

bottom clip.

Battery information

•The battery in your cordless lawnmower is a

12 volt sealed lead acid system. The battery

employs an absorbed electrolyte and, can

therefore, be stored in any position without

fear of leakage.

•The battery has been charged at the factory,

however, it will be necessary to recharge the

battery to ensure full charge before initial use.

•For optimal performance the battery should

be recharged after each use.

•For winter storage ensure:

•The mower is fully charged before storing.

•The temperature of the storage location is

below 25˚C.

•Storage duration is less than 6 months.

•Always store your mower in a dry and

cool location.

•Keep the mower and battery away from water,

heat sources (such as radiators, heaters, stoves

etc.), flames or chemicals.

Battery strap

•Locate the battery and its carrying strap.

•Fold the sides of the strap up and put the battery

in place.

•Click the straps together ensuring you locate

every hole.

•The strap should be kept on the battery at all times.

Unpacking and assembly

Your mower carton contains:

•The mower and handle assembly.

•One hardware bag containing:

•Two safety keys (24).

•Instruction literature.

•Blade nut spanner (25).

•Charger (26).

•Battery strap (27).

•One grassbag assembly (19) - see below for

assembly instructions.

Handle assembly (Fig. A & B)

ARemove the contents of the carton and

familiarise yourself with the individual parts of

the mower.

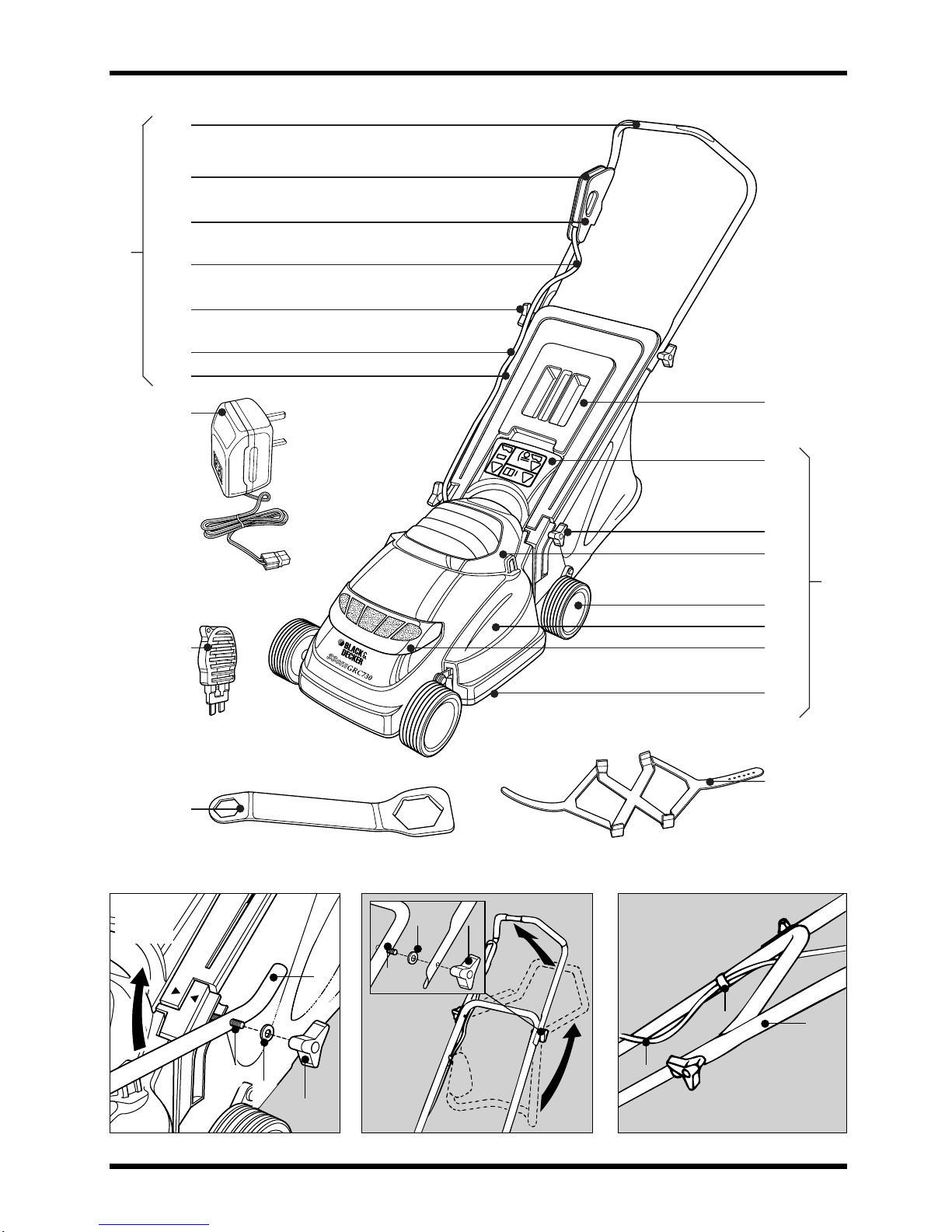

The main parts of the mower shown in Fig. A

are as follows:

•Machine body (1):

•Cutter deck (2)

•Motor cover (3)

•Battery cover (4)

•Grass flap (5)

•Wheel assembly (6)

•Pivot pin (7)

•Grill (8)

•Handle (9):

•Upper handle (10)

•Lower handle (11)

•Handle knob (12)

•Switch lever (15)

•Switch box (16)

•Electric cable (17)

•Retaining clips (18)

•The lower handle (11) comes ready

assembled to the mower body.

B1•All that is required is to unfold the handle

by lifting it until the handle ends snap into

their locations on the sides of the mower.

Once this is complete the knobs (12) can

be tightened.

B2•The upper handle (10) is assembled by

fitting the bolts (13) through the holes in

the lower handle, aligning the upper

handle over these and securing with a

washer (14) and then the knob (12).

•Tighten each one with hand pressure only.

Do not use a spanner.

Charging instructions

•Always charge your mower indoors in a

well ventilated area, where it is dry and

protected from the weather.

•Charge mower in a location where the

temperature is more than 5˚C (41˚F) and

below 40˚C (104˚F).

Warning! Do not attempt to charge

non-rechargeable batteries.

To charge

•The battery on your mower can be

charged on the mower or can be

removed and charged away from the

mower if a mains socket is not at hand.

To charge the battery ON the mower

•Remove the safety key (24) and store in a

safe place away from children.

•Open the battery cover (4) by pressing in

the lock symbols at each side of the

cover and hinge upwards.

•Disconnect the battery lead (red and

black) by pulling it from the socket at the

side of the battery recess.

•The red and black socket of the charger

is then connected to the red and black

socket of the battery.

Note: The charger socket will fit one way only.

•Connect the charger to the mains socket

and switch on.

•The red indicator on the charger will turn

on. This indicates that the battery is

being charged.

•When the battery becomes charged,

normal time 24 to 30 hours, the red light

will go out and the green light will turn on.

•It is safe to leave your battery on charge

until ready to use.

•Disconnect the charger from the battery

and connect the battery to the socket on

the mower.

•Your mower is now ready for use.

To charge the battery OFF the mower

•Remove the safety key and open battery

cover as described above and

disconnect the battery.

•Lift out battery out of the mower using

the carry handle.

•Charge as described above.

•After charging, replace in mower and

connect to the mower socket.

ENGLISH

Important!

Recharge mower to a fulI charge immediately

after use.

In order to get maximum performance from your

mower with maximum battery life, it is important that

you recharge the battery immediately after each use.

Battery failure will occur if the mower is stored

without having a full charge.

Recharge mower to a fulI charge for winter storage.

When preparing your mower for winter storage, it is

important that it is recharged. Battery failure will occur

if the mower is stored without having a full charge.

Battery disposal

When the mower’s battery requires replacing

discharge the energy from the battery by

running the mower until the motor stops.

Remove the battery from the mower .

Warning: The battery may still have some

residual charge even after the motor stops.

It is therefore necessary to protect against

accidental short circuit of the battery

terminals with uninsulated tools or materials

of a conductive nature, such as, but not

limited to steel wool or aluminium foil.

Batteries must be disposed of in a

responsible manner.

This symbol indicates the lead acid battery

contained within this unit must be disposed

of properly and not discarded in everyday

household waste which may be disposed of

in an incinerator or landfill site.

Lead acid batteries can be harmful to the

environment and can explode when exposed

to fire. Do not incinerate.

The battery should be taken to a

Black & Decker service centre, your local

dealer or your local recycling station. If

necessary, contact your local authority for

disposal information.

If the cutting performance begins to deteriorate,

please refer to the “Fault finding” guide.

Warning! Do not cross battery leads when

installing a new battery as this will cause the

blade to run in reverse until battery is

discharged. When you attempt to recharge

the battery, the charger circuit will be

destroyed as soon as you connect the

charger plug.

How to use your machine

(Fig. D & E)

Important! Always observe all the relevant

warnings when using your machine.

Warning! Never attempt to operate your

machine with one hand. You must guide

your machine with both hands.

Safety key

•In order to prevent accidental start-up or

unauthorised use of your cordless

mower, a removable safety key has been

incorporated into the design of your

mower. The mower will be completely

disabled when this safety key has been

removed from the mower.

Note: The safety key has a hole in the centre

to allow for storage on a hook, out of the

reach of children.

Warning! Always remove the safety key from

mower when leaving it unattended, even for

a short period of time.

•Your safety key will be found in the

parts pack (plus one spare).

Starting

•Remove tie wrap from switch lever prior

to first use.

•Insert the safety key into position and

push fully home.

•Tilt the handle downwards to slightly

raise the front of the mower to reduce

the risk of lawn damage whilst starting.

D1•Your mower is equipped with a special

on/off switch lever. The switch lever is

recessed within the switch housing to

prevent turning the mower on accidentally.

To operate the switch, insert your finger

into the opening and push the lever out

so that you can pull it with your other hand.

D2•Pull the lever back against the mower

handle and hold in this position to keep

the mower running.

•To turn the mower off, just release the

lever. The spring-loaded “snap-action”

lever will relocate itself back into its

original position inside the switch housing.

When you have finished using your machine

we recommend that you clean all debris from

it before putting it away. It is important to

remove the safety key before cleaning. Please

refer to the “Care and maintenance” section.

Note: To obtain the best results cut your

lawn or grassed area regularly and do not

cut when the grass is wet.

If, when grasscutting, loose grass is seen to be

scattered from beneath the mower, the grass-

bag is probably full and should be emptied.

Fitting the grassbag to the unit

E•Hold the grassbag top (19) by its handle.

•Lift the grassflap (5), then guide the

grassbag through the lower handle tube

and fix to the rear of the unit by lining up

the arrows marked on the cutter deck

and grassbag top.

•Finally, when this is complete, gently

release the grassflap (5) and it will return

to sit onto the location area of the

grassbag top (19).

Removing the grassbag

The full grassbag may be removed by raising the

grassflap (5) and then lifting the grassbag up and

through the lower handle.

Height of cut adjustment (Fig. F)

Warning! Remove safety key before making

any adjustments and give the blade time to

stop rotating; cutting blades are sharp.

F•By moving the height of cut adjuster (20)

at the rear of your machine outwards

from the mower body and then up or

down as required, the height of cut can

be varied to give 5 positions.

Note: The 5 position height of cut adjuster

is under tension when in the engaged

position. It has to be sprung outwards to

move it from one height setting to another

and will spring back automatically into

position when released.

•Settings 1, 2 and 3 are suitable for

course or overgrown grass. Settings 4

and 5 should be used for maintaining

cultivated lawns. Setting 5 should only be

used if a very short cut is desired.

UK only

•To produce a stripe effect on your lawn,

simply adjust the height of cut to its

lowest position, setting 5, which will bring

the roller into contact with the grass. The

roller may be removed for cleaning by

levering out one end to release the axle

from its clip.

Maintenance of blades

The steel blade is designed to give a fine

finish in long or tough grass.

If, however, because of damage or wear the

cutting performance deteriorates, then the

mower may require a new blade, or at least

the existing blade to be sharpened.

We recommend that the steel blade is

sharpened or a new blade fitted at the

beginning of the season.

Replacement blades A6157 are available from

Black & Decker dealers and service centres.

Warning! When fitting a new blade use only

the Black & Decker replacement part

specified for your machine - do not attempt

to fit any other blade.

Fitting new blade (Fig. G)

Observe all the relevant warnings before

changing the blade.

Warning! Remove safety key before

changing the blade.

G1•Turn your machine over on its side so

that the underside of the cutter deck is

exposed.

•Wear gloves to protect hands.

•Using a cloth placed over the blade or

heavy duty gloves to protect your hands,

grip the blade and, using the spanner

provided, loosen and remove the nut

from the motor spindle. Turn the nut in an

anti-clockwise direction to loosen it.

G2•Remove nut (23), square washer (22),

clutch plate (21) and blade.

•To replace blade ensure the cutting

edges of the blade are closest to the

ground and place blade onto the

combined mount.

G3•Place the clutch plate over the shoulder

of the combined mount protruding

through the blade. Ensure to align the

inside edges with the outside edges of

the blade.

G4•Place the square steel blade spacer on

the motor shaft aligning the inside flats

with the shaft and engaging the outside

edges with the plastic clutch plate.

Engage nut on shaft and turn it

clockwise to tighten.

•Ensure that removed parts are replaced

correctly before use, incorrect assembly

may result in damage to your mower

and reduced cutting performance.

Note: This unit is fitted with a clutch plate

(24), between the blade nut and the blade,

which must be assembled correctly at all

times. Damaged blade assembly parts must

be replaced before use.

Overload protection

Your machine is fitted with overload protection.

If you work too quickly in long grass, or in heavy

cutting conditions, you may overload the motor.

This will be indicated by a significant drop in speed,

and eventually, the overload protection will operate.

This is not a fault but a safety device to protect

your machine.

When this occurs, remove the safety key and wait for

1 to 2 minutes to allow to cool, clear any blockage

ensuring the blade is free to rotate. To restart,

replace the safety key and operate the switch lever.

If the cut-out operates again within 10 minutes, you

should increase the height of cut (see “Height of

cut adjustment”).

Severe overloading may result in a longer delay on

restarting. In such cases, after resetting, you should

allow the motor to cool.

To obtain the best results:

•Cut the grass regularly.

•Do not cut wet grass.

•When the grass is longer than 10cm (4 inches),

it is advisable to go over the lawn on a high cut

setting and then finish using a lower setting.

Care and maintenance

The advice given in this section covers the general

care and maintenance of the main body of your

mower. Advice relating to the blades is given in

“Maintenance of blades”. Advice relating to the

maintenance and storage of the battery is given in

“Battery information”.

•Always keep your machine clean and free from

grass cuttings, especially the underside of the

cutter deck and the air vents.

•At the end of each cutting session we

recommend that the build up of grass on the

underside of the cutter cover is removed using a

blunt scraper, the spanner included with this

mower may be used for this purpose.

•Clean all plastic components with a damp cloth.

•Caution! Do not use solvents or cleaning fluids

as these may damage the plastic components of

your mower.

ENGLISH

Fault finding

If your mower does not operate correctly, use the

following table to locate the problem.

Problem Solution

Mower does not run (a) Check to make sure safety key

when switch lever has been inserted correctly.

is activated (b) Remove the safety key, turn

mower over and check that the

blade is free to turn.

charged? Plug in charger and

wait for green light to come on.

Mower stops when mowing (a) Remove safety key. Turn

mower over and check that blade

is free to turn.

(b) Raise cutting height of wheels

and start mower.

charged. Plug in charger and wait

for green light to come on.

(d) Check that safety key has not

fused. Replace if necessary.

Mower runs but cutting (a) Has battery been fully

performance is charged? Plug in charger and

unsatisfactory wait for green light to come on.

(b) Battery may need replacing.

Refer to ‘Battery disposal’ section.

Mower is too hard to push (a) Raise cutting height to

reduce drag on grass. Check

each wheel for ease of rotation.

Mower is abnormally noisy (a) Remove safety key. Turn unit

and vibrates on its side and check blade for

damage. If damaged replace with

Black & Decker replacement blade.

(b) If there is no visible damage

to the blade or underside of the

mower return to your local service

centre or authorised dealer.

Warning! Always remove safety key before

carrying out any inspection.

Black & Decker lawn and garden

guarantee

This guarantee provides 36 months parts cover

and 12 months labour. Proof of purchase will be

required.

If your Black & Decker product becomes defective ,

within the guarantee period, due to faulty materials

and workmanship, we guarantee to either replace all

defective parts, or at our discretion, replace the unit

free of charge, provided that:

•The product is returned to us or our authorised

repairers with evidence of purchase.

•The product has been used within the

parameters of its consumer classification.

•The product has not been used for hire purposes.

•Repairs have not been attempted by anyone other

than authorised repairer agents.

•The failure represents normal wear and tear.

This guarantee is offered as an extra benefit and is

additional to your statutory rights.

What to do if your Black & Decker

product needs repair

If your Black & Decker product should need repair

the quickest and simplest way is to take or send it

back to a Black & Decker authorised repair agent,

providing proof of purchase if a guarantee repair

is required.

If you have any difiiculty, please contact our sevice

and information centre (tel: 0345 230230) who will

give you every assistance.

Our guarantee policy

Failures due to the following are not covered:

•Replacing worn or damaged blades, nylon line

and chains, or cables damaged during storage

or use. These are regarded as replacement items

which wear during normal usage.

•Failures as a result of sudden impact or obvious

abuse.

•Failures due to usage not in accordance with

instructions and recommendations contained in

the instruction manual.

The use of other than genuine Black & Decker

accessories and parts may damage or reduce the

performance of you Black & Decker product and

may render the guarantee void.

Black & Decker after sales service

If you need any help or advice please contact your

local Black & Decker authorised repair agent. A full

directory is printed on the reverse of the parts

drawing included with your mower.

Other Black & Decker products

Black & Decker has a full range of outdoor power

tools that make life easy in the garden. If you would

like further information on the following products,

please contact Black & Decker service information

centre at the address on the back cover, or contact

your Black & Decker stockist.

Lawnmowers Hedgetrimmers

Grass trimmers Chainsaws

Lawnrakers Compost shredder

Leafbuster

Autres manuels pour GRC730

Table des matières

Autres manuels Black & Decker Tondeuse à gazon

Black & Decker

Black & Decker 598968-00 Manuel utilisateur

Black & Decker

Black & Decker MM875 Manuel utilisateur

Black & Decker

Black & Decker GF834 Manuel utilisateur

Black & Decker

Black & Decker RB-3675 Manuel utilisateur

Black & Decker

Black & Decker MM1800 Manuel utilisateur

Black & Decker

Black & Decker CM2040 Manuel utilisateur

Black & Decker

Black & Decker MM275 Manuel utilisateur

Black & Decker

Black & Decker GR230C Manuel utilisateur

Black & Decker

Black & Decker GX530 Manuel utilisateur

Black & Decker

Black & Decker CLM3820L2 Manuel utilisateur

Black & Decker

Black & Decker GR3000 Manuel utilisateur

Black & Decker

Black & Decker LAWN HOG MM675 Manuel utilisateur

Black & Decker

Black & Decker Lawn Hog MM575 Manuel utilisateur

Black & Decker

Black & Decker 8008 Manuel utilisateur

Black & Decker

Black & Decker CM1836 Manuel utilisateur

Black & Decker

Black & Decker EM1500 Manuel utilisateur

Black & Decker

Black & Decker CM1936 Manuel utilisateur

Black & Decker

Black & Decker 8008 Manuel utilisateur

Black & Decker

Black & Decker LM115 Manuel utilisateur

Black & Decker

Black & Decker LM175 Manuel utilisateur

Black & Decker

Black & Decker GR120C Manuel utilisateur

Black & Decker

Black & Decker GR3400 Manuel utilisateur

Black & Decker

Black & Decker CLMA4825L2 Manuel utilisateur

Black & Decker

Black & Decker LAWN HOG MM675 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
