INSTRUCTION MANUAL

26 LB CAPACITY ICE MAKER

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR

ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER

purchase, go to www.blackanddecker.com/instantanswers

If you can’t find the answer or do not have access to the Internet, call

844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an

agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CATALOG NUMBER

BIMH326S

Page 2

Thank you for purchasing our

BLACK+DECKER product. This

easy-to-use manual will guide you

in getting the best use of your

product.

Remember to record the model and

serial numbers. They are on a label

on the rear.

Staple your receipt to your manual.

You will need it to obtain warranty service.

Model number

Serial number

Date of purchase

PRODUCT REGISTRATION

CONTENTS

SAFETY INFORMATION

Important Safety Instructions......................................................................................................................................... 4-6

Electrical Requirements....................................................................................................................................................... 5

SET UP & USE

Parts & Features........................................................................................................................................................................ 7

Operation & Use ................................................................................................................................................ 8-10

CLEANING & CARE.............................................................................................................................................. 10

Cleaning and Maintenance ................................................................................................................................ 10

TROUBLESHOOTING & WARRANTY

Before You Call For Service ................................................................................................................................11

Troubleshooting......................................................................................................................................................12

Limited Warranty ....................................................................................................................................................................13

Page 3

Page 4

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS BEFORE USE

2. When using electrical appliances, basic safety precautions should be followed,

including the following:

3. Burn hazard. Do not touch the metal parts of the interior while the unit is making

ice, it may burn your skin. Children should be supervised when appliance is in use.

4. Fire hazard. Do not store or use gasoline or other ﬂammable vapors and liquids

in the vicinity of this or any other appliance. Do not operate the dispenser with

a damaged cord. Do not use with an underrated extension cord or an extension

cord without a ground.

5. Shock hazard. Unplug the Portable Ice Maker before cleaning or wiping up spilled

water on the unit. Do not attempt to service the Portable Ice Maker. Do not

operate with a damaged cord.

6. Do not let power cord hang over edge of table or counter, or touch hot surfaces.

Do not let the power cord cross over carpeting or other heat insulators. Do not

cover the cord.

7. Never use this unit with water that is unsafe to drink or is from an unknown

source. Never use any other liquid in the unit other than drinking water.

8. If the unit is brought inside from cold outdoor temperatures, allow it to warm

up to room temperature for at least a few hours before operating. Ambient

temperature of the unit should be not be less than 50˚F/10˚C.

9. Install the unit in a dry place away from direct sunlight. Do not place on or near a

hot gas or electric burner, or in a heated oven. For indoor use only.

10. Never put anything ﬂammable close to the unit.

11. Leave a minimum of 5” (13 cm) around the back and sides of the unit for proper

ventilation.

12. Regular cleaning of the unit is required for proper operation. Clean the unit every

four months using the instructions in this manual.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

WARNING

WARNING - Hazards or unsafe

practices which COULD result in

severe personal injury or death

DANGER

DANGER - Immediate hazards

which WILL result in severe

personal injury or death

CAUTION

CAUTION - Hazards or unsafe

practices which COULD result in

minor personal injury

WARNING

When using electrical appliances, basic safety precautions

should be followed, including the following

Page 5

SAFETY INFORMATION

GROUNDING INSTRUCTIONS

In the event of malfunction or breakdown, grounding provides a path of least

resistance for electric current to reduce the risk of electric shock. The ice maker must

be connected to a cord having an equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropriate outlet that is properly installed

and grounded in accordance with all local codes and ordinances.

DANGER: Improper connection of the equipment grounding conductor can

result in a risk of electric shock. The conductor with insulation having an outer surface

that is green with or without yellow stripes is the equipment grounding conductor. If

repair or replacement of the cord or plug is necessary, do not connect the equipment-

grounding conductor to a live terminal. Check with a qualiﬁed electrician or service

person if the grounding instructions are not completely understood, or if in doubt as

to whether the ice maker is properly grounded. Do not modify the plug connected to

the ice maker – if it will not ﬁt the outlet, have a proper outlet installed by a qualiﬁed

electrician.

FOR GROUNDED, CORD-CONNECTED ICE MAKER RATED LESS THAN 15A AND

INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT.

The ice maker is for use on a nominal 120V circuit and should be connected to a

grounding outlet that looks like the one illustrated below. The use of a temporary

adaptor is not recommended.

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualiﬁed electrician or serviceman if:

1) The grounding instructions are not completely understood.

2) You are unsure that the appliance is properly grounded.

3) You have any questions about the grounding or electrical instructions.

Page 6

SAFETY INFORMATION

POWER SUPPLY CORD

1. Avoid the use of an extension cord because of potential safety hazards under

certain conditions. It is recommended to have a qualiﬁed electrician or serviceman

install an outlet near the appliance.

2. If it is absolutely necessary to use longer cord sets or an extension cord; extreme

care must be exercised.

a) Use only a grounding type 3-wire extension cord that has a 3-blade grounding

plug and a 3-slot receptacle that will accept the plug on the appliance.

b) The marked electrical rating of the cord set or extension cord must equal to or

greater than the electrical rating of the appliance.

c) The longer cord should be arranged so that it will not drape over the counter top

or table top where it can be pulled on by children or tripped over unintentionally.

NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage to

the product or personal injury resulting from failure to observe the electrical

connection procedures.

WARNING - RISK OF FIRE

It is important the plug ﬁts tightly into the wall outlet. if the plug does not ﬁt securely

and appears loose, it should not be used. Have a licensed electrician replace the

receptacle.

USE OF EXTENSION CORDS WITH ICE MAKER

Only use a grounded extension cord that is rated at least 15 amps and has a third-wire

ground. When a long extension cord is used to connect the ice maker, a voltage drop

occurs. The longer the cord, the greater the voltage drop. This results in less voltage

being supplied to the ice maker and increases the amount of current (amp) draw or

reduces performance. A heavier cord with a larger wire size will reduce the voltage

drop. Be sure to choose a cord that will supply enough voltage to operate the ice

maker. The table below indicates appropriate gauge for extension cords.

Minimum Gauge for Cord Sets

Ampere Rating

Volts Total Length of Cord in Feet (meters)

120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)

240V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)

Than

Not More

Than

0 6 18 16 16 14

610 18 16 14 12

10 12 16 16 14 12

12 16 14 12 Not Recommended

WARNING: Keep electrical cords in good condition. Do not use worn, bare, or

frayed cords because they can cause electrical shock.

WARNING: Operating equipment at low voltage can cause it to overheat. Using

an excessively long extension cord can cause the cord to overheat.

Page 7

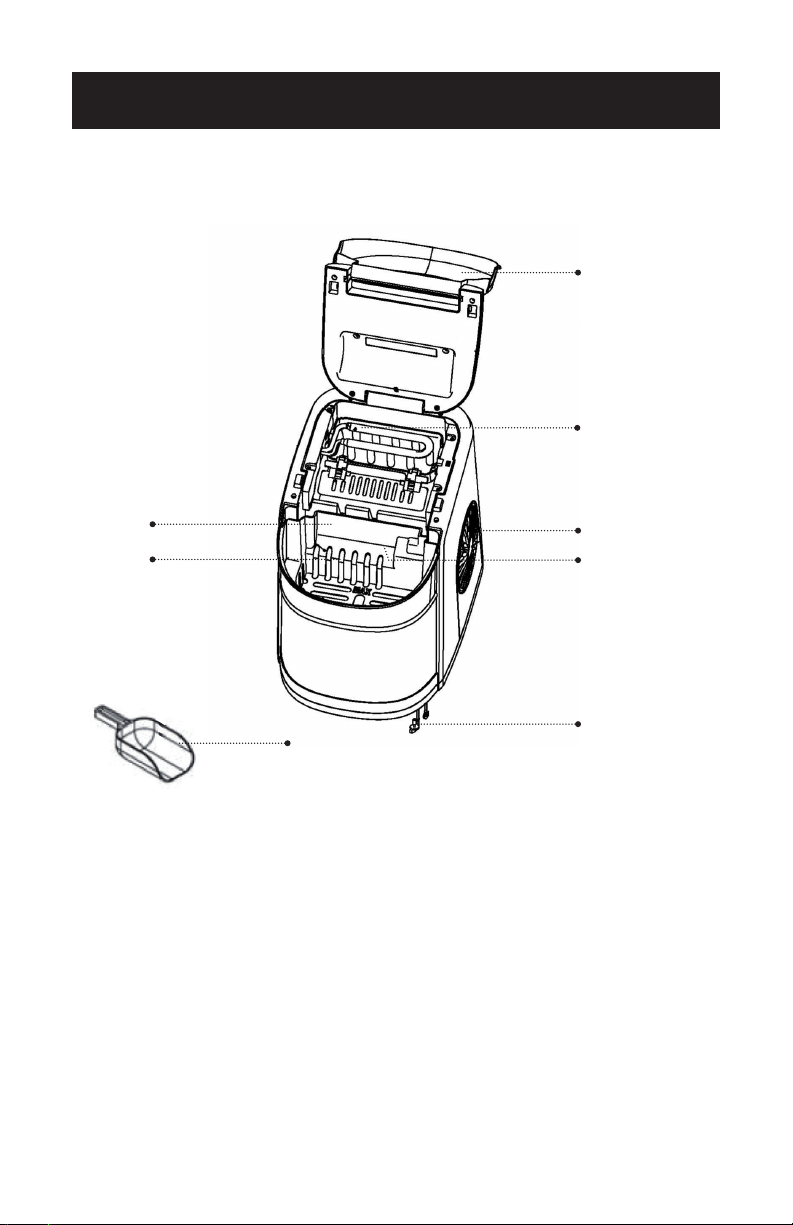

PARTS & FEATURES

SET UP & USE

1. Ice scoop

2. Evaporator

3. Ice basket

4. Vent

5. Drain and drain cap (front bottom side

of the unit)

6. Top cover

7. MAX ﬁll line

8. Water reservoir

9. Power Cord (not shown)

Page 8

SET UP & USE

Power On

Indicator

Light

Ice Full

Indicator

Light

Water

Shortage

Indicator

Light Ice Size - Small Ice Size - Large

SelectON/OFF

BEFORE USE

1. Remove the packaging, packaging material and tape.

2. Remove the ice basket and scoop. Clean the interior of the unit, basket and

scoop prior to use.

3. Put the ice maker on a ﬂat level surface away from direct sunlight and other

sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least

5”/13 cm clearance between the back and sides of the unit.

4. After transporting the unit, allow one hour for the refrigerant ﬂuid to settle

before plugging the ice maker in.

WARNING: Fill with potable water only. Only use drinking water.

HOW TO USE

Do not use the appliance within 30 minutes after transportation. Switching on the

power too early might cause damage to your ice maker.

1. Open the lid, remove the ice basket and pour water into the tank. Keep water

level below the MAX ﬁll line.

Press “ON/OFF” on the control panel to begin the ice making cycle.

2. Select the ice cube size by pressing the “SELECT” button. If the room

temperature is lower than 60°F, it is recommended to select small ice cube in

order to avoid ice sticking together.

3. The ice making cycle lasts approx. 6 to 13 minutes.

4. If there is not enough water, the ice maker will stop automatically, and the

WATER SHORTAGE indicator light will go on. Press “ON/OFF” button, ﬁll

water up to the max. water level mark and press “ON/OFF” button again to

turn on the unit again.

NOTE: Wait at least 3 minutes before restarting the unit.

5. The ice maker stops when the ice basket is full and the “ICE FULL” indicator

will be on. Use the scoop to remove the ice.

WARNING:

• Direct sunlight or sunlight reﬂection may cause the unit to malfunction.

• Change the water in the water tank every 24 hours to ensure a reasonable hygiene

level.

• If unit will not be in use, drain all the water, clean the water tank and dry it

thoroughly.

WARNING: Unplug unit before draining water, cleaning and drying.

NOTE: The ice cubes in the basket will melt gradually so use the scoop to remove the

ice cubes before they melt. The melted water will be collected into the water

tank. To remove the water in water tank, unplug the drain cap on the base of

the ice maker. Make sure to clean and dry the unit thoroughly and replace the

cap prior to use.

WARNING: Unplug unit before draining water, cleaning and drying.

Page 9

SET UP & USE

Ice Full Indicator Light

The ice maker stops when the ice basket is full. The “ICE FULL” indicator will be

on. Use the scoop to remove the ice.

Water Shortage Indicator Light

If there is not enough water, the ice maker will stop automatically, and the WATER

SHORTAGE indicator light will go on. Press “ON/OFF” button, ﬁll water up to

the max. water level mark and press “ON/OFF” button again to turn on the unit

again.

NOTE: Wait at least 3 minutes before restarting the unit.

Page 10

SET UP & USE

Self-cleaning function:

The unit is equipped with a self cleaning function. It is recommended to use equal

parts white vinegar and water with this function. Press and hold the “ON/OFF” button

for 5 seconds to activate self-cleaning. The function will take 30 minutes. When

the program is complete, rinse with clear water and drain, making sure the vinegar

solution is removed before making ice. Dry thoroughly.

CLEANING AND MAINTENANCE

WARNING: Before using your ice maker, it is recommended to clean it thoroughly.

Always make sure the ice maker is unplugged prior to cleaning.

1. Remove the ice basket.

2. Clean the interior with a mild soap and water solution and a soft sponge or cloth.

3. Rinse all interior parts.

4. Rinse and drain any remaining water by unplugging the drain cap located on the

front of the base.

5. The outside of the ice maker should be cleaned regularly with a mild detergent

solution and warm water.

6. Dry the interior and exterior with a clean soft cloth.

7. When the machine is not to be used for a long time, drain water completely &

dry the interior.

CLEANING & CARE

Table des matières

Langues :

Autres manuels Black & Decker Machine à glaçons

Black & Decker

Black & Decker BIMH226W Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
