INSTRUCTION MANUAL

52 IN. CEILING FAN

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR

ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER

purchase, go to www.blackanddecker.com/instantanswers

If you can’t find the answer or do not have access to the Internet, call

844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an

agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CATALOG NUMBER

BCF5252

BCF5252R

Page 2

Thank you for purchasing our

BLACK+DECKER product. This

easy-to-use manual will guide you

in getting the best use of your fan.

Remember to record the model and

serial numbers. They are on a label

on the rear.

Staple your receipt to your manual.

You will need it to obtain warranty service.

Model number

Serial number

Date of purchase

PRODUCT REGISTRATION

CONTENTS

SAFETY INFORMATION

Important Safety Instructions..........................................................................................................................................3-4

Handling Alkaline Batteries................................................................................................................................................... 5

SET UP & USE

Parts.............................................................................................................................................................................................6-7

Features.........................................................................................................................................................................................8

Preparing for Installation ........................................................................................................................................9

Mounting Bracket Installation .........................................................................................................................10-11

Installing Fan to Ceiling.................................................................................................................................... 12-13

Blade Installation......................................................................................................................................................14

Mounting Fan Assembly........................................................................................................................................15

Wiring Options ................................................................................................................................................... 16-17

Securing Fan to Ceiling..........................................................................................................................................18

Light Fixture Installation........................................................................................................................................19

Remote Control Operation ............................................................................................................................20-21

Operation..................................................................................................................................................................22

Cleaning + Maintenance........................................................................................................................................23

TROUBLE SHOOTING & WARRANTY

Before You Call For Service ..............................................................................................................................24

Customer Service..................................................................................................................................................24

Troubleshooting.....................................................................................................................................................25

Limited Warranty .................................................................................................................................................................. 26

Page 3

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS BEFORE USE

2. Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with all applicable codes and standards,

including ﬁre-rated construction.

3. Use this unit only in the manner intended by the manufacturer. If you

have any questions contact the manufacturer.

4. After making the wire connections, gently push connections into

outlet box with wire nuts pointing up. The wires should be spread

apart with the grounded conductor and the equipment grounding

conductor on one side of the outlet box and ungrounded conductor

on the other side of the outlet box.

5. Before you begin installing the fan, Switch power o at Service panel

and lock service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such

as a tag, to the service panel.

6. Be cautious! Read all instructions and safety information before

installing your new fan. Review the accompanying assembly

diagrams.

7. When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

8. Make sure the installation site you choose allows the fan blades to

rotate without any obstructions. Allow a minimum clearance of 7 feet

(2.1 meters) from the ﬂoor to the trailing edge of the blade.

WARNING

WARNING - Hazards or unsafe

practices which COULD result in

severe personal injury or death

DANGER

DANGER - Immediate hazards

which WILL result in severe

personal injury or death

CAUTION

CAUTION - Hazards or unsafe

practices which COULD result in

minor personal injury

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9

KG) OR LESS” AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET

BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE. MOST OUTLET

BOXES COMMONLY USED FOR THE SUPPORT OF LUMINARIES

ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

Page 4

SAFETY INFORMATION

9. To reduce the risk of ﬁre, electric shock, or personal injury, this fan

must be mounted to an outlet box marked suitable for fan support.

And use mounting screws provided with the outlet box. (Mounting

must support at least 35 lbs. (15.9 kg)

10. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY Do not

bend blade holders during installation to motor, balancing or during

cleaning. Do not insert foreign object between rotating blades.

11. Attach the mounting bracket using only the hardware supplied with

the outlet box. Fan is only to be mounted to an outlet box marked

“Acceptable for Fan Support”.

12. Do not install within a zone measured 3 feet horizontally and 8 feet

vertically from the top of the bathtub rim or shower stall threshold.

13. Before servicing or cleaning unit, Switch power o at Service panel

and lock service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such

as a tag, to the service panel.

14. All set screws must be checked and re-tightened where necessary

before installation.

15. Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with applicable codes and standards,

including ﬁre-rated construction.

READ AND SAVE THESE

INSTRUCTIONS

HOUSEHOLD USE ONLY

WARNING

To reduce the risk of ﬁre or electric shock, do not use this fan with any solid-state

speed control device.

WARNING

To reduce the risk of personal injury, do not bend the blade brackets when installing

the brackets, balancing the blades, or cleaning the fan. Do not insert forgeign objects

in between rotating fan blades. Use only with light kits marked suitable for use in

damp locations.

Page 5

SAFETY INFORMATION

HANDLING ALKALINE BATTERIES

1. Should ﬂuid from the battery accidentally get into your eyes, there is a threat

of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap

water and then consult a physician immediately.

2. Do not put the battery in a ﬁre, expose it to heat, dismantle or modify it. If the

insulation or safety valve is damaged, the battery may leak ﬂuid, overheat or

explode.

3. Do not insert the battery with the poles reversed. Doing so may cause some

abnormality or a short and the battery may leak ﬂuid, overheat or explode.

4. Keep the battery out of the reach of children. If the battery is swallowed, contact a

physician immediately.

5. If the alkali ﬂuid gets in your mouth, rinse your mouth with water and contact a

physician immediately.

6. If the alkali ﬂuid gets on your skin or clothes, it may burn your skin, thoroughly

rinse the aected area with tap water.

7. Do not mix new and old batteries or other makes of batteries. The dierent

attributes may cause the battery to leak ﬂuid, overheat or explode.

8. This battery was not made to be recharged. Recharging this battery may damage

the insulation or internal structure and may cause the battery to leak ﬂuid,

overheat or explode.

9. Do not damage or remove the label on the exterior of the battery. Doing so may

cause the battery to short, leak ﬂuid, overheat or explode.

10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause

the battery to leak ﬂuid, overheat or explode.

11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,

the battery may leak ﬂuid, overheat or explode.

12. Immediately remove batteries when they have lost all power. Leaving the batteries

in the unit for a long time may cause the batteries to leak ﬂuid, overheat or

explode due to gas that is generated by the batteries.

Contact your local government for disposal practices in your area.

WARNING

When handling alkaline batteries, basic safety precautions

should be followed, including the following

Page 6

SET UP & USE

PARTS

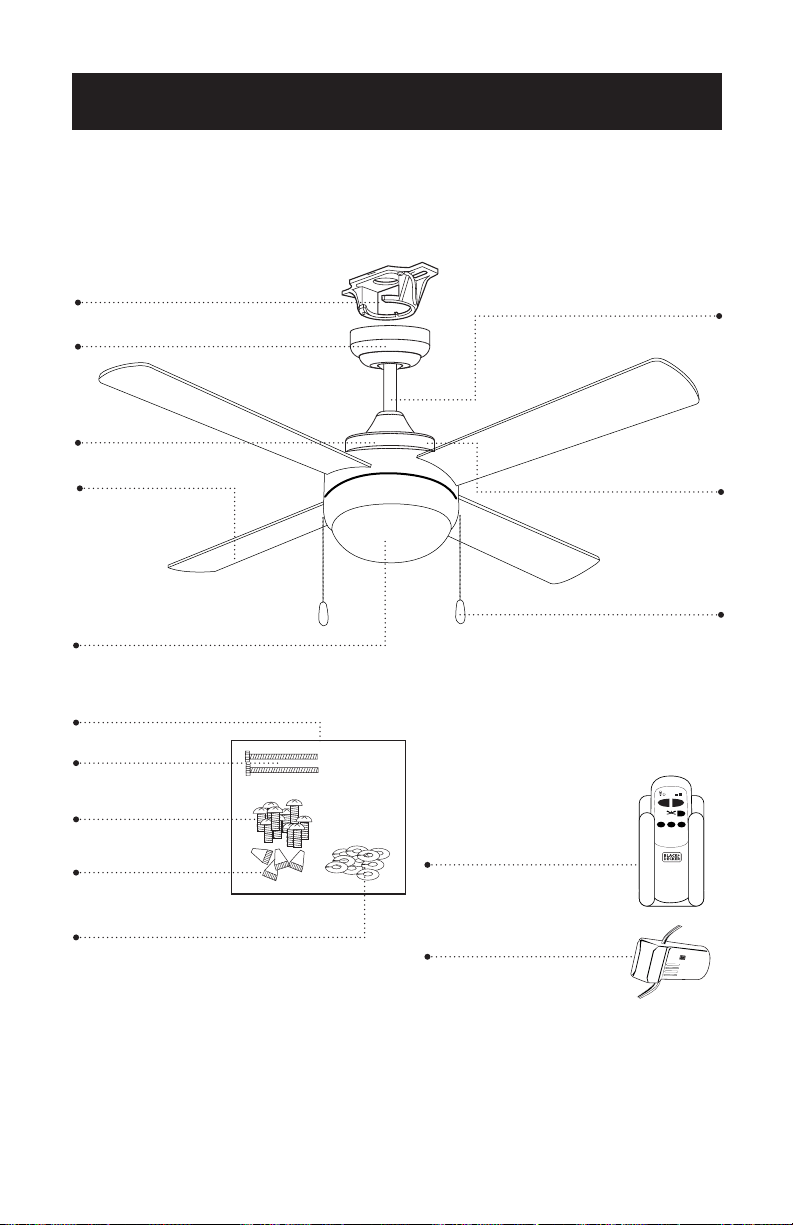

Mounting Bracket

Blade (4)

*Light Fixture

*Remote Control

and holder

Hardware Pack

* Batteries not included with remote. Use (2) size “AA” alkaline batteries.

* Bulbs not included with light ﬁxture (2) type A-19, 60W bulbs required.

* Not all models contain a remote control, remote receiver and remote control holder.

Only model BCF5252R.

* Not all models contain pull chains and extensions. Only model BCF5252

Canopy

Screws

Screws for fan blade

Wire Connectors

Washers for fan blade

12 3

Motor Housing

Slide Switch

6” Downrod

Pull Chains (2)

Pull Chain Extentions (2)

*Remote Receiver

Page 7

SET UP & USE

Ladder

Screwdrivers

Pliers

Wire Strippers

Electrical Tape

(optional) Power drill and drill bit

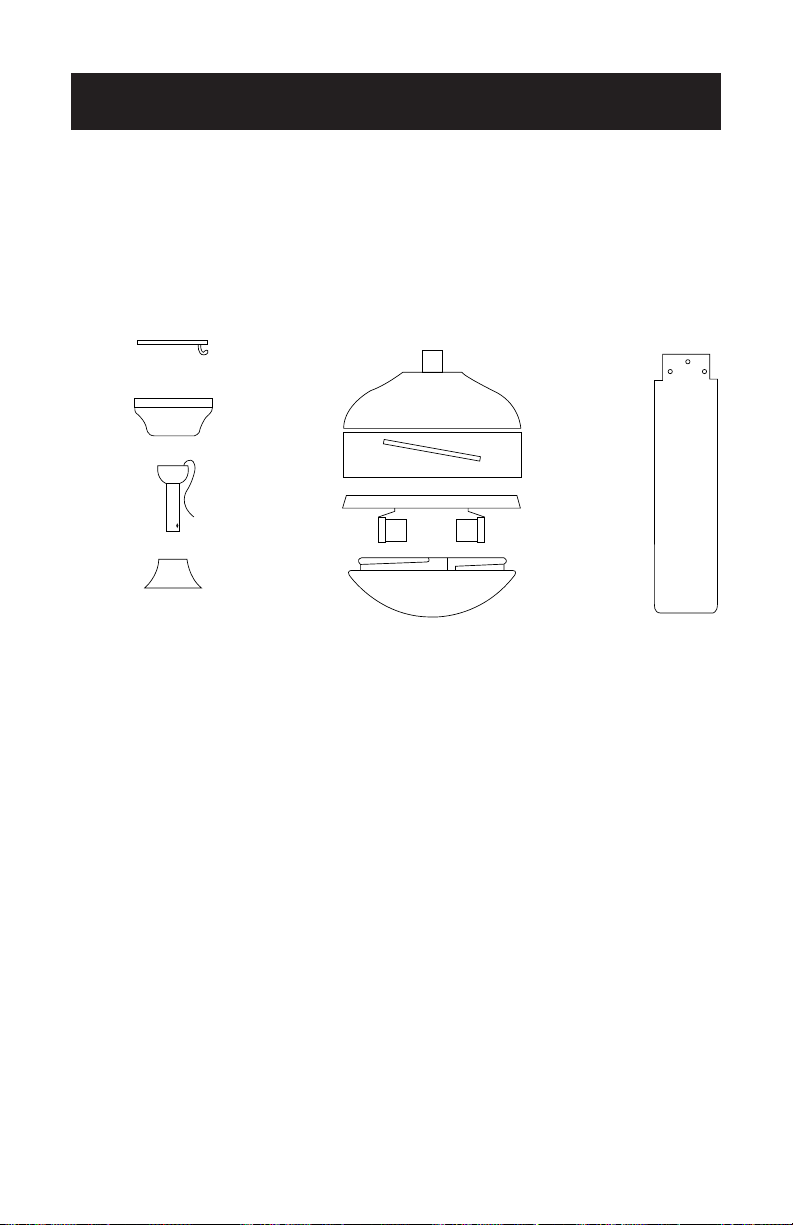

A. Mounting Bracket

B. Canopy

C. 6” Downrod assembly

D. Yoke Cover

E. Fan Motor Assembly

F. Motor Cover

G. Glass Cover (Light Fixture)

H. Fan Blades (4)

BCF5252R

Remote Control

Remote Receiver

Remote Control Holder

2 Screws for Remote Control Holder

BCF5252

Pull Chain (2)

Pull Chain Extensions (2)

B E

RECOMMENDED TOOLS

PARTS INCLUDED

Page 8

SET UP & USE

FEATURES

Downrod

Installation

For normal ceilings

Vaulted Ceiling

Installation

May require a

longer downrod

(sold separately)

CAUTION

To reduce the risk of injury to persons, the fan must be installed so that the blades are

at a height greater than 7 feet (2.1 meters) above the ﬂoor.

This fan is designed for indoor use only.

Flush

Installation

For normal ceilings

SET UP & USE

Page 9

PREPARING FOR INSTALLATION

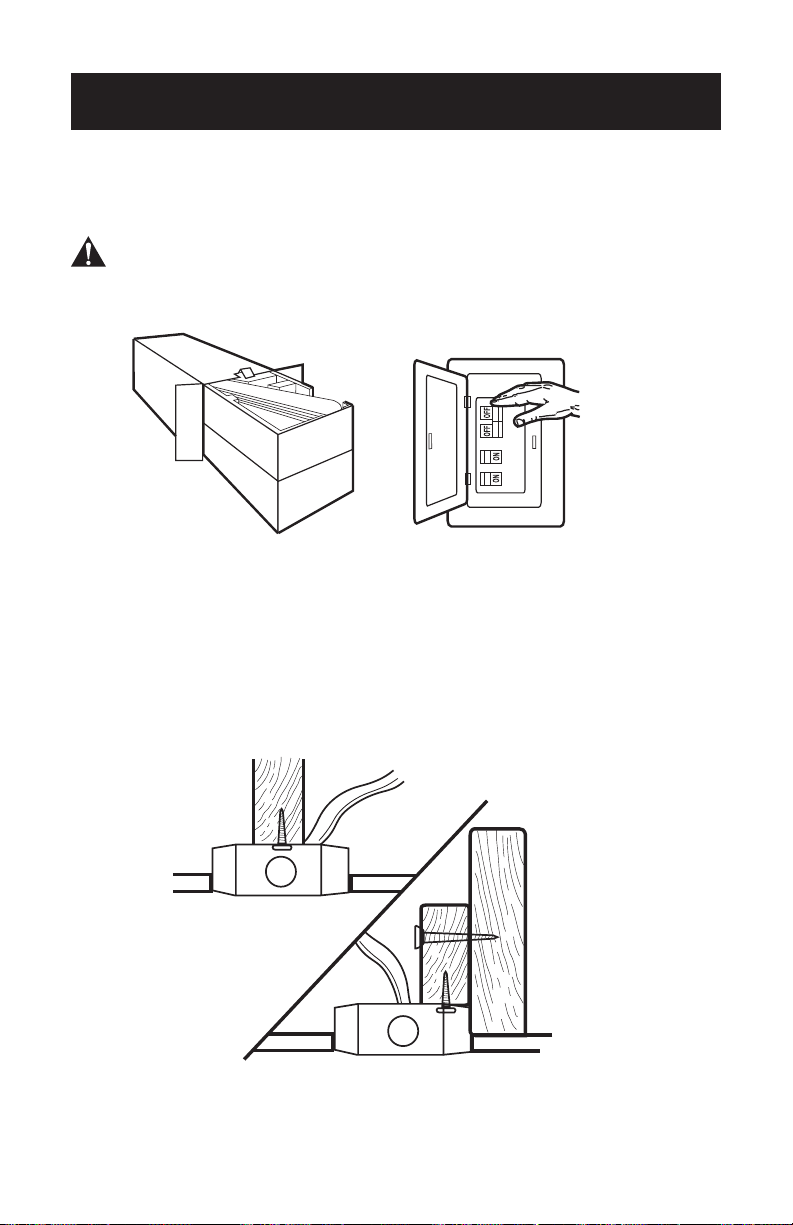

1. Unpack and inspect fan carefully to be certain all contents are included.

WARNING: Turn o power at the breaker box or fuse panel to avoid possible

electrical shock.

2. Use a listed metal outlet box suitable for fan support (rated for 35 lbs (15.9 kg)).

Before attaching fan to outlet box, ensure the outlet box is securely fastened by at

least two points to a structural ceiling member (a loose box will cause the fan to

wobble).

Page 10

MOUNTING BRACKET INSTALLATION

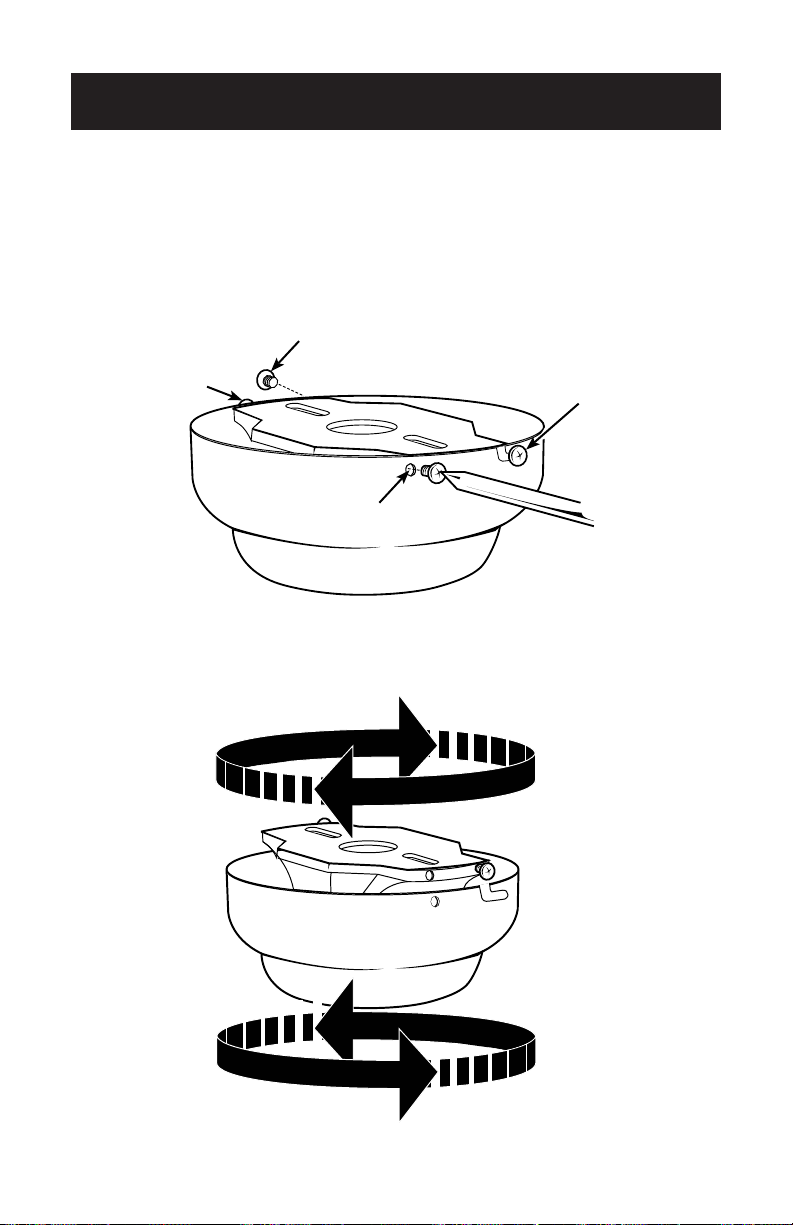

3. Remove the screws from the two mating holes (2) on the canopy. Loosen (do not

remove) the screws in the mating slots (1) on the canopy. Rotate the mounting

bracket and remove from the canopy.

SET UP & USE

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Black & Decker Ventilateur

Black & Decker

Black & Decker FS1600R Manuel utilisateur

Black & Decker

Black & Decker BFTU107 Manuel utilisateur

Black & Decker

Black & Decker BFTR138 Manuel utilisateur

Black & Decker

Black & Decker BDTF-4200R 120V AC 60HZ 55W Manuel utilisateur

Black & Decker

Black & Decker FB1620 Manuel utilisateur

Black & Decker

Black & Decker Fleetforce BDHV2000 Instructions d'installation

Black & Decker

Black & Decker BXFP51004GB Manuel utilisateur

Black & Decker

Black & Decker BXEFD30E Manuel utilisateur

Black & Decker

Black & Decker BFSR16 Manuel utilisateur

Black & Decker

Black & Decker BXEFP50E Manuel utilisateur

Black & Decker

Black & Decker BFSR16B Manuel utilisateur

Black & Decker

Black & Decker Fleetforce BDHV2000 Instructions d'installation

Black & Decker

Black & Decker Typhoon BDDF1200 Series Instructions d'installation

Black & Decker

Black & Decker FB1220 Manuel utilisateur

Black & Decker

Black & Decker BDWF7700 Series Instructions d'installation

Black & Decker

Black & Decker BXFSH2000E Manuel utilisateur

Black & Decker

Black & Decker Typhoon BDSF1600 Series Instructions d'installation

Black & Decker

Black & Decker BDHV-1008 Manuel utilisateur

Black & Decker

Black & Decker BXFT50005GB Manuel utilisateur

Black & Decker

Black & Decker BDBF-520 Manuel utilisateur

Black & Decker

Black & Decker BXFD52002GB Manuel utilisateur

Black & Decker

Black & Decker BXEFD41E Manuel utilisateur

Black & Decker

Black & Decker BXMF75E Manuel utilisateur

Black & Decker

Black & Decker BDSH-8018 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
