INSTRUCTION MANUAL
52 IN. CEILING FAN
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
BCF5201R
Page 2
Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your fan.
Remember to record the model and
serial numbers. They are on a label
on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
Handling Alkaline Batteries................................................................................................................................................... 5
SET UP & USE
Parts.............................................................................................................................................................................................6-7
Features.........................................................................................................................................................................................8
Preparing for Installation ........................................................................................................................................9
Mounting Bracket Installation .........................................................................................................................10-11
Mounting Fan to Ceiling...................................................................................................................................12-14
Wiring Options ................................................................................................................................................... 15-16
Securing Fan to Ceiling..........................................................................................................................................17
Blade Installation......................................................................................................................................................18
Light Fixture Installation........................................................................................................................................19
Remote Control Operation ............................................................................................................................20-21
Operation..................................................................................................................................................................22
Cleaning + Maintenance........................................................................................................................................23
TROUBLE SHOOTING & WARRANTY
Before You Call For Service ..............................................................................................................................24
Customer Service..................................................................................................................................................24
Troubleshooting.....................................................................................................................................................25
Limited Warranty .................................................................................................................................................................. 26
Page 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS BEFORE USE
2. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
3. Use this unit only in the manner intended by the manufacturer. If you
have any questions contact the manufacturer.
4. After making the wire connections, gently push connections into
outlet box with wire nuts pointing up. The wires should be spread
apart with the grounded conductor and the equipment grounding
conductor on one side of the outlet box and ungrounded conductor
on the other side of the outlet box.
5. Before you begin installing the fan, Switch power o at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
6. Be cautious! Read all instructions and safety information before
installing your new fan. Review the accompanying assembly
diagrams.
7. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
8. Make sure the installation site you choose allows the fan blades to
rotate without any obstructions. Allow a minimum clearance of 7 feet
(2.1 meters) from the floor to the trailing edge of the blade.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9
KG) OR LESS” AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET
BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE. MOST OUTLET
BOXES COMMONLY USED FOR THE SUPPORT OF LUMINARIES
ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
Page 4
SAFETY INFORMATION
9. To reduce the risk of fire, electric shock, or personal injury, this fan
must be mounted to an outlet box marked suitable for fan support.
And use mounting screws provided with the outlet box. (Mounting
must support at least 35 lbs. (15.9 kg)
10. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY Do not
bend blade holders during installation to motor, balancing or during
cleaning. Do not insert foreign object between rotating blades.
11. Attach the mounting bracket using only the hardware supplied with
the outlet box. Fan is only to be mounted to an outlet box marked
“Acceptable for Fan Support”.
12. Do not install within a zone measured 3 feet horizontally and 8 feet
vertically from the top of the bathtub rim or shower stall threshold.
13. Before servicing or cleaning unit, Switch power o at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
14. All set screws must be checked and re-tightened where necessary
before installation.
15. Installation work and electrical wiring must be done by qualified
person(s) in accordance with applicable codes and standards,
including fire-rated construction.
READ AND SAVE THESE
INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
WARNING
To reduce the risk of personal injury, do not bend the blade brackets when installing
the brackets, balancing the blades, or cleaning the fan. Do not insert forgeign objects
in between rotating fan blades. Use only with light kits marked suitable for use in
damp locations.
Page 5
SAFETY INFORMATION
HANDLING ALKALINE BATTERIES
1. Should fluid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a fire, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak fluid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak fluid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact a
physician immediately.
5. If the alkali fluid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali fluid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the aected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The dierent
attributes may cause the battery to leak fluid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak fluid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak fluid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak fluid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak fluid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the batteries
in the unit for a long time may cause the batteries to leak fluid, overheat or
explode due to gas that is generated by the batteries.
Contact your local government for disposal practices in your area.
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
Page 6
SET UP & USE
PARTS

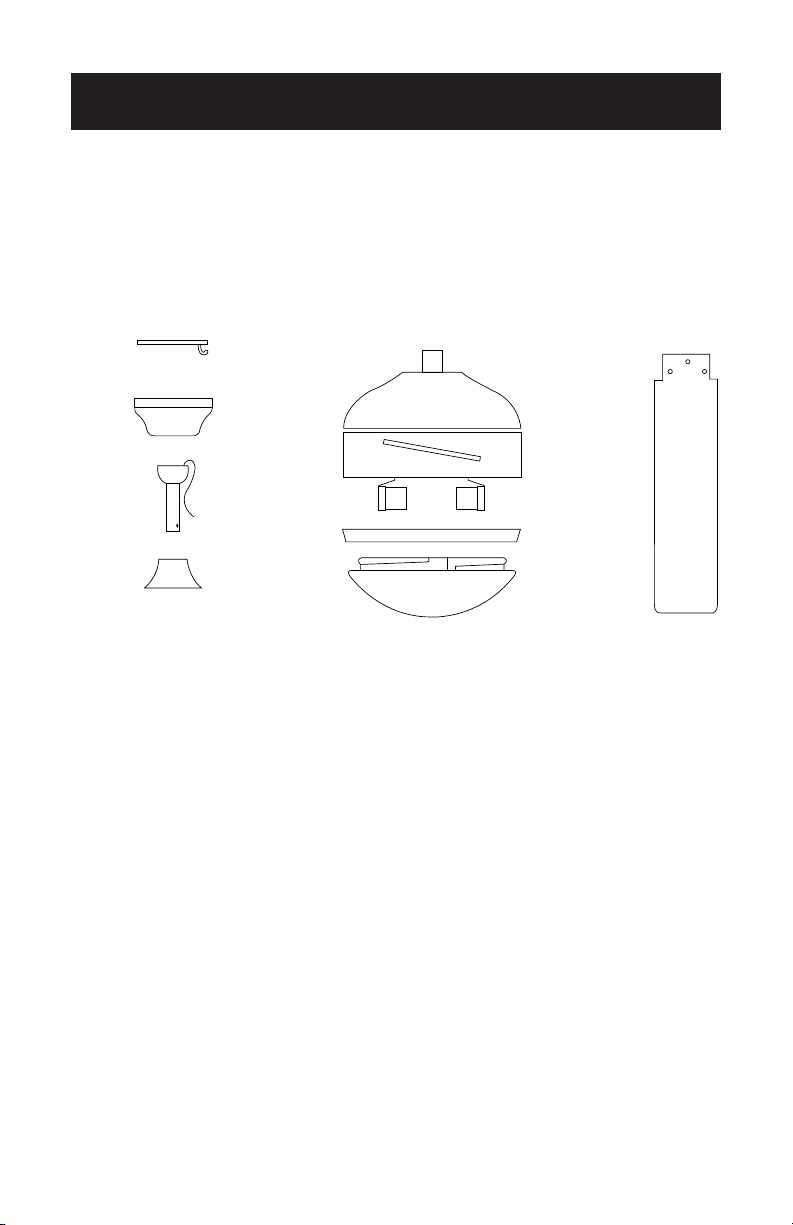

Mounting Bracket
Blade (3)
*Light Fixture
*Remote Control
and holder
Hardware Pack
* Batteries not included with remote. Use (2) size “AA” alkaline batteries.
* Bulbs not included with light fixture (2) type A-19, 60W bulbs required.
Canopy
Screws
Screws for fan blade
Wire Connectors
Washers for fan blade
0
12 3
Motor Housing
Slide Switch
6” Downrod
*Remote Receiver
Page 7
SET UP & USE
Ladder
Screwdrivers
Pliers
Wire Strippers
Electrical Tape
(optional) Power drill and drill bit
A. Mounting Bracket
B. Canopy
C. 6” Downrod assembly
D. Yoke Cover
E. Fan Motor Assembly
F. Motor Cover
G. Glass Cover (Light Fixture)
H. Fan Blades (3)
BCF5201R
Remote Control
Remote Receiver
Remote Control Holder
2 Screws for Remote Control Holder
A
B E
F
G
C
D
H
RECOMMENDED TOOLS
PARTS INCLUDED
Page 8
SET UP & USE
FEATURES
Downrod
Installation
For normal ceilings
Vaulted Ceiling
Installation
May require a
longer downrod
(sold separately)
CAUTION
To reduce the risk of injury to persons, the fan must be installed so that the blades are
at a height greater than 7 feet (2.1 meters) above the floor.
This fan is designed for indoor use only.
Flush
Installation
For normal ceilings
SET UP & USE
Page 9
PREPARING FOR INSTALLATION
1. Unpack and inspect fan carefully to be certain all contents are included.
WARNING: Turn o power at the breaker box or fuse panel to avoid possible
electrical shock.
2. Use a listed metal outlet box suitable for fan support (rated for 35 lbs (15.9 kg)).
Before attaching fan to outlet box, ensure the outlet box is securely fastened by at
least two points to a structural ceiling member (a loose box will cause the fan to
wobble).
Page 10
MOUNTING BRACKET INSTALLATION
3. Remove the screws from the two mating holes (2) on the canopy. Loosen (do not
remove) the screws in the mating slots (1) on the canopy. Rotate the mounting
bracket and remove from the canopy.
2
1
1
2
2
1
1
2
SET UP & USE
Table des matières
Langues :
Autres manuels Black & Decker Ventilateur
Black & Decker
Black & Decker FW1600 Manuel utilisateur
Black & Decker
Black & Decker FD1600 Manuel utilisateur
Black & Decker
Black & Decker Typhoon BDTF1012W Instructions d'installation
Black & Decker
Black & Decker BXMF75E Manuel utilisateur
Black & Decker
Black & Decker BFSR16B Manuel utilisateur
Black & Decker
Black & Decker Fleetforce BDHV2000 Instructions d'installation
Black & Decker
Black & Decker BFTR138 Manuel utilisateur
Black & Decker
Black & Decker BDWF7700 Series Instructions d'installation
Black & Decker
Black & Decker BFF16B Manuel utilisateur
Black & Decker
Black & Decker BXEFF60E Manuel utilisateur
Black & Decker
Black & Decker Fleetforce BDHV2000 Instructions d'installation
Black & Decker
Black & Decker BFSR16 Manuel utilisateur
Black & Decker
Black & Decker FS1600R Manuel utilisateur
Black & Decker
Black & Decker BDTF-4200R 120V AC 60HZ 55W Manuel utilisateur
Black & Decker
Black & Decker BXEFD41E Manuel utilisateur
Black & Decker
Black & Decker BXEFT48E Manuel utilisateur
Black & Decker
Black & Decker BXFSH2000E Manuel utilisateur
Black & Decker
Black & Decker BDP-700 Manuel utilisateur
Black & Decker
Black & Decker BXFP51006GB Manuel utilisateur
Black & Decker
Black & Decker BFB09W Manuel utilisateur
