1.0Application:

Paintoftenbecomesoiled especiallyneardoorways,windows,and inworkand playareas.

Coated surfacesneedtobetested forresistancetoabrasion caused byabrush,sponge,orothermeans.

The WetAbrasion ScrubTestercan producearepeatable, controlled condition tosimulateeverydayuse

orwearpatterns.

BGD526 WetAbrasion Scrub Tester isthe newestmachine whichisdeveloped byBiuged .It

can examine washabilityand related propertiesthataffectthe stainresistanceofcoatings.Detergent

performancetestingcan alsobedetermined inareproduciblemanner.

It accordswithstandardssuchasASTMD2486、ASTMD3450、DINEN11330、ISO11998 etc.

Feature

◆Runningspeed can besettomeet requirementsofdifferent standards.

◆Withfour-digitcounter,startthe machine anditwill automaticallybestopped when reachingset

times.

◆Compatiblewithavarietyof abrasion padstocomplywithdifferentstandardsrequirements,suchas

ISO, ASTM, DINetc..

◆Quicklyand easilytoloadandunload testingsamplesand replacingabrasion head.

◆Can worknormallyunderdifferent voltageand frequency

◆Withstableand uniformrunningspeed becauseofPush-rod design

◆Featurestwobrushholdersforside byside testing

◆Longservicelifewithhardanddurabledesign

◆The wholemachine bodyismade ofanodized aluminum,havingstableworking status,repeatable

test results,no exception even inthefastest speed ofthe stroke.

◆Liquidsolutionsarepumped tothe brushheadsfromthe detachablecontainermounted totheside of

the tester.The pumpmaybeswitched on oroffduringthe courseoftesting,and the flowcan be

adjustedforprecisedosing.

2.0MainTechnical Parameter

2.1 Specification ofbrush evenlydistributed 60-diameter3holesonthe38×90mmbaseboard,with

pigbristleinserted, lengthoffeather19mm.

2.2 Weightofbrush（includingdeviceholdingbrush） 454±10g（ASTMD2486）； 135±1g（ISO11998）

2.3 StrokeLength 300mm

2.4 Frequencyoftravel 595 times/min（adjustable）

2.5 Rangeofcount 9999times

2.6 Sizeoftest plate 430×150×0.03mm

2.7 Powerofmotor 25W

2.8 Power 110V 220V；50/60Hz

2.9 Overallsize 500×460×280mm

2.10 CapacityofWaterContainer 5L

6.0Report

Recordthe numberofcyclestoremoveone continuousthinline ofpaintfilmacross the 12.7mm

widthoftheshim.Stopthemachine andwipeoffthe shimarea todetermine,ifnecessary,ifthe end

point isachieved.

Testtwoof the drawdowns.If the tworesultsdifferbymorethan30%of theaverage,testthethird

drawdown.Ifone ofthe three resultsisobviouslydiscrepant, discardit, thenaveragethe resultsfromthe

remainingdrawdowns.

7.0WaterContainer

7.1 WashingLiquidcan’tbeusedcyclicallyincasethewaterpipeisblocked.Theoperatorshould

prepareanothercontainertoreceivethe wastewashingliquidwhichisdischarged fromdrainpipe.

7.2 Insert the feed-waterpipeintothe quick fittingsofwatercontainerand ensureit’stight

7.3 Connect theplugofwaterpumptosocket ofpumpwhichislocated theside ofmachine. Connection

forwatercontainerisfinished.

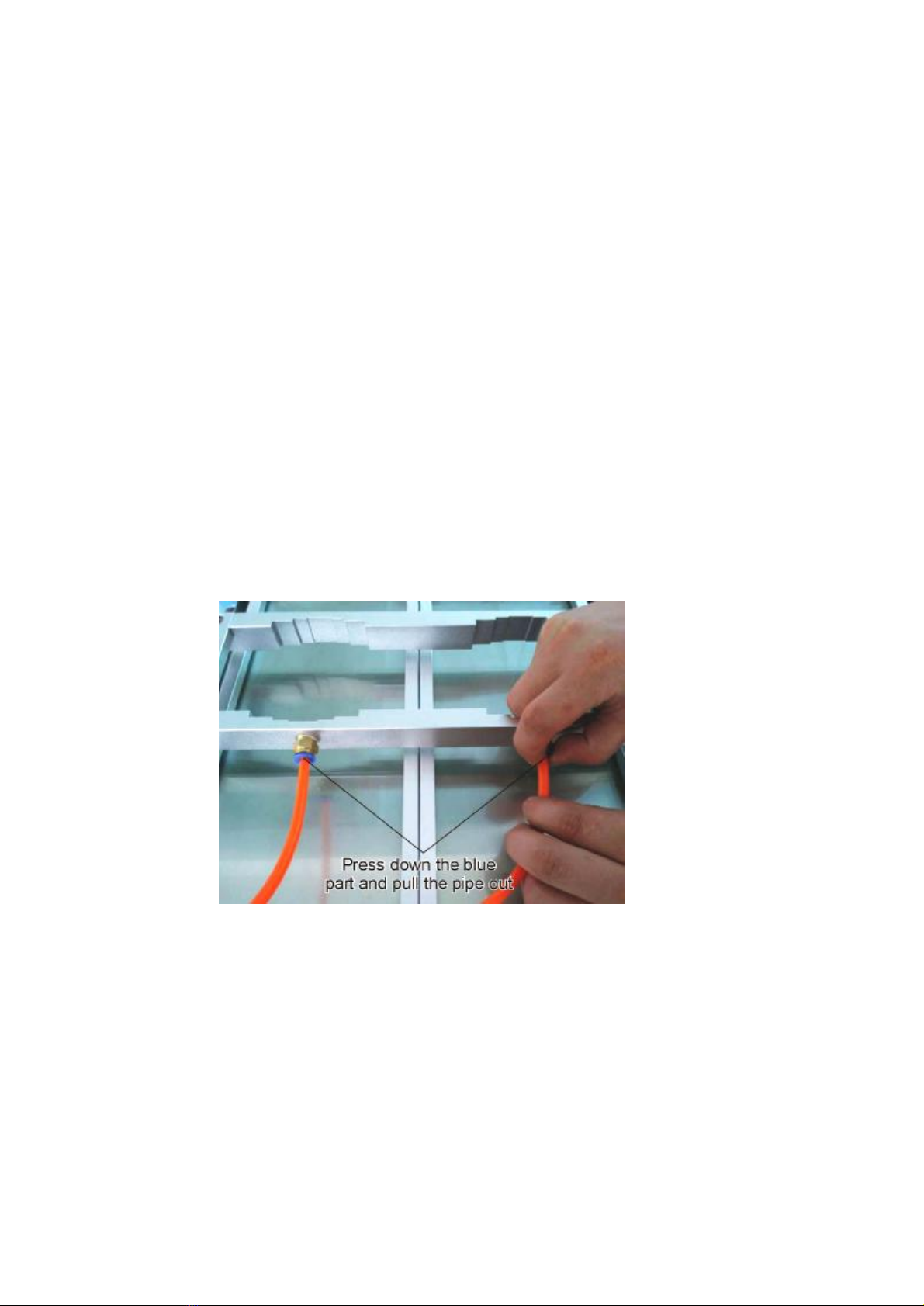

7.4 Pleaseclean thewatercontaineraftereverytest,thestepisasbelow press the blue part of quick

fittingsand pull out thesoft waterpipeat the sametime. See the belowpicture.

7.5 Open thecoverofwatercontainerthen clean it

8.0Maintenance

8.1 Clean andmachine withclean andsoft clothafterusing, keepit inthe dryandcleanenvironment。

8.2 Replacethebrushwhen the bristleshavebecomeworntoapoint that thebristlesextend less than

15mmfromthe block. Markthe endsofthebrushtoensureit isorientedinthe samedirection foreach

use.

8.3 Don’t cut off the supplyofwashingliquidwhen pumpisworking.

9. 0Warranty

9.1 Themachine iswarranted inrespectofmaterialsand workmanshipfor12 monthsfromthe dateof

purchase.Anydefectivepartswithinthe machine arisingduringthe warrantyperiod,shall be

replaced free ofchargesubject toourinspection.

9.2 Anydefectivepartswithinthemachine arisingoutofthe warrantyperiod:shall bereplacedatclient’s

expense.

9.3 Underthe following conditions,wewill notberesponsibleforthe replacementduringthe warranty

period:

lWithout invoiceorreceipt.

lDamaged bywrongassemblingordisassembling.

lDamaged bywrongorcareless operation.

lDamaged bywrongoperatingunderimpropercondition.

lDamaged bybroken packingduringtransportation.

10.0PackingList

BGD527WetAbrasion ScratchTester1unit

SpecialBrush1pair

Watercontainerwithpump1unit

Brass Shim2pcs （Optional）

Operation Manual1pc

11.0Others

11.1Selectical Optional Accessories

BGD2208----Stand scrubplasticpanels（100pcs/box）

BGD2214----Stand scrubconcretepanels（100pcs/box）

BGD1365----Stand Brush （1pair）

BGD2355----Brass Shim （2pcs）

11.2Others

Forfurtherinformation, pleasecontact Biuged,yourlocalsupplier, orvisit ourwebsiteat

www.biuged.com
