Operation Manual
Floor Standing Shaking Incubator
BSFLS-101
Thank you for Choosing Biolab products. Please read the “Operating Instructions” and
“Warranty” before operating this unit to assure proper operation.
Index

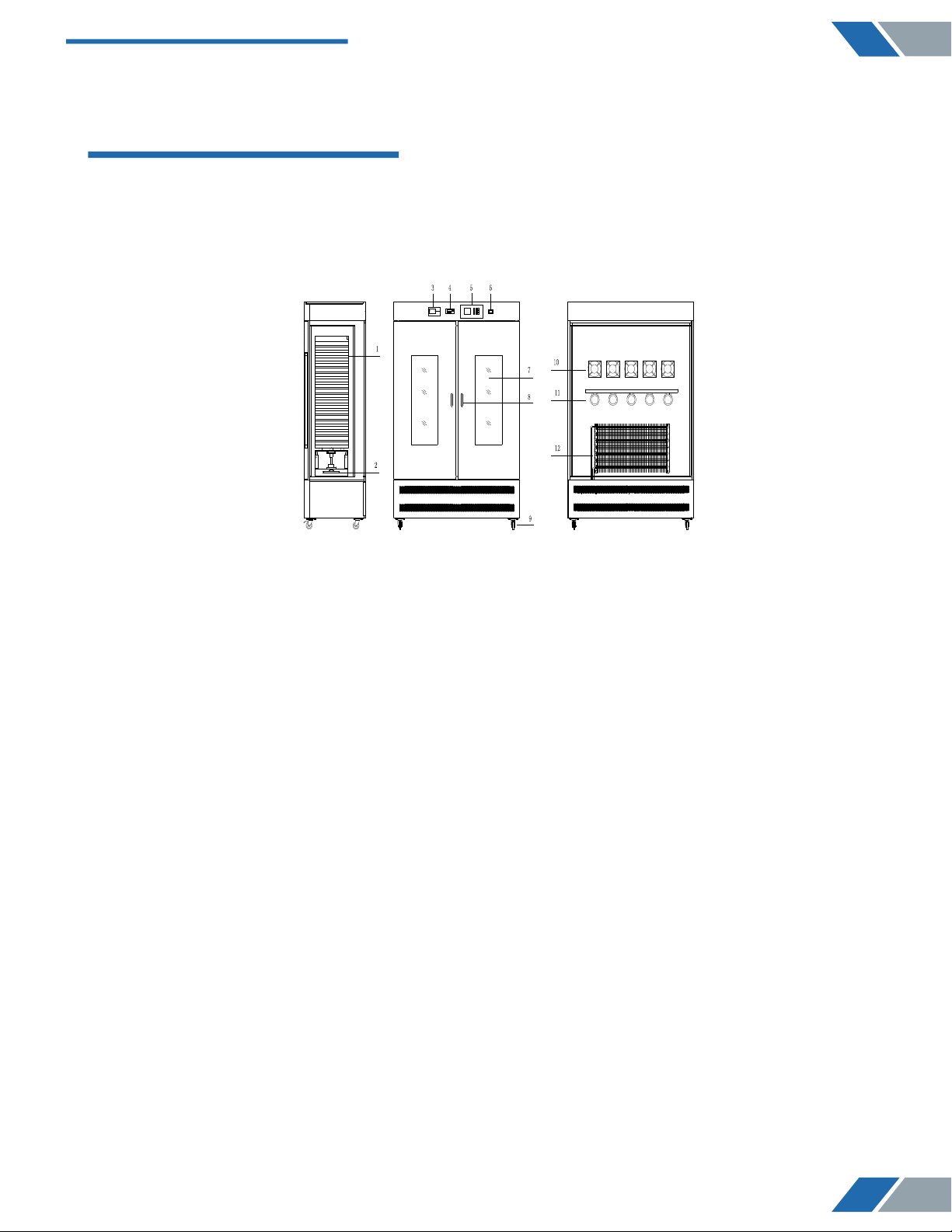

. Product Drawing............................................................................................................................3
2. Structure and Working Principle..............................................................................................4
3. Technical Parameter.......................................................................................................................4
4. Panel Instruction.............................................................................................................................5
5. Operation..........................................................................................................................................5
6. Temperature and its parameter setting.................................................................................6
7. Trouble Shooting.......................................................................................................................... 6
8. The Wiring Diagram..................................................................................................................... 7
9. After Sales Services...................................................................................................................... 8
www.biolabscientific.co
2
Floor Standing Shaking Incubator BSFLS-101
02 Structure and Working Principle
The shaking incubator is composed of a microcomputer temperature control system
with LCD Display, Stainless steel inner material, The Body is Composed of environmental
protection foam , transparent glass door, stainless steel oscillation car and rack, stainless steel
inner chamber and refrigeration system
Transparent glass door is good for insulation and observing the platelet preservation
condition.
stainless steel material is easy to clean and disinfect, oscillating frame divided lots of layers,
each layer can put numbers of platelet bags, frame grid can be taken out independently, easy
to operate, oscillation frame was working by a constant speed motor for horizontal shaking
The machine is equipped with multiple axial flow fans to keep temperature evenly in the box.
03 Technical Parameter
. Temperature range: RT+5-60°C
2. Shake frequency: 20-300 rpm
3. Amplitude: 26mm
4. Plate size: 500x350 mm
5. Working Mode: continuous
6. Voltage: 220V, 50/60Hz
7. Power: 720 W
8. Overall Size: 700x665x 350 mm
www.biolabscientific.co
4
Floor Standing Shaking Incubator BSFLS-101

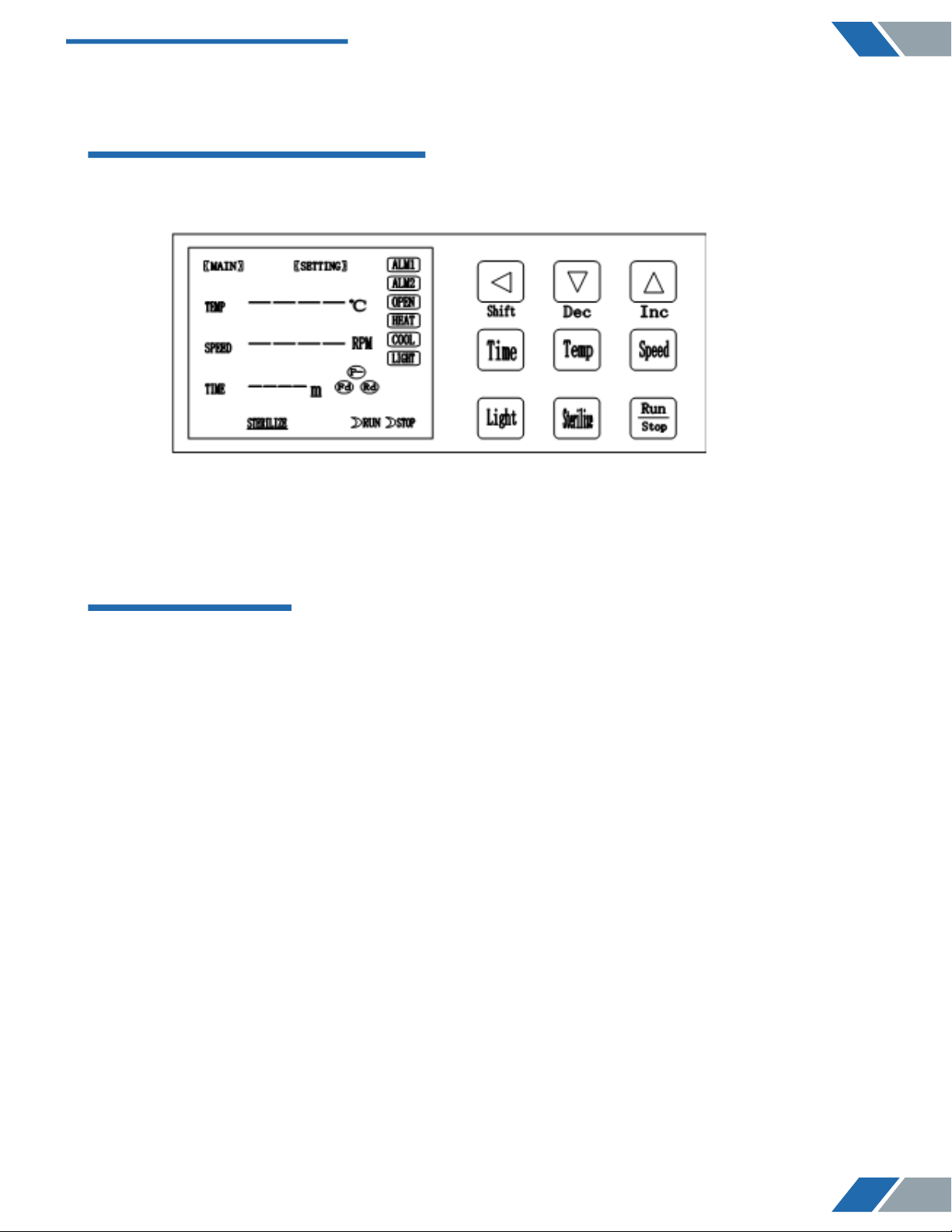

04 Panel Instruction
05 Operation
. Controller is powered on, the temperature display window showing "HY - 2", speed
display window showing"8888", the time display window showing "8888", all identifiers
is lighting, the machine into the normal display status after 4 seconds.
2. Prohibit temperature and speed control function
Temperature value is less than the set temperature value, temperature display window
showing "OFF", said the ban on temperature control function. Speed value is less then
set speed value, speed display widow showing “OFF”,said the ban on speed control
function .
3. Timing function
When total timing set to "0", said there was no timing function, the controller run
continuously; When timing setting is not "0", after the time stop running (see the ndt
parameters: the internal parameter table 7), the time display shows "End", buzzer call
for minute. Click the run/stop "button, can restart the controller.
4. Start and Stop
Long press the "run/stop" key for second can start or stop the controller . Runtime
identifier light "RUN", "STOP" when to STOP identifier to light.
5. Refrigeration function
Compressor works can choose (intermittent type, balanced type and open type),
www.biolabscientific.co 5
Floor Standing Shaking Incubator BSFLS-101
intermittent work can choose manual or automatic start-stop compressor (see the
NDC, CP, Htd, Crc, Cnp parameters: the internal parameter table – 2).
6. Memory function when power off
By modifying off electrical parameter values (see the "rES" parameters: the internal
parameter table - 2) can choose whether to have memory function when power supply
drop.
7. Lighting and sterilization function (see the Lt, St parameters: the internal parameters of
table )
Note: click on lighting lighting function work; Sterilization function long press for 3
seconds sterilization work.
8. In the condition of setting if without any key pressed for minute, the controller will
automatically return to normal display state.
9. Over temperature alarm, "ALM identifier" light, buzzer, buzzer can press any key when
it sound.
0. When the controller (Er - ) power module fault occurring, locked-rotor (Er - 2), hall
error (Er - 3), busbar undervoltage (Er - 4), bus over-voltage (Er - 5), communication
failure (Er - 6), "ALM2 identifier to light," speed controller automatically stop running.
. If the temperature controller display window "-", said temperature sensor failures or the
controller itself, please carefully check the temperature sensor and its wiring.
06 Temperature and its parameter setting
．Click on the "temperature" button, enter the temperature setting state, flashing
temperature display area, can be modified by shift, increase and decrease key to the desired
set point; Then click on "temperature", exit temperature setting state, the value is
automatically saved.
2．Long press "temperature" button for 3 seconds temperature display area to show the
password prompt "Lc", speed display area shows the password value, enter the password
value into the temperature internal parameters setting state, then click on "temperature" can
modify the parameters. Long press "temperature" button for 3 seconds, exit this state, the
parameter value automatically saved.
www.biolabscientific.co
6
Floor Standing Shaking Incubator BSFLS-101
Intrinsic parameter-1
Parameter
code
Parameter
name Parameter function factory default
(range)
Lc Password “Lc=3”view and modify parameters 0
AL-
Over-
temperature
alarm margins
when “test temp. > set temp. +AL ”, alarm
light is on, alarm beeps, stop running,
heating output
(0~20.0 )℃
5.0
Ct- Compressor
delay start
Compressor startup time delay protection,
compressor minimum time interval from
stop to restart
(0~600s)
80
uP-
The
compressor
Start threshold
When compressor working in Continuous
way
If "temperature measured values ≥
temperature setting value + uP" and the
compressor start delay time is over, start the
compressor
Note: This parameter is only effective in
manual start-stop compressor mode, in the
automatic mode is invalid
(- 0.0~ 0.0 )℃
0.4
dn-
The
compressor
shut down
threshold
When compressor working in Continuous
way
If "temperature measured values ≤
temperature setting value + dn" and the
compressor is closed
Note: This parameter is only effective in
manual start-stop compressor mode, in the
automatic mode is invalid
(- 0.0~(uP-
0. ))
0.2
Lt- Lighting close
delay close
Open lamp, delay after Lt time automatically
shut down."Lt = 0", the time delay is invalid,
must manually close the lighting.
Lights, delay shut down automatically after
St time."St = 0", the time delay is invalid
must manually shut the sterilization lamp
(0~9999min)
0
St-
The
sterilization
lamp close
time delay
After sterilization lamp open, delay St time
shut down automatically."St = 0", the time
delay is invalid must manually shut the
sterilization lamp.
(0~9999min)
0
www.biolabscientific.co 7
Floor Standing Shaking Incubator BSFLS-101
T- Control cycle Heating Control cycle ( ~60s) 5
P- Proportional
band Time scale functional governing (0. ~50.0) 5.0
I- Integration
time Integration functional governing ( ~2000s) 380
d- Differential
time Differential functional governing (0~2000s) 00
Pb- Zero
adjustment
Correction (low temperature) generated
when the measuring error of the sensor.
Pb = actual temperature - meter
measurements
(-99.9~99.9 )℃
0
PK- Full
adjustment
Correction (high temperature) generated
when the measuring error of the sensor.
PK = 000 * (the actual temperature value -
instrument measurements)/instrument
measured values
(-999~999) 0
Intrinsic parameter-2
Parameter
code
Parameter
name Parameter function factory default
(range)
Lc password "Lc = 9 to view and modify the parameter
values. 0
rES
power supply
drop memory
function
0: no memory function when power supply
drop
: power lost memory function
(0~ )
0
FAn fun style
chose
0：The fan is short axial fan
：The fan is long axial fan
(0~ )
0
ndc compressor
working way
0: compressor only intermittent work;
: compressor according to the CP (see
below) the value of the compressor balance
type or intermittent work;
2: compressor according to Htd (see below)
judging the value of the compressor balance
type or intermittent work;
(0~2) 0
CP-
The
compressor
works fixed
switching
points
When "NDC = ",
If the temperature set point or CP ", the
compressor work in intermittent way,
whereas work in balanced way
(0~ 00.0 )℃
30.0
www.biolabscientific.co
8
Floor Standing Shaking Incubator BSFLS-101
Htd
The
compressor
works
automatically
switching
points
When "NDC = 2"
If the temperature set point ≥ ambient
temperature + Htd", compressor work in
continuous way, otherwise work in balanced
way.
(-50.0~50.0 )℃
0.0
Crc
The
compressor
Start and Stop
mode
When the compressor work in continuous
way,
0: automatic start-stop compressor
(according to the environmental temperature
and set point);
: manual start-stop compressor (according
to the internal parameters in table of the
uP and dn value);
(0~ ) 0
Cnp
Ban on
compressor
Working
temperature
point
Setting Value ≥Cn when temperature is "p",
prohibit the compressor work.
Note: this way is the highest priority, the
controller to perform this command first,
then to judge compressor balance or
intermittent work.
(0~ 00.0 )℃
42.0
nP- Maximum
power output
The percentage of maximum power heating
output (0~ 00%) 00
Co-
Shut off the
heating output
deviation
When the temperature measured values
≥setting value + Co, shut off the heating
output.
(0.0~20.0 )℃
5.0
SPL
Temperature
setting min
value
temperature setting min value data
(-
50.0~ 00.0 )℃
0.0
SPH
temperature
setting max
value
temperature setting max value data (SPL~ 00.0 )℃
60.0
Adr address The machine factory produce address ( ~ 6)
www.biolabscientific.co 9
Floor Standing Shaking Incubator BSFLS-101
Intrinsic parameter-3
Parameter
code
Parameter
name Parameter function factory default
(range)
Lc password "Lc = 8" to view the environment
temperature.
Ht Environment
temperature
the environment temperature of The
controller
Intrinsic parameter-4
Parameter
code
Parameter
name Parameter function factory default
(range)
Lc- Password “Lc=27”to view or modify the parameter
value 0
CdS
apillary,
pressure
release
function
selection
0: relay for pressure relief function;
: relay for capillary function; (0~ ) 0
CAP
Capillary
switch Setting
value
When the temperature setting ≥ CAP ", start
relay;
When the temperature setting ＜ CAP ",
close the relay.
(-
50.0~ 00.0 )℃
0.0
dpL
Pressure
release
(cooling)
solenoid valve
start valve
When the compressor work in balanced way,
If the temperature measurement ≤
temperature setting value + dpL ", start the
electromagnetic valve;
When the compressor to off work, if the
compressor stop working, the starting
electromagnetic valve.
(- 0.0~0.0 )℃
0.0
www.biolabscientific.co
10
Floor Standing Shaking Incubator BSFLS-101
Table des matières
Autres manuels BioLAB Équipement de laboratoire
BioLAB
BioLAB BMRW-104 Manuel utilisateur
BioLAB
BioLAB BBWA-100 Manuel utilisateur
BioLAB
BioLAB BIFL-201 Manuel utilisateur
BioLAB
BioLAB BTUR-303 Manuel utilisateur
BioLAB
BioLAB 200 Series Manuel utilisateur
BioLAB
BioLAB BIDP 100 Series Manuel utilisateur
BioLAB
BioLAB BCLT-203 Manuel utilisateur
BioLAB
BioLAB BLVR-202 Manuel utilisateur
BioLAB
BioLAB BTUR-101 Manuel utilisateur
BioLAB
BioLAB BVMX-201 Manuel utilisateur
BioLAB
BioLAB BIFL-205 Manuel utilisateur
BioLAB
BioLAB BCBS-103 Manuel utilisateur
BioLAB
BioLAB BIFL-203 Manuel utilisateur
BioLAB
BioLAB BDIB-103 Manuel utilisateur
BioLAB
BioLAB BCLT-201 Manuel utilisateur
BioLAB
BioLAB BAVT 500 Series Manuel utilisateur
BioLAB
BioLAB BHMS-104 Manuel utilisateur
BioLAB
BioLAB BAHZ 400 B Series Manuel utilisateur
BioLAB
BioLAB BCBL-301 Manuel utilisateur
BioLAB
BioLAB BCMI-502 Manuel utilisateur
Manuels Équipement de laboratoire populaires d'autres marques
Agilent Technologies
Agilent Technologies 5800 ICP-OES Manuel utilisateur
Endress+Hauser
Endress+Hauser Cleanfit CPA875 Manuel utilisateur
NI
NI PXI-5422 Manuel
Collomix
Collomix Aqix Manuel utilisateur
SPEX SamplePrep
SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur
Ocean Insight
Ocean Insight FLAME-NIR+ Manuel utilisateur
