In-Wall Heater
Owner’s Manual
Therapeutic infrared heating systems
for a green, healthy environment
with Patented BioSmart®
Air Filtration Technology
BioSmart®In-Wall Far Infrared Heaters. Feel the Difference.
BioSmart Technologies
Customer/Warranty Service: 800-595-9605
BioSmart® BIO-1000F
In-Wall Edition Far Infrared Heater
Page 1
©2013 BioSmart Technologies
Table of Contents
Congratulations on Your Purchase! 2
Why Use a BioSmart®Heater 4
Far Infrared Technology Benefits 6
Unpacking Your New BioSmart®Heater 7
Heater Care 7
USE RESTRICTIONS 7
BioSmart®500F Features & Functions 8
BioSmart®1000F Features & Functions 9
How many units do I need? 10
Installation Instructions 10
Wiring Diagrams 13
BIO-1000F/120v Wiring Schematic 13
BIO-500F/120v Wiring Schematic 13
For Your Safety/Warning 14
For Best Performance 14
Operating Instructions 14
Maintenance 14
Troubleshooting Your BioSmart®Heater 15
BioSmart®1000F In-Wall Heater Specifications 16
BioSmart®500F In-Wall Heater Specifications 17
Diagram of BioSmart®1000F In-Wall Heater 18
Diagram of BioSmart®500F In-Wall Heater 19
Warranty & Service Information 20
Page 2
Customer/Warranty Service: 800-595-9605
Congratulations on Your Purchase!
Congratulations on purchasing your
BioSmart®Therapeutic Ceramic Far Infrared
Heater!
One of the best things about using your new
BioSmart®Therapeutic Ceramic Far Infrared
Heater is the money you will save on gas and
electric bills.
Utility eld tests show that the BioSmart®Ceramic Far Infrared Heater
uses an average of 35% less energy than conventional electric furnace/
baseboard systems. And with current fuel prices, the BioSmart®heater
will save you even more money than if you were using heating oil or gas
heat.
That means drastic reductions in your heating bills -- up to 50%, depending
on the type of heating system you have currently installed.
The BioSmart® is a giant of unparalleled eciency. The far infrared heating
technology utilized in the heater warms the objects in the room, as well
as the walls and oor. It evenly heats everything in the room, from top to
bottom. The heat in the room will never hover uselessly near the ceiling
again!
In addition to helping you keep money in your pocket, the BioSmart®goes
a step beyond to also enhance your health and the quality of comfort you
experience in the heated room. The far infrared Ceramic heating system
will not burn, dry out, or pollute the air with impurities. This protects the
natural humidity level and produces a soft, ion-balanced heat. Using this
Page 3
©2013 BioSmart Technologies
soft far infrared heat is a better, more comfortable and more healthy
way to heat a room.
There are many therapeutic benets that can be attributed to far
infrared heat. Its use as an integral part of many medical therapies is well
documented. Now you can enjoy the benets of therapeutic far infrared
heat with the BioSmart®Ceramic Far Infrared Heater.
Please read the operating instructions carefully for safe and optimum
enjoyment of your new BioSmart®Therapeutic Ceramic Far Infrared
Heater.
Thank you for your purchase!
BioSmart® Infrared Heaters.
Live in Comfort.
BioSmart Technologies
Page 4
Customer/Warranty Service: 800-595-9605
Why Use a BioSmart®Heater
BioSmart® heating systems are the ultimate in green technology engineering -- easy
to install, exceptionally economical and extremely quiet, they produce comfortable,
healthy, therapeutic far infrared heat. BioSmart® heaters also purify the air that is
processed through them, making them a sanitary source of heat.
Far infrared heat is a highly efcient and therapeutic heat source. By virtue of its
shorter wavelength, far infrared is able to penetrate the body and solid objects
faster than conventional radiant heat. BioSmart® heating systems use this property
of far infrared to evenly and comfortably heat a room. Far infrared heat is the most
comfortable source of heat and has been used for years as a therapeutic treatment for
various conditions including muscle and joint pain, stiffness, and cardiovascular and
general circulation problems.
Producing far infrared heat requires localized generation of infrared wave in order to
optimize the efciency and money/energy savings produced when using a far infrared
heating source. This design advantage eliminates the need for a ductwork system to
distribute the heat through various rooms of a home or ofce. Eliminating ductwork
also eliminates the bacteria, dust, pollen and mold that accumulates in a conventional
air conditioning and heating duct system. These pollutants can cause irritation and
a potential health problem, especially for those with respiratory sensitivities and
allergies, including asthma.
Energy Saving Benets
It requires less energy to heat the room with far infrared heat than with other
conventional heating sources. Additionally, room temperatures of 68 degrees (F) with
far infrared heat feel like 72 degrees (F), so you can set the thermostat back 4-5 degrees
and experience the same comfort levels utilizing less energy. The temperature on the
oor and at the ceiling remains the same without any supplemental fan circulation
to keep the temperature balanced throughout the room, even in rooms with high
ceilings.
With a BioSmart® heating system you can heat only those spaces which are in use
and require the heat. Zoned heating is as much as 50% more economical to use when
the entire home or ofce does not require heat in all areas 100% of the time. The
cost savings from this feature alone makes initial installation of the BioSmart® heating
system pay for itself in a matter of months. If you really want to save on energy costs,
heating with BioSmart® far infrared heat is going to be spectacular.
Quiet Operation
BioSmart® fan systems are virtually silent, distributing heat at over 150 cubic feet per
minute per heating unit. They are quieter than forced air systems and do not have
the typical cracking and popping sounds heard with baseboard heaters. When rated
against other conventional wall heating systems, there is no comparison to the quiet
operation of the BioSmart® fan system. BioSmart® fans operate at 18 dB compared to
the typical 65 dB for other wall heating systems.
Page 5
©2013 BioSmart Technologies
Better Heat Distribution
The nature of far infrared waves allows the heater to be installed higher on the wall
than conventional wall heater systems without compromising the transfer of the heat
to the oor. The advantage of the higher installation on the wall guarantees that
furniture and other obstructions to the airow from the heater are eliminated. Child
tampering is also eliminated.
Even distribution of infrared wave is also assured since the air space above the
furniture is virtually unrestricted. When conventional heat sources are vented through
the ceiling to save on construction costs, the heat remains near the ceiling and must
be pushed down with ceiling fans. This is not required with infrared heat.
Accurate Temperature
BioSmart® heating systems utilize state of the art electronics and internal electronic
thermostats for pin-point, one-degree accuracy. That means more accurate control of
comfort level settings and a warm, comfortable environment for you and your family.
Cost-Effective
Components in the BioSmart® heating system are designed to last longer than other
wall heaters. BioSmart® warranty coverage and service procedures are simple to follow
and the heaters can be serviced in ten minutes or less should repair be required. The
cost to purchase and install a BioSmart® infrared heating system for your entire home
is usually much cheaper than the cost of installing a central forced air heating system.
Patented Proprietary Technology
BioSmart® heaters contain a proprietary, high-efciency far infrared heat exchanger
which produces more far infrared heat her kilowatt than conventional ceramic,
quartz, or carbon plates. Patent pending coverage of more than 30 distinct features in
the BioSmart® heater are what makes the BioSmart® technology a truly unique energy
efcient heat source for your home or ofce.
Quality Assurance
BioSmart® heating systems come with C-TUV-US certications representing equivalent
approvals both in UL and CSA classications. BioSmart® heaters are manufactured
in Taiwan and China through AcePower Electronics, which includes a consortium
of engineers, vendors and manufacturers. AcePower Electronics is also a certied
ISO 9000 manufacturer and the exclusive manufacturer for BioSmart Technologies
heaters and air puriers.
Page 6
Customer/Warranty Service: 800-595-9605
Far Infrared Technology Benefits
40
45
50
55
60
65
70
75
80
85
Temperature (Fahrenheit)
0 1 2 3 4 5
Time (Hours)
Coil-Type Radiant HeaterBioSmart Far Infrared Heater
Dierence in time required to reach given temperature

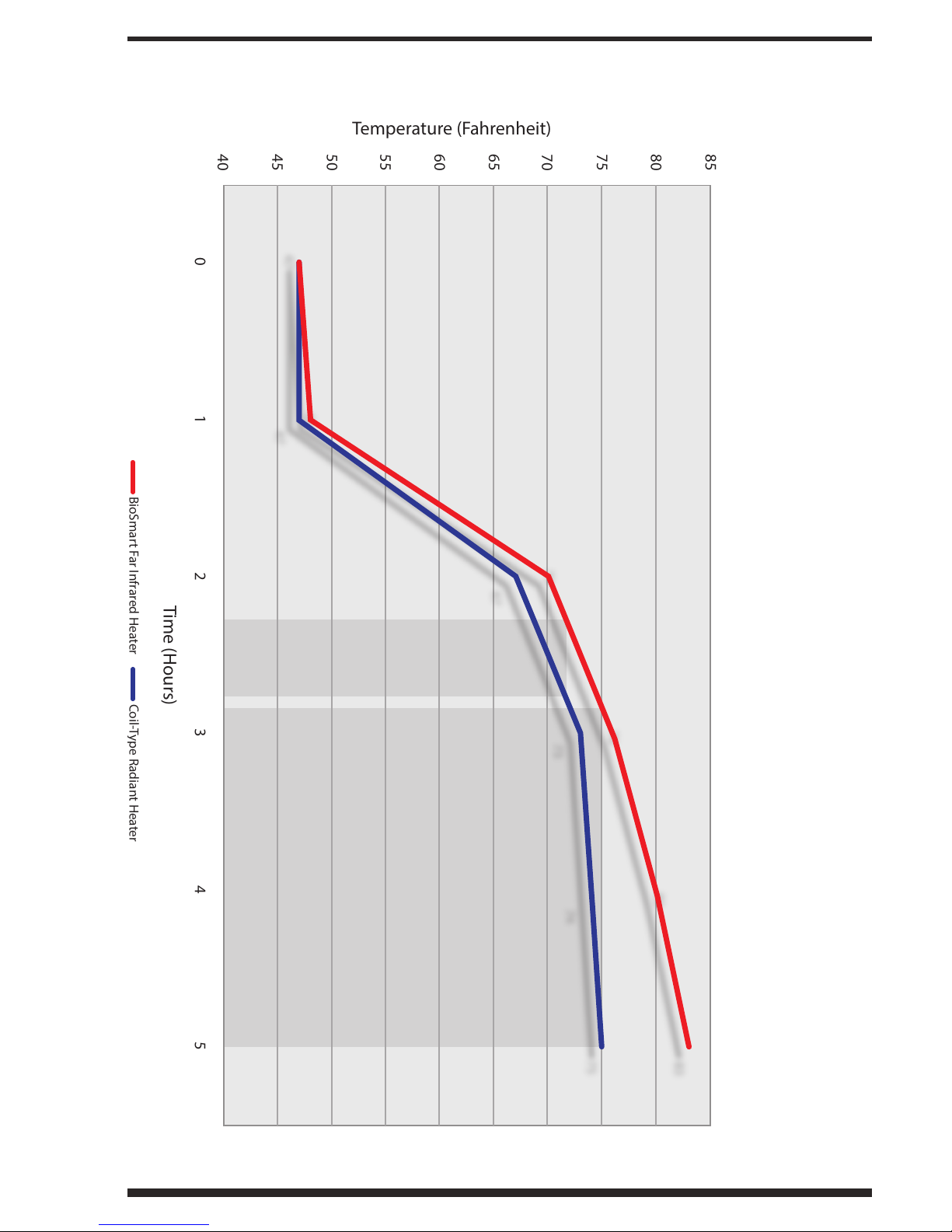

47
48
47
67
70 73
76
80
74
83
75
BioSmart Far Infrared vs Standard Coil-Type Radiant Heater
Nearly 20%
faster to 72 °F
e BioSmart heater reached 75 °F 70%
faster, that’s more than 2 hours sooner!
Test booth starting
temperature
20 - 50% Energy savings
with BioSmart Infrared
Faster warm-up and retention time means dramatic
energy savings with BioSmart Infrared
Page 7
©2013 BioSmart Technologies
READ ALL INSTRUCTIONS BEFORE USING THE HEATER
• DO NOT alter the heater’s design, or you will void the warranty.
• DO NOT block the front of the heater.
• DO NOT place anything directly in front of the heater.
• DO NOT cover the unit as this may block airow and cause the heater to
malfunction.
• DO NOT insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or damage the heater.
• Heater has hot parts inside. DO NOT use it in areas where gasoline, paint, or
ammable liquids are used or stored.
• Do not block air intakes or exhaust in any manner.
• Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause re, electrical shock, or injury to persons.
SAVE THESE INSTRUCTIONS
Unpacking Your New BioSmart®Heater
1. INSPECT the package for any obvious damage.
2. UNPACK the heater: cut open taped box edges, fold back box aps. Gently turn
entire box upside down; lift box from protective packaging.
3. REMOVE the protective packaging materials from the inside of the heater’s heat
exchanger, making sure that all combustible materials have been removed from
around the black ceramic heating elements.
4. INSPECT the unit to make sure that there are no cracks in the black ceramic
heating elements.
5. PROCEED with the “Installation Instructions” on page 10.
Heater Care
General Maintenance and Care
Routinely inspect the air registers on the unit to make sure that no dust has accumulated.
Vacuum as you would any conventional air duct.
It is suggested that an annual dusting of the ceramic plates be performed in order to
eliminate any residual accumulation of dust during the summer months. In order to
accomplish this, the front plastic panel must be removed by removing the four screws
and lifting up to release the panel from the top clip.
!
WARNING
ANY REQUIRED SERVICE SHOULD ONLY BE PERFORMED BY
AN AUTHORIZED SERVICE REPRESENTATIVE
CAUTION: RISK OF ELECTRICAL SHOCK
DISCONNECT POWER BEFORE SERVICING
USE RESTRICTIONS
Page 8
Customer/Warranty Service: 800-595-9605

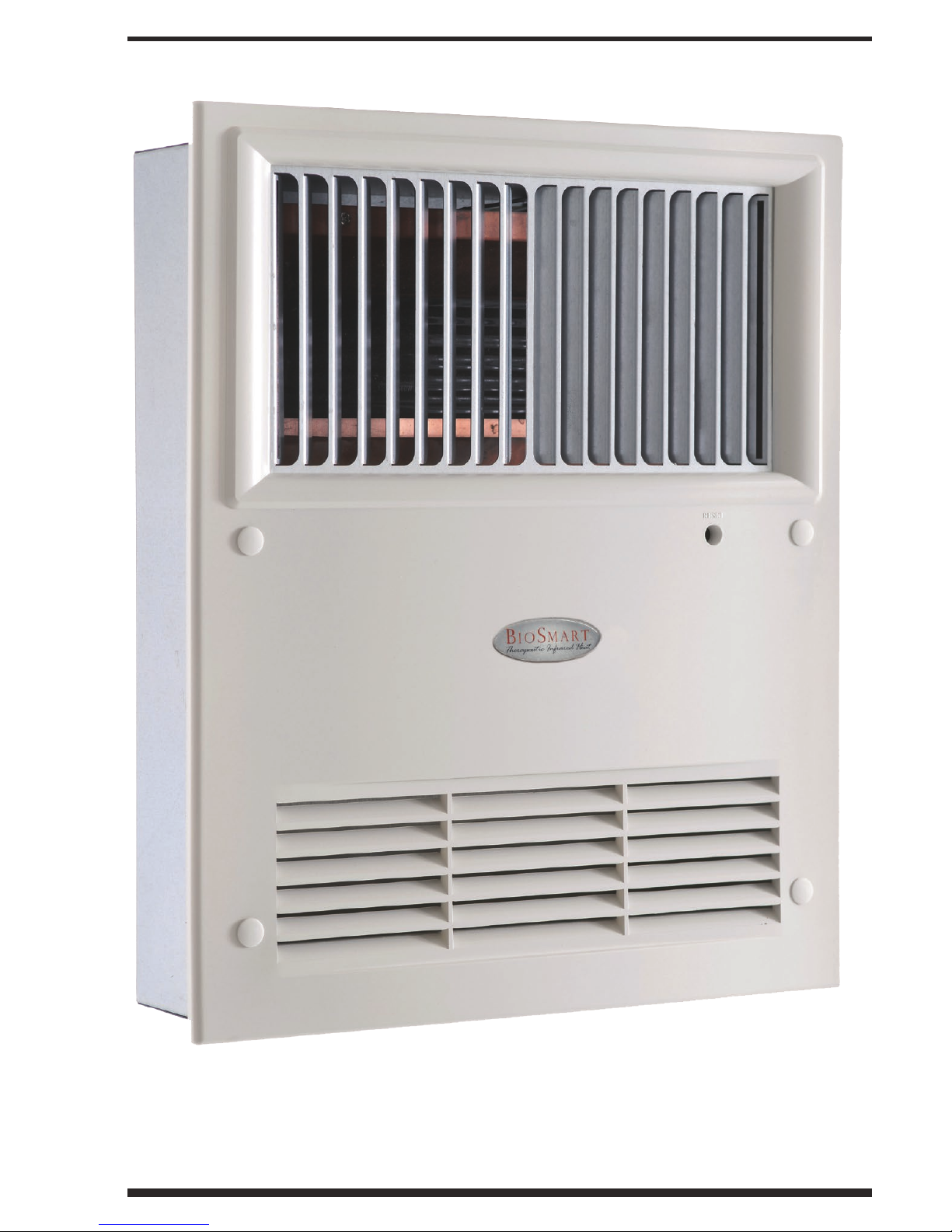

BioSmart®500F Features & Functions
Heat Register
Cabinet cover
Intake
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Bio Smart Technologies Chauffage
Manuels Chauffage populaires d'autres marques
oventrop
oventrop Regucor Series Manuel utilisateur
Blaze King
Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur
ELMEKO
ELMEKO ML 150 Manuel utilisateur
BN Thermic
BN Thermic 830T Manuel utilisateur
KING
KING K Series Mode d’emploi
Empire Comfort Systems
Empire Comfort Systems RH-50-5 Guide de démarrage rapide
Empire Heating Systems
Empire Heating Systems WCC65 Manuel utilisateur
Wetekom
Wetekom 92 86 43 Manuel utilisateur
Desa
Desa SPC170-F Manuel utilisateur
Watlow
Watlow Watrod Electric Tubular Heaters Manuel utilisateur
Haverland
Haverland ECO-DRY GPS Series Manuel de la liste des pièces
Stelpro
Stelpro ASILVC2060 Series Manuel utilisateur
