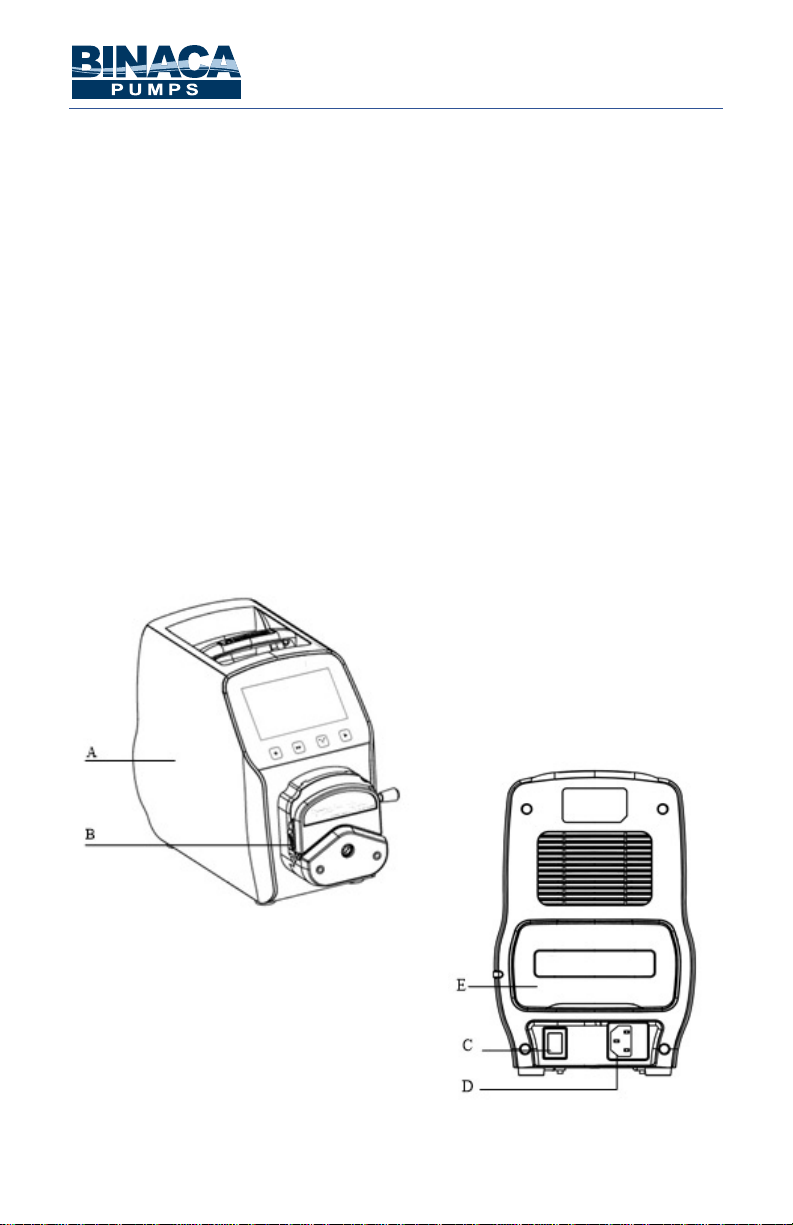

Precision Laboratory Peristaltic Pump
5000 Series
A. Speed/Flow Rate Display: Under the flow rate mode, system settings will be
displayed. Under the rotating speed mode, flow rate will be displayed.
B. Real-time Dynamic Display：Display the current running state.
C. Real-time Parameter Display：
I. Fixed Volume Mode (ON) – Enter the Volume Desired. Screen will
display Volume Entered, Flow Rate, Volume in Real-Time, Run Time
II. Dispensing Mode (ON) – Enter the Volume Desired and Run Time. If
Run Time is too short, warning will display until the correct
combination is entered. NOTE: Extend the Run Time. Screen will
display RPM, Flow Rate, Volume Entered, Run Time (time it will take
to dispense), Times (number of times)
D. Set Parameter Display：Displays the Fixed Volume Measurement, Fixed Time
and Volume State information, the Model of Pump Head and Tube Size.
E. Date and Time Display：Displays the Current Date and Time, you can change
it in the system setting. When it displays an alarm clock on the right side, it means
the Timer Start and Stop function is on.

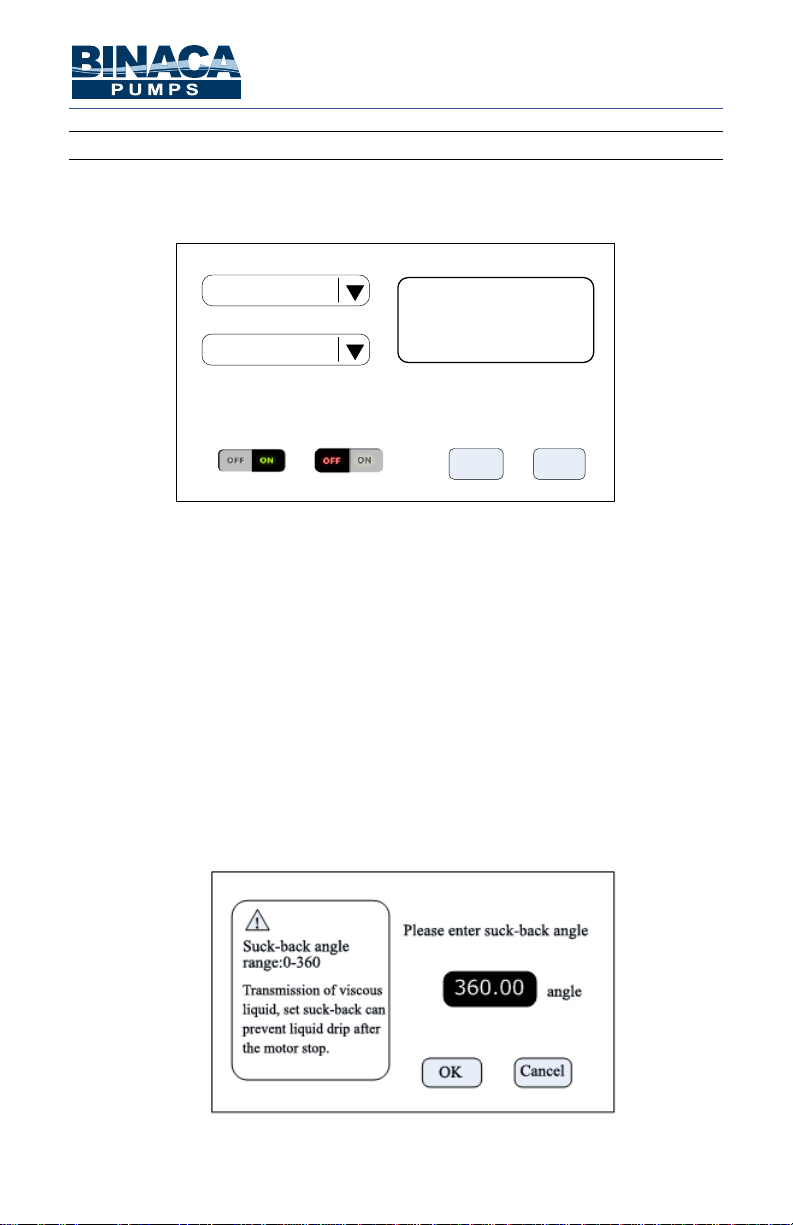

F. System Setting Button：Click this button to enter the System Settings.(See
Section 1 below)
G. Flow Calibration Button：Click this button to enter the Flow Rate Calibration
interface. (See Section 2 below)
H. Date & Time Button：Click this button to enter the Current Date and Time
interface. (See Section 3 below)
I. Volume Button: Click this button to enter the Fixed Volume Measurement
interface. (See Section 4 below)
J. Dispensing Button: Click this button to enter the Fixed Time and Volume
interface. (See Section 5 below)
K. Timer Start and Stop Button: Click this button to enter the Timer Start and
Stop interface. (See Section 6 below)
