KV PUSH Owner’s Manual

Part No 891203 1

Image shown with optional accessories

KV VACUUM Owner's Manual

KV601, KV650H, KV601FB, KV650HFB

Beginning Serial #: 102515001

Accessories

Original Instructions

IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

ON BOARD

VACUUM

HOSE KIT

4" x 7.5'

(102mm x

2.13m)

For

vacuuming in

hard to reach

areas.

P/N 891125

OPTIONAL

FELT/MESH

DEBRIS BAG

For use in leaves

and grass in dusty

conditions.

P/N 891126 FELT

BAG

P/N 891132

MESH BAG

NOZZLE

WEAR

GUARD KIT

For use in

increasing the

life of your

nozzle by

protecting it

from damage

P/N 891127

CASTER KIT

To allow for

easy rolling and

maneuverability

on smooth

surfaces.

P/N 891128

SHREDDER

KIT

Shreds

leaves,

reducing total

volume.

P/N 891153

KV LINER KIT

Increases the

life of the

housing by

protecting it from

damage.

P/N 891134

PROTECTIVE

COVER

Protects the

machine from

the environment

when not in use.

P/N 891137

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

CONTENTS

SPECIFICATIONS AND SAFETY 3

INSTRUCTION LABELS 4

PACKING CHECKLIST 5

ASSEMBLY 6

OPERATION _ 7

MAINTENANCE AND TROUBLESHOOTING 8

ILLUSTRATED PARTS & PART LISTS 9-10

Go to http://www.billygoat.com for French-Canadian translations of the product manuals.

Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits.

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

SPECIFICATIONS

KV601 KV650H KV601FB KV650HFB

Engine HP 4.95 (3.69 kW) 6.5 (4.85kW) 4.95 (3.69 kW) 6.5 (4.85kW)

Engine Type B&S Professional Series HONDA B&S Professional Series HONDA

Engine: Model 121R GSV190LN1L 121R GSV190N1L

Fuel capacity 1.2 qt. (1.14 L) 1.6 qt. (1.5 L) 1.2 qt. (1.14 L) 1.6 qt. (1.5 L)

Engine Oil capacity 0.56 qt. (0.53 L) 0.58 qt (0.54 L) 0.56 qt. (0.53 L) 0.58 qt (0.54 L)

Total Unit weight 116lb (52.6kg) 125lb (57kg) 116lb (52.6kg) 125lb (57kg)

Overall length 59” (1.5m) 59” (1.5m) 59” (1.5m) 59” (1.5m)

Overall width 26. 5” (0.7m) 26.5” (0.7m) 26. 5” (0.7m) 26.5” (0.7m)

Overall height 42.75” (1.1m) 42.75” (1.1m) 42.75” (1.1m) 42.75” (1.1m)

Max. operating slope 200200200200

SAFETY

WARNING

This product can expose you to chemicals including gasoline engine exhaust, which is known to the State

of California to cause cancer, and carbon monoxide, which is known to the State of California to cause

birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

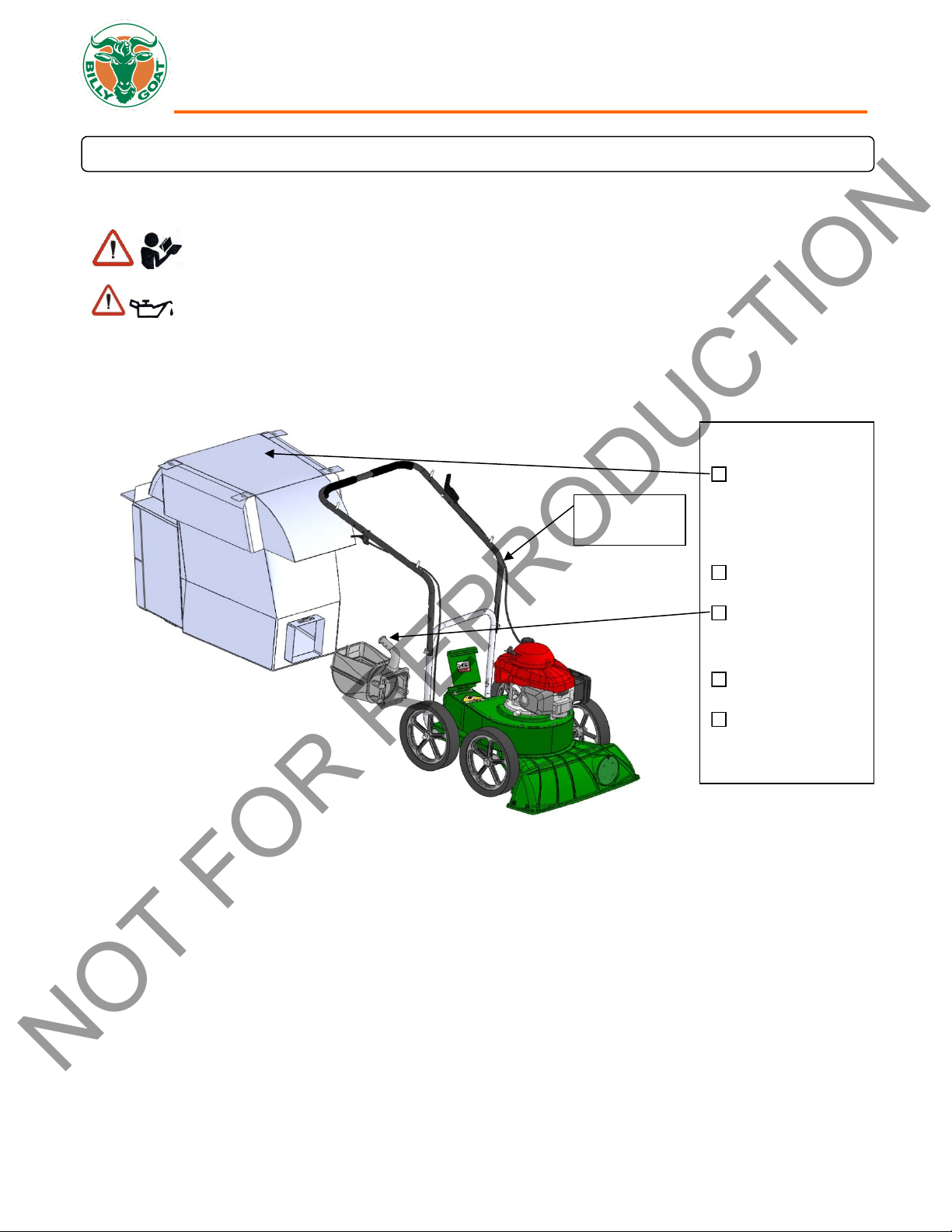

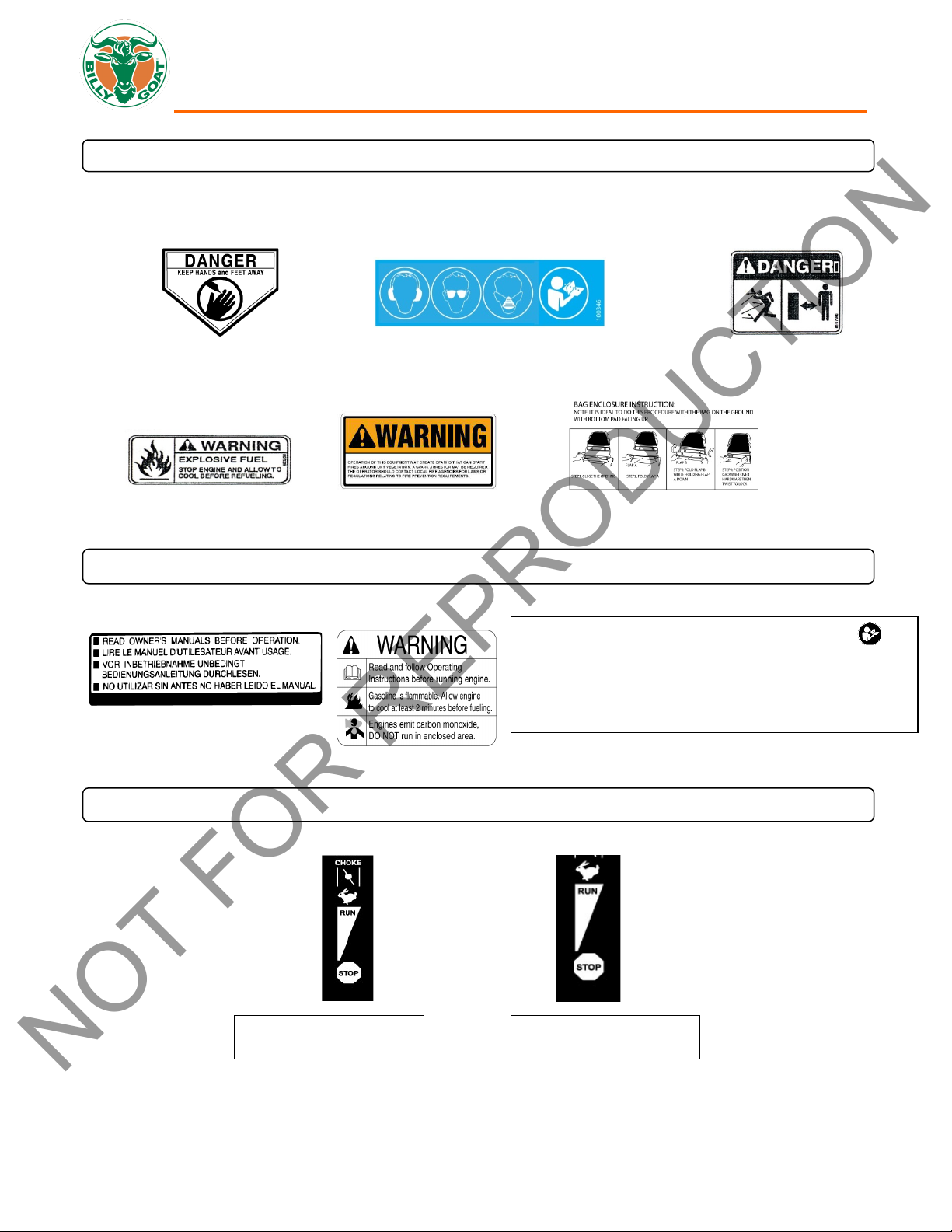

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT®KV Vacuum. If any labels are damaged or missing, replace them

before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the

Illustrated Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers shown.

LABEL DANGER KEEP HANDS LABEL SAFETY PROTECT ITEM #20 DANGER FLYING DEBRIS

AND FEET AWAY P/N 100346 ITEM # 19 P/N 810736

ITEM #18 P/N 400424

LABEL EXPLOSIVE FUEL LABEL SPARK ARRESTOR DEBRIS BAG FOLDING LABEL

ITEM # 16 P/N 400268 P/N 100252 LOCATED ON BAG

ENGINE LABELS

ENGINE CONTROLS

HONDA BRIGGS & STRATTON

Read Owner’s Manual Before Operating.

Lire le manuel d’utilisation avant la mise en route.

Vor Inbetriebnahme Bedienungs - und Wartungsanleitung lesen.

Favor leer las instrucciones de operacion antes de operar el motor.

Consultare il Manuale Uso e Manutenzione prima dell utilizzo.

Las Skotselinstruktionen Innan Start.

Honda Throttle Control

Briggs Throttle Control

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

PACKING CHECKLIST

Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris

bag, and bag quick disconnect.

PUT OIL IN ENGINE BEFORE STARTING

READ all safety instructions before assembling unit.

TAKE CAUTION when removing the unit from the box, the Handle Assembly is attached by cables and

folded over.

Boxing Parts

Checklist

Debris Bag

P/N-891132

Felt Bag

P/N-891126

Literature Assy

P/N-891123

Connector Quick

Disconnect

P/N-890630

Honda 6.5

GSV 190

Briggs & Stratton

Professional Series

PARTS BAG & LITERATURE ASSY

Warranty card P/N- 400972, Owner’s Manual P/N-891203, General Safety and Warnings Manual- 100294, Declaration of

Conformity P/N-100506, Ty-Wraps 900407 (qty2).

Use Ty-wraps

here

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

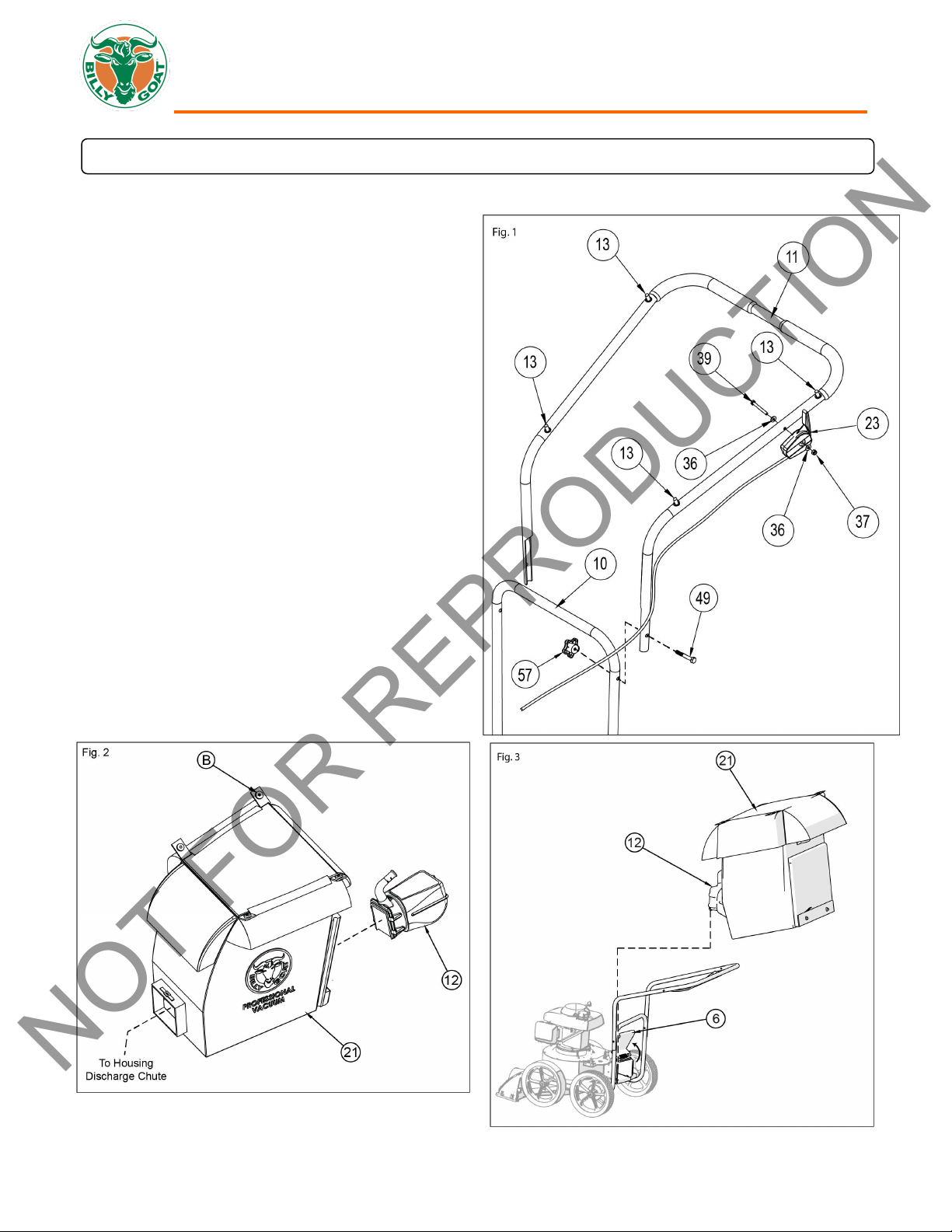

ASSEMBLY INSTRUCTIONS

NOTE: Items in ( ) can be referenced in the Parts Illustration and Parts List on pages 10-11.

1. ASSEMBLE the upper handle (Item 11) to the lower handle

(Item 10). Line up the holes on the upper and lower handles.

Insert bolt (Item 49) with threads facing inside. Fasten the

handles together with the black knob (Item 57). Thread the

knob onto the bolt, and hand-tighten by rotating the knob

clockwise. Repeat this step on the other side of the handle to

secure the upper handle to the lower handle.

2. ATTACH the throttle lever (Item 23) to outside the handle

tubing. Insert bolt (Item 39) with washer (Item 36) from the

inside, with threads facing out. Secure the throttle lever with

second washer (Item 36) and nut (Item 37). Tighten with a

7/16” socket and wrench. Once attached, use a zip-tie to

secure the cable to the handle. Trim excess zip-tie with snips.

3. UNFOLD the debris bag (Item 21). Locate the quick

disconnect scoop (Item 12). Insert the quick disconnect

scoop into the bag through the large opening. Maneuver the

quick disconnect scoop through the bag and out the small

opening. Tighten the ratchet strap over the quick disconnect

scoop to secure. Close the large opening of the debris bag.

4. INSTALL the debris bag onto the housing discharge chute.

Open the discharge flap (Item 6) at the back of the housing.

Slide the quick disconnect scoop downward onto the housing

discharge chute.

5. ATTACH the debris bag to the upper handle. Note the bag

straps in each of the four corners of the bag. Each strap has

an eyelet (B, Fig 2). Use the eyelets to hang the bag onto the

upper handle posts (Item 13).

6. CONNECT spark plug wire from the engine to the unit.

7. FILL the engine with oil and gasoline before starting.

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203 891203_F_HI

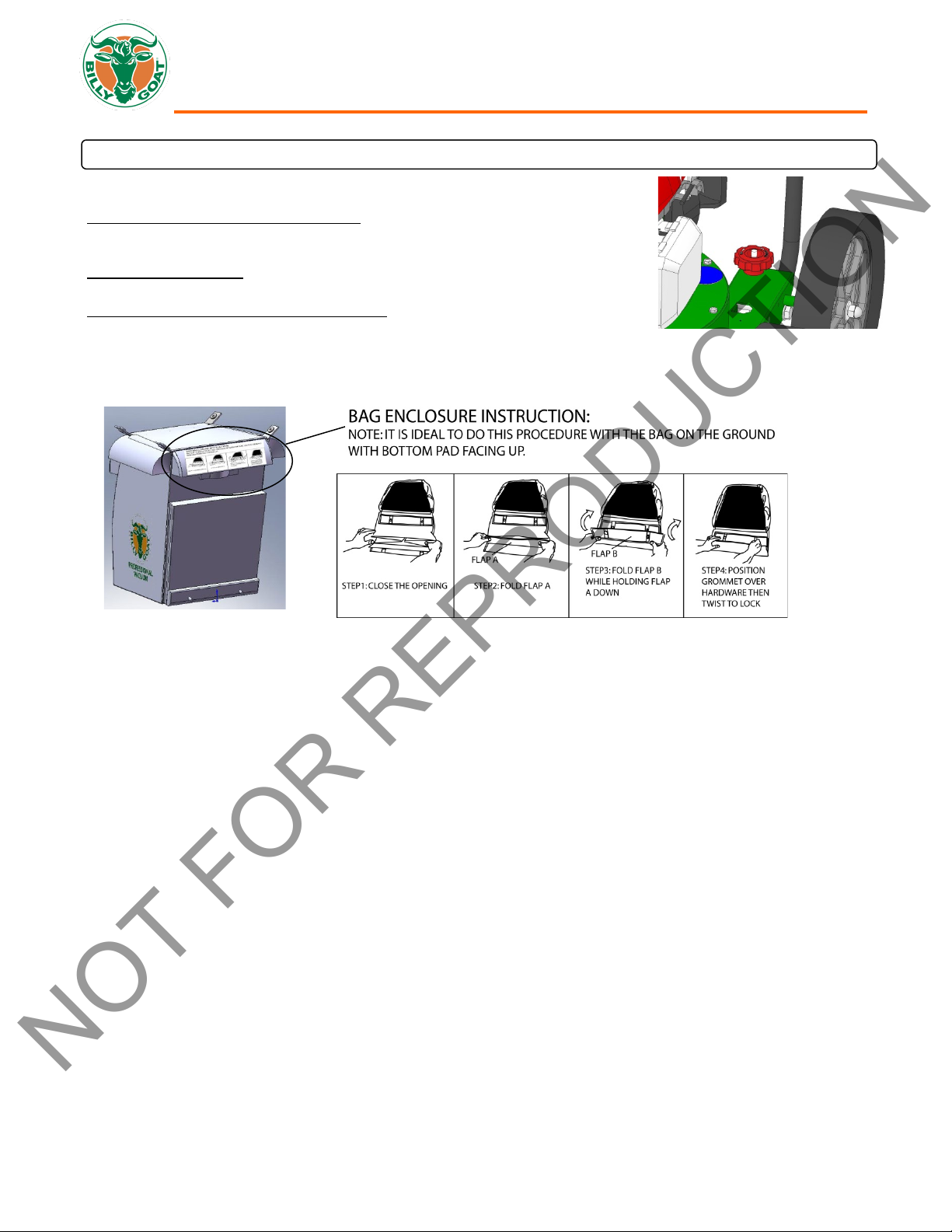

OPERATION

VACUUMING OPERATION

VACUUM NOZZLE HEIGHT ADJUSTMENT: Nozzle height is raised and lowered by

rotating the red knob near the left rear wheel. Nozzle height should be adjusted based on

the task being performed. (See Fig. 4)

FOR MAXIMUM PICKUP:Adjust nozzle close to debris, but without blocking airflow into

the nozzle. NOTE: Never bury nozzle into debris.

CLEARING A CLOGGED NOZZLE & EXHAUST: Turn the engine off and wait for

impeller to stop completely and disconnect spark plug wire. Wearing durable gloves,

remove clog.

DANGER,the clog may contain sharp materials. Reconnect spark plug wire.

DEBRIS BAG

Debris bags are normal replaceable wear items.

NOTE: Frequently empty debris to prevent bag overloading with more weight than you can lift.

An optional felt bag is available for use where debris will be vacuumed in dusty conditions (see “Accessories” shown on page 1).

DO NOT place bag on or near hot surface, such as engine. Be sure engine has come to a complete stop before removing or

emptying bag.

This vacuum is designed for picking up trash, organic material and other similar debris (see “Safety and General Operation

manual”).

However, many vacuums are used where dust is mixed with trash. Your unit can intermittently vacuum in dusty areas. Dust is the

greatest cause of lost vacuum performance. However, following these rules will help maintain your machine's ability to vacuum in

dusty conditions:

• Run machine at idle to quarter throttle.

• The debris bag must be cleaned frequently. A vacuum with a clean, pillow soft bag will have good pickup performance. One

with a dirty, tight bag will have poor pickup performance. If dirty, empty debris and vigorously shake bag free of dust.

• Pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before use.

NOTE: Having one or more spare debris bags is a good way to reduce down time while dirty bags are being cleaned.

DO NOT leave debris in bag while in storage.

COMPOST

Vacuumed leaves, grass and other organic material from your own yard can be emptied into a pile or composter to provide

enriched soil for later use as fertilizer in gardens and flower beds. NOTE: Allow green chips to dry before spreading around living

plants.

Fig. 4

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

MAINTENANCE

PERIODIC MAINTENANCE

Periodic maintenance should be performed at the following intervals:

Maintenance Operation Every Use (Daily) Every 5 Hrs (Daily)

Inspect for loose, worn or damaged parts 

Clean debris bag 

Check bag strap tightness 

Engine (See Engine Manual)

Check for excessive vibration 

IMPELLER REMOVAL

1. Wait for engine to cool and disconnect spark plug.

2. Drain fuel and oil from the engine.

3. Remove bag, quick release, and upper handle. Do not kink, stretch, or break control cables, control housings, or

end fittings while removing handles.

4. Remove housing top plate by removing bolts around outside of housing.

5. Leaving engine fastened to top plate, turn it upside down so the impeller is on top.

6. Remove impeller bolt and lock washer and washer.

7. Lift impeller upward. If impeller slides freely, proceed to step 10.

8. To loosen Impeller, place two crowbars between impeller and housing on opposite sides. Pry impeller away from

engine until it loosens. Using a penetrating oil can help loosen a stuck impeller.

9. If the impeller does not loosen, use two pry bars and pull the impeller near the hub away from the engine, this

should loosen it and allow you to remove the impeller from shaft. Using a penetrating oil can help loosen a stuck

impeller.

10. Using a new impeller bolt and lockwasher and washer, reinstall new impeller in reverse order.

11. Tighten impeller bolt. Torque impeller bolt to 33-38 Ft. Lbs. (44-51 N.m) (see item 30 on page 15).

12. Reinstall engine onto housing in reverse order of removal.

13. Gas and oil engine.

14. Reinstall spark plug wire.

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

TROUBLESHOOTING

Problem Possible Cause Solution

Abnormal vibration

Loose or out of balance impeller or loose

engine.

Check impeller and replace if required.

Check engine.

Will not vacuum or has poor

vacuum performance

Dirty debris bag. Hose kit cap missing.

Clogged nozzle or exhaust. Excessive

quantity of debris.

Improper nozzle height.

Clean debris bag. Shake bag clean or

wash. Check for hose kit cap. Unclog

nozzle or exhaust. Allow air to feed with

debris.

Adjust nozzle height so that it is closer to

the debris.

Engine will not start

Throttle in off position. Engine not in full

choke position. Out of gasoline. Bad or old

gasoline. Sparkplug wire disconnected.

Dirty air cleaner.

Check stop switches, throttle, choke

position and gasoline. Connect spark

plug wire. Clean or replace air filter, or

contact a qualified service person.

Engine is locked, will not pull

over

Debris locked in impeller. Engine

problem.

See page 5. Contact a engine service

dealer for engine problems.

Nozzle scrapes ground in

lowest height setting

Nozzle height out of adjustment.

Adjust nozzle height (See Nozzle height

fine adjustment for hard surfaces on page

7).

Too much dust coming from

bag

Vacuuming very dry, brittle or small debris

Switch to felt bag (see page 1

"Accessories").

891203_F_HI

NOT FOR REPRODUCTION

KV PUSH Owner’s Manual

Part No 891203

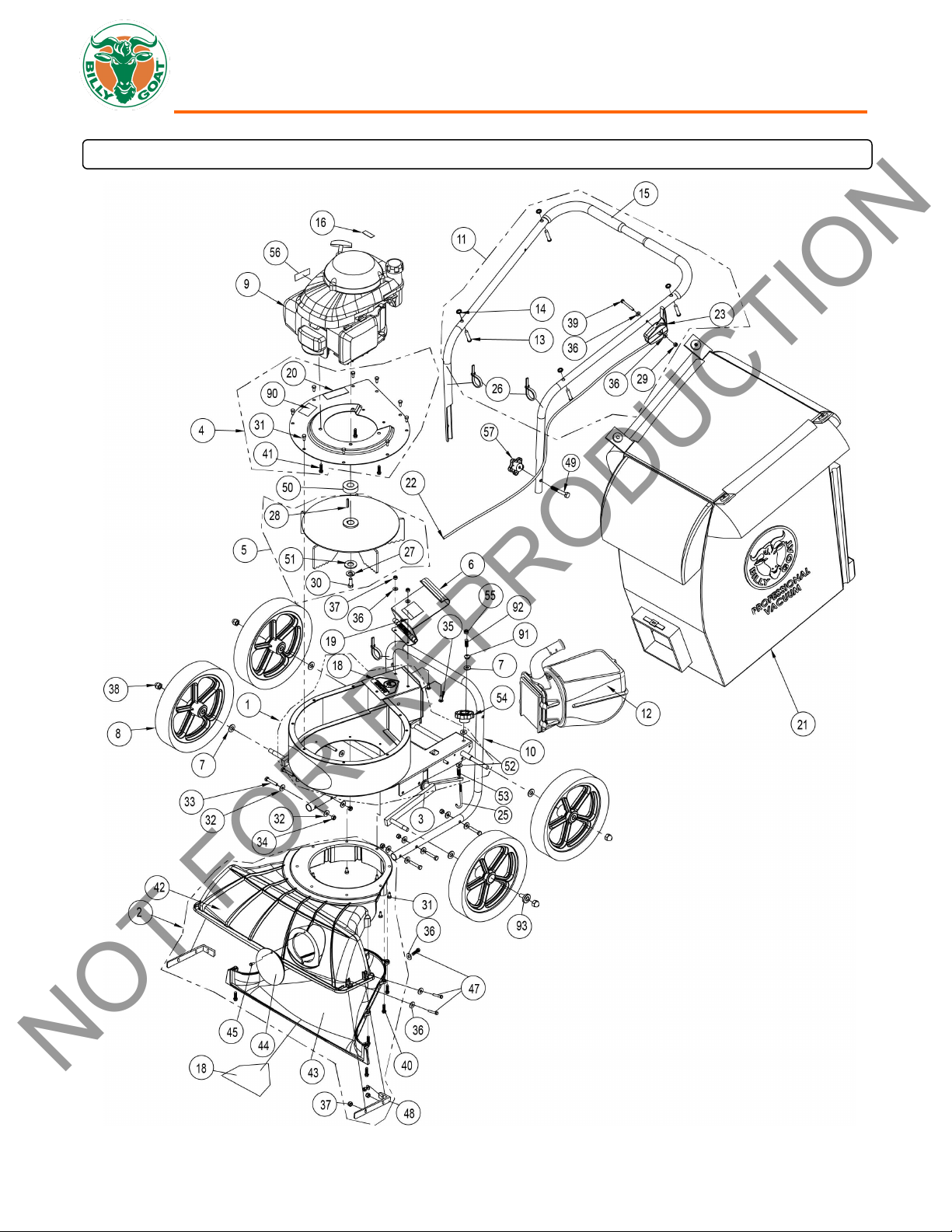

KV PUSH PARTS DRAWING

891203_F_HI

NOT FOR REPRODUCTION

Autres manuels pour KV601

Ce manuel convient aux modèles suivants

Autres manuels Billy Goat Aspirateur

Billy Goat

Billy Goat DL2900V Manuel utilisateur

Billy Goat

Billy Goat QV550VSP Manuel utilisateur

Billy Goat

Billy Goat LB352 VACUUM Manuel utilisateur

Billy Goat

Billy Goat DL3701VE Manuel utilisateur

Billy Goat

Billy Goat KV VACUUM KV600 Manuel utilisateur

Billy Goat

Billy Goat KD511IC Instructions d'installation

Billy Goat

Billy Goat VQ1002SP Instructions d'installation

Billy Goat

Billy Goat KV VACUUM KV600 Manuel utilisateur

Billy Goat

Billy Goat QL2300KOEU Instructions d'installation

Billy Goat

Billy Goat KV601 Manuel utilisateur

Billy Goat

Billy Goat KD502H Instructions d'installation

Billy Goat

Billy Goat KD511H Instructions d'installation

Billy Goat

Billy Goat KV601SPEU Manuel utilisateur

Billy Goat

Billy Goat KD 410 Instructions d'installation

Billy Goat

Billy Goat KD505H Instructions d'installation

Billy Goat

Billy Goat MV650H PUSH Manuel utilisateur

Billy Goat

Billy Goat TR1102 Manuel utilisateur

Billy Goat

Billy Goat MV650H Manuel utilisateur

Billy Goat

Billy Goat KD512HC Manuel utilisateur

Billy Goat

Billy Goat QV550HSPEU Manuel utilisateur

Billy Goat

Billy Goat VQ1002SP Manuel utilisateur

Billy Goat

Billy Goat MV650SPH Manuel utilisateur

Billy Goat

Billy Goat QV550 Manuel utilisateur

Billy Goat

Billy Goat OWNER'S MANUAL KD501 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
