Billy Goat FM3301EB Manuel utilisateur

Part No 520187 Form No F010408A

FM Owner’s Manual

BILLY GOAT FINISH MOWER

Owner's Manual

FM3301EB

Patent Number: D494985

Accessories

Mulching Kit

Reduces lawn

clippings to fine

nutrient-rich

particles that filter

down to the soil.

P/N 520144

Grass Catcher Kit

Easily convert your

mower to bag

grass and leaves.

P/N 520142

Transaxle Guard

Kit

To protect the

transaxle from

accidental contact

from concrete

curbs or other

hazards.

P/N 520155

Part No 520187 Form No F010408A

FM Owner’s Manual

ABOUT THIS MANUAL

THANK YOU for purchasing a BILLY GOAT ®FM Mower. Your new machine has been carefully designed and

manufactured to provide years of reliable and productive service. This manual provides complete operating and

maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully

before assembling, operating, or servicing your equipment.

CONTENTS

SERIAL PLATE DATA AND SPECIFICATIONS 3

GENERAL SAFETY 4-5

SOUND AND VIBRATION 6

INSTRUCTIONLABELS 7

PACKING CHECKLIST 8

ASSEMBLY 9

OPERATION 10-12

MAINTENANCE 13-16

TROUBLESHOOTING AND WARRANTY PROCEDURE 17

ILLUSTRATED PARTS & PARTS LISTS 18-25

ACCESSORIES 26

MAINTENANCE RECORD 27

Part No 520187 Form No F010408A

FM Owner’s Manual

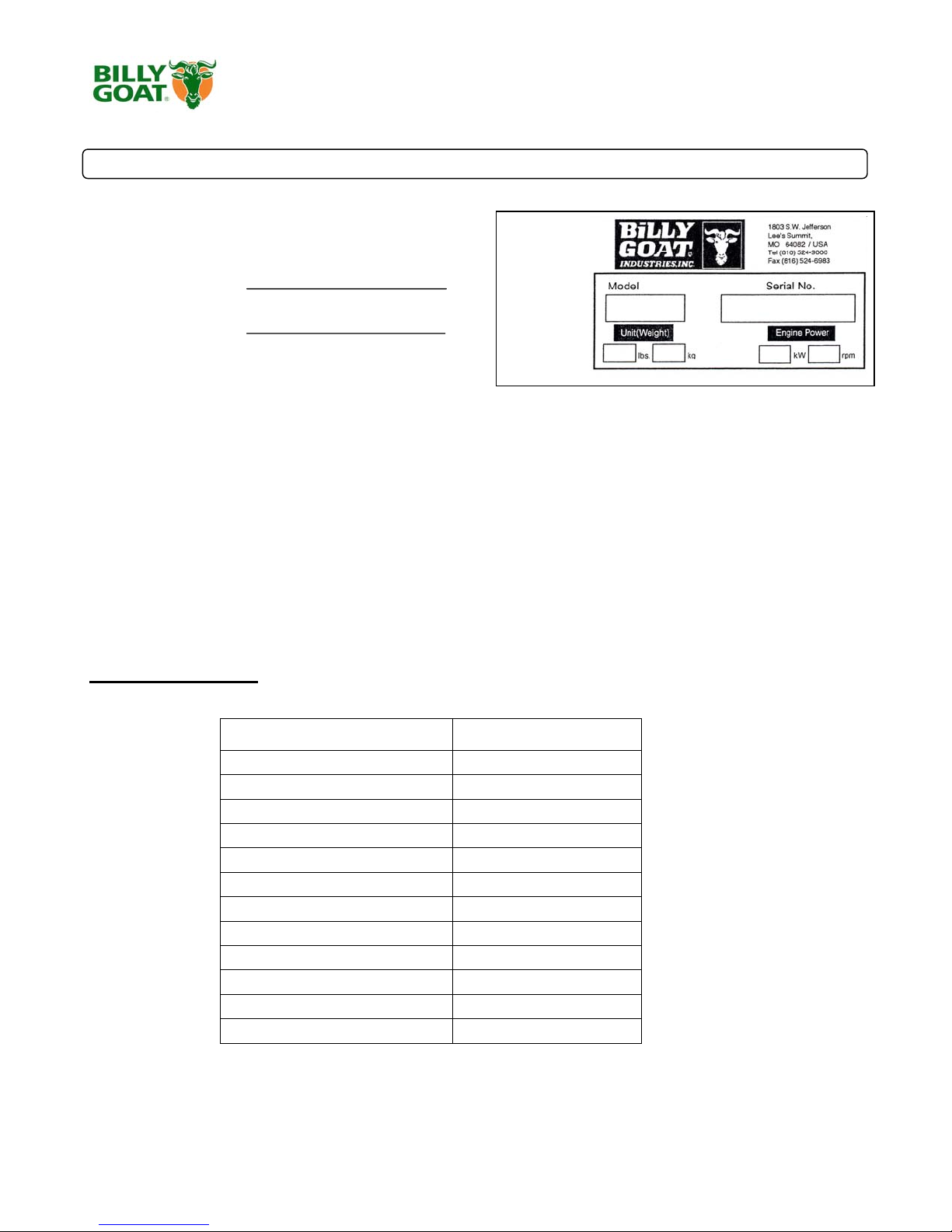

SERIAL PLATE DATA

Record the model number, serial number, date of

purchase, and where purchased.

Purchase Date:

Purchased From:

Specifications

FM3301EB

Engine: HP 13 (9.7 kW)

Engine: Model 21A9070147

Engine: Type B & S INTEK OHV Elec.

Engine: Fuel Capacity 3.0 qt. (2.8 L)

Engine: Oil Capacity 1.5 qt. (1.4 L)

Total Unit Weight: 267# (121 Kg)

Max. operating slope 15o

Overall length 57” (1.44m)

Overall width 43” (1.09m)

Overall height 47” (1.19m)

In accordance with 2000/14/EEC 108dBa

Sound at operators position 88dBa

Vibration at operator position 2.65g

Part No 520187 Form No F010408A

FM Owner’s Manual

GENERAL SAFETY INSTRUCTIONS and SYMBOLS

The safety symbols shown below are used throughout this manual. You should become familiar with them before

assembling, operating, or servicing this equipment.

This symbol indicates important information that will prevent injury to yourself or others.

This symbol indicates ear protection is recommended when operating this equipment.

This symbol indicates eye protection is recommended when operating this equipment.

This symbol indicates gloves should be worn when servicing this equipment.

This symbol indicates that this manual and the engine manufacturer’s manual should be read

carefully before assembling, operation, or servicing this equipment.

This symbol indicates important information that will prevent damage to your BILLY GOAT ®

FM Mower.

This symbol indicates the engine oil level should be checked before operating this

equipment.

Read and make sure you thoroughly understand the following safety precautions before assembling, operating or

servicing this equipment:

READ this manual and the engine manufacturer’s manual carefully before assembling,

operating, or servicing this equipment.

EAR PROTECTION is recommended when operating this equipment.

EYE PROTECTION is recommended when operating this equipment.

BREATHING PROTECTION is recommended when operating this equipment.

EXHAUST from this product contains chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land

unless a spark arrester is installed on the muffler as required by Section 4442 of the

California Public Resources Code. The arrester must be maintained in good working order.

Other states may have similar laws. Federal laws apply on federal lands.

DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an

odorless and possibly fatal poison.

Part No 520187 Form No F010408A

FM Owner’s Manual

WARNING: IMPORTANT! This cutting machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended.

DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before

refueling.

DO NOT store gasoline near an open flame.

DO NOT remove gas cap while engine is running.

DO NOT start or operate engine if strong odor of gasoline is present.

DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until gasoline has completely

evaporated.

DO NOT smoke while filling the fuel tank.

DO NOT check for spark with spark plug or spark plug wire removed. Use an approved spark tester.

DO NOT operate engine without a muffler. Inspect muffler periodically and replace if necessary. If equipped with

muffler deflector, inspect deflector periodically and replace if necessary.

DO NOT operate engine with grass, leaves or other combustible material near the muffler.

DO NOT touch muffler, cylinder, or cooling fins when hot. Contact with hot surfaces may cause severe burns.

DO NOT leave equipment unattended while in operation.

DO NOT park equipment on a steep grade or slope.

DO NOT operate equipment with bystanders in or near the work area.

DO NOT allow children to operate this equipment.

DO NOT operate equipment with guards removed.

DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.

DO NOT operate equipment on slopes greater than specified in Specifications section of this manual.

DO NOT operate barefoot or wearing open sandals. Always wear substantial footwear

DO NOT place hands or feet underneath unit, or near any moving parts.

DO NOT pull mower backwards unless absolutely necessary

DO NOT operate the mower while under the influence of alcohol or drugs.

DO NOT operate mower in wet grass. Always be sure of your footing; keep a firm hold on the handle and walk; neve

run.

DO NOT mow on wet grass. Reduced footing could cause slipping.

DO NOT mow near drop-offs, ditches, or embankments. The operator could lose footing or balance

DO NOT mow excessively steep slopes.

DO NOT change the engine governor setting or overspeed the engine.

ALWAYS Stop the blade(s) when crossing gravel drives, walks, or roads.

ALWAYS Shut the engine (motor) oft and wait until the blade comes to complete stop before removing grass catcher.

ALWAYS Mow only in daylight or good artificial light.

ALWAYS Disengage the self-propelled mechanism or drive clutch on mowers so equipped before starting the engine.

ALWAYS wear safety goggles or safety glasses with side shields

ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.

ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.

ALWAYS store fuel in approved safety containers.

WARNING: Important

Remove all rocks, wire, string, etc. that can present a hazard during work prior to starting.

DO identify and mark all fixed objects to be avoided during work such as sprinkler heads, water valves, limbs, or

clothes line anchors, etc.

Part No 520187 Form No F010408A

FM Owner’s Manual

SOUND

SOUND LEVEL 88 dB(a) at Operator Position

108 dB(a)

Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 8-15-2003 under the

conditions listed below.

Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on

the unit for the sound power level for your model.

VIBRATION DATA

VIBRATION LEVEL 2.65g (25.20m/s2)

Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using

calibrated vibration test equipment. Tests were performed on 5-26-2006 under the conditions listed below.

INTENDED USE

INTENDED USE: This unit is mainly designed for cutting grass. Some overgrown weeds, and taller grass may also

be cut. Be sure to inspect work area and machine before operating. Make sure that all operators of this equipment

are trained in general machine use and safety.

General Conditions: Sunny

Temperature: 86oF (30oC)

Wind Speed: 2.4 mph (3.9 kmh)

Wind Direction: South

Humidity: 57%

Barometric Pressure: 30.2Hg (767 mm Hg)

General Conditions: Sunny

Temperature: 87.44oF (30.8oC)

Wind Speed: 3.1 mph (5.04kph)

Wind Direction: South East

Humidity: 41.5%

Barometric Pressure: 29.89Hg (101.25kpa)

Part No 520187 Form No F010408A

FM Owner’s Manual

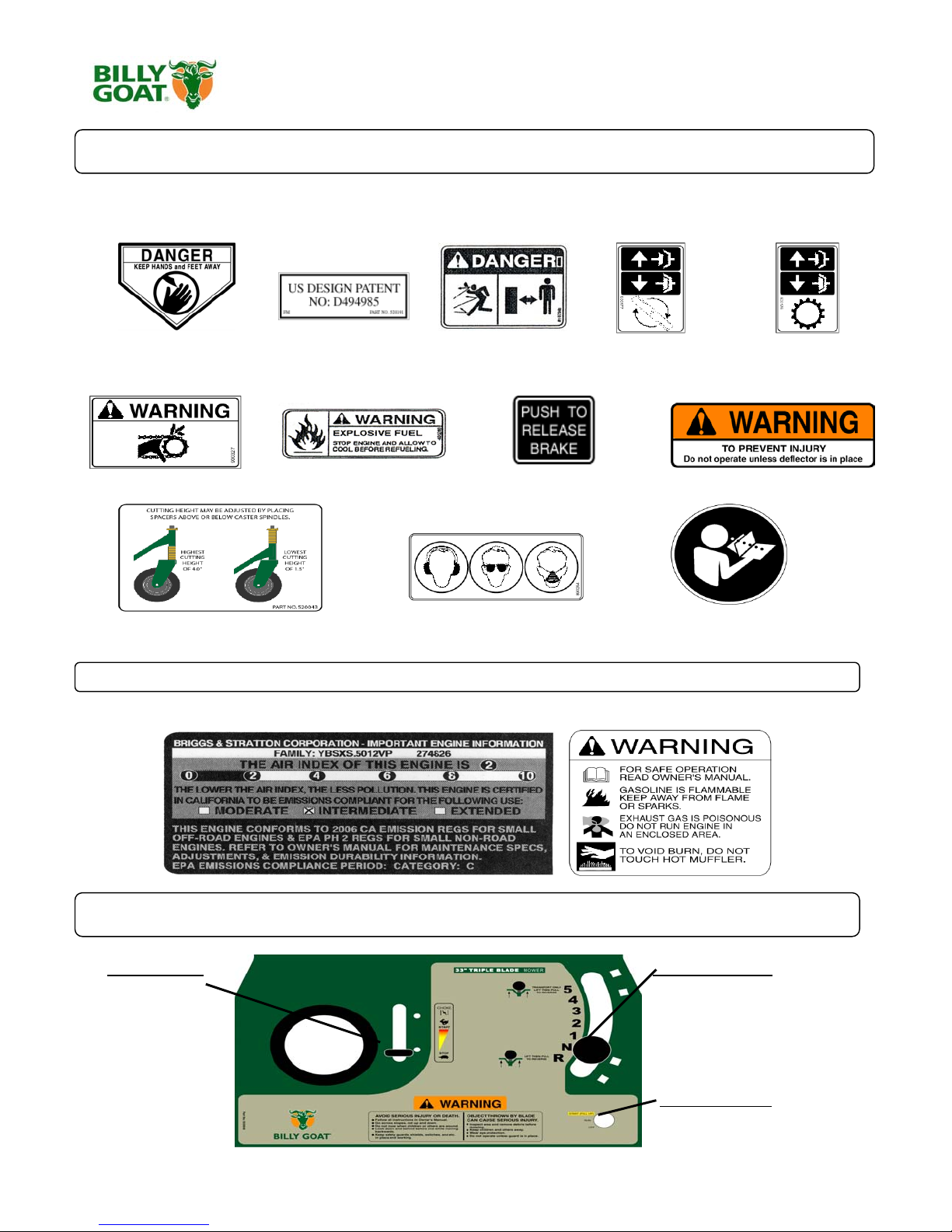

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT ®FM Mower. If any labels are damaged or missing, replace them before operating

this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The

correct position for each label may be determined by referring to the Figure and Item numbers shown.

LABEL DANGER KEEP HANDS LABEL PATENT FM DANGER FLYING DEBRIS LABEL CLUTCH BLADE LABEL CLUTCH DRIVE

AND FEET AWAY ITEM#178 P/N520191 ITEM #2 P/N 810736 ITEM #11 P/N 500177 ITEM #10 P/N 500176

ITEM #5 P/N 400424

LABEL WARNING GUARDS LABEL EXPLOSIVE FUEL LABEL CUTTING HEIGHT LABEL WARNING MOWER

ITEM #119 P/N 900327 ITEM #4 P/N 400268 ITEM #95 P/N 520117 ITEM #17 P/N 510206

LABEL HEIGHT ADJUST GUIDELINE LABEL EAR EYE BREATHING LABEL READ MANUAL

ITEM #7 P/N 520043 ITEM #114 P/N 890254 ITEM #52 P/N 890301

ENGINE LABELS

THROTTLE CONTROLS AND LABELS

BRIGGS AND STRATTON

Throttle Control SPEED CONTROL

5th gear (Transporting Speed): Lift up

on the lever then push to engage in

the 5th gear.

Rev: Lift up on the lever then pull back

for reverse.

Electric Start Only

Pull up on the switch then push

forward to start the en

ine.

LABEL FM

CONSOLE ITEM #47

P/N 520079

ELECTRIC (520048)

Part No 520187 Form No F010408A

FM Owner’s Manual

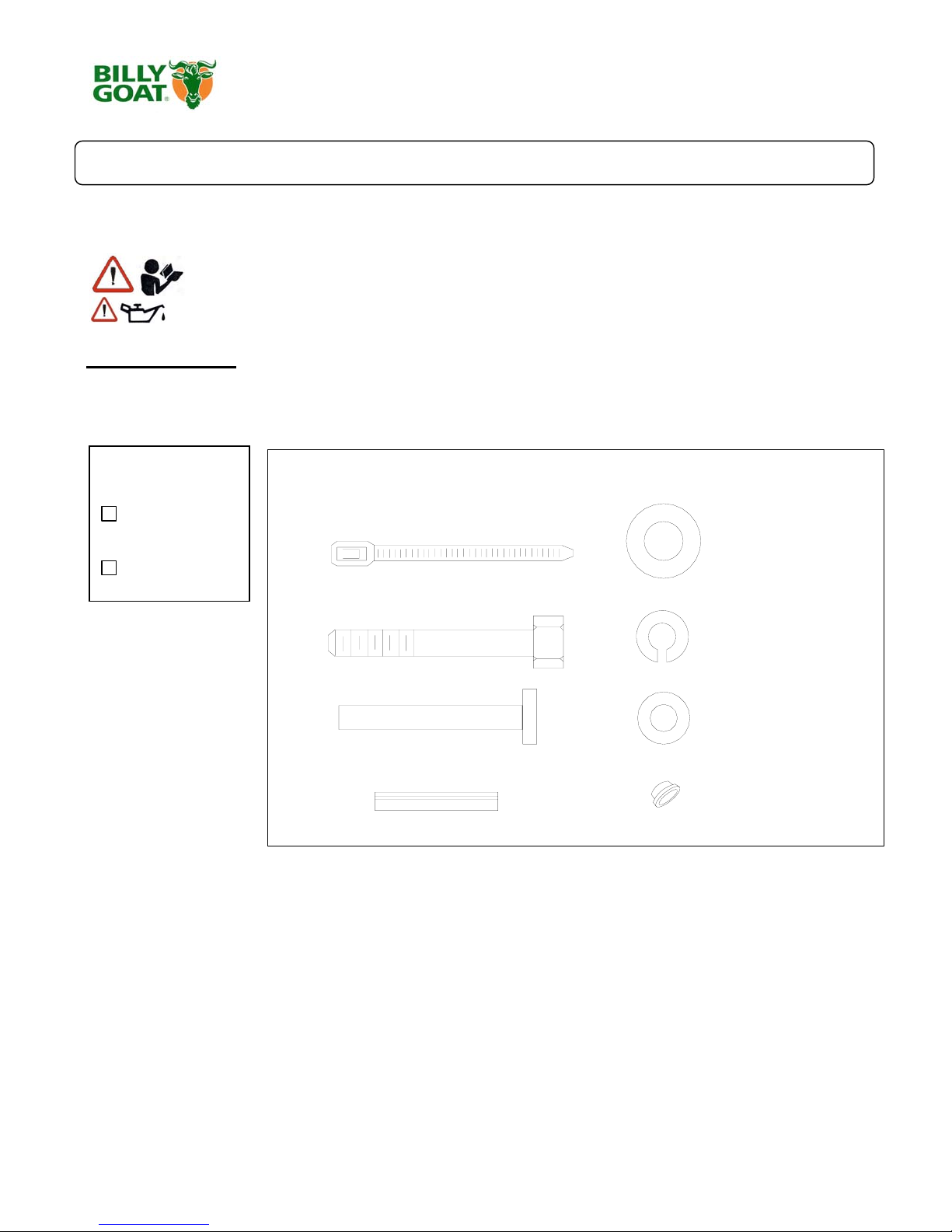

PACKING CHECKLIST

Your Billy Goat Mower is shipped from the factory in one crate, completely assembled except for the

handles and console assembly.

PUT OIL IN ENGINE BEFORE STARTING

READ all safety instructions before assembling unit.

TAKE CAUTION when removing the unit from the box.

Boxing Parts

Checklist

Briggs and

Stratton 6HP

Literature Assy

P/N-520137

PARTS BAG &

LITERATURE ASSY

Warrant

card P/N- 400972

Owner’s Manual P/N-520187.

Ty-wrap 900407 qty. 4

8041051 qty. 4

Clevis pin 520119 qty. 1

Roll pin 1/4"x1" long

520156 qty. 1

Washer 3/8 FC

8171004 qty. 4

Washer split lock 3/8"

8177012 qty. 4

Washer 5/16" FC

8171003 qty. 2

Pal Nut 3/8" 360218

qty. 1

Parts Bag

Part No 520187 Form No F010408A

FM Owner’s Manual

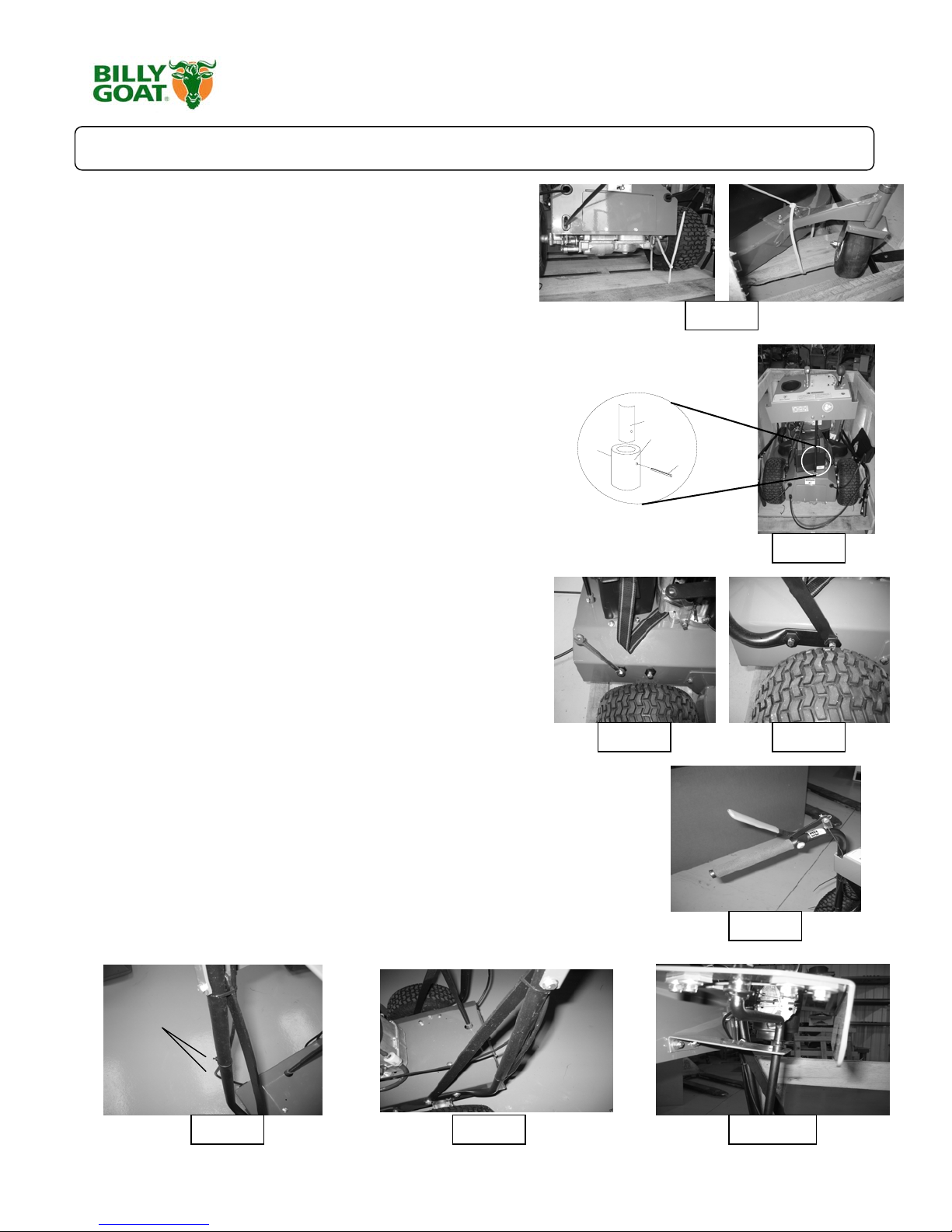

ASSEMBLY

NOTE: All item numbers called out in the assembly, operation, and

maintenance sections of this manual can be found on Parts List

(pages 15-18).

1. Cut and remove the nylon retaining straps (see figure 11-1).

2. With the console and handle assembly positioned as shown in

Figure 11-3, insert the shift linkage rod (Item 31) into the shift

linkage connector (Item 54).

3. To assemble the shift rod (item 31) to the shift linkage (item 54),

use the roll pin in the parts/literature bag. If you’ll notice on the shift

linkage, the hole is larger on one side than the other.

It will be easier to start the roll pin from the larger side, forcing it

through the shift rod and the hole on the other side of the shift

linkage, using a hammer or large adjustable pliers.

4. Insert one of the handle mounting bolts (Item 102) with split lock

washer (Item 6) on top of flat washer (Item 184) through the rear

handle mounting hole of the right side handle, and screw it into the

rear handle mounting hole on the right side of engine base chassis

(Item 61). Repeat this procedure for the left side using the left

handle.

5. On each side of the mower, insert one of the handle mounting

bolts (Item 102) with split lock washer (Item 6) on top of flat washer

(Item 184) through the hole in one end of the handle brace (Item

32), the front handle mounting hole of the handle and screw into the

front handle mounting hole in the engine base chassis (Figure 11-5).

6. Attach the blade lever using the clevis pin, two washers and the

pal nut from the parts bag. Align the lever to the hole on the handle

and place a washer on the pin and slide it through. Then put a

washer on the other side and gently tap the pal nut onto the end of

the pin. (See fig. 11-7)

7. Position control cables and use 2 cable ties on each handle to

secure the cables in position. The top cable tie should be 1” below

the console and the lower tie should be 12” below the console (see

figure 11-8 and 11-9).

8. Check the position of the shift rod guide (Item 69), and if

necessary, snap it in place in the shift bracket (Item 78) as shown in

Figure 11-10.

9. Put shift lever in NEUTRAL, depress the brake lever (release the

brake) and carefully pull the machine back off the pallet.

10. Fill with oil and gas to the proper level and the unit is ready to

mow. (A battery will also have to be installed.)

11. Read the operator’s manual.

Fig. 11-1

Fig. 11-3

Fig. 11-4 Fig. 11-5

Fig. 11-7

Fig. 11-10Fig. 11-9Fig. 11-8

Shift rod

Shift

linkage

Roll Pin

Cable

ties

Part No 520187 Form No F010408A

FM Owner’s Manual

OPERATION

Like all mechanical tools, reasonable care must be used when operating machine.

Inspect machine work area and machine before operating. Make sure that all operators of this

equipment are trained in general machine use and safety.

PUT OIL IN ENGINE BEFORE STARTING

STARTING

ENGINE: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine

must be level when checking and filling oil and gasoline.

ENGINE SPEED: Controlled by throttle lever on the control console plate.

FUEL VALVE: Move fuel valve to "ON" position (when provided on engine).

CHOKE: Operated with the throttle control by moving the throttle control to the full start position.

THROTTLE: Move remote throttle control to fast position. Pull starting rope to start engine.

ELECTRIC START: Choke the engine if necessary. Pull up then push forward on the toggle switch until

engine starts, then release switch to run.

1. Select desired cutting height before starting engine.

2. Be sure drive lever or blade lever are not engaged.

3. Choke if necessary.

4. Pull back on starter rope slowly until resistance is felt. Then pull cord rapidly to start. Repeat if necessary.

Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for

damaged or worn blade, loose blade jam nut, loose engine or lodged foreign objects. Note: See maintenance section

for proper blade jam nut torque specifications.

HANDLING & TRANSPORTING:

Using two people to lift machine is recommended. Lift holding the handle and front of deck. Secure in place

during transport.

Never lift the machine while the engine is running. ENGINE MUST BE OFF while handling, lifting, or

transporting the unit on or off the vehicle.

STORAGE

Never store engine indoors or in enclosed poorly ventilated areas with fuel in tank, where fuel fumes may reach

an open flame, spark or pilot light, as on a furnace, water heater, clothes dryer or other gas appliance.

If engine is to be unused for 30 days or more, prepare as follows:

Be sure engine is cool. Do not smoke. Remove all gasoline from carburetor and fuel tank to prevent gum

deposits from forming on these parts and causing possible malfunction of engine. Drain fuel outdoors, into an

approved container, away from open flame. Run engine until fuel tank is empty and engine runs out of gasoline.

NOTE: Fuel stabilizer (such as Sta-Bil) is an acceptable alternative in minimizing the formation of fuel gum deposits

during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow mix ratio found on

stabilizer container. Run engine at least 10 min. after adding stabilizer to allow it to reach the carburetor.

CAUTION: Wheels must be chocked or blocked when unit is parked on a slope.

Table des matières

Autres manuels Billy Goat Tondeuse à gazon

Billy Goat

Billy Goat GRAZOR GZ550H Manuel utilisateur

Billy Goat

Billy Goat HOMEPRO HP3401 Manuel utilisateur

Billy Goat

Billy Goat GZ401H Manuel utilisateur

Billy Goat

Billy Goat HW651SP Manuel utilisateur

Billy Goat

Billy Goat SC181H Manuel utilisateur

Billy Goat

Billy Goat HW650SP Instructions d'installation

Billy Goat

Billy Goat BCR3626BVECE Manuel utilisateur

Billy Goat

Billy Goat AERATOR PL1800 Manuel utilisateur

Billy Goat

Billy Goat PR550 Instructions d'installation

Billy Goat

Billy Goat FM3300 Instructions d'installation

Billy Goat

Billy Goat CR550H Manuel utilisateur

Billy Goat

Billy Goat FM3301 Instructions d'installation

Billy Goat

Billy Goat GRAZOR GZ551V Manuel utilisateur

Billy Goat

Billy Goat PR551V Manuel utilisateur

Billy Goat

Billy Goat FM3301IN, FM3301INE Instructions d'installation

Billy Goat

Billy Goat FM3301 Manuel utilisateur

Billy Goat

Billy Goat HW651HSP Manuel utilisateur

Billy Goat

Billy Goat HW651SP Manuel utilisateur

Billy Goat

Billy Goat HP3400 Manuel utilisateur

Billy Goat

Billy Goat FM3300 Instructions d'installation

Billy Goat

Billy Goat CR550HCV Instructions d'installation

Billy Goat

Billy Goat PR550 Manuel utilisateur

Billy Goat

Billy Goat UJ 110 Manuel utilisateur

Billy Goat

Billy Goat 510223 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
