8595

Valve - Assembly / Disassembly Tool Set

INDENTED USE

The tool set is designed for pressing down of the valve springs and for loading of the cylinder with

compressed air, thus enabling a renewing of valve stem seals without disassembly of the cylinder

head.

SAFETY ADVICE

•Be careful when working on hot engines – risk of burn!

•Be careful when working on running engines. Loose clothes, tools and other things can be caught

up in revolving parts which may lead to serious injuries.

•Remove the ignition key before repair so that the engine will not start unintentionally.

•This manual is just brief information and will not replace a workshop manual. Always

consult specific service literature for information about torques, assemblies and disassemblies

etc.

•When working with this tool always wear safety gloves and safety glasses

•This tool is designed for removing valve springs. Use the tool only for those purposes. Other

inappropriate use may result in damage to the tool.

SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0

F5 6 e s s a r t S r e s u k r e v e Lax +49 (0) 2191 / 46438-40

e d . l h a t s w s @ o f n i : l i a M - Ed i e h c s m e R 7 9 8 2 4 - D

Instruction Manual

BGS technic KG

Bandwirkerstr. 3

D-42929 Wermelskirchen

Tel.: 02196 720480

Fax.: 02196 7204820

[email protected]

www.bgstechnic.com

OPERATION

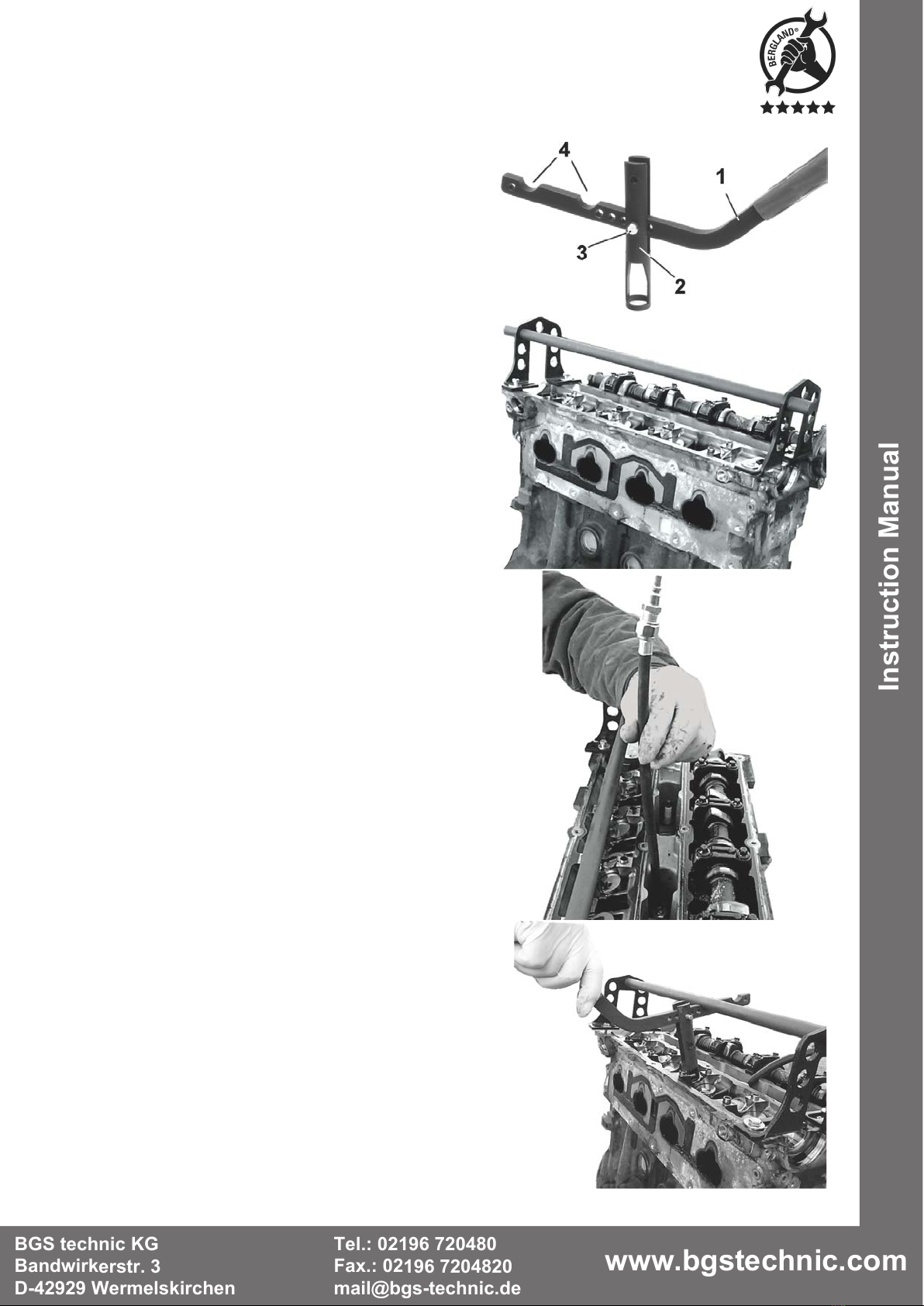

Mount the lever (1) in the slot of the valve spring

adapter (2) and secure it with the safety bolt (3).

Note:There are several holes in both the levers as

well as in the valve spring adapter, they determine

the proper location of the adapter on the valve.

Locate the best place for the support, like to see in

the picture.

Attach the two supports, using the screws, on the

cylinder head and slide the round rod in a

matching hole.

Note:There are 7 holes in the side supports for the

correct positioning of the round rod.

Remove Spark plugs or diesel injection nozzle

from the cylinder head.

Insert the adapter with hose in the spark plug or

injector thread.

Rotate the engine to Ignition TDC, block the

crankshaft and connect adapter to compressed

air.

Put the lever (1) with one of the two notches (4)

under the round rod, ensure that the valve spring

adapter perpendicular press down the valve

spring.

If the spring valve adapter do not press the valve

spring perpendicular, use the different holes in

support and lever to realigned.

Check if valve remains closed when depress the

valve spring.

By easy uniform beating on the valve spring

retainer, the Valve spring retainer can be loosen

By pressing down the lever, the valve spring is

tensioned. Now valve keeper can be removed.

The Valve can not fall down into combustion

chamber.

Decompressing the Valve spring slowly. Remove

spring and spring plate and renew valve stem

seals.

The assembly works in reverse order.
