Installation and User Guide

Before commencing work always isolate the power at the consumer unit / fuse box.

1. Unscrew the socket from the wall/mounting box.

2. Note the cable connections: There will generally be three different wiring configurations, this

illustration shows a single wire of each colour connected to each terminal (there could be two or

three wires of each colour connected to each terminal) + an additional connection between the

mounting box earth terminal and the socket earth terminal.

3. Unscrew each terminal to release the wires.

1. Carefully position the accessory into the mounting box,

ensuring that no wires are trapped between the plate and

the wall and secure with screws (do not over tighten) then

set screw covers in place (optional).

2. Once the installation has been completed correctly,

replace the fuse for the circuit, switch the power back on at

the consumer unit and test.

1. Install mounting box (metal or pattress) for either flush or surface mounting, ensuring

appropriate size of product. (Mounting box to be purchased separately)

2. Select the most suitable entry point of the mounting box (knock-out) and route the supply

cable through.

3. Cables should be prepared so a sufficient conductor length reaches the terminals. Strip

the ends of the individual conductors leaving an adequate length bare to enter terminals.

1. Line up the new socket to mounting box and

take note of where each terminal is located.

2. Connect each wire to the matching terminal.

(Refer to key in step 2).

An earth connection should always be made

between the mounting box earth terminal and

the socket earth terminal.

Make sure no copper wire is exposed & that

only the bare end enters the terminal.

3. Tighten terminal screws securely.

(Do not over tighten).

Wiring Instructions

1. Power Off

2a. Replacing an Existing Socket (Removal)

2b. New Installation

3. Wire Up Your Socket 4. Complete The Installation

Installation and User Guide

You can now plug in the device you would like to control.

Connecting Additional Smart Devices Power Control

Setup Advice & How-To Guides

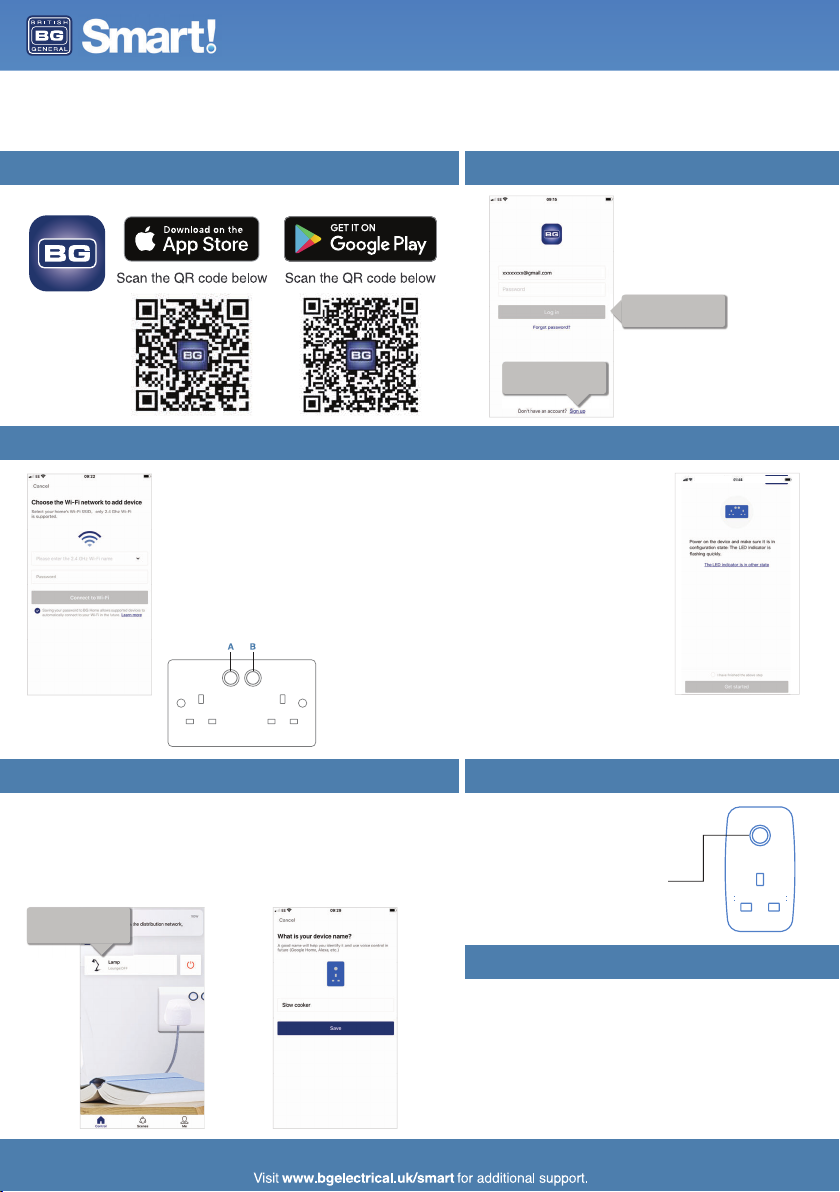

Download the BG Home App for your Android or iOS device.

If you already have a BG Home

account, sign in.

If you are new to BG Home, sign

up and follow the on screen

instructions.

Ensure that your Smart Socket is connected to the power supply as per the ‘Wiring

Instructions’.

After the initial power up both switch LED indicators will illuminate RED and start to blink and

the socket will be ready for setup.

Press and hold button A for 5 seconds. The socket will then enter Wi-Fi configuration mode

and the indicator illuminated RED flashing quickly.

Follow the on-screen instructions to set-up your device.Please make sure your phone is

connected to 2.4GHz WiFi (not 5GHz)so your device can be discovered and set-up

successfully.

Once set up your mobile device will indicate a successful connection and the red indicator on

the socket will turn off.

To connect additional BG Smart devices, please follow the steps below:

1. Connect and power up the device.

2. Press and hold the power button until the RED LED flashes quickly.

3. Go to the BG Home app and ‘Add Device’.

4. Once found and connected name the device accordingly.

Repeat for all additional BG Smart devices.

Power control at each socket can be

manual or ‘smart’ The power button

will illuminate BLUE for ON.

Indicator Brightness Control

The intensity of the power indicators can be adjusted. Press

and hold button B for 5 seconds. The indicator will illuminate

BLUE and it will enter the brightness adjustment mode. When

the brightness has reached the desired level release the

button.

If these setup procedures fail,follow the “AP Config” setup and

follow the step by step instructions in the App.

Smart Socket Setup Instructions

5. Install the BG Home App

7. Power Up Your Socket

6. Account Creation

If you already have a BG Smart

device connected, the App can

auto-discover a new device for

faster set-up.

POWER BUTTON

Device Menu Screen

Getting The Most Out Of Your BG Sockets

Setting Timers

Set a Delay

Set up timers so your device will turn on and off at specific times. Get your morning coffee

ready for when you get up in the morning, save energy by turning sockets off whilst you’re at

work, turn the lamp on or off at a certain time of day, or set the slow cooker to come on at

lunch time so your food is ready to eat when you get home!

Smart sockets do more than enable you to turn sockets on and off with an App – you can

set timers, configure scenes, set a parental lock, control these with your voice and sync up

with other smart devices in your home using IFTTT.

Set a delay time for your sockets to turn on or off after a set length

of time. Ideal for sockets where you plug in devices like hair

straighteners or heaters for added safety, and for charging your

mobile phone so this turns off once it has reached a full charge.

Select Timer

Select the device you

want to set a timer for.

Choose how

often you want

the timer to

operate.

Choose the time you want

the timer to function.

Choose to turn on or turn

off.

Create more than one timer to suit

your requirements.

The toggle buttons mean you can

turn these on or off whilst

retaining your timer settings when

not in use.

Delays can be set for devices to turn on or turn off.

In the device menu, choose the amount of time you

want to pass before the delay operates.

You can select one of the pre-set options, or create

your own custom timescale.

Installation and User Guide

User Guide

Installation and User Guide

Creating Scenes

Manage Homes

You can add many different scenes to suit your lifestyle to further automate your sockets.

You may want a number of sockets to turn on or off together without having to operate them all

independently.

You could set a night-time scene so all lamps turn off and your bedside socket turns on ready to charge

your phone, create a ‘goodbye’ scene for when the house is empty or a ‘welcome home’ scene so

everything is just how you want it when you get home.

Go to the ‘Scenes’ menu on the bottom of the Home screen, select + from the top left corner of the scenes

screen and create your custom scene.

User Guide

Create a custom scene to add

different actions for a number of

devices to happen at the same time.

Select ‘+’

Select ‘Scenes’

You could also set a scene to help with

your children's evening routine - turn on

the lamp in their room at bedtime, and

set lights out and devices off at the

desired time to make sure they are not

up late watching TV or playing on

consoles in their bedroom.

Add a picture, name and effective period

for the scene to operate.

Add more than one device to create

multiple actions that happen at the

same time, so you can turn some

devices on and other off.

If you have more than one property with smart sockets installed, be it home or office, you can create a

separate ‘home’ for each of these and manage these through the ‘Me’ menu. Other homes that you have

ben invited to will also appear in this menu.

You can switch between properties in the BG Home App control screen by clicking on the home name at

the top of the screen, and switching to the home you want to manage.

Switch homes at the top of

the home screen.

Alternatively select 'me'

Select 'Manage homes'

Re-name your home, manage

rooms and manage members.

Installation and User Guide

Random Function

Turn lamps on and off at random times to imitate home occupancy

when you’re away for added security.

User Guide

Invite Others to Join Your Home

Toggle on and off as required so your

setting is saved ready for when it’s

needed, even if it’s not constantly in use.

set a time to start and end the

random activation, and how often

you would like this to be repeated.

You may want other members of your household to be able to operate sockets with their own phone or

tablet. No problem! You can invite a new member from the BG App Home screen by pressing the + icon

at the top of the screen.

Set a Parental Lock

The parental lock allows you to de-activate the active buttons so these cannot be turned on or off at the

wall, and prevent members that you have invited within the app from turning sockets on or off, or

changing any of your set timers or scenes. This is ideal for sockets which you want to behave in a routine

way, and to prevent children turning devices on and off when you don’t want them to.

To turn on the parental lock, select ‘function set’ from the … menu, and toggle the parental lock on or off

as required.

Invite other members from

your household.

The App will generate a unique QR

code that will be valid for 15 minutes.

An invited member can then join your

home by scanning the QR code which

will be unique to your home.

Toggle 'parental lock' on.

This can be toggled off when you

need to change settings or re-enable

active buttons on the faceplate.

when parental lock is on, devices cannot be

operated and settings cannot be changed within

the app, and active buttons on the faceplate will

also be locked so they cannot be turned on or off.

Select 'Function Set' from

the device control screen.

Installation and User Guide

If you're an iOS device user, you can control your devices using your iPhone, iPad or Apple Watch.

To control an individual device:

1. Select the device from the home screen.

2. Press on the ... menu in the top right corner and select 'General'.

3. Select 'Add to Siri' and create your Siri shortcut.

Add a scene to make a number of devices change state with one instruction. You will need to create your scene before adding this to Siri.

1. Select 'scenes' at the bottom of the home screen.

2. Select 'Add to Siri'.

3. Choose a pre-configured scene and enter the custom phrase you want to use to activate the scene.

Type in the phrase you want to say to

activate the scene, then 'add to Siri'.

Choose the scene you want

to add to Siri.

Select the operation

(on, off or delay).

Type in the phrase you want to say to

operate the device, and 'add to Siri'.

Select 'general' and then 'add

to Siri' from the general menu.

Select the device you want

to operate.

Installation and User Guide

IFTTT helps you connect all of your different apps and devices.

• Use Applets and widgets to make device operation quicker and smarter.

• Use geo-location to turn devices on or off as you approach and leave home.

• Use weather services to turn devices on or off at sunrise and sunset.

• Synchronise your sockets and adaptors with smart home devices from other companies.

IFTTT Applets

Works with IFTTT

IFTTT helps you connect all of your different apps and devices.

• Use Applets and widgets to make device operation quicker and smarter.

• Use geo-location to turn devices on or off as you approach and leave home.

• Use weather services to turn devices on or off at sunrise and sunset.

• Synchronise your sockets and adaptors with smart home devices from other companies.

What is an Applet?

• An Applet is a tiny program that is used within a main application to enhance a user's interaction within that application,

and work on a principal of triggers and actions.

• An IFTTT (If This, Then That) applet (also know as recipes) perform one or a few simple functions.

• Anappletis triggered by changes that occur within other web services such as Gmail, Weather and Maps.

• Users can choose from pre-configured applets, or create their own to suit their personal set up.

Location Weather Notifications Widgets Voice Create your own

IFTTT Widgets

What is a Widget?

• Widgets are an essential aspect of home screen customization.

• Imagine them as "at-a-glance" views of an app's most important data and functionality.

• Accessible direct from the user's home screen.

• Display a few crucial information elements to a user and

track how this information changes over time.

• Touching information widgets typically launches the App.

• A control widget displays often used functions that you

can trigger right from the home screen without having to

open the app first.

Information Widgets Control Widgets

Display a few crucial inf

orm

Installation and User Guide

IFTTT Widgets on iOS

How do I add a Widget on iOS?

• Once you have created your widget in IFTTT, you need to add this to your Home screen.

• Swipe right as possible on your Home screen to access your widget screen.

• Scroll down and press Edit.

• Add your IFTTT widgets to your widget list.

IFTTT Widgets on Android

How do I add a Widget on Android?

• On the Home screen, tap and hold on any available space.

• A menu will appear towards the bottom of the screen.

• Tap ‘Widgets’ or ‘Shortcuts’ (dependant on phone model).

• ‘Tap and hold IFTTT Large or IFTTT Small’

• Create / select the widget you would like to add.

• The widget will now appear on your home screen.

Works with IFTTT

Now you can use Google’s voice-activated speaker to control your Smart Home sockets and

adaptors. With the Google Assistant, you can turn on your lights without pressing a button!

1. Setup

Start by getting the Google Home app and setting up your Google Home if you have not done this

already.

2. Add BG Smart Home Action

In the Google Home app tap the menu icon and select Home Control. Then tap the + button to see a

list of Actions tapping BG Home to select the Action.

3. Link your BG Home Account

Now follow the in-app instructions to link your BG Home App account. Once complete you’ll be able to

say ‘Ok Google, turn my lamp on’.

Installation and User Guide

If you’re new to Echo, it’s a super smart speaker from Amazon that responds to your voice.

Once you’ve bought Amazon Echo and downloaded the BG Home App, you’ll just need to enable....

1. Enable the BG Home App

In your Alexa app, tap Skills in the menu and search for BG Home. Tap Enable.

2. Link Account

Enter your BG Home App username and password and follow the onscreen instructions.

3. Talk to Alexa

Now the fun part. Ask Alexa to control your BG Smart Home device.

In the 'me' section of the App

you can select 'Third-party

platform' so see all supported

integrations and instructions

for linking your account.

In the 'me' section of the App

you can select 'Third-party

platform' so see all supported

integrations and instructions

for linking your account.

For your safety, this product must be installed in accordance with local Building Regulations. If in any doubt, or where required by the law, consult a

competent person who is registered with an electrical self-certification scheme. Further information is available online or from your Local Authority.

INDOOR USE ONLY.

Please read carefully and use in accordance with these safety wiring instructions. Before commencing any electrical work ensure supply is switched off

at the mains. Either by switching off the consumer unit or by removing the appropriate fuse. Wiring should be in accordance with the latest edition of IEE

regulations (BS 7671). To prevent fire hazard always use cable of the correct rating, size & type for the application.

Any bare earth wires must be covered with the appropriate green/yellow sleeving.

Warning: do not exceed the load rating of this device as stated on rear of the product.

If in doubt always consult a competent electrician

This symbol is known as the “Crossed-out Wheelie Bin Symbol”. When this symbol is marked on a product or battery, it means that it

should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries

can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in separate collection schemes, which

cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and

for the protection of the environment.

Voltage : 220-240V ac

Frequency : 50/60Hz

Max Power: 13A 3,120W

Wire IEEE Standard : Wi-Fi 2.4GHz b/g/n

Terminal capacity : 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²

Min box depth (profiled plates) : 25mm

Installation and User Guide

Safety Warning

Environmental Protection

Technical Information

+44 (0)3300 249 279

[email protected]

If you need further technical assistance you can get in touch with our Technical Helpline on:

Autres manuels pour Smart!

Table des matières

Autres manuels BG Electrical Accessoires

BG Electrical

BG Electrical NX13ADC/IL/A Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
