Table of Contents

Important Safety Instructions

General Warnings and Cautions ............................ 1

Protection Against Electric Shock ............................. 2

Information About Repair Service ............................ 3

Getting Started

Installing the Batteries ............................................ 6

Set Up Connections ............................................. 8

Connecting a TV Cable or Antenna .................... 8

Connecting an S-Video Source ........................... 9

Connecting a Camera, VCR or Video Game. ....... 9

Connecting the FM Radio Antenna ................... 10

Connecting for Internet Access ......................... 10

Connecting Other Devices .............................. 12

Connecting the SANI Antenna ......................... 13

Connecting the Power .................................... 13

Using the iCEBOX Controls .................................. 14

Front Panel ................................................... 14

Remote and Keyboard .................................... 15

Adjusting the Image and Sound ....................... 23

Stylus & Touch Screen .................................... 23

Configuring iCEBOX Settings ............................... 25

Choose the Television Signal Source ................. 25

Autoscan for Television Channels ...................... 26

Configure an Internet Connection ..................... 27

Configure the Browser Settings ......................... 30

CounterTop Owner’s Manual

Using the iCEBOX Modes

Changing Modes .............................................. 31

Television Mode ................................................ 31

DVD & CD Mode .............................................. 32

Internet Mode ................................................... 33

Radio Mode ..................................................... 39

My Kitchen Mode .............................................. 40

Video Mode ..................................................... 41

Caring for Your iCEBOX

Updating Your iCEBOX System ............................. 43

Cleaning the iCEBOX ......................................... 45

Getting Help ................................................ 45

Troubleshooting ................................................. 47

FAQs .............................................................. 48

Specifications.................................................... 54

FCC Statement .................................................. 55

iCEBOX CounterTop Warranty ............................. 56

Index ............................................................... 59

Important Safety Instructions

When using the iCEBOX™ CounterTop, observe these basic precautions

to reduce the risk of personal injury or equipment damage.

Before using the iCEBOX

•Read and understand all iCEBOX instructions.

•Follow all warnings and cautions on the product and in these operating

instructions.

•Do not use the iCEBOX for anything other than its intended use.

Warnings and Cautions

The following examples demonstrate warning and caution statements

found within this document. Read and follow all warnings and cautions.

General

Warnings and

Cautions

The following general hazards could result in personal injury or product

damage. Specific warnings and cautions are found in relevant sections of

the operating instructions.

1. Read the instructions. All safety and operating instructions should be

read before operating the iCEBOX.

2. Retain the instructions. The safety and operating instructions should be

retained for future reference.

3. Heed warnings. All warnings on the product and in the operating

instructions should be adhered to.

4. Follow instructions. All operating instructions should be followed.

5. Cleaning. Unplug the iCEBOX from the wall before cleaning it. Do not

use liquid cleaners or aerosol cleaners. Clean the unit with a damp

cloth.

6. Attachments. Do not use attachments which are not recommended by

the manufacturer.

Warning: Warning statements warn of hazards or unsafe prac-

tices that could result in serious personal injury

or death.

Caution: Caution statements warn of hazards or unsafe prac-

tices that could result in minor personal injury or

damage to the product.

CounterTop Owner’s Manual

7. Do not use the unit near water. For example, near a bath tub, wash

bowl, kitchen sink, or laundry tub; in a wet basement; or near a swim-

ming pool; and the like.

8. Carts and Stands. The iCEBOX should be placed on a cart or stand

designed to securely support the weight of the unit.

When mounted on a cart or stand, the iCEBOX should be moved care-

fully. Sudden stops, excessive force, or uneven surfaces may cause the

cart to overturn.

9. Accessories. Do not place this product on an unstable cart, stand, tri-

pod, bracket, or table. The product may fall causing serious injury to a

child or an adult and serious damage to the product.

Protection Against

Electric Shock

10.Power sources. This product should only be operated from the type of

power source indicated on the marking label. If you are not sure of the

power supply to your home, consult your product dealer or local power

company.

11.Grounding or polarization. This product is equipped with a threewire

grounding type plug, a plug having a third grounding pin. This plug

will only fit into a grounding type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electri-

cian to replace the obsolete outlet. Do not defeat the safety purpose of

the grounding type plug.

12.Powercord protection. Power supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, conve-

nience receptacles, and the point where they exit from the product.

13.Outdoor antenna grounding. If an outside antenna or cable system is

connected to the product, be sure the antenna or cable system is

grounded so as to provide some protection against voltage surges and

builtup static charges. Article 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with regard to proper grounding

Important Safety Instructions

of the mast and supporting structure, grounding of the leadin wire to an

antenna discharge unit, size of grounding conductors, location of

antenna discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

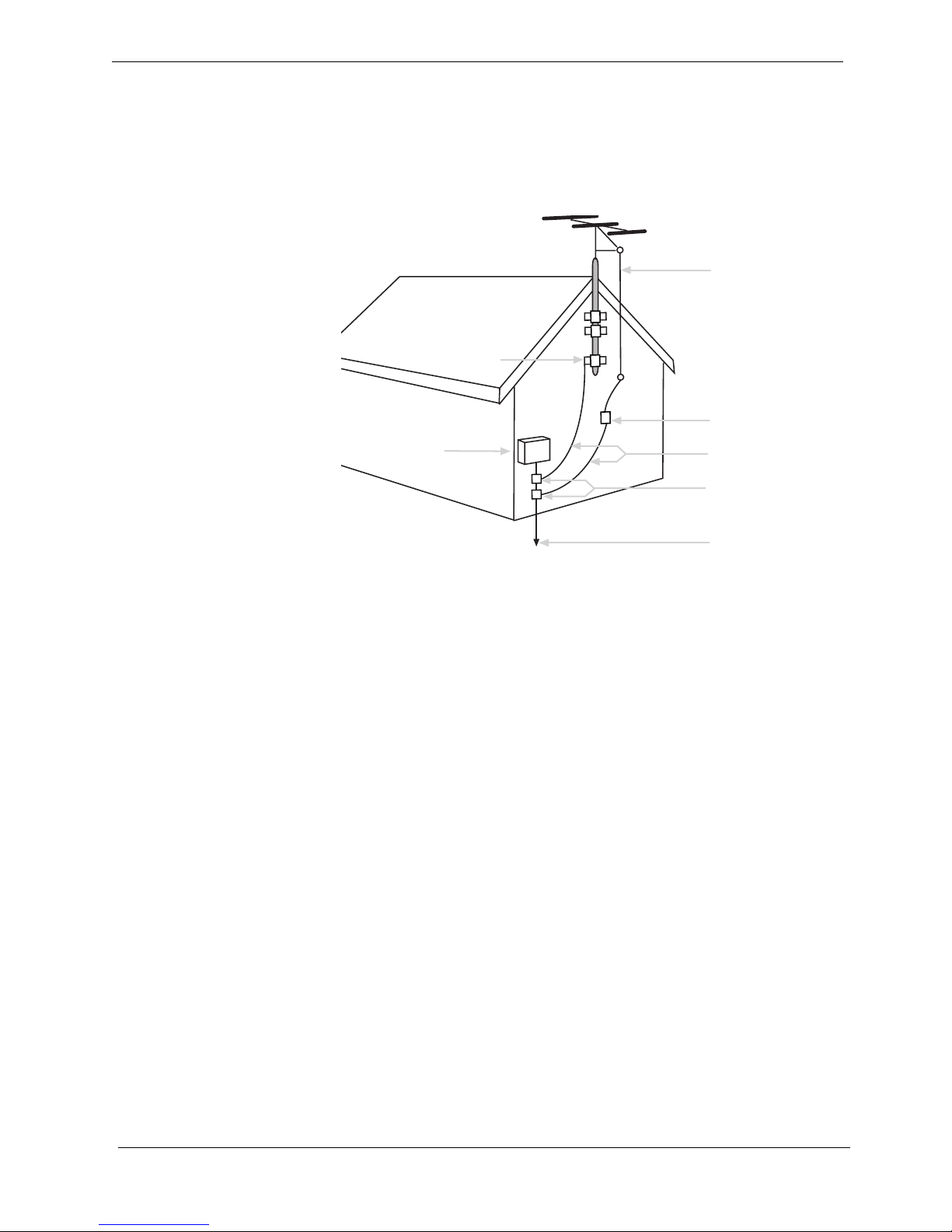

FIGURE 1. Example of Antenna Grounding

14.Lightning. For added protection for this product during a lightning

storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the antenna or cable sys-

tem. This will prevent damage to the product due to lightning and

powerline surges.

15.Power lines. An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or power circuits,

or where it can fall into such power lines or circuits. When installing an

outside antenna system extreme care should be taken to keep from

touching such power lines or circuits as contact with them might be

fatal.

16.Overloading. Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire or electric

shock.

17.Object and liquid entry. Never push objects of any kind into this prod-

uct through openings as they may touch dangerous voltage points or

shortout parts that could result in a fire or electric shock. Never spill liq-

uid of any kind on the product.

Information About

Repair Service

18.Servicing. Do not attempt to service this product yourself as opening or

removing covers may expose you to dangerous voltage or other haz-

ards. Refer all servicing to qualified service personnel.

Antenna lead wire

Antenna discharge unit

(NEC section 810-20)

Electric service

equipment

round clamps

(

NEC ART 250 Part H

)

Power service grounding

electrode system

round clamp

CounterTop Owner’s Manual

19.Damage requiring service. Unplug this product from the wall outlet and

refer servicing to qualified service personnel under the following

conditions:

a. When the powersupply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operat-

ing instructions. Adjust only those controls that are covered by the

operating instructions as an improper adjustment of other controls

may result in damage and will often require extensive work by a

qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance, this

indicates a need for service.

20.Replacement parts. When replacement parts are required, be sure the

service technician has used replacement parts specified by the manu-

facturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other

hazards.

21.Safety check. Upon completion of any service or repairs to this product,

ask the service technician to perform safety checks to determine that

the product is in proper operating condition.

22.Heat. The product should be situated away from heat sources such as

radiators, heat registers, stoves, or other products (including amplifiers)

that produce heat.

Getting Started

Welcome to the iCEBOX™—the ultimate Information, Communication, and

Entertainment system designed specifically for the kitchen. With the iCE-

BOX™ CounterTop, you can watch television, browse the Internet, play

DVDs or CDs, check your Email, and monitor other areas of your home, all

from the convenience of your kitchen.

The iCEBOX CounterTop can also act as the command center and informa-

tion gateway for your Beyond Connected Appliances, which includes the

Beyond Microwave, Bread Maker and Coffee Maker.

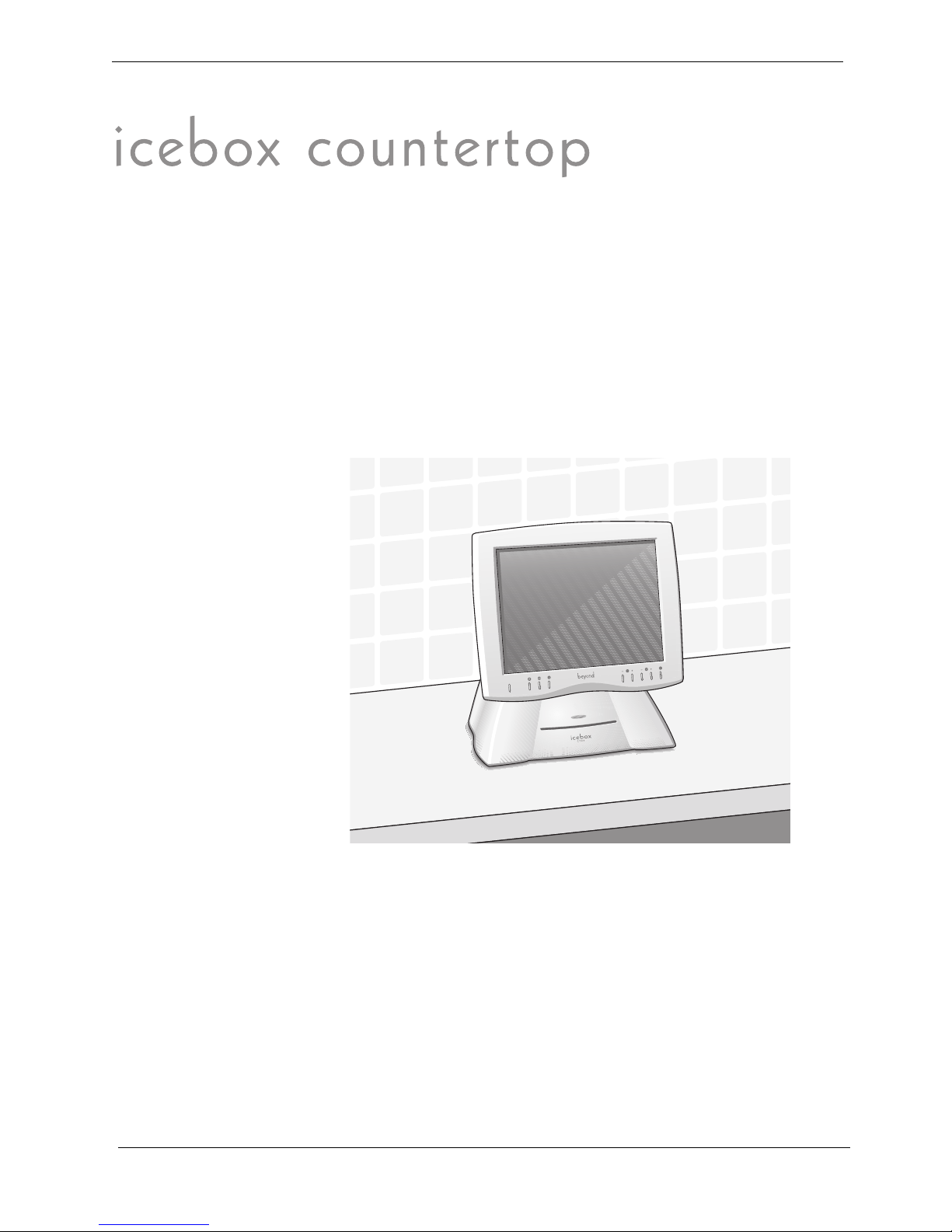

FIGURE 2. The iCEBOX CounterTop

icebox

CounterTop Owner’s Manual

Installing the Batteries

Before you turn on your iCEBOX, you will need to install the batteries in

the remote and keyboard. The remote requires two AAA batteries (sup-

plied), and the keyboard requires two AA batteries (supplied). Alkaline

batteries are recommended.

To install the batteries for your remote

1. On the back of the remote, remove the battery cover by loosening the

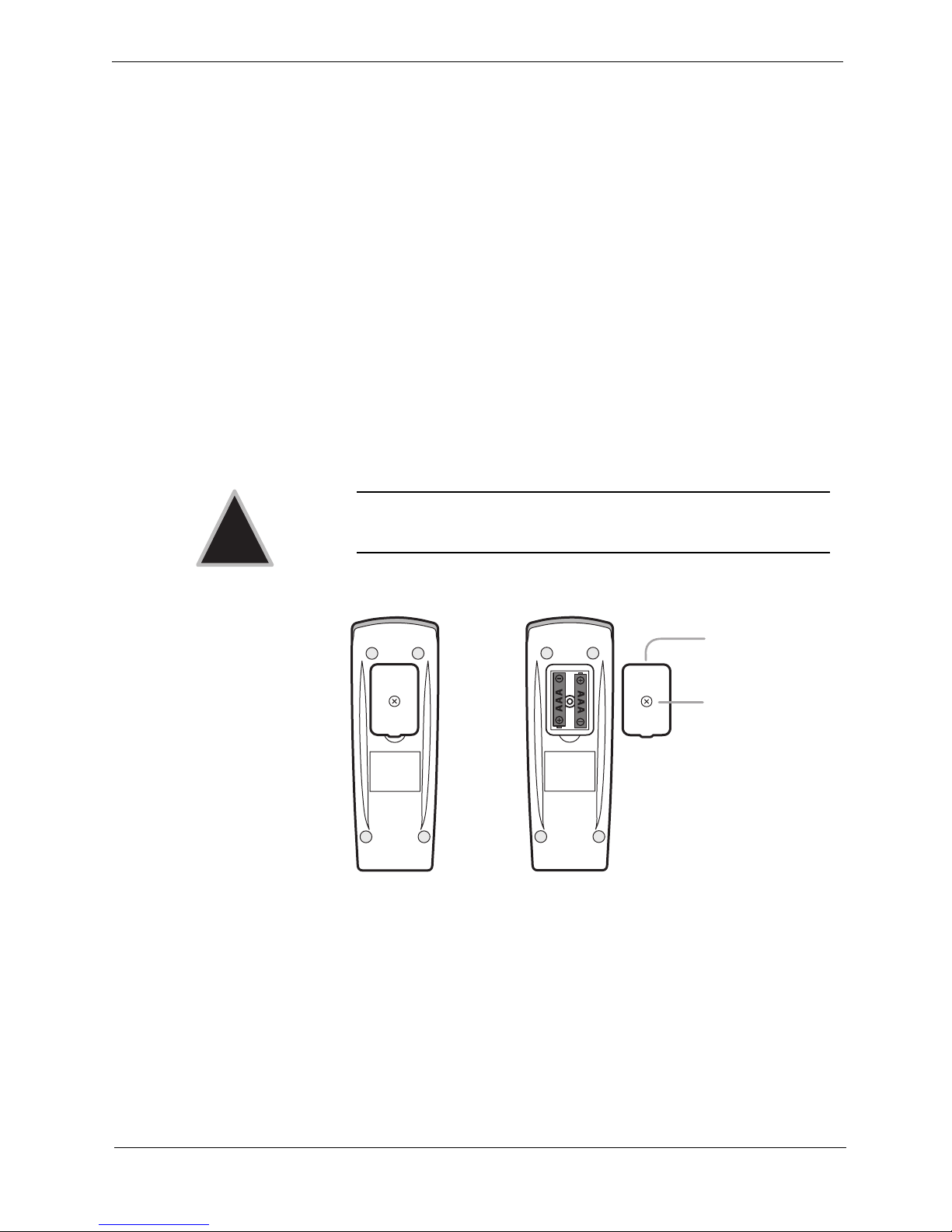

small screw in the center of the panel ( fig. 3). Keep the attached

washer with the screw.

2. Install two AAA batteries, ensuring that the polarity (+ and –) on the

batteries matches the + and – markings in the battery compartment.

3. Reattach the battery cover, making sure that the cover is seated

properly.

4. Insert the screw, with the washer still attached, and tighten the screw

until it is snug.

FIGURE 3. Remote Battery Installation

Caution: Do not overtighten the screw. You may damage the

washer and the remote will no longer be washable.

Secured Screw

Battery Cover

Autres manuels pour icebox countertop

Table des matières

Autres manuels Beyond Système de navigation automobile

Beyond

Beyond FlipScreen Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Pioneer

Pioneer MZ360500EX Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Pioneer

Pioneer AVIC-Z920DAB Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur

Beyond icebox countertop Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques
