Instruction Book
(BC01 Cable to Cable)
Warning：Do Not Connect Or Disconnect Under Load!
BC01 Instruction Book Of BC01 cable to cable
1
Contents
1. Application & Structure................................................................................... 2
2. Product Outline Size..........................................................................................3
3. Type of the connector........................................................................................ 4
4. Main Technical Features....................................................................................5
5. Safety Precautions..............................................................................................6
6. For Assembly..................................................................................................... 6
7. Instruction of Operation................................................................................... 11
8.Maintenance......................................................................................................12
9. Statement...........................................................................................................13
BC01 Instruction Book Of BC01 cable to cable
2
Dear Customer, Thank you for choosing our product “ Multi-pole AC Connectors For PV
system”, which are referred to as “Connectors” hereinafter. Please read this instruction book
carefully in order to use the product correctly, quickly and safely.
1. Application & Structure
1.1. The connectors are specialized for the connection of inverter equipment in terrestrial PV systems；
1.2. The connection of pin and wire is screw type which is easy for field installation ，
and the connection of the male and the female connector is snap-fit type；
1.3. Easy operation, reliable performance on mechanical and electrical properties;
The connector may be used in other areas and industries; we will not assume
any unstated quality responsibility if the product is used in other fields and
industries.
BC01 Instruction Book Of BC01 cable to cable
3
2. Product Outline Size
2.1. Outline of male cable connector (2+PE)：
2.2. Outline of female cable connector (2+PE)
BC01 Instruction Book Of BC01 cable to cable
4
3. Type
3.1. BC01(CC) Connector type:BC01(CC)
3.2.Male cable connector type：
3.3.Female cable connector type：
TUV, CSA: 250V 25A BC01-3M22-15
CSA: 350V 25A BC01-3M32-15
TUV, CSA: 250V 25A BC01-3F22-15
CSA: 350V 25A BC01-3F32-15
BC01 Instruction Book Of BC01 cable to cable
5
4. Main Technical Features
Item Parameter Item Parameter
Applicable
environment
temperature
-40℃～+85℃Over-voltage
category
III
Relative humidity ≤95% Wiring Connection Screw type
electrode
number 2P+PE Insulation resistance ≥100MΩ
Rated voltage TUV: 250V AC
CSA: 350V AC
Rated impulse
withstand voltage 4000V AC
Rated current 25A(4mm²)
Degree of
protection IP68（1.5m,24h）
Material of pin Copper alloy &silver
plated
Insertion and
withdraw
force(unlocked)
10～50N
Contact resistance ≤1mΩApplicable wire
gauge 2.5/4.0mm2
Pollution degree 2Outer cable
diameter
10～13mm
Enclosure flame
class UL94-V0 Standards
UL6703A
EN 61535
PPP 59015A:2013
BC01 Instruction Book Of BC01 cable to cable
6
5. Safety Precautions
5.1. Please be careful during loading, unloading and transportation. Avoid outer heavy pressure to
protect connectors；
5.2. If the internal parts do not match the instructions after opening the package, please stop using it
immediately and contact sales or our company directly；
5.3. Please ensure the inverter system is not under working conditions firstly when installing
connectors, The human body cannot simultaneously contact the connector’s positive and negative
pole , in order to avoid electric shock accidents；
5.4. The operator who installs or maintains the product shall be trained and have related electrical
installation and maintenance skill.
6.For Assembly
6.1. Tools：
6.1.1. Wire striper
BC01 Instruction Book Of BC01 cable to cable
7

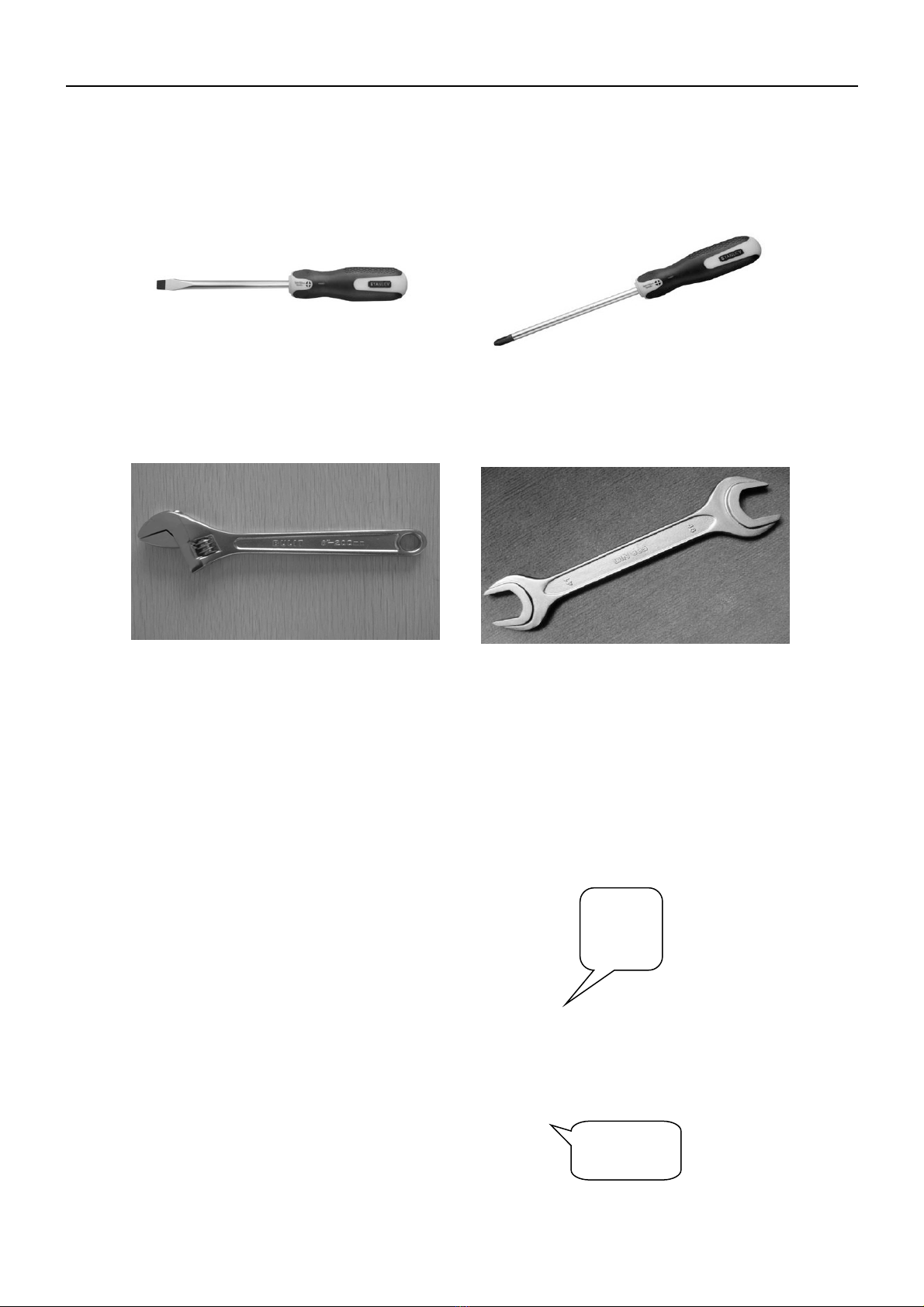

6.1.2. Flat screwdriver and #1 cross screwdriver
6.1.3. Monkey wrench wider than 3cm and 30# solid wrench
6.2. Strip cables
Only multiple strands of copper wire can be used. Please cut and strip the wire according to the
requirements, and the ground wire needs to be 5mm longer than live and naught wire, and the
applicable stripping length is 7 ~ 8mm.
striplength
Ground
wire
BC01 Instruction Book Of BC01 cable to cable
8
6.3. Instruction of cable connector assembly：

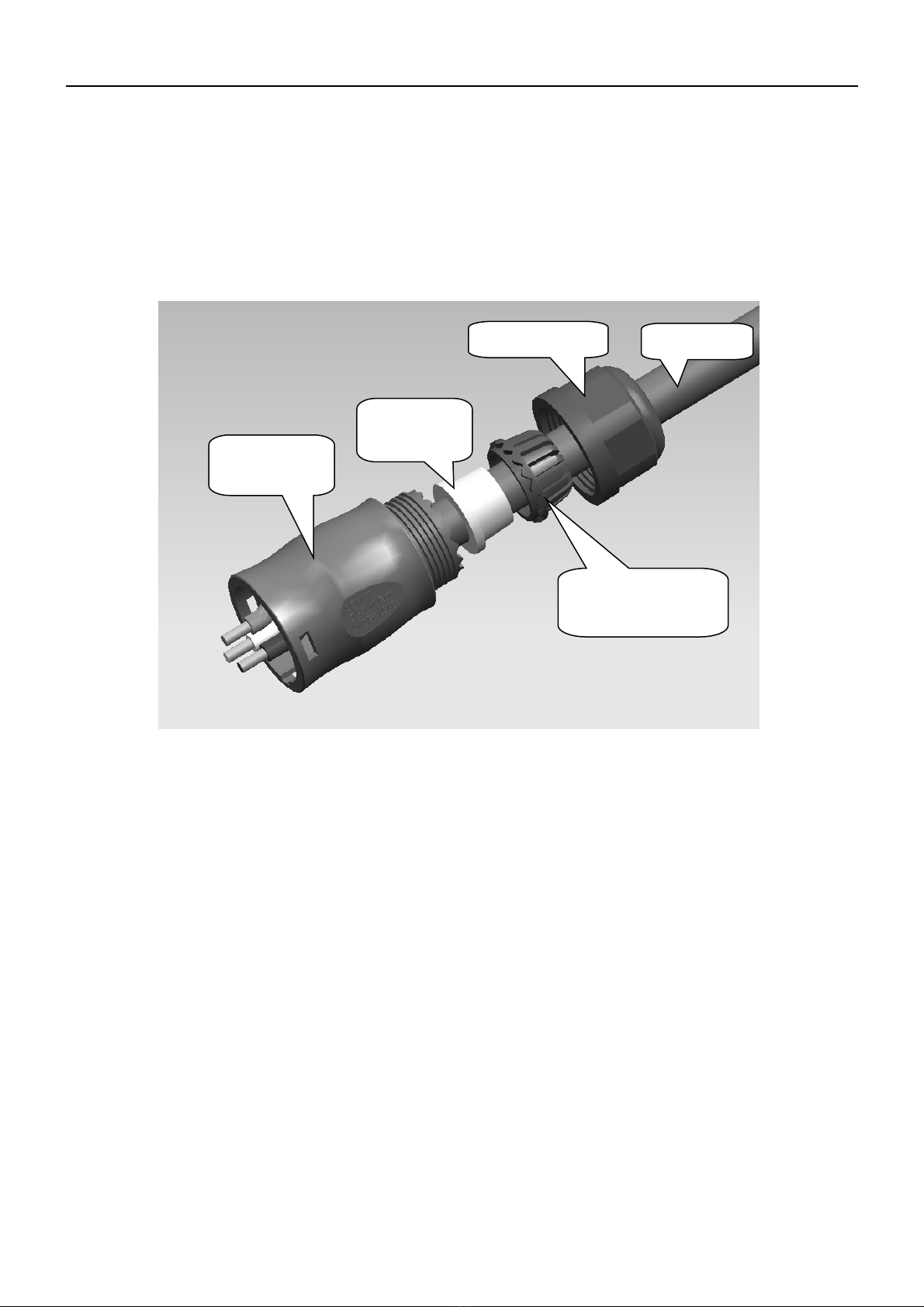

6.3.1. Screwing off the tail parts (End Locker, Wire Sealing Claw and Wire Sealing ) from
male or female cable connector，and then pulling the wire which was cut and stripped through them
in turn.
6.3.2. Crimp the wire
Inserting the stripped wires correctly into the corresponding pin holes according to
the identification and then tightening all screws firmly, Screw twisting torque 0.4±0.1N·m. after
it , giving a reverse pull force lightly ( about 10N by manual to test crimping result. Please
pay attention to avoiding damage of pins and pin-holder. After crimping, The tensile strength shall
meet the requirements listed in the following table：
Wire sealing
HousingBody
End locker
Wire Sealing Claw
Cable
BC01 Instruction Book Of BC01 cable to cable
9
6.3.3. Install male & female cable body to plastic housing
Push the male or female cable body into housing body correctly according to the position of the
clamping groove , and will hear a crisp “click” sound in place.
Conductor cross-section area (mm2) Required tensile strength (N)
2.5 ＞50
4.0 ＞60
click
Male cable body
Housing body
Male cable body
Cable
Cable
Female cable body
