Better Bathrooms Trinity Premium Manuel utilisateur
Cleaning
*** All chrome surfaces should be cleaned using a clean damp cloth.
*** No abrasive cleaning agents or materials should be used.
*** General glass cleaner can be used for the screen, but ensure that this
will not damage the chrome, check the cleaning information on the
product before use
This instruction will cover installation of the following units
Codes:
11050 11051 11052 11053 11054 11055
11063 11064 11065 11066 11067
Product Specification
Height: 2000mm
Glass thickness: 10mm
Adjustment:
11050: 730-755mm 760mm
11051: 770-795mm 800mm
11052: 870-895mm 900mm
11053: 970-995mm 1000mm
11054: 1170-1195mm 1200mm
Telephone
0844 484 7678
Images are for installation purposes only
Importance
*** Handle with care, impact can damage both the glass and frame
*** Check for pipes and wires prior to installation
*** Use of safety equipment is advised
*** Two people may be required part of the installation
Trinity Premium Wet Room
Instruction
Please retain this manual after installation for future reference and maintenance
Product must be installed in compliance with relevant Water Bylaws
TOOLS (NOT SUPPLIED)
Rubber mallet
Allen Key (supplied)
Tape Cross Srewdriver Spirit level Silicone gun
Pencil Drill 3mm Drill Bit
Parts List
Parts Drawing
Note: Please ensure your refer to the correct option for your assembly to ensure
correct positioning the bracing bars.
Option A: Wet Room Option B: Wet Room with Return Panel
Figure 1 Figure 2
Option C:Walk-in type
Figure 3
Installation Guide
Note: Supporting bar is supplied with 100cm, it needs to be cut to required size
Option A: Wet room
Step 1
1.1 Place the wall profile(10) to required position,
ensure the profile is vertical and marked
with pencil on the wall
1.2 Drill holes using 6mm bit
1.3 Tap in the plugs(1)
1.4 Place wall profile back to wall, fit the screws
ST4x25 (3) into wall
Step 2
2.1 Fit the front glass(6) into the wall profile(10)
wall profile is inside the glass profile
Step 3
3.1
*** Measure the distance from the front glass
to the wall and cut supporting bar(4) to
the correct length if necessary
*** Mark the right position with a pencil
3.2 Drill a hole using a drill bit.
3.3 Using a rubber mallet to insert the wall
plugs(1) into the hole
Step 4
4.1
*** Place the wall fixing plate(2-2) against the
hole and secure it with screw(3)
*** Put the wall fixing connector(2-1) on the (2-2)
*** Put one side of bracing bar(4) into the hole
of (2-1), and the other side into the hole
of the glass clip(5)
4.2 Push(5)on the front glass(6) and to be
fastened to the glass from the top
Step 5
5.1 Apply silicone along the bottom outer
edge of the frame and outer along
the vertical profiles
*** Do silicone along the outside of
chrome strip
*** Do not apply silicone from inside
*** Do not use the enclosure for at least
24 hours to let the silicone fully cure
Option B: Wet Room with Return Panel
Step 1
Refer to step 1 of option A: Wet room
Step 2
Refer to step 2 of option A: Wet room
Step 3

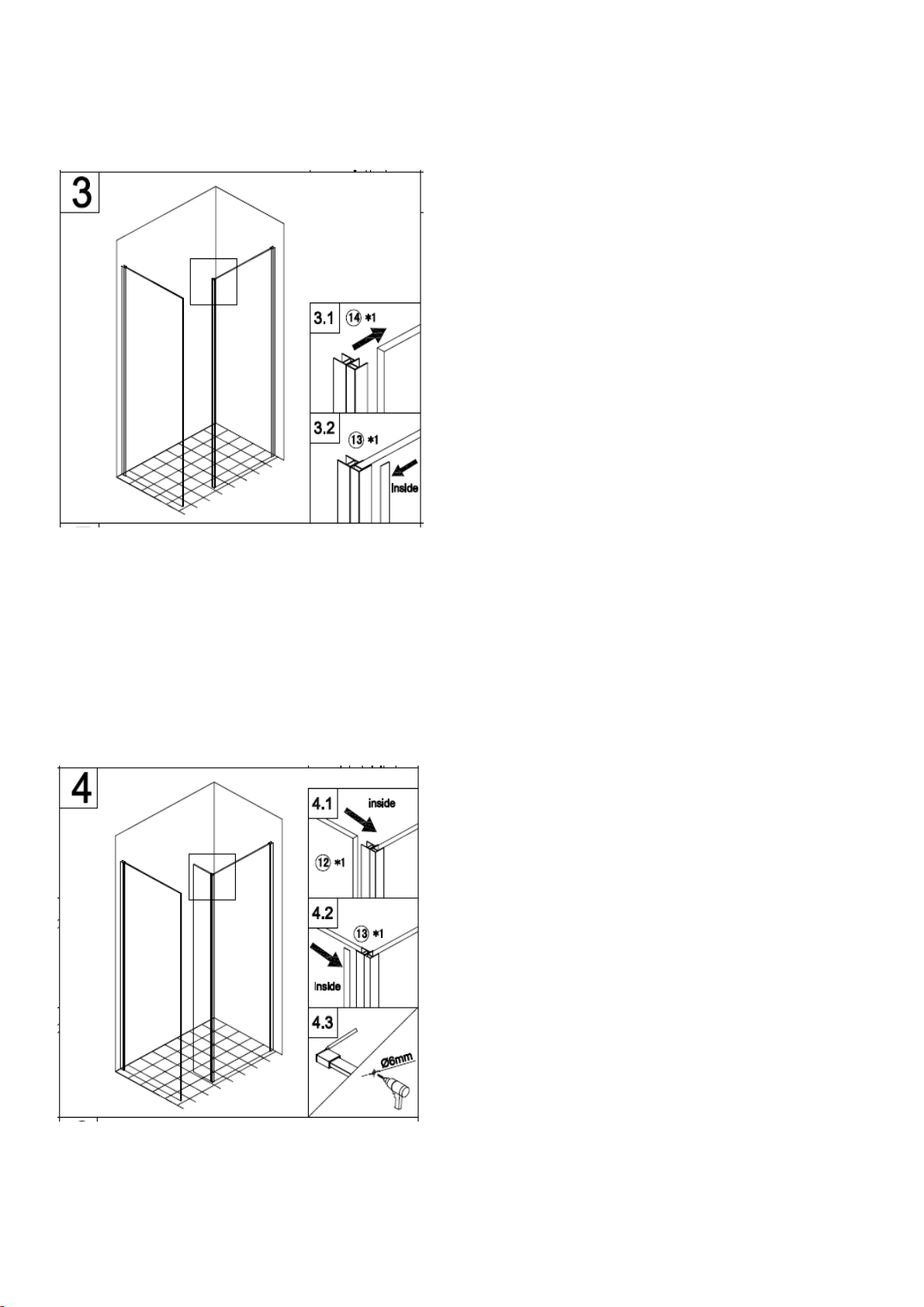

3.1 Push one side of the coner profile(14) to
the front glass(6).
3.2 Put the single side plastic strip into the
corner profile
Step 4
4.1 Fit the return glass panel (12) to coner
profile(14)
4.2 Put the single side plastic seal (13) into
corner profile to fasten the
4.3 Refer to step 3 of option A: Wet room
Importance:
Please pre-fit the glass clip (11) to help find out
the correct position for wall brackets, and then
do marking as 4.3
Step 5
5.1
***Place the wall fixing plate(2-2) against the
hole and secure it with screw(3)
***Put the wall fixing connector(2-1) on the (2-2)
***Put one side of bracing bar(4) into the hole
of (2-1)
5.2
***Put the other side of bracing bar (4) through
the hole of the T shape glass fixture(11)
***Push the other side of T shape glass fixture(11)
on the return glass panel glass(12)
5.3
***Put the other side into the hole of the glass clip(5)
***Place (5) on the front glass
Step 6
6.1 Apply silicone along the bottom outer
edge of the frame and outer along
the vertical profiles
*** Do silicone along the outside of
chrome strip
*** Do not apply silicone from inside
*** Do not use the enclosure for at least
24 hours to let the silicone fully cure
Option C:Walk-in type
Step 1
1.1Place the wall profile(10) to required position,
ensure the profile is vertical and marked
with pencil on both sides of the wall
1.2 Refer to step 1.2 of option A: Wet room
1.3 Refer to step 1.3 of option A: Wet room
1.4 Refer to step 1.4 of option A: Wet room
Step2
Refer to step 2 of option A: Wet room
Step3
Refer to step 3 of option B: Wet Room with Return Panel
Step4
Refer to step 4 of option B: Wet Room with Return Panel
