Better Bathrooms Dune Manuel utilisateur

BeBa_26286 to BeBa_26291 and BeBa_26293

Dune Towel Radiator

Please note: Image is for illustrative purposes only and may differ slightly to the

actual product

•Multi-person assembly

•Tools required

•We always recommend using professional

tradespeople to install your product V1_10.11.20

Congratulations on your purchase

And welcome to our growing gang of savvy shoppers

We're on a mission to bring you extraordinary bathroom products, for less. From modern

to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So,

you can fall in love with your space every single day.

As one of the UK's largest independent bathroom stores, we've received countless

awards; including the National Business Awards UK, the Digital Entrepreneur Awards and

being placed on The Sunday Times Fast Track 100.

We hope your new product exceeds your highest expectations. However, if you

experience any problems, please:

•call our friendly UK call centre on 0330 390 3062 (9am-7pm Monday to Friday, or

10am-4pm Saturday and Sunday), or

•send us a message via [email protected]

Important information

•Please read these instructions thoroughly and retain for future reference

•Manufactured to BS EN 442-1 Radiators and convectors

•Please ensure that the product is checked for damage prior to installation, any

damage reported after installation will not be covered.

•The pipework must be flushed out to remove any debris which can affect the

function of this product.

•A corrosion inhibitor should be used in your installation.

BTU & Wattage info-

Product Code

BTU

Wattage

BeBa_26286

735

215

BeBa_26287

1002

294

BeBa_26288

1220

358

BeBa_26289

1002

294

BeBa_26290

1960

574

BeBa_26291

1269

372

BeBa_26293

2476

726

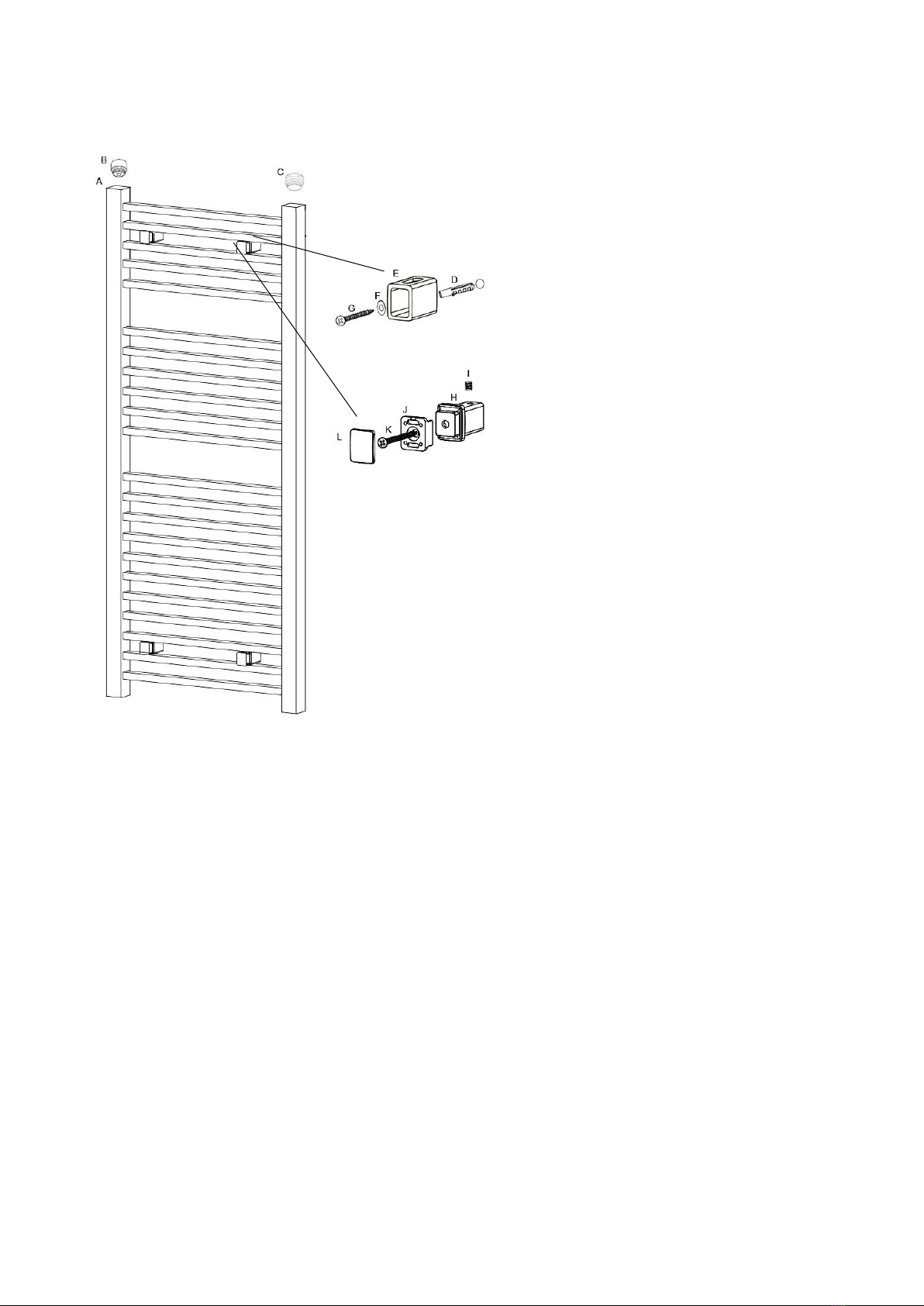

Parts

A. 1 x Radiator

B. 1 x Air Vent

C. 1 x Blanking cap

D. 4 x Wall plug

E. 4 x Wall Bracket

F. 4 x Washer

G. 4 x Wall screw

H. 4 x Adjustable Bracket

I. 4 x Grub Screw

J. 4 x Bracket Cover

K. 4 x Bracket Cover Screw

L. 4 x Cover Cap

Please note that Parts are for illustrative purposes only and may differ slightly to

the actual product

Tools required

Spanner

Allen key

Flathead screwdriver

Philips screwdriver

Tape measure

Drill and 8mm drill bit

Spirit Level

Pencil

Sealing tape

Installation

Please note: Before starting any installation, turn off the water supply.

Please note: Before commencing any installation, the desired location should be checked

before drilling, that no pipes or wires can be damaged.

First, prepare the water supply pipes to match up with the towel radiator and valve

dimensions being used. Fit the radiator valve tail and nut into the towel rail (at both sides)

and using sealing tape, tighten into position, then follow the installation below.

1. Insert the blanking cap and air vent in the top of the rail, (add a little sealer tape to

secure) and tighten using the spanner, be sure not to overtighten.

2. Mark the position of the wall brackets (on the wall) approximately 5cm in from the

inner edge of the towel radiator vertical bar. Use a spirit level to ensure that these

are aligned.

3. Using the drill and 8mm drill bit, drill into the marked positions then insert the wall

plugs and tap flush to the finished wall surface. Next, position the wall brackets and

screw into place using the screws provided (securing each with a washer) with the

Philips screwdriver.

Please note: If drilling into a tile, it is recommended to tape the wall to prevent the drill

from slipping.

4. Insert the adjustable bracket into the wall bracket. Once all brackets are secure,

hang the radiator until fixed firmly into place and adjust so that the rail aligns with

the pipework. Secure each with a grub screw using the Allen key.

Please note: You may need two people to hang the radiator, depending on the model

purchased.

5. Position the bracket cover in front of the towel rail bar and secure into place using

the screws provided with the Philips screwdriver. Finish each bracket by clipping on

the cover caps.

6. Finally, fit the radiator valves to the pipework and connect to the radiator valve tail

and tighten all connections.

IMPORTANT! The product is supplied un-filled.

The rail should be filled with a water (80%) and glycol (20%) mixture if NOT being

connected to the central heating system, also allow 5% air gap.

After installation

•After the above installation, turn on the water supply and using the flathead

screwdriver, open the air vent via the central screw, open the inlet valve and let the

water rush into the radiator. Check all connections for leaks.

•Once water overflows from the air vent, this means that there will be no air bubbles

present.

•Use a screwdriver to close the air vent and then the radiator is ready to use.

Cleaning

This radiator is made from steel with a painted finish. To maintain the surface of your

product, wipe with a clean damp cloth and wipe dry.

Do not use abrasive cleaning agents or materials which can strip and scratch the surface;

the use of these agents or materials can invalidate your guarantee.

It is recommended to wipe and dry on a regular basis.
