41kg(90.2 lb)
45kg(99.0 lb)
616×487×530mm
(24.3×19.2×20.9in)
726×598×650mm
(28.6×23.5×25.6in)
6
文件（图）名
产品名称
客户/品牌/型号
版本
第7页 共10页
文件（图）号
ELDER/β3/SLA212B
英文说明书
专业音箱
Sensitivity (dB)
20
60
70
80
90
100
110
60
18
5.5
3
50 100 200 500 2k 5k 10k 20k
1k
30
10
SL A212B
SLA Series Line Array System
Speaker Testing Method
1. Frequency response
Use Pink noise to test the speaker in the anechoic room, adjust
the level to make the speaker work at its rated impedance and
the power output is 1W, then test the frequency response 1m
away from the speaker.
2. Sensitivity
Use full range Pink noise which was modified by EQ curve to
test the speaker in the anechoic room, enlarge the signal to
make the speaker work at its rated impedance and the power
output is 1W, then test the sensitivity 1m away from the speaker.
3. MAX.SPL
Use full range Pink noise which was modified by EQ curve to
test the speaker in the anechoic room, enlarge the signal to
make the speaker work at its instant power output level, then
test the SPL 1m away from the speaker.
4. Rated Power
Use the pink noise according to IEC#268-5 to test the speaker,
enlarge the signal for continuous 100hours, the rated Power is
the power when the speaker will not incur hot damage or
mechanics damage.
Frequency response curve & Impedance curve
800W
1600W (MUSIC)
3200W (PEAK)
(RMS)
4 Ohms
NL4×2(one input, one output)
120dB/126dB(PEAK)
2×12"Woofer
Passive low-frequency speaker
4
Frequency response curve
Impedance curve
Plywood
Woofer:
1
2
3
Sensitivity(1W@1m):
Power:
N.W.(PC):
System:
Frequency response(-3dB):
Frequency response(-10dB):
Max.SPL(1m):
Rated impedance:
Cabinet:
Handle:
Surface:
Connector:
G.W.(PC):

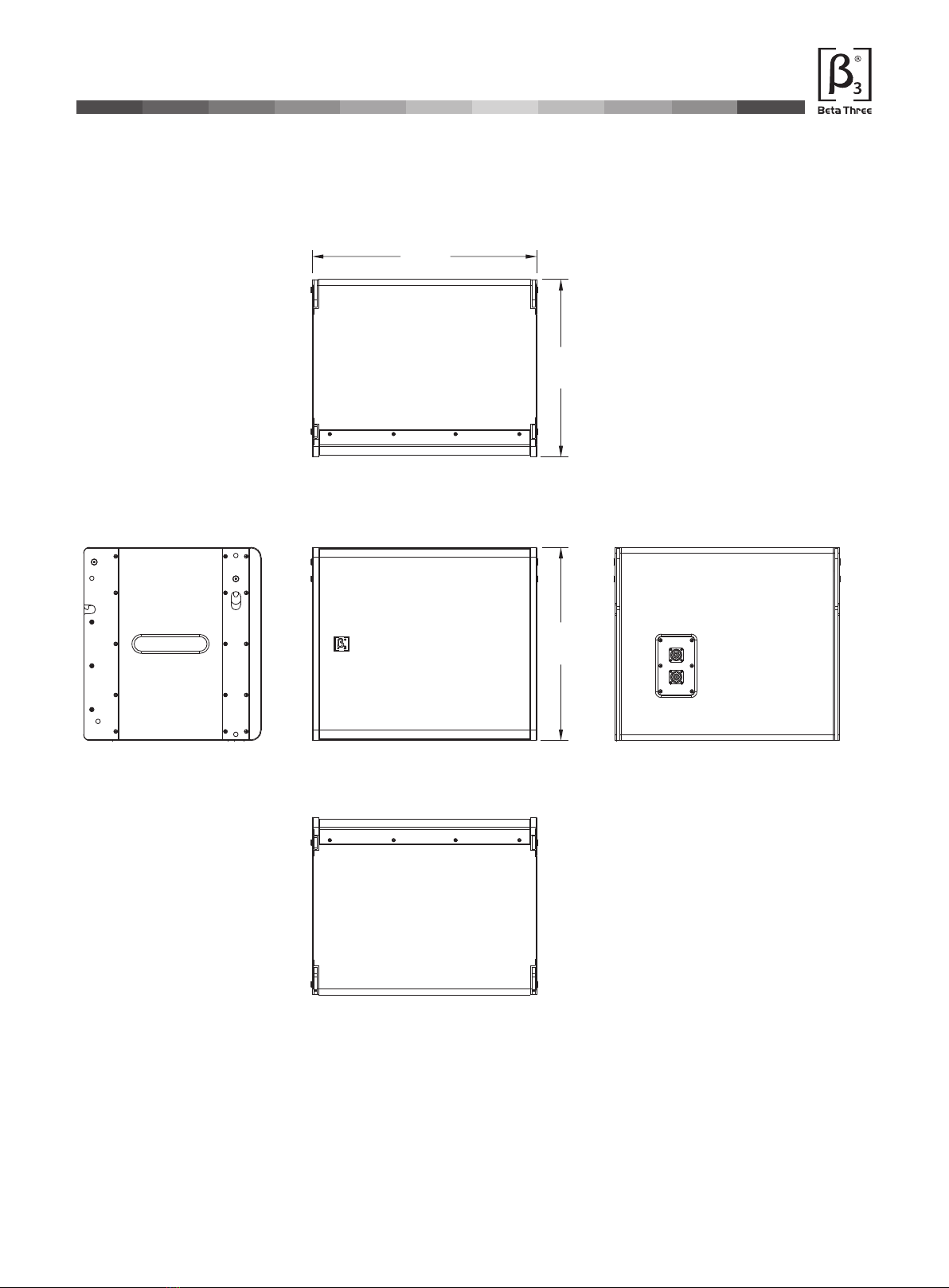

Cabinet dimension:
(W×D×H)
Package dimension:
(W×D×H)
Mounting accessories:
Frequency (Hz)
Impedance (Ohms)
TECHNICAL SPECIFICATIONS
55Hz-1kHz
94dB
50Hz-1kHz
Specialized hardware
2×Wooden handle
Black Polyurethane painting for
cabinet & Black Powder coated grille,
Grill with cloth.
SLF1 Hanging Frame
Optional mounting accessories:
Specification Sheet
