Bestop Trektop NX Manuel utilisateur
Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P1 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823

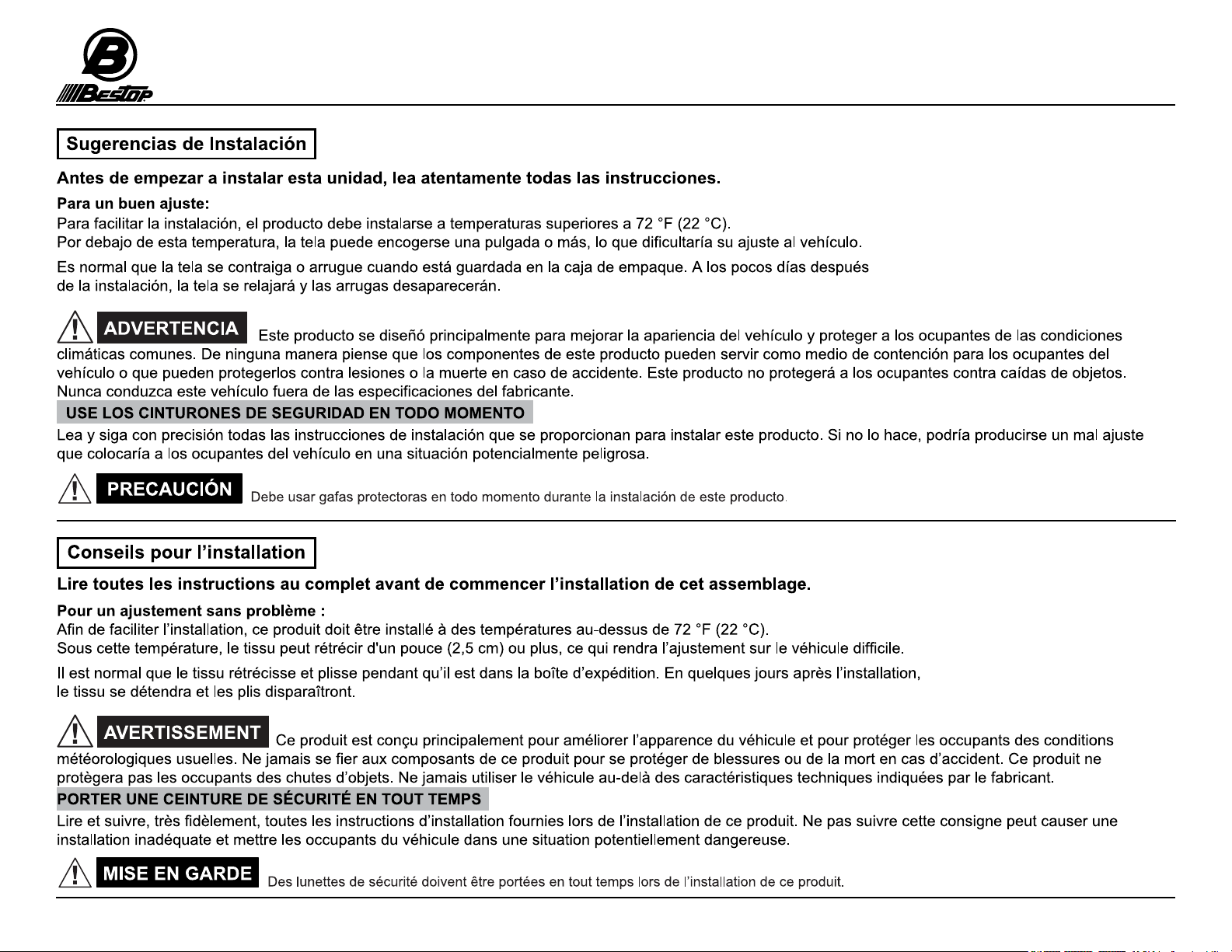

Before you begin installing your new Trektop NX, please read
all the instructions thoroughly, and watch the Bestop installation
video. (See Support section on this page)
For a smooth fit:
For easier installation, the top should be installed at a temperature above
72º F. Below this temperature, the fabric may contract an inch or more,
making it difficult to fit the vehicle.
It is normal for the fabric to contract and wrinkle when stored in the ship-
ping carton. Within a few days after installation, the fabric will relax and the
wrinkles will disappear.
Installation Tips
Safety glasses should be worn at all
times when installing this product.
This product is designed primarily to enhance the appearance of the vehicle and to shield the occupants from ordinary weather conditions. Do not rely in
any way on the components of this product to contain the occupants within the vehicle, or to protect against injury or death in the event of an accident, This product will not protect
the occupants from falling objects. Never operate the vehicle in excess of manufacturer
WEAR SEAT BELTS AT ALL TIMES
potentially dangerous situation.
Tools Installation Time
Skill Level
Support
We’re here to help!
Go to www.Bestop.com and
click “Contact Us”
See a video showing installation of this top at:
Or search Youtube for “Bestop Trektop NX install JK Unlimited (four door)”
http://www.youtube.com/watch?v=SiHjRyVdtqU
2 Hours
2 - Moderately Easy
Phillips
Screwdriver
13mm Socket
Utility Knife Ratchet
Safety
Glasses
Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P2 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
© 2016 Bestop, Inc.P3 - 56823 Rev. K 0116
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823

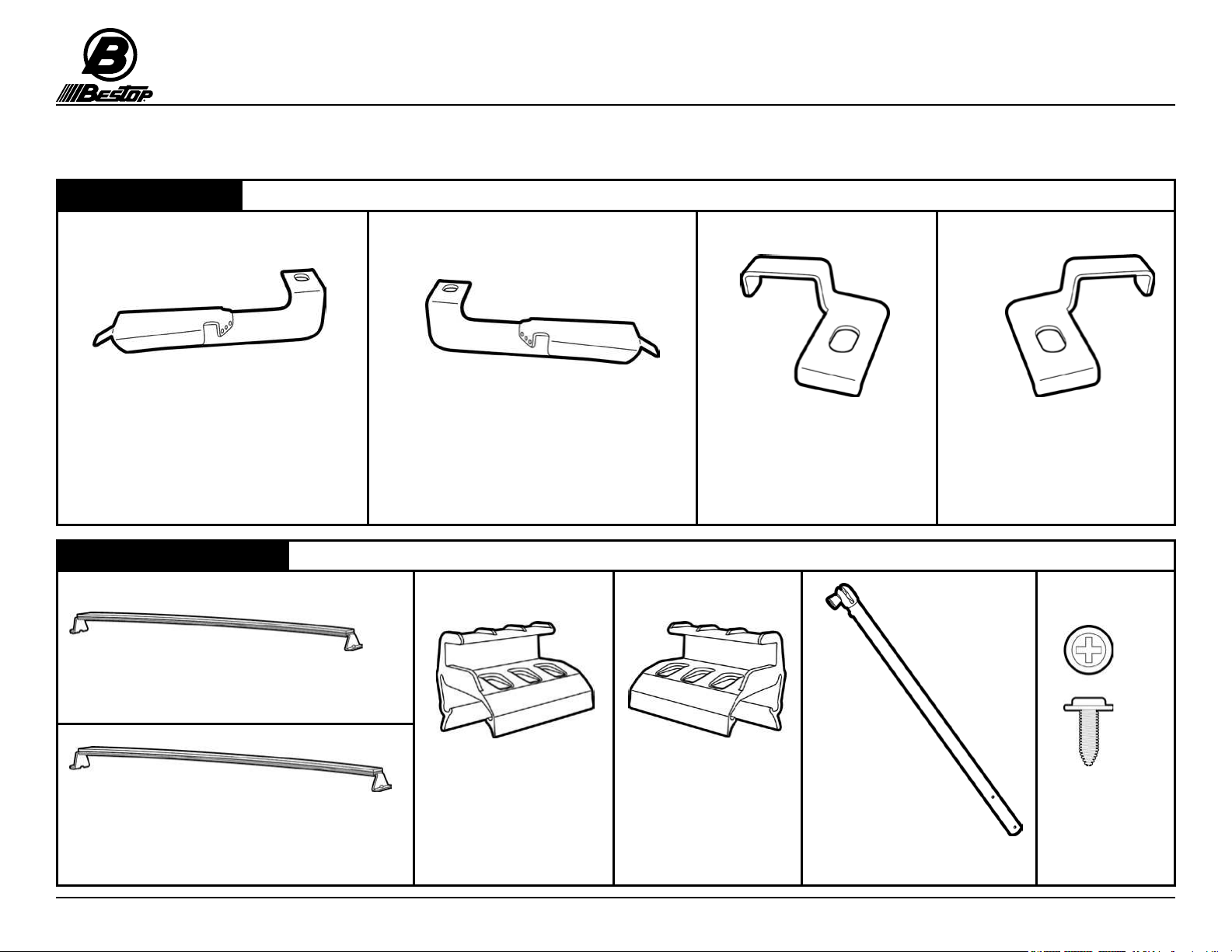

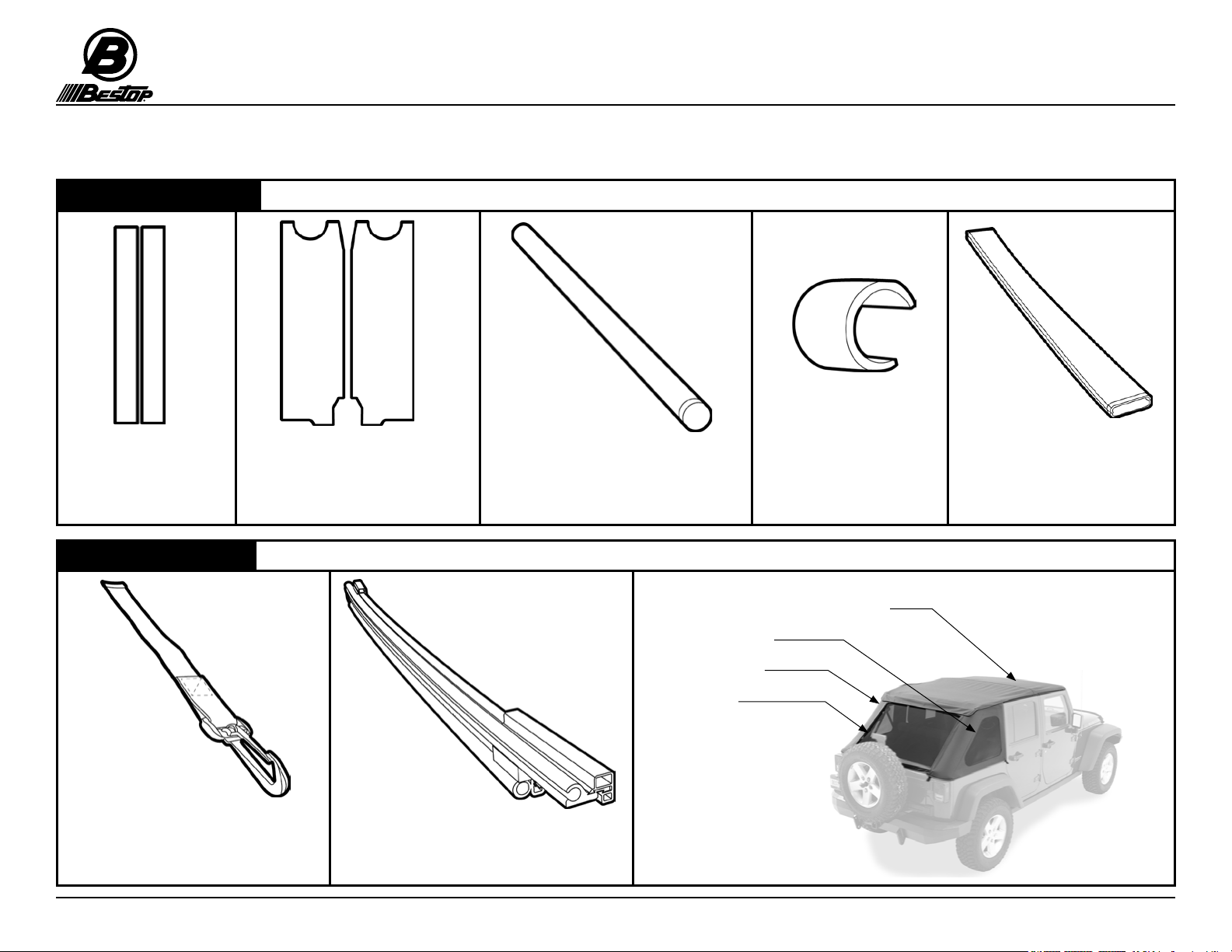

Parts List
- Required parts for each installation section - Page number in Installation Guide
Section 1 Rear Door Surrounds Page 6 of Guide
Rear Door Surround
Qty - 1
Part # 486.67 - Left
Rear Door Surround
Qty - 1
Part # 486.66 - Right
M8 x 75mm Knob
Qty - 4
Part # 478.90
Sections 2&3 Front Door Surrounds Pages 7 & 8 of Guide
Front Door Surround
Qty - 1
Part # 479.86 - Right
Front Door Surround
Qty - 1
Part # 479.87 - Left
Sunrider Bracket
Qty - 1 per side
485.50 Right (shown)
485.51 Left
M8 x 30mm Knob
Qty - 2
Part # 480.22
Installation Instructions
Trektop NX
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Parts List
- Required parts for each installation section - Page number in Installation Guide
Sections 6, 7, 8 & 9 Front & Rear Top Arches, Tailgate Bar Mounts & Side Bows Pages 13 to 18 of Guide
Front Top Arch
Qty - 1
Part # 483.24
Rear Top Arch
Qty - 1
Part # 483.27
Tailgate Bar Mount
Qty - 1
Part # 488.47 - Left
Tailgate Bar Mount
Qty - 1
Part # 488.46 - Right
#8 x 1/2” Screw
Qty - 8
Part # 393.79
Side Bow
Qty - 2
Part # 485.47
Installation Instructions - Trektop NX © 2016 Bestop, Inc.P4 - 56823 Rev. K 0116
Sections 4 & 5 Cable Brackets & Rear Bow Brackets Pages 10 to 12 of Guide
Cable Bracket Qty - 1
Part # 502.39 - Left
Cable Bracket Qty - 1
Part # 502.38 - Right
Rear Bow Bracket
Qty - 1
Part # 484.87 - Left
Rear Bow Bracket
Qty - 1
Part # 484.86 - Right
Installation Instructions - Trektop NX
Installation Instructions
Trektop NX
Vehicle Application:
Jeep Wrangler Unlimited (JK) 4 Door
2007 – Current
Part Number: 56823
Parts List
- Required parts for each installation section - Page number in Installation Guide
Sections 10 to 15
Sections 16 to 21
Foam Seals, Middle Bow, Bow Clip & Rear Bow
Web Strap, Tailgate Bar, Fabric Top and Windows
Pages 19 to 24 of Guide
Pages 25 to 31 of Guide
Web Strap with
Snap Hook
Qty - 2
Part # 460.37
Middle Bow
Qty - 1
Part # 486.21
Foam Tape Strips
Qty - 2
Part # 417.43
Foam Seals
Qty - 1 per side
Part # 457.76 Right
Part # 457.77 Left
Bow Clip
Qty - 1,
Part # 479.22
Tailgate Bar
Qty - 1
Part # 489.46
Rear Bow
Qty - 1
Part # 486.18
Deck, Header Assembly, & Fabric Top
Right Side Window
Left Side Window
Rear Window
© 2016 Bestop, Inc.P5 - 56823 Rev. K 0116
Installation Instructions - Trektop NX
Page 6
Rear Door Surround
Qty - 1 per side
486.66 Right (shown)
486.67 Left

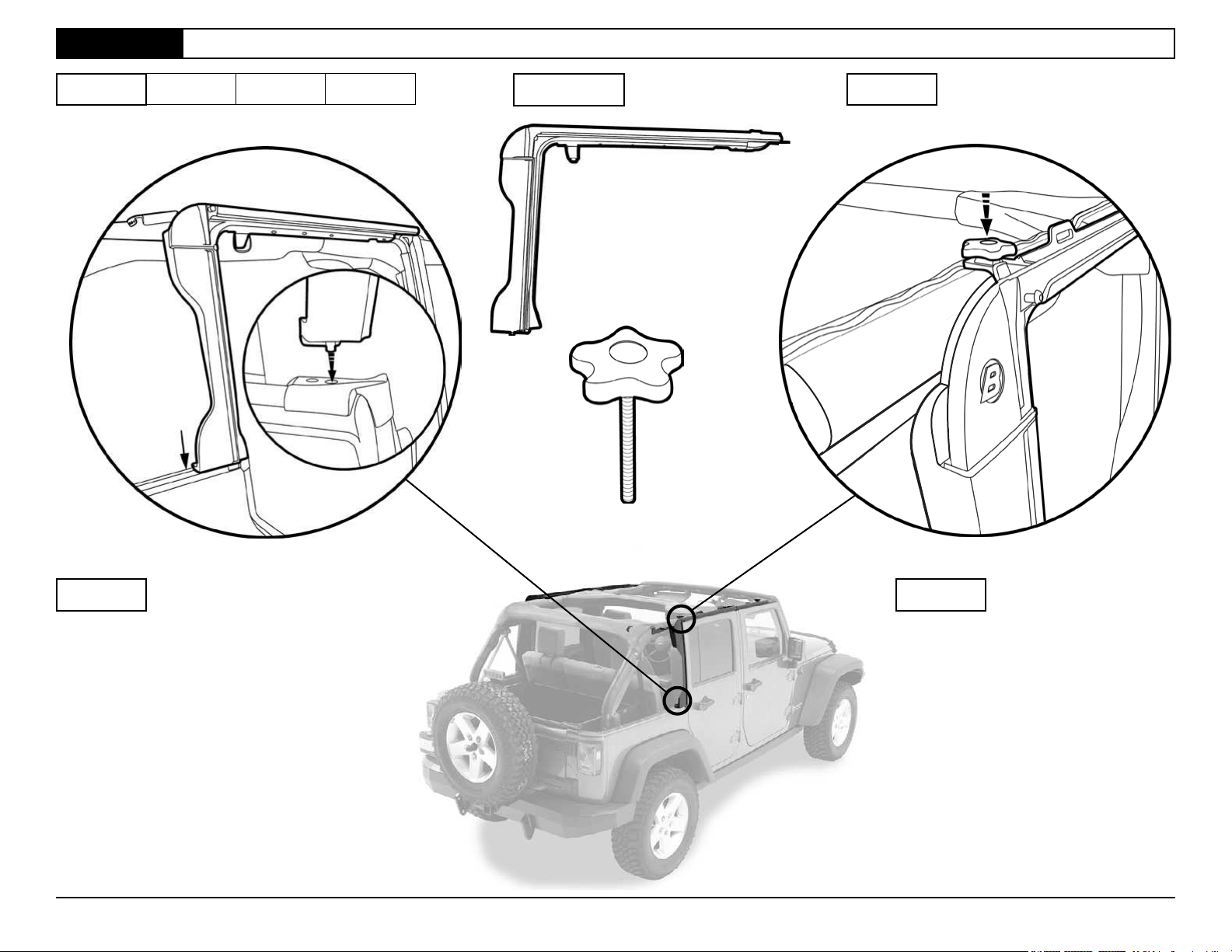

Install Rear Door Surrounds
Section 1
Step 1 Step 2486.66 486.67 478.90 Hardware
M8 x 75mm Knob
Qty - 1 per side
Part # 478.90
Insert the pin in the bottom of the Rear Door
Surround into the hole in the belt rail behind the
rear door opening. Press the channel along the top
of the Rear Door Surround around the horizontal
sport bar.
Repeat on the other side of the vehicle.
Open the Rear Door. Insert an M8 x 75mm Knob into the rear
position on the Door Surround.
Repeat on the other side of the vehicle.
Step 1 Step 2
© 2016 Bestop, Inc.P6 - 56823 Rev. K 0116
Installation Instructions - Trektop NX
Page 7

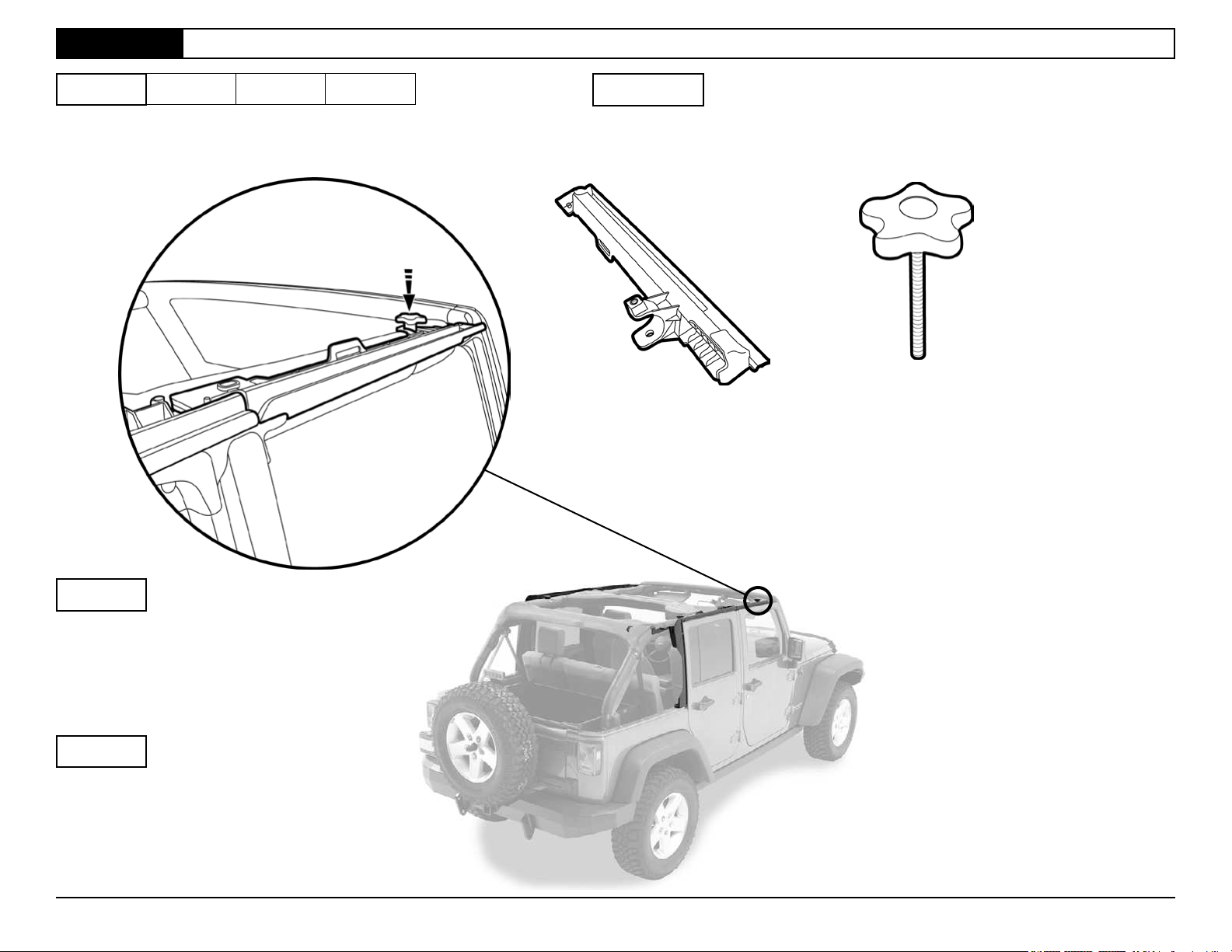

Install Front Door Surrounds
Section 2
Step 1 479.86 479.87 478.90 Hardware
Front Door Surround
Qty - 1 per side
479.86 Right (shown)
479.87 Left
M8 x 75mm Knob
Qty - 1 per side
Part # 478.90
Insert an M8 x 75mm Knob into the front
position on the Door Surround.
Repeat on the other side of the vehicle.
Step 1
Step 2
Position the Front Door Surround on the sport bar
above the passenger side door and press it into
place as with the rear.
Open the Front Door.
© 2016 Bestop, Inc.P7 - 56823 Rev. K 0116
Installation Instructions - Trektop NX
Page 8

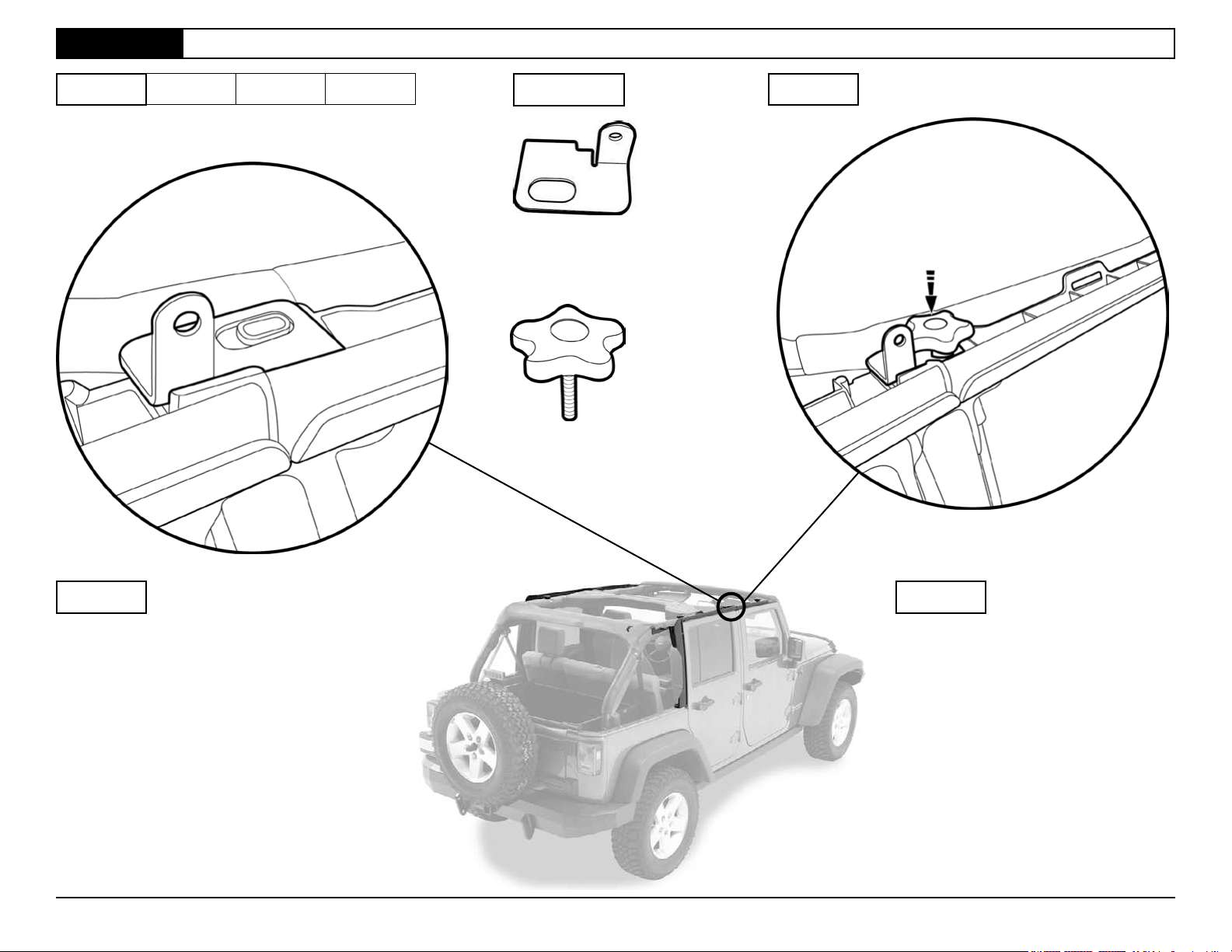

Install Sunrider Bracket
Section 3
Step 1 Step 2485.50 485.51 480.22 Hardware
Sunrider Bracket
Qty - 1 per side
485.50 Right (shown)
485.51 Left
M8 x 30mm Knob
Qty - 1 per side
Part # 480.22
Step 1 Step 2
Place the Right Sunrider Bracket over
the hole where the Front and Rear
Door Surrounds join.
Secure the Right Sunrider Bracket
with the M8 x 30mm Knob.
Repeat with the Left Sunrider Bracket.
© 2016 Bestop, Inc.P8 - 56823 Rev. K 0116
Installation Instructions - Trektop NX
Page 9

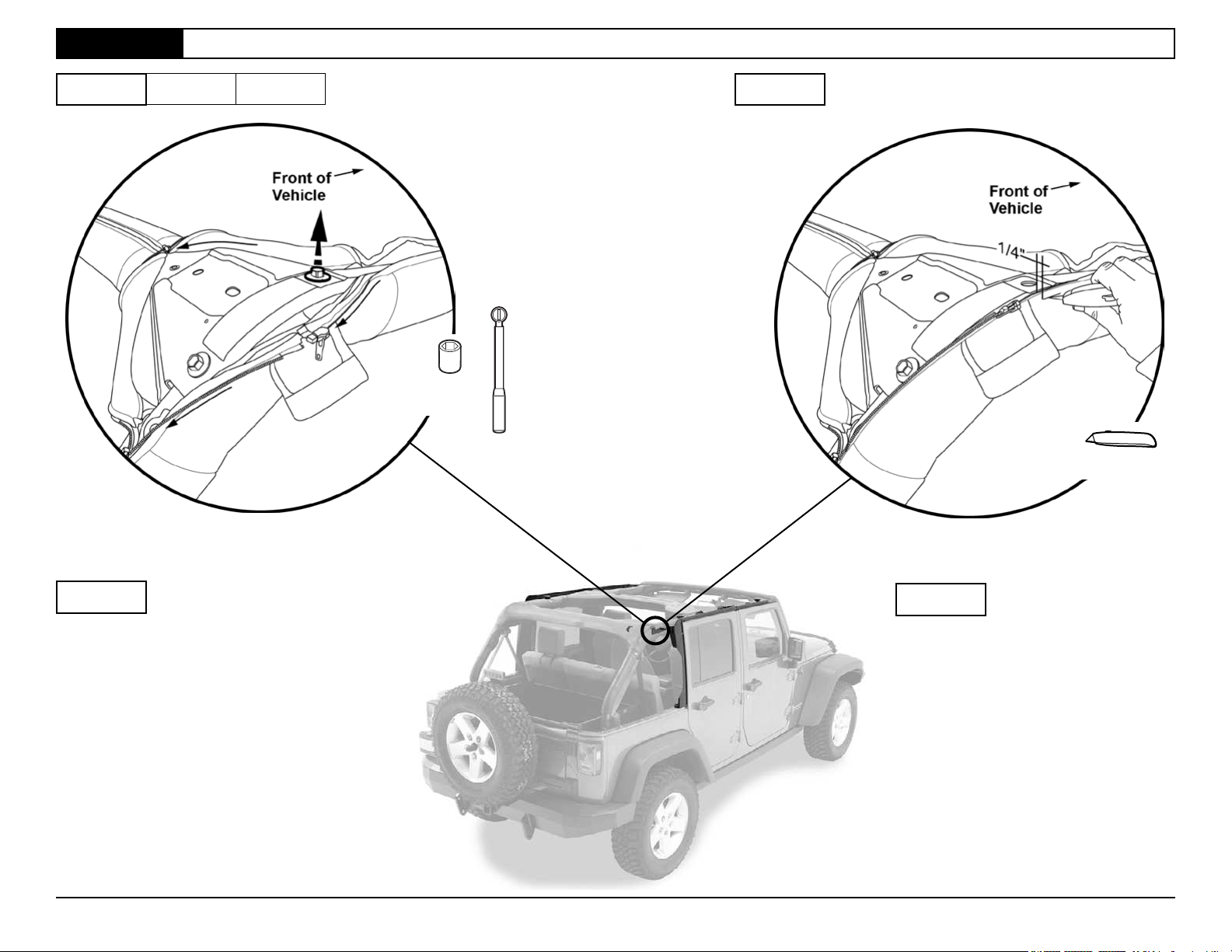

Install Cable Brackets
Section 4
Step 1 502.38 502.39 Step 2
Utility Knife
Step 1 Step 2
Unzip the upper rear and rear leg sport bar covers
and locate the upper sport bar bolt. Use a 13mm
socket and ratchet to remove the bolt and set it
aside to be reused.
Cut a horizontal slit the same width as the
Cable Bracket in the sport bar cover 1/4"
below the zipper and aligned with the bolt
hole.
© 2016 Bestop, Inc.P9 - 56823 Rev. K 0116
Ratchet
13mm
Socket
Installation Instructions - Trektop NX
Page 10

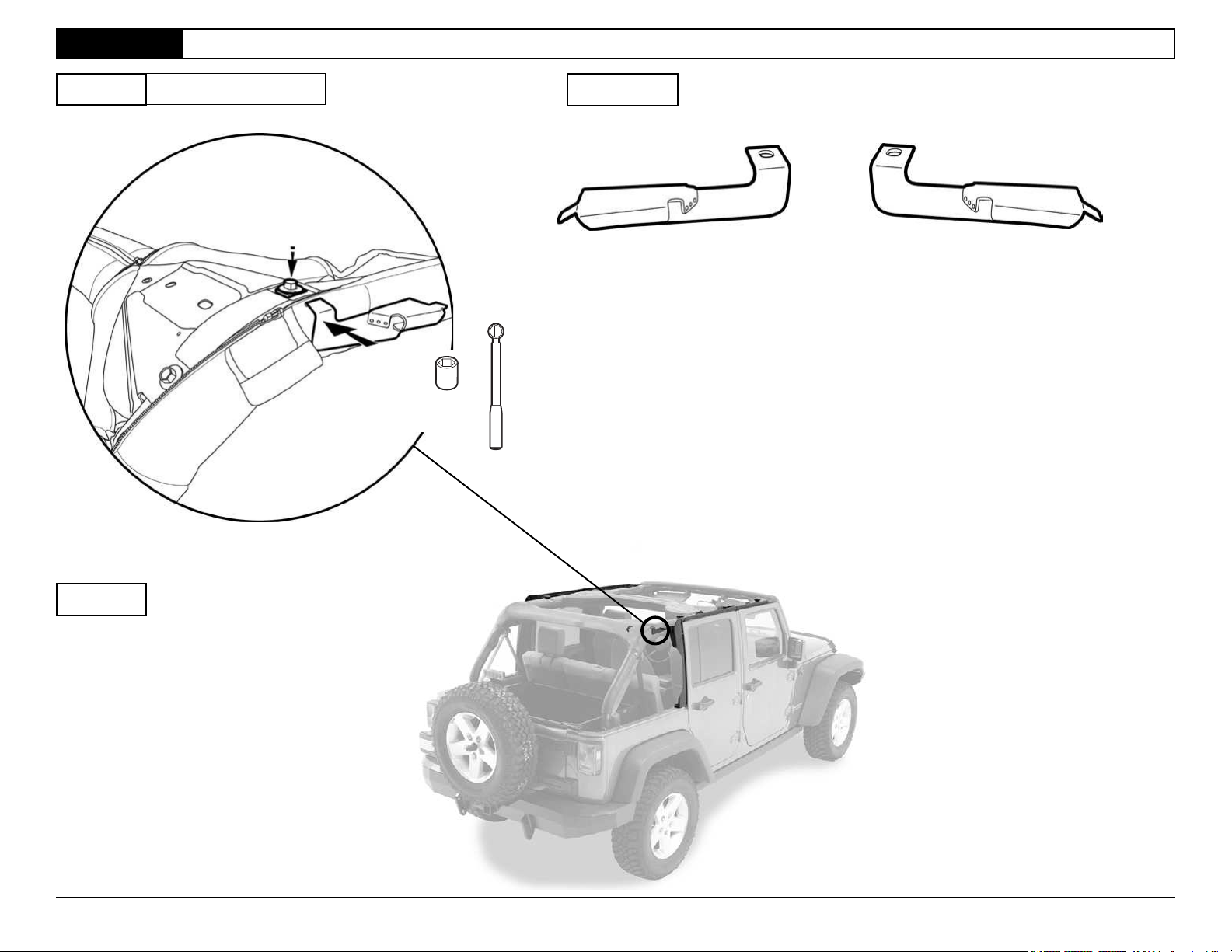

Install Cable Brackets (cont.)
Section 4
Step 3 502.38 502.39 Hardware
Cable Bracket
Qty - 1
Part # 502.39 - Left
Cable Bracket
Qty - 1
Part # 502.38 - Right
Step 3
Use the bolt that was removed to mount the
Cable Bracket to the sport bar through the
slit in the sport bar cover. Tighten the bolt.
Repeat on both sides of the vehicle.
© 2016 Bestop, Inc.P10 - 56823 Rev. K 0116
Ratchet
13mm
Socket
