Installation Instructions - Fabric Replacement Top for Trektop NX

Installation Instructions

Fabric Replacement Top for Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited TJD

2004 – 2006

Part Number: 52821

Before you begin installing your new Trektop NX, please read

all the instructions thoroughly.

For a smooth fit:

For easier installation, the top should be installed at a temperature above

72º F. Below this temperature, the fabric may contract an inch or more,

making it difficult to fit the vehicle.

It is normal for the fabric to contract and wrinkle when stored in the ship-

ping carton. Within a few days after installation, the fabric will relax and the

wrinkles will disappear.

Installation Tips

Safety glasses should be worn at all

times when installing this product.

This product is designed primarily to enhance the appearance of the vehicle and to shield the occupants from ordinary weather conditions. Do not rely in

any way on the components of this product to contain the occupants within the vehicle, or to protect against injury or death in the event of an accident, This product will not protect

the occupants from falling objects. Never operate the vehicle in excess of manufacturer’s specications.

WEAR SEAT BELTS AT ALL TIMES

Read and follow, precisely, all installation instructions provided when installing this product. Failure to do so may result in a poor t and could place occupants of the vehicle in a

potentially dangerous situation.

Tools Installation Time

Skill Level

Support

We’re here to help!

Go to www.Bestop.com and

click “Contact Us”

See a video showing

installation of this top at

www.bestop.com/video

1/2 Hour

2 - Moderately Easy

Safety

Glasses

Phillips

Screwdriver

Utility Knife

Installation Instructions - Fabric Replacement Top for Trektop NX

Installation Instructions

Fabric Replacement Top for Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited TJD

2004 – 2006

Part Number: 52821

Installation Instructions - Fabric Replacement Top for Trektop NX

Installation Instructions

Fabric Replacement Top for Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited TJD

2004 – 2006

Part Number: 52821

Rear Bow

Qty - 1

Door Surround - Left

Qty - 1

!STOP! Do not proceed unless you have a Trektop NX already installed.

You will need these parts to complete the installation

Tailgate Bar

Qty - 1

M8 x 75mm

Knob

Qty - 1

Tailgate Mount - Left

Qty - 1

Tailgate Mount - Right

Qty - 1

Door Surround -

Right Qty - 1

M8 x 75mm

Knob

Qty - 1

Windshield Header, Side

Bow Assembly

Qty - 1

Installation Instructions - Fabric Replacement Top for Trektop NX

Installation Instructions

Fabric Replacement Top for Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited TJD

2004 – 2006

Part Number: 52821

Fabric Top

Right Side Window

Left Side Window

Rear Window

J-Hook Buckle Strap,

Qty - 2

Part # 486.23

Included Parts

Used in Sections 9 and 11

Used in Sections 5 – 16

Buckle Strap and Stiffeners

Fabric Top and Windows

Used on Pages 14 and 16

Used on Pages 10 – 22

Stiffeners

Qty - 1 per side

Part # 505.40 (R) & 505.41 (L)

Page 5

Remove Side and Rear Windows

Section 1

Step 1

Remove Side Windows and Rear Window.

Page 6

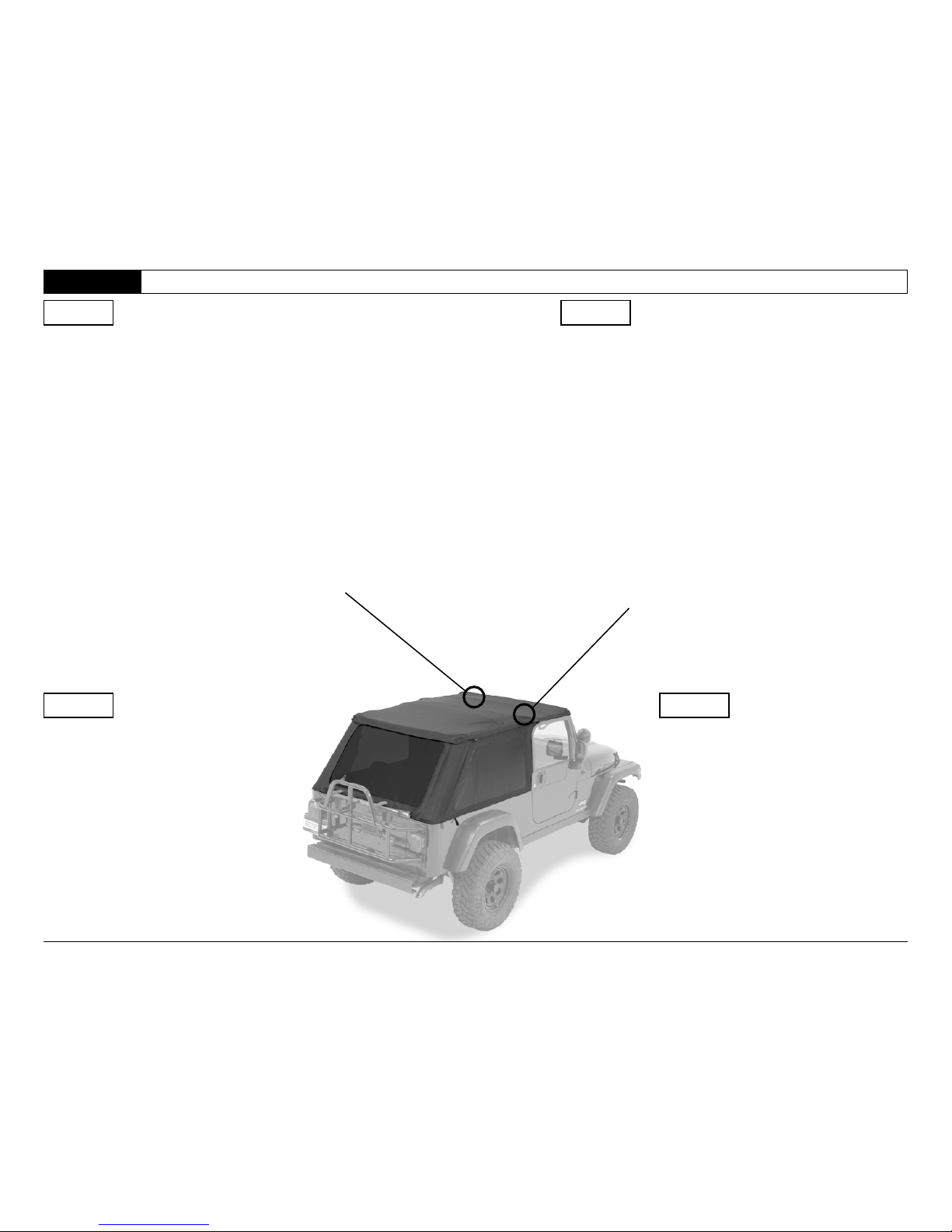

Section 2 Release Plastic Strips and Web Straps

Step 1 Step 2

Step 3

Step 1 Step 3

Step 2

Release plastic strips above the doors

from the channel in the Door Surround on

each side of the vehicle.

Release straps around sport bar.

Loosen, remove, and discard Rear Strap.

Page 7

Section 3 Remove Header and Fabric From Vehicle

Step 1 Step 2

Release the latch that secures the header

to the windshield. Pull up on the lever and

then down and out to release the hook

from the slot in the windshield frame

Fold the Top Fabric toward the front of the Header.

Pull the release knob on the Side Bow to release

the pin from the Door Surround Bracket. Repeat on

the other side of the vehicle.

Page 8

Section 3 Remove Header and Fabric From Vehicle (cont.)

Step 3

Release the J-Hooks on the rear bow aps

from the ends of the Rear Bow. Slide the

Rear Bow out of the pocket in the Top

Fabric.

Page 9

Section 4 Remove Fabric From Header

Step 1

Phillips

Screwdriver

Step 1

Remove the #8 x 5/8” Pan Head Screws

along the front of the header.

Remove the Oval Head Screw in the out-

side holes on each side of the Header.

Set all screws aside to be reused.

Page 10

Phillips

Screwdriver Utility Knife

Section 5 Install Top Fabric On Header

Step 1 Top Fabric

Step 1

Lay the top fabric, backing side up and

aligned with the front edge of the Header.

Use a utility knife to slit the fabric over

each screw position. Locate the round hole

that marks the center of the plastic strip

(all other holes are slotted). Install a #8 x

5/8” Pan Head Screw in the round hole

to secure the fabric to the header as well

as to center the top. Then install #8 x 5/8”

Pan Head Screws in the remaining holes

along the front of the header.

Install an Oval Head Screw in the outside

holes on each side of the Header.
