BestGuarder SG-007 series Manuel utilisateur

INVISIBLEIRGUARDCAMERA

INSTRUCTION MANUAL

Model : SG-007 series

V1.0    2012.Nov

TABLEOFCONTENTS

CameraKitContents………………………………...…..3

CameraOverview…………….…………………………..4

GeneralInformation……………………………………..8

Definitions………….…………………………………………9

QuickStartGuide………………………………………….12

BatteryandMemoryInstallation……………….…13

CameraSetupandProgram…………………….…..15

UsingtheCamerainPIRDetectionMode….…27

UsingtheCamerainTimeLapseMode…….….29

ViewingandDeletingFiles…………………..……...30

TechnicalSpecifications……………………….….…..34

FCCCompliance…………………………………….…….38



CameraKitContents

1. InvisibleIRGuardCamera.

2. InstructionManual.

3. Strap.

4. USBCable.

5. AVCable.

6. WallMountingDevice.

7. Mountingscrews.





CameraOverview

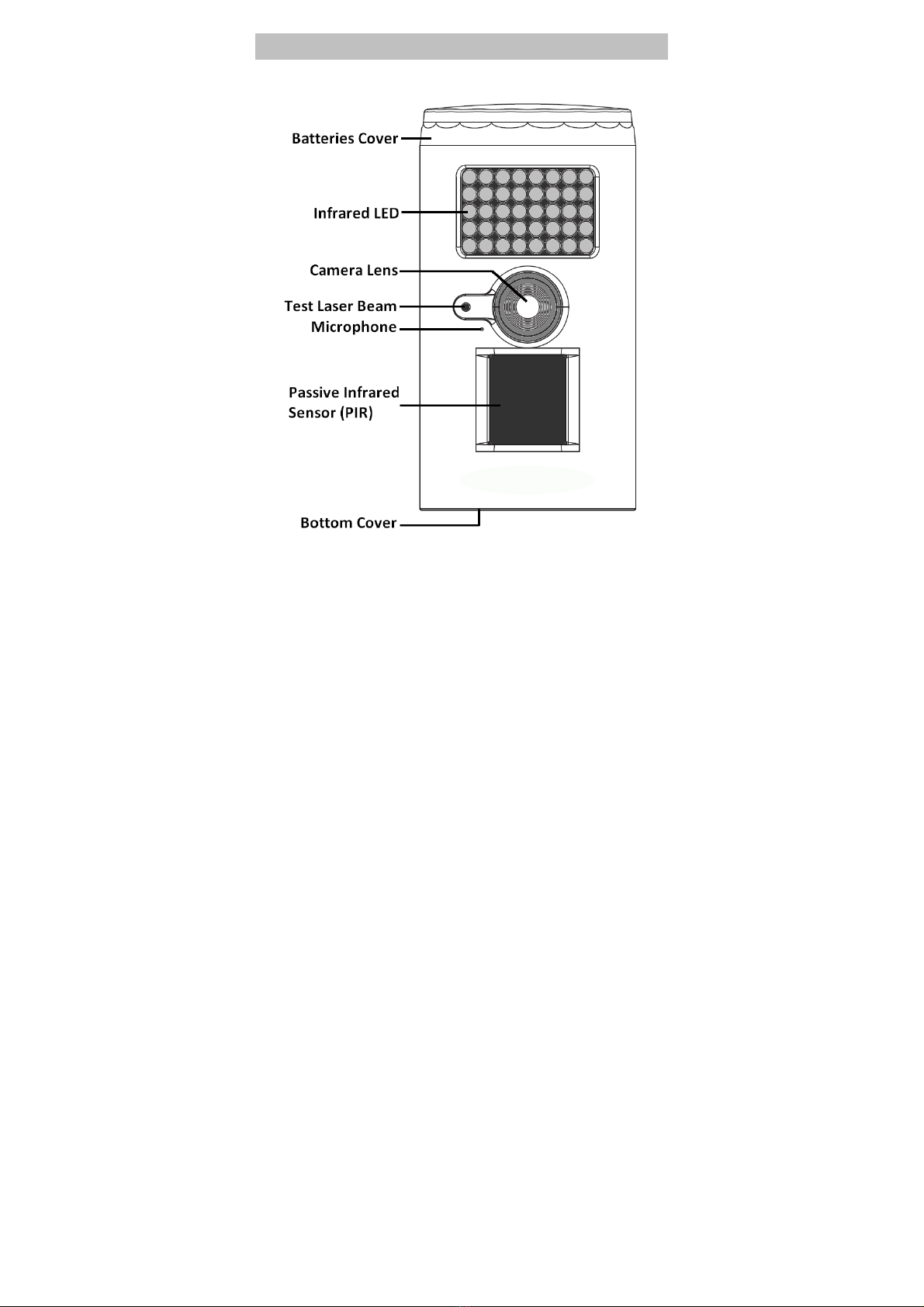

FrontView



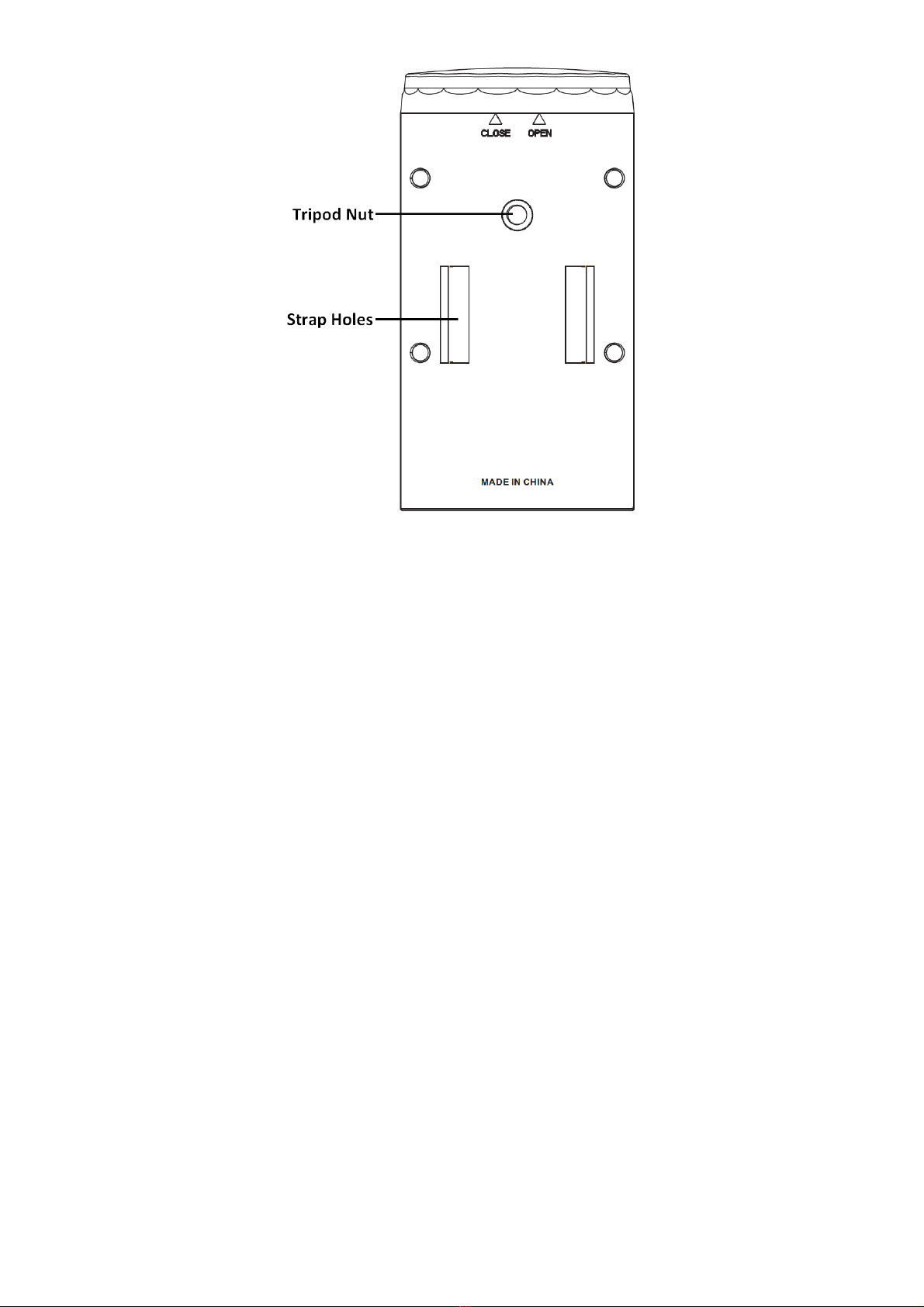

BackView



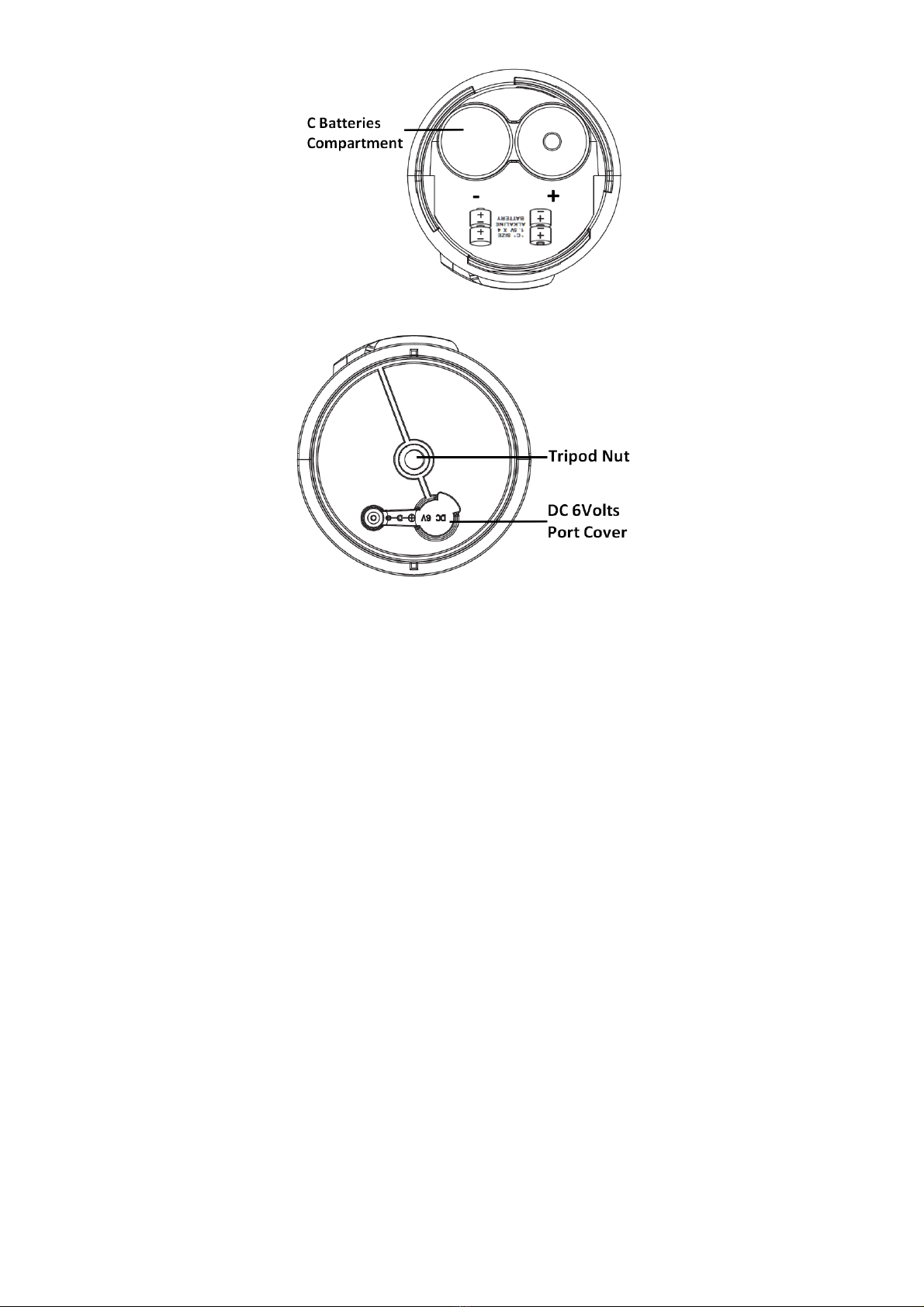

TopView(AfterOpenTopCover)



BottomView



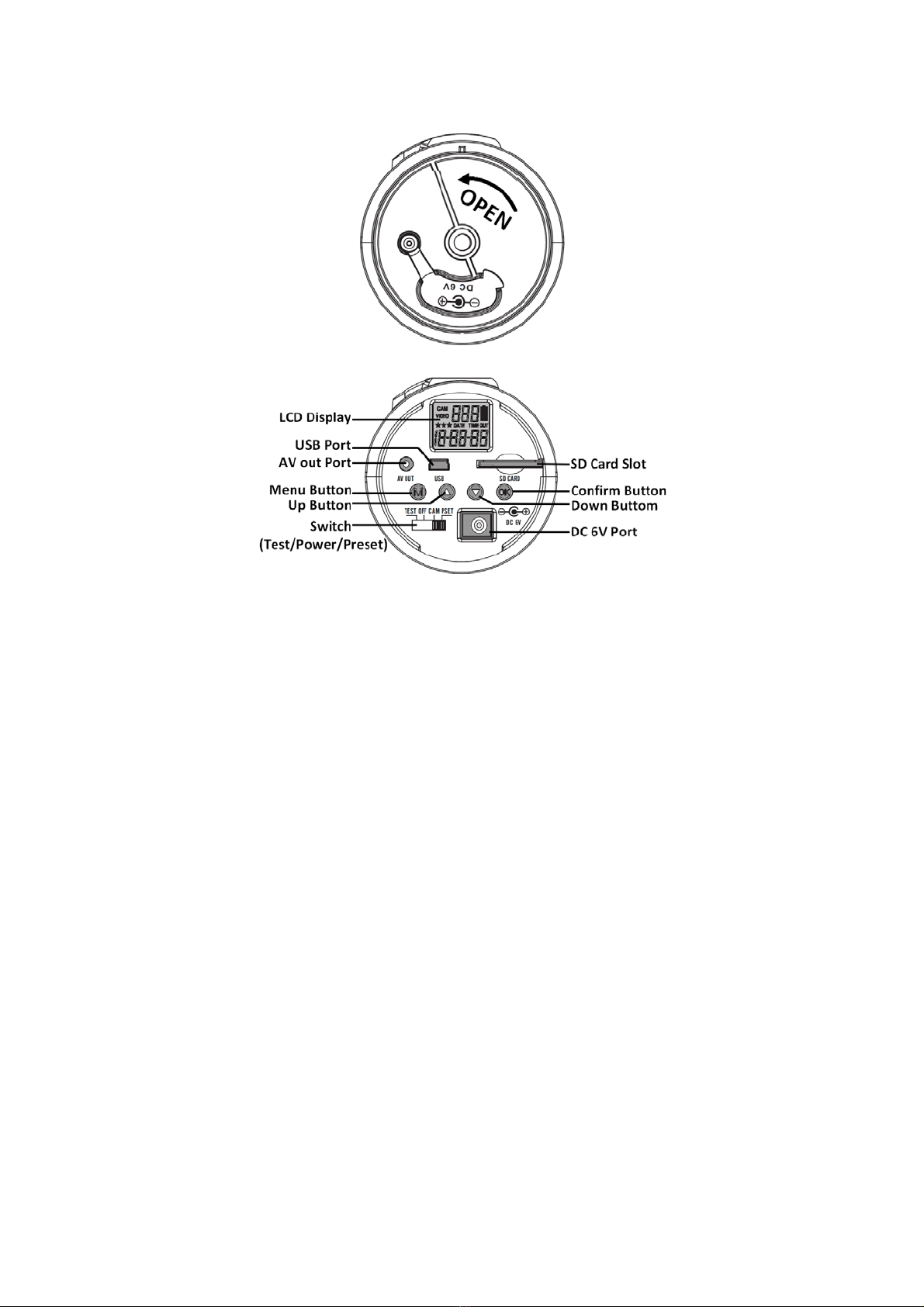

OpenBottomCoverImagewithmajorparts

indication

•Followbelowfiguretoturnthebottomcovertoopen.



GeneralInformation

Storingconditions

•OperatingEnvironment:‐4to122degF(‐20to50degC).

20‐85%relativehumidity,non‐condensing.

Specialcareinstructions!!

•Thecameraisdesignedtobeweatherresistant.Never

attempttoimmersetheunitinwateroranyotherliquid.

Thiswilldamagetheunitandvoidthewarranty.

•Useasoftlensclothforcleaninglens.Avoidtouchinglens

withfingers.Andremovedirtorstainswithasoftcloth

dampenedwithwaterorneutraldetergent.Keepyour

camerainadryandcooldust‐freeenvironmentor

containerwhenitisNOTused.

•Takethebatteriesout,whencameraisNOTtobeused

overanextendedperiodoftime.

•Avoiddroppingyourcameraontoahardsurface.

•Donotdisassembleyourcamera.

•Donotmixnewandoldbatteries.

•Donotopenthecameraforunauthorizedservice.This

couldcauseseriousdamagetotheunitandWILLvoidthe

warranty.

¾NOTE:Thiscameraisaprecisionelectronicdevice.Do

notattempttoservicethiscamerayourself,asopening

orremovingcoversmayexposeyoutodangerous

voltagepointsorotherrisks.

Definitions

DefinitionsofFrontViewparts

•BatteriesCover:Turntoopenthecovertoinstallthe

batteries.

•InfraredLED:Itisinvisiblelightfornighttimecapture.

•CameraLens:Itistocapturetheimage/video.

•TestLaserBeam:Itistoidentifythecaptureareaand

countdownindication.



Pleaseavoidthelaserbeampointtoyoureyes.



•Microphone:Itistopickupthesoundswhilevideoin

recording.

•PassiveInfraredSensor:Itistodetectthemovingobject.

•BottomCover:Turntoopenthecovertosetthecamera.



DefinitionsofBack,TopandBottomviewparts

•TripodNut:Itistoattachthewallmountdevice.

•StrapHoles:Itistoattachthecameratopillarortreeby

providedstrap.

•BatteriesCompartment:ItistoinstalltheCbatteries.

•DC6VoltsPortCover:OpenittoconnectaDC6V

externalpower.Tightlyclosetopreventthewaterleakage.

¾NOTE:Makesuretheinstalledbatteriesortheexternal

powerisincorrectpolarity.

DefinitionsofBottomOpenViewparts

•LCDdisplay:Itistodisplaythesettingandcamerastatus.

•USBport:ItistoconnectthecameratoPCbyprovide

USBcableforcapturedimage/videodownload.

•AVout:ItistoconnectthecameratoTVbyprovideAV

cabletoplaythecapturedimage/video.

•MenuButton:Pressingintothecameramodetochange

thesetting.

•UpandDownButton:Pressingtochangethemodeand

adjustthesettingvalue.

•Switch:Switchingtoturnon/offthepowerorgointo

test/PresetMode.

•SDCardSlot:ItistoinstalltheSDmemorycard.

•ConfirmButton:Pressingtoconfirmthesettings.

•DC6Vport:ItistoconnecttheDC6Vexternalpower



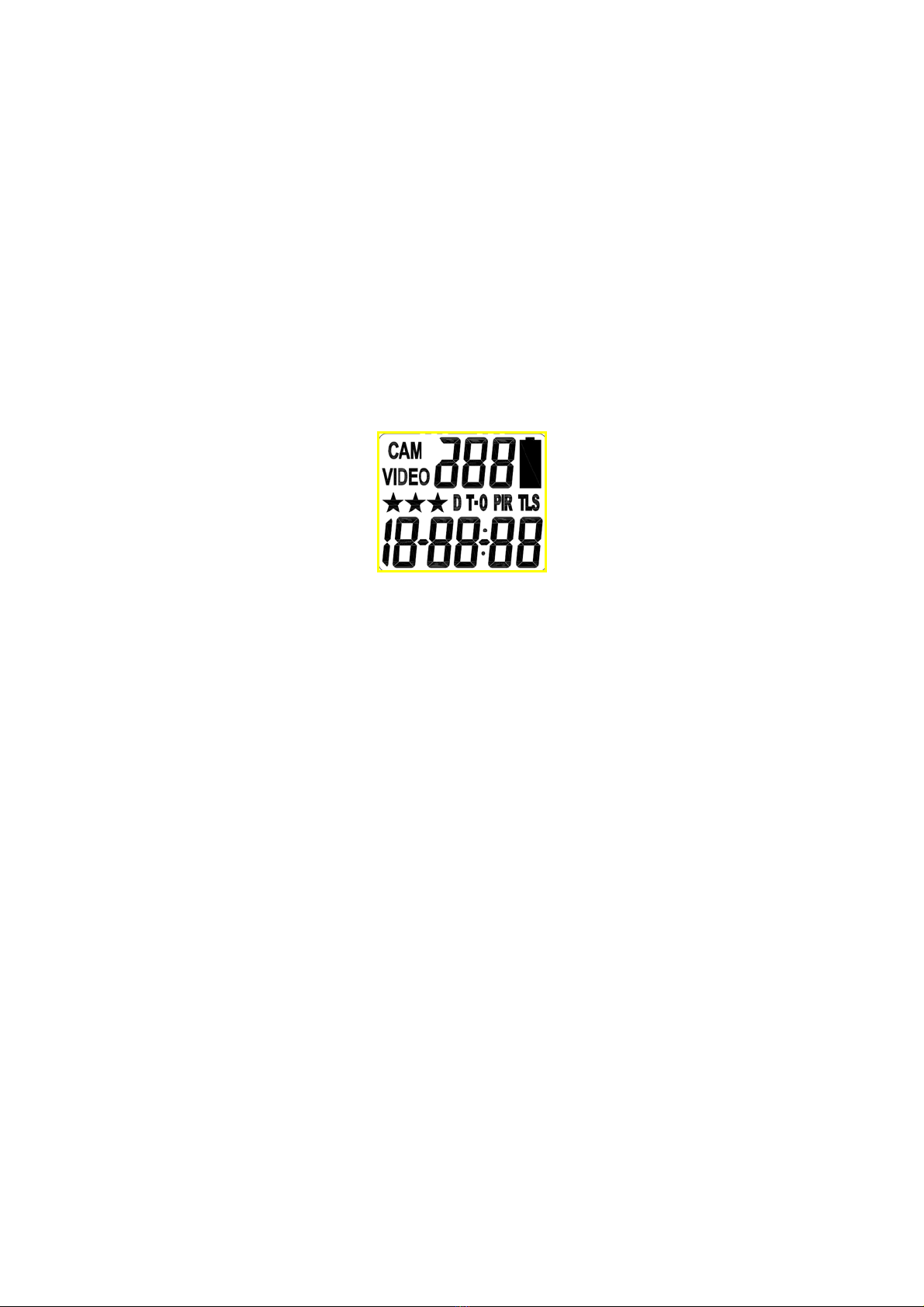

DefinitionsofLCDDisplay


