BESAFE Handicap Manuel utilisateur

EN - Installation Instructions

IZi Kid Isox Handicap

For assembly of the chair in the car and the child in the chair, original

assembly iZi Kid Isox instructions shall be used. Aids in the chair for the

Disabled children are recorded in this user manual.

Besafe IZi Combi Handicap

For assembly of the chair in the car and the child in the chair,

original assembly iZi Combi instructions shall be used. Aids in the

chair for Disabled Children are written in this manual.

Installation instructions for iZi Kid Isox Handicap and iZi Combi Handicap

For assembly of the chair in the car and child in the seat, original assembly instructions iZi Kid Isox and iZi Combi

should be used. The most current is available at www.hts.no Both chairs have the same equipment,

a) Abduction block b) adjustable side support c) harness,

Adjustments and adaptations

Adjustable lateral side support

Before beginning the regulation, try the child in the chair and see how much that should be

regulated. It is advantageous that this is narrow, so that the child is stable.

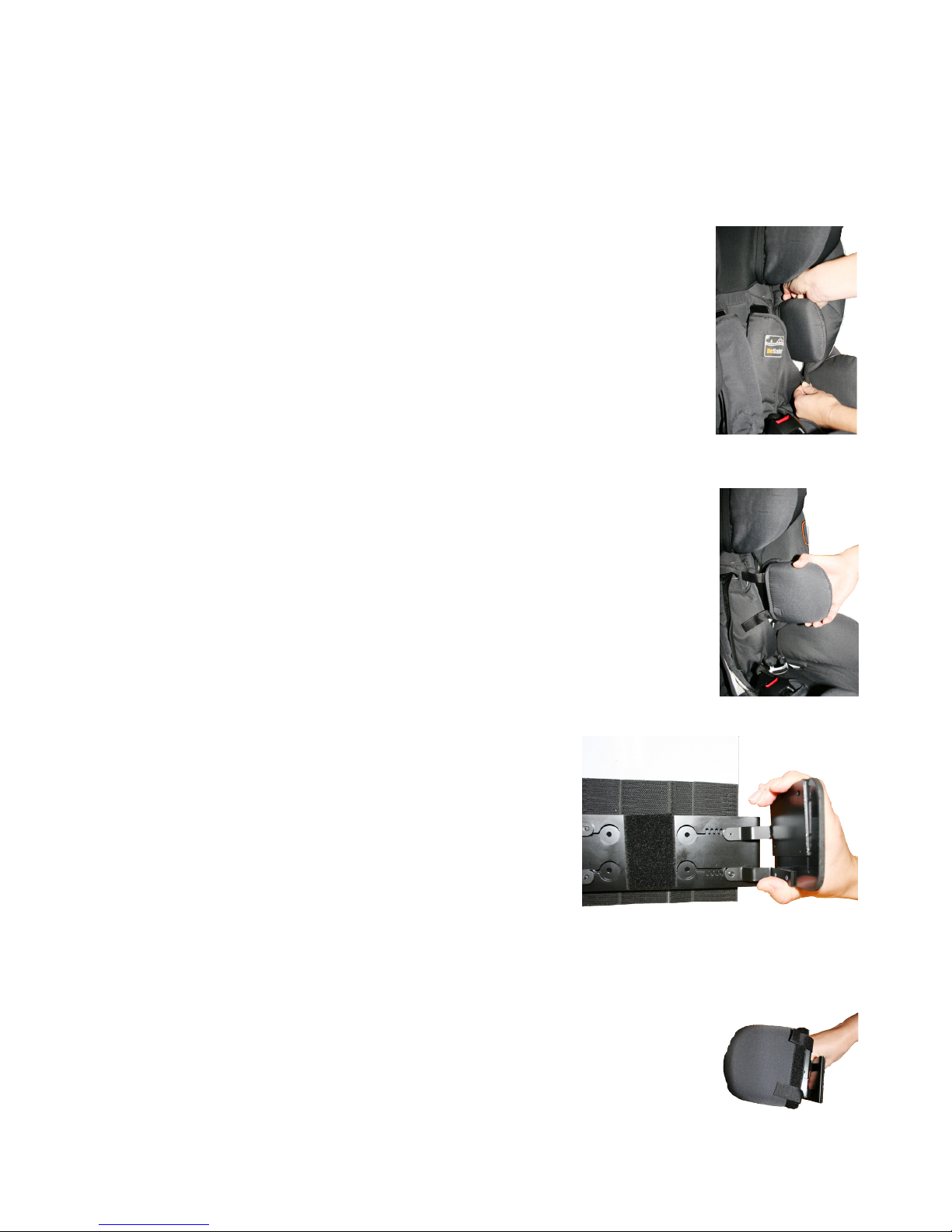

1. Open the zipper in the chairs back part. See g 1

2. Remove the lateral upholstery (black molded part). Velcro Band in the back of the side sup-

port is loosened rst see g 2

3. Squeeze the metal clamp; see Figure 3, now you can freely choose the

position of the lateral

4. Make sure the spring-loaded mechanism is in place by means of a

click, and you can not move this side

5. Replace the lateral support upholstery, remember to attach them with Velcro and pull down

the zipper. See Fig 4 / Fig 1

Fig 4

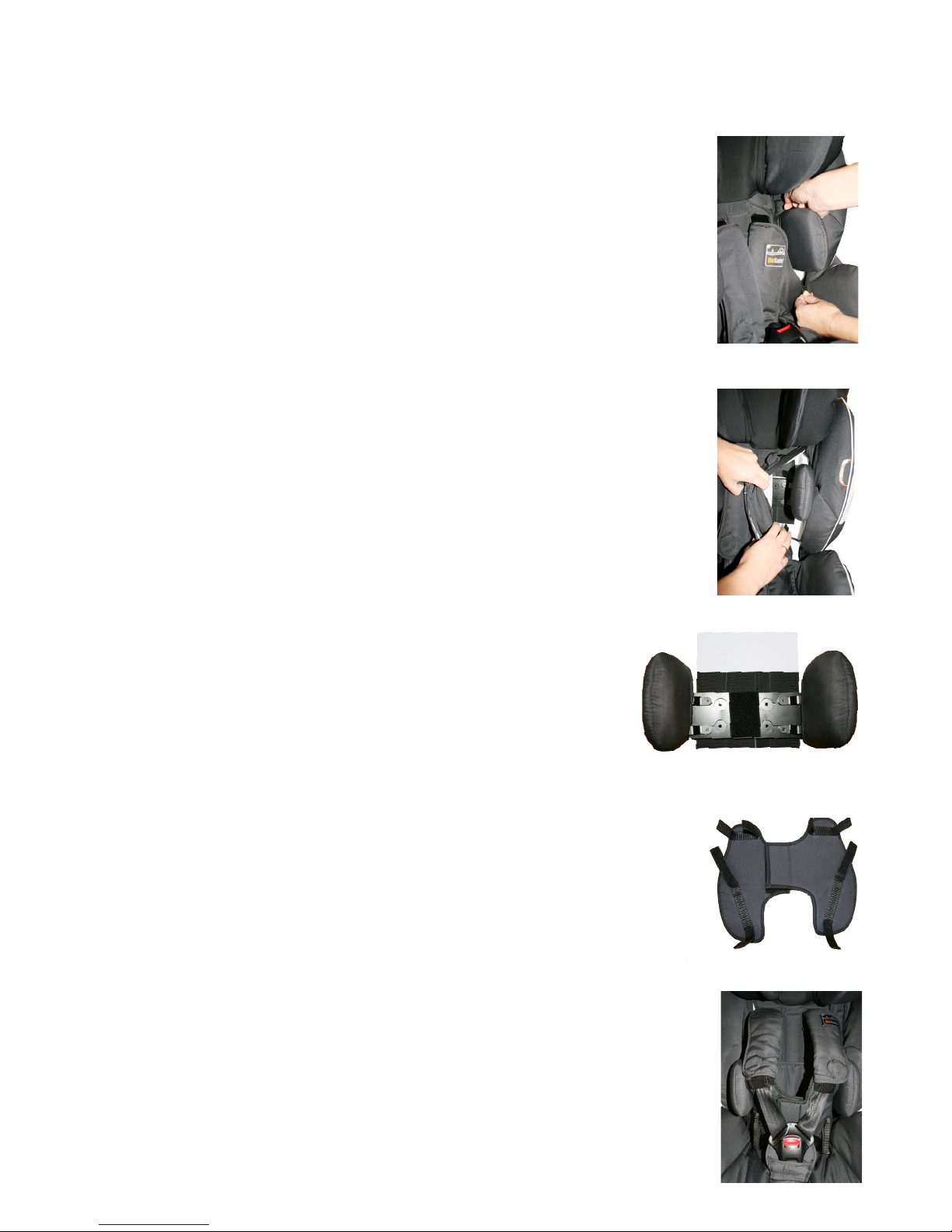

Regulation of the height of the handrail.

Both iZi Kid Isox Handicap and iZi Combined Handicap has automatic height adjustment of the side support, as it fol-

lows the head ventral height regulation. We recommend that the side supports only adjusts with this function. If you

still have to ne tune the height, the procedure as follows:

1. Open the zipper in the chair back part. See g 1

2. Loosen Side support attached sitting with Velcro attachment, See Figure 5

3. Set it in the desired height, see Figure 5a, not outside the Velcro, it is not possible to

change parts of the product. Side support bracket is attached with Velcro on a white plastic

plate; the white plastic plate is again attached with Velcro to the black plastic plate in the

seat back section.

4. Replace the side support xed rmly in place and check that it sits well with Velcro section

of the chair back.

5. Pull together the zipper to the side support brackets. See Figure 1

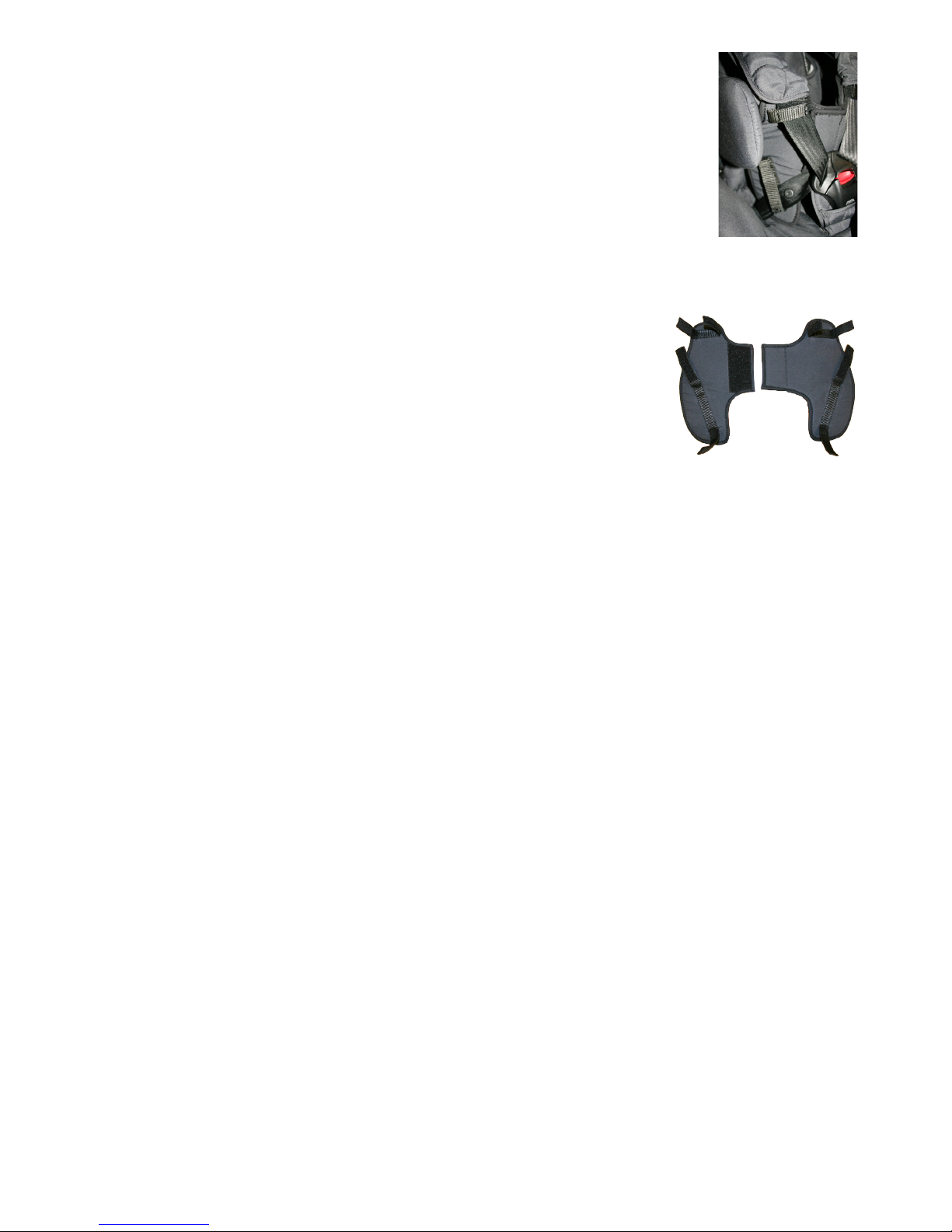

Installation of the Harness

1. Loosen all four attachment points on the Harness. See Figure 6

2. Place the harness on the inside of the 5-point belt, and attach the belt to the harness.

Fig 1

Fig 5

Fig 5a

Fig 6

Fig 7

3. Important: The bottom mounts to the harness is wider than the seat 5-point belt. This is

done to avoid that the harness is changing belt-correction to the child’s hips; the harness

should not at any time terminate the belt direction! See Figure 8

4. Harness opens and closes easily with Velcro in the middle. See Figure 9

Abduction block

When washing remove this. Be careful not to loosen the Velcro when you take it off.

Cleaning

For removing the covers shall be used original installation instructions with the exception of the label.

Wash: Hand wash 40 ° C and drip dry

Fig 8

Fig 9

Stamveien 6, N-1481 Hagan

Tlf +47 67 06 49 00 - Fax 67 06 49 90

E-mail: [email protected] - www.medema.com

Distributor

Manufacturer
