Berry 2900 Manuel d'instructions
6
10/02
SPARES
LIST
2900/2950

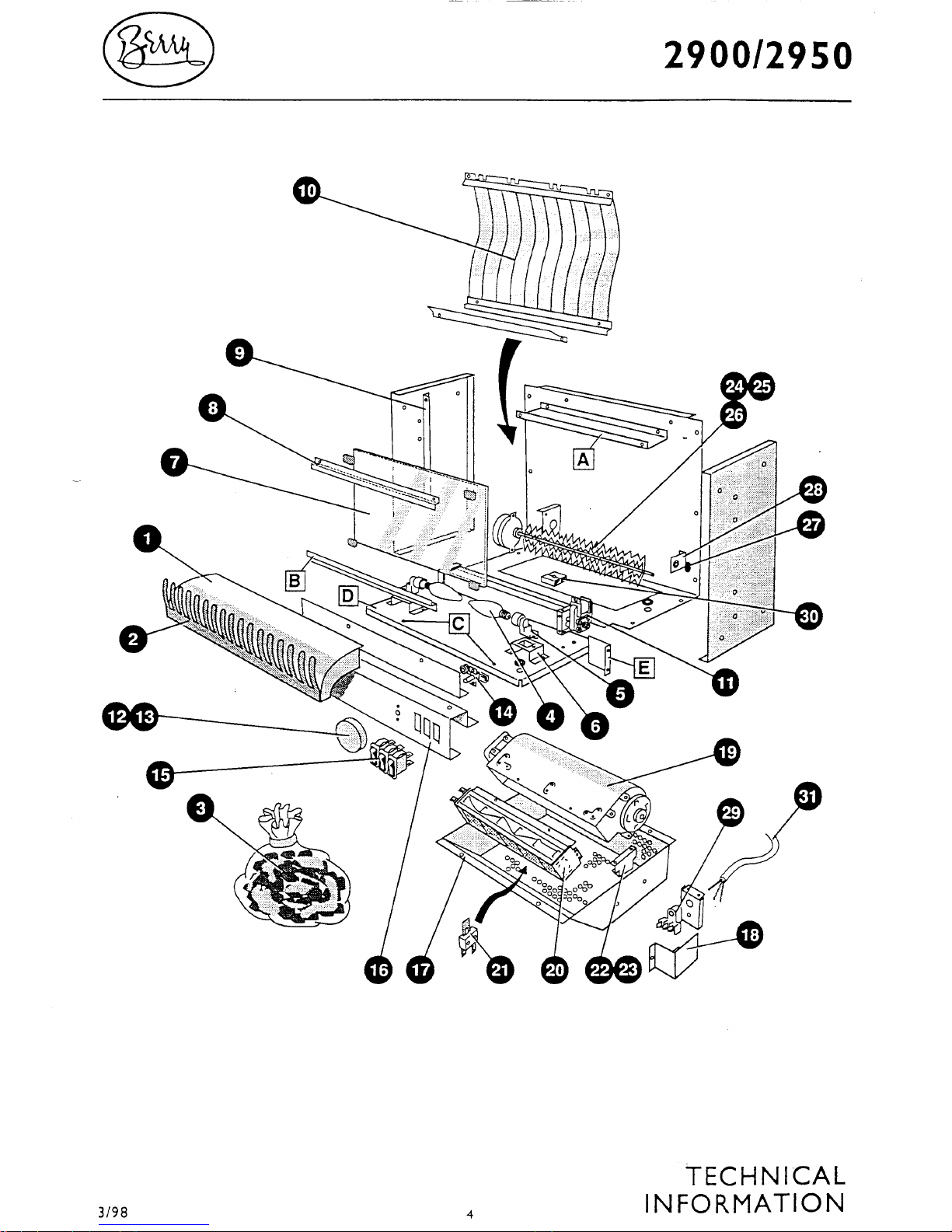

ITEM CAT NO. WATTS VOLTS DESCRIPTION COLOUR MODEL
1, 2 FP9811 Fuel Effect Bed Assembly
3 FP96 0 Coal Pack
4 FP9610 40 Lamp - Clear screw in
FP9609 Lamp Holder
6 FP9631 Lamp Holder Bracket
7 FP9763 Reflective Glass
8 FP9764 Glass Fixing Bracket Top
9 FP9664 Glass Side Support
10 FP9966 Flag & Bracket Assembly
11 FP9730 Effect Fan Blower assembly
12 FP9638 Control Knob and clip
14 FP9772 Thermostat TSB 141141
1 BF7211 Single Pole Switch
16 FP9944 Control Panel
17 FP97 Heater box Assembly
18 FP9761 Terminal Plate Cover
19 FP9 7 Heater Fan Blower Assembly
20 FP9410 2000 Fan Heater Element
21 FB9402 Cut-out otter V10
22 FP97 8 Blower angle Brkt. R/hand
23 FP97 7 Blower angle Brkt. L/Hand
24 FP99 9 Garland and Rod assembly
FP9939 Flexible Motor Coupling
2 FP9921 Motor Gearbox assembly and bracket
27 FP9 4 Plastic Grommet Bearing
28 FP9660 Axial bracket
29 BF7469 Mains Tri-Clamp Block
30 FP9784 2-way terminal block
31 BF9439 Plug & Lead Assembly
32 FP99 1 Wood Surround Black
FP9986 Wood Surround Green
7
10/02
SPARES
LIST
2900/2950

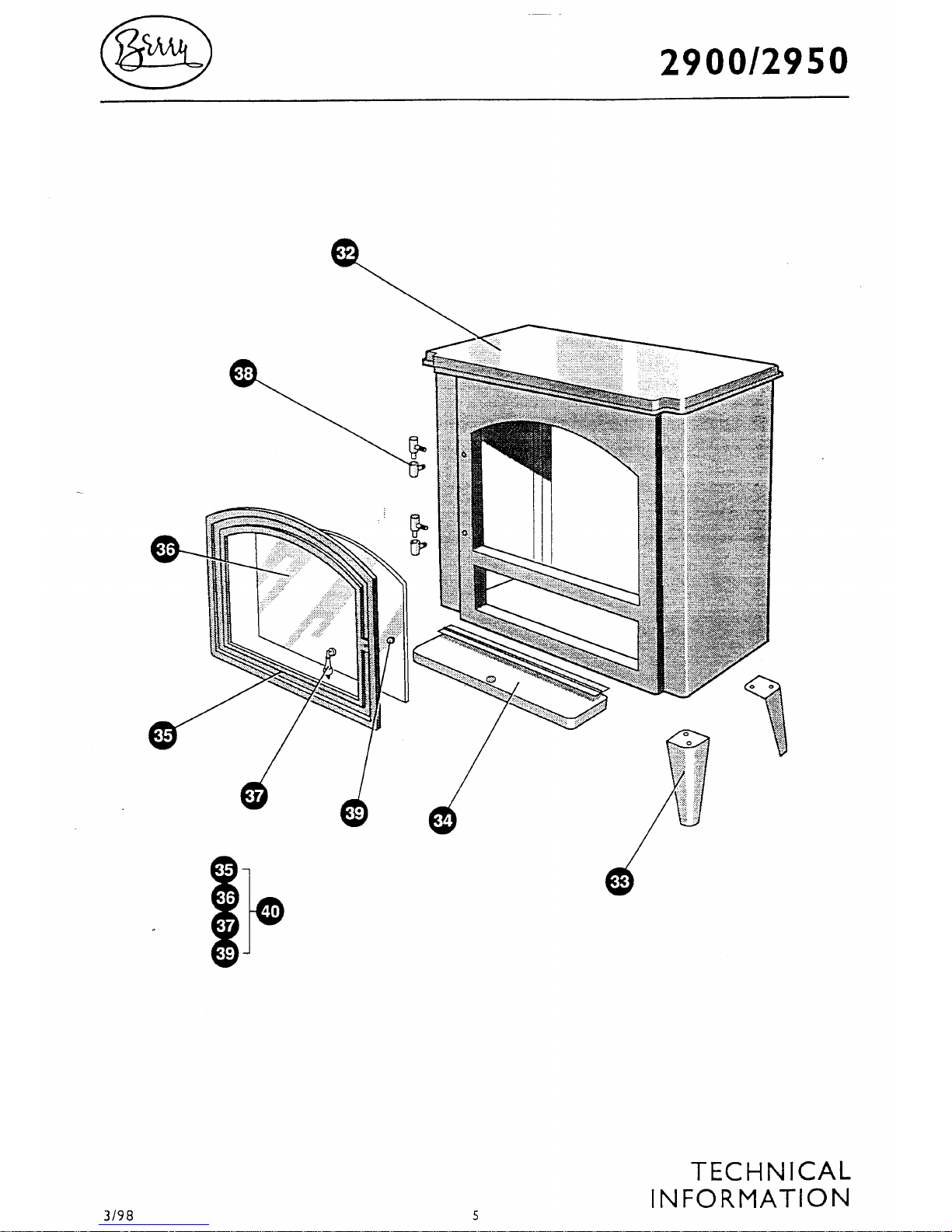

ITEM CAT NO. WATTS VOLTS DESCRIPTION COLOUR MODEL
33 FP994 Foot Black
FP9988 Foot Green
33 FP9946 Control Panel Cover Black
FP9990 Control Panel Cover Green
37 FP9948 Knob (door)
38 FP99 0 Hinge (door)
40 FP9949 Door Assembly Black
FP9996 Door Assembly Green
Ce manuel convient aux modèles suivants
