Berkel 825A Manuel utilisateur

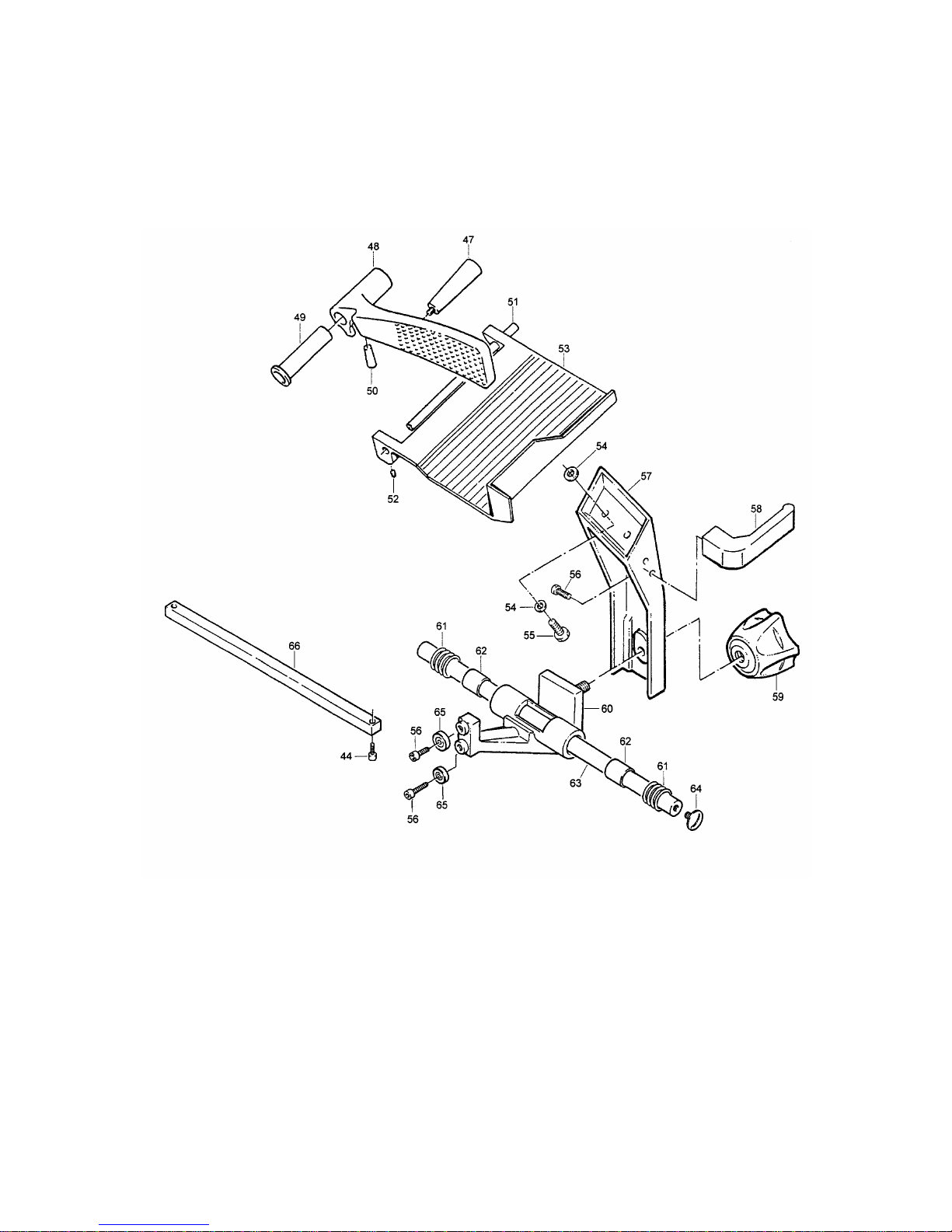

MEAT TABLE AND CARRIAGE

ASSEMBLY

MEAT TABLE AND CARRIAGE

ASSEMBLY

ITEM DESCRIPTION 825A 827E

44 Screw 825-00021 825-00021

47 Handle, Pusher 825-00080-A 825-00080-A

48 Pusher, Complete 825-00009 825-00009

49 Bushing 825-00079 825-00079

50 Wearing Pad 827-00082 827-00082

51 Shaft 825-00084 825-00084

52 Grub Screw 825-00086 825-00086

53 Product Table 825-00008 827E-00008

54 Washer 825-00006 825-00006

55 Screw 825-00087 825-00087

56 Screw 825-00089 825-00089

57 Product Table Support 825A-00007 825A-00007

58 Handle, Carriage 827-00037-A 827-00037-A

59 Knob, Carriage 823-00040-A 823-00040-A

60 Carriage Assembly Complete 825-00012 825-00012

61 Spring 825-00020 825-00020

62 Bushing 823-00218 823-00218

63 Round Rail 825-00013 825-00013

64 Screw 825-00050 825-00050

65 Bearing 825-00015 825-00015

66 Square Rail 825A-00014 825A-00014

GAUGE PLATE AND KNIFE ASSEMBLY

Gauge Plate and Knife Assembly

ITEM DESCRIPTION 825A 827E

1Aluminum Knob 823-00403 823-00403

2Center Plate 825-00401 827-00401

3Insert, Center Plate 825-00135 825-00135

4Screw, Knife 825-00074 827-00074

5Knife 825-00073 827E-00073

6Ring Guard 825-00408 827E-00408

7Knob 827-00103-A 827-00103-A

8Screw 825-00101 825-00101

9Washer 823-00123 823-00123

10 Screw 825-00021 825-00021

11 Screw 825-00402 825-00402

12 Seal, Hard 825-00403 825-00403

13 Seal, Soft 825-00404 825-00404

14 Rubber Ring Part of #15 Part of #15

15 Pulley Assembly 825-00067-1 827E-00067

16 Pulley Shaft Part of #15 Part of #15

17 Bearing Part of #15 Part of #15

18 Bearing Part of #15 Part of #15

19 Circlip Part of #15 Part of #15

20 Circlip Part of #15 Part of #15

24 Nut 2101-07041 2101-07041

30 Gauge Plate 825A-00003 827E-00003

31 Gauge Plate Support 825A-00004 825A-00004

32 Bushing 825-00140 825-00140

33 Spring 825A-00024 825A-00024

34 Washer 3301-03812 3301-03812

35 Screw 825-00005 825-00005

37 Plate 825A-00026 825A-00026

38 Support 825A-00022 825A-00022

39 Grub Screw 825-00031 825-00031

40 Screw, Brass Part of #38 Part of #38

41 Nut Part of #38 Part of #38

42 Nylon Pin 825-00030 825-00030

43 Cam Pin 825-00027 825-00027

44 Screw 825-00021 825-00021

45 Index Cam 825A-00025 825A-00025

46 Washer 825-00095 825-00095

HOUSING AND ELECTRICAL

ITEM DESCRIPTION 825A 827E

10 Screw 825-00021 825-00021

21 Housing N/A N/A

22 Slice Deflector 825-00011 827E-00011

23 Knob, Slice Deflector 825-00091 825-00091

24 Nut 2101-07046 2101-07046

25 Grub Screw 825A-00086 825A-00086

26 Rubber Foot 825A-00093 825A-00093

After serial number 13000 for

825A and 15451 for 827E 827E-00093 827E-00093

27 Grub Screw 823-00061 823-00061

28 Tie Rod, Center Plate 825-00075-A 825-00075-A

29 Ribbed Belt 825-00066-B 825-00066-B

36 Index Knob 825-00035-A 825-00035-A

67 Wing Nut 825-00056 825-00056

68 Washer 825-00006 825-00006

69 Cover 825-00405 825-00405

70 Spacer 825-00407 825-00407

71 Screw 825-00032 825-00032

72 Cord Clamp 3675-00224 3675-00224

73 Plate, Capacitor 825-00043 825-00043

74 Capacitor 827-00042 827-00042

75 Switch, Complete 827A-00039-02 827A-00039-02

76 Pilot Light 825-00041 825-00041

77 Screw 827A-00400 827A-00400

78 Knob, Switch 827A-00036-02 827A-00036-02

79 Plate, Switch 827A-00039-B02 827A-00039-B02

80 Screw 827A-00401 827A-00401

81 Power Cord 4175-00031 4175-00031

82 Cord Clamp 827-00127 827-00127

83 Screw 823-00058 823-00058

84 Washer 823-00400 823-00400

85 Plate, Motor 825-00055 825-00055

86 Tie Rod, Motor 825-00053 825-00053

87 Screw 825A-00065 825A-00065

88 Pin 825-00060 825-00060

89 Motor 825-00048-R 825-00048-R

SHARPENER ASSEMBLY

ITEM DESCRIPTION 825A 827E

9Washer 823-00123 823-00123

24 Nut 2101-07041 2101-07041

44 Screw 825-00021 825-00021

90 Cover, Sharpener

(past serial #16200) 825A-00010

823-00400 823-00400

91 Screw 825-00122 825-00122

92 Washer 823-00114 823-00114

93 Screw S-00781 S-00781

94 Screw 825-00118 825-00118

95 Push Button 823-00401 823-00401

96 Spring 825-00117 825-00117

97 Washer 3301-03812 3301-03812

98 Shaft, Sharpener 825-00104 827A-00104

99 Shaft 825-00109 825-00109

100 Stone 825-00111 825-00111

101 Washer 3301-03812 3301-03812

102 Stone 825-00112 825-00112

103 Push Button 825-00115 825-00115

104 Ball, 1/8 2375-00150 2375-00150

105 Shaft 825-00110 825-00110

106 Sharpener Frame 825-00108 825-00108

N/S Sharpener Assembly w/Cover 825A-00130 827E-00130

N/S Berkel Flag I2602RED I2602RED

N/S Screw for Berkel Flag V6371 V6371

827A

Exploded Views

Beginning with Date Code 0102

(Located on the serial plate)

MEAT TABLE AND CARRIAGE

ASSEMBLY
