Bentone ST 146 KS Caractéristiques techniques

Providing sustainable energy solutions worldwide

CR00318 178 124 19-2 2021-03-23

Installation- and maintenance instruction

ST 146 KS, KSV

LMO14.113C2E

AS47CK

Translation of the original instructions.

2Bentone

example Beispielexempel

352011030141

Designation

Type

Model

Serial no.

Motor supply

Main supply

MADE IN SWEDEN BY

LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar

BF 1 KS 76-24

BF 1

BF 1 KS 76-24

1234567

1~230V 1,0A 50Hz IP 20

Man.Year 2019

Cap. Min-Max

Manuals in other languages

www.bentone.com\download

or scan QR-code.

Enter the burner`s article number on your data

plate (see picture) and select language.

Detailed ecodesign information can be

downloaded at: www.bentone.com/ecodesign.

Gebrauchsanweisungen in anderen Sprachen

www.bentone.com\download

oder scannen Sie den QR-Code.

Geben Sie die Artikelnummer des Brenners auf

Ihrem Typenschild ein, (siehe Bild) und wählen Sie

die Sprache aus.

Detaillierte Informationen zum Ecodesign

können unter www.bentone.com/ecodesign

heruntergeladen werden.

Manuels dans d’autres langues

www.bentone.com\download

ou scannez le code QR.

Saisir le numéro d’article du brûleur sur votre

plaque signalétique (consultez l’illustration) et

sélectionnez la langue.

Des informations détaillées sur l’écodesign peuvent

être téléchargées à l’adresse: www.bentone.com/

ecodesign.

3Bentone

General

Table of contents

1. Safety Information____________________________________ 4

2. Technical data _______________________________________ 7

2.1 Dimensions ST 146 _______________________________ 7

2.5 Setting of brake plate and air ﬂow ___________________ 8

2.2 Burner installation _________________________________ 8

2.3 Working ﬁeld ST 146 KS, ST 146 KSV________________ 8

2.4 Electric Speciﬁcation ______________________________ 8

2.6 Recommended nozzles and pressures _______________ 9

2.7 Nozzle table, 8-15 bar _____________________________ 9

2.8 Beskrivning _____________________________________ 10

3. General instructions _________________________________ 11

3.1 General instructions ______________________________ 11

3.2 Delivery inspection _______________________________ 12

3.3 Preparing for installation___________________________ 12

3.4 Oil distribution ___________________________________ 12

3.5 Electrical connection______________________________ 12

3.6 Burner installation ________________________________ 13

4. Basic settings ______________________________________ 14

4.1 Example of basic settings _________________________ 14

5. Burner servicing ____________________________________ 16

5.1 Servicing _______________________________________ 16

5.2 Servicing the combustion device ___________________ 16

5.3 Replacing the oil pump ___________________________ 18

5.4 Replacing the fan motor and fan wheel ______________ 19

5.5 Servicing the air intake and intake cone______________ 20

5.6 Replacing the entire electrical package ______________ 20

5.7 Replacing individual electrical package components ___ 21

6. Instructions Pump __________________________________ 22

6.1 SUNTEC AS ____________________________________ 22

7. Oil burner control ___________________________________ 28

7.1 Wiring diagram _________________________________ 28

7.2 Colour codes LMO14/24 __________________________ 30

7.3 Fault codes LMO14/24 ___________________________ 30

8. Fault Location ______________________________________ 31

8.1 Burner will not start_______________________________ 31

8.2 Burner will not start after normal use ________________ 31

8.3 Delayed ignition__________________________________ 32

8.4 Noise in pump___________________________________ 32

8.5 Pump pressure __________________________________ 33

9. Log of ﬂue gas analysis ______________________________ 34

10. Oil burners maintenance instructions _______________ 35

4Bentone

1. Safety Information

This Installation and Maintenance manual:

• is to be regarded as part of the burner and must always be kept near

the installation site.

• is intended for use by authorised personnel.

• must be read prior to installation.

• must be observed by all who work with the burner and associated

system components.

• work with the burner may only be carried out by certiﬁed installers/

personnel.

• Enertech AB is not liable for any typographical errors and reserves the

right to make design changes without prior notice.

• The burner may only be used for its intended purpose in accordance

with the product’s technical data.

• The burner may only be installed and operated by authorised

personnel.

• The product is packaged to prevent damage from occurring during

handling. Handle the product with care. Lifting equipment must be

used to lift larger packages.

• The products must be transported/stored on a level surface in a dry

environment, max. 80% relative humidity, no condensation.

Temperature -20 to +60 °C.

• Check that the burner is compatible with the boiler’s output range.

• The label information on the rating plate refers to the burner’s minimum

and maximum power.

• The power data on the type sign refers to the burner’s min. and max.

power.

• All components must be installed without being bent, twisted or

subjected to mechanical or thermal forces which can affect the

components.

• The burner must be installed so that it complies with local regulations

for ﬁre safety, electrical safety, and fuel distribution.

• Make sure when installing the equipment that there is enough space to

service the burner.

• Permitted ambient temperature during operation -0 to +60 °C. Max

80% relative humidity, no condensation.

• The installer must ensure that the room has adequate air supply.

• The room must comply with local regulations pertaining to its intended

use.

• The installation site must be free of chemicals.

• Burner pipes, fan wheels and air dampers may contain sharp edges.

• The surface temperature of the burner’s components can exceed

60°C.

• Caution: The burner has moving parts, and there is risk of crushing

injuries.

165 105 01

5Bentone

• The electrical installation must be professionally carried out in

accordance with applicable high voltage regulations, as per Enertech’s

recommendations.

• Before servicing, shut off the fuel supply and turn off the power to the

burner.

• Leak checks must be performed during installation and servicing to

prevent fuel leakage.

• Care should be taken by the installer to ensure that no electrical cables

or fuel lines are crushed or otherwise damaged during installation or

servicing.

• If the boiler is equipped with an access hatch, this must be equipped

with a hatch opening switch connected to the burner's safety system.

• When in operation, the burner’s noise level can exceed 85 dBA.

Use hearing protection.

• The burner must not be put into operation without proper safety and

protection devices.

• A Class BE ﬁre extinguisher is recommended.

• It is forbidden to alter the design or use accessories which have not

been approved by Enertech in writing.

• Prior to operation, the following points must be checked:

-ﬁtting and installation work has been completed and approved.

-electrical installation has been correctly performed.

-ﬂue gas ducts and combustion air ducts are not blocked.

-all actuators and control and safety devices are in working order and

correctly set.

• After commissioning, if a steady red light on the burner control is

displayed, contact your installation technician.

6Bentone

Components Service life – Recommended

replacement

Service life – Recommended

replacement Operating cycles

Control system 10 years 250 000 cycles

Pressure switch 10 years 250 000 cycles

Flame guard 10 years 250 000 cycles

UV ﬂame sensor 10 000 hrs N/A

Damper motor 500 000 cycles

Contaktor 10 years 500 000 cycles

Burner 1 year 3000 hrs

Filter 1 year 3000 hrs Change

Oilhose 1 year Control/change

Nozzle 1 year Change 3000 hrs Change

Electrods 1 year Change/cleaning 3000 hrs Change/cleaning

Brake plate 1 year Change/cleaning 3000 hrs Change/cleaning

Motor 1 year 3000 hrs

Cuppling chaft 1 year Control/change 3000 hrs Control/change

Fan wheel “1 year Change when dirty /

unbalance”

“3000 hrs Change when dirty /

unbalance”

Oil ﬁlter 1 year 3000 hrs Change

Oil valve Tightness check 1 year Replacement in case of leakage

The burner and its components must be recycled according to applicable regulations.

Burner servicing schedule

Servicing must be carried out once a year or after 3000 hours of operation.

Component replacement intervals

Delivery check

• Make sure everything is delivered and the goods have not been

damaged during transit.

• If something is wrong with a delivery, report it to the supplier.

• Transport damage must be reported to the shipping company.

7Bentone

165 205 34

2. Technical data

The burner is intended for:

• Light oil, B10 heating oil/biofuel blend (as deﬁned in DIN V51603-6)

and is used for:

• Water heating generators

• Hot air generators (these require LMO 24 255 C2E)

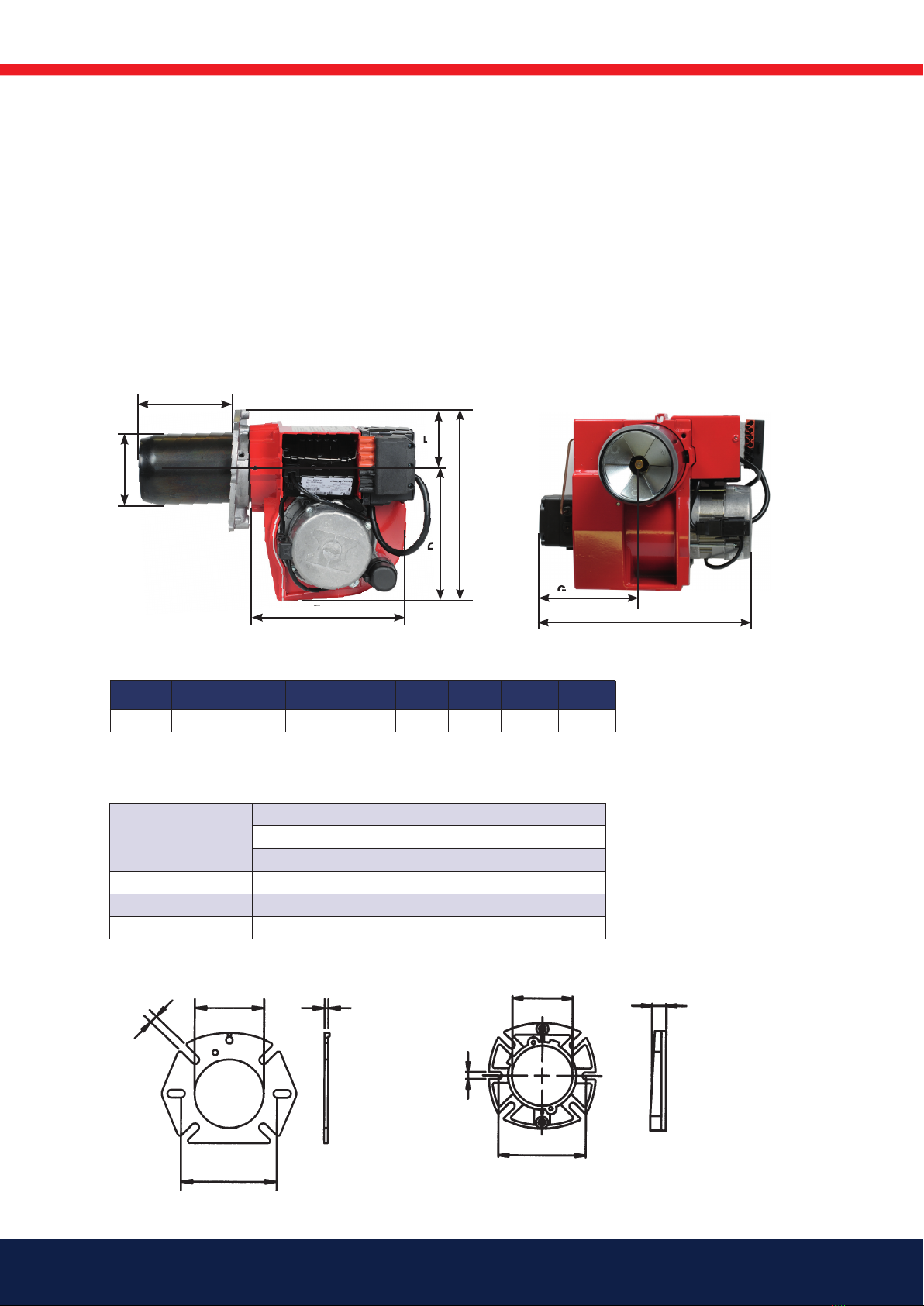

2.1 Dimensions ST 146

* Min. recommended distance to ﬂoor.

Ø B C D E F G H *I

ST146 109 237 202 54 258 158 295 200

øB

2.1.1 Dimensions ﬂanges

Length of blast tube

Measurement A

Flange Flange

1 2

94 78,5 62,5

147 131,5 115,5

224 208,5 192,5

ﬂange 2

10,3

130-150

ø89,7

125-150

10,3

ø90 5

ﬂange 1

8Bentone

2.5 Setting of brake plate and air ﬂow

a b c

ST 146 10,0 ± 0,5 2,7 ± 0,4 1,0 ± 0,5

Type Motor Complete

burner

Sound

ST 146KS 125W 0,95A 230V

50/60Hz 4µF 230V 0,95A 50Hz 70 dBA ± 0,5 dBA

ST 146KSV 125W 0,95A 230V

50/60Hz 4µF 230V 1,15A 50Hz 70 dBA ± 0,5 dBA

Combustion device d1d2d3

ST 146 ø 90 M10 ø 125-150

!*NB It is important

that the spark does

not strike against the

brake plate or nozzle

2.2 Burner installation

2.2.1 Hole patten

Make sure the hole pattern on the boiler is designed for burner ﬂange.

2.3 Working ﬁeld ST 146 KS, ST 146 KSV

-0,5

0,0

0,5

1,0

1,5

2,0

2,5

3,0

3,5

35 45 55 65 75 85 95 105 115 125

mbar

3.3-10.0 kg/h

39-119 kW

160302-673-2

2.4 Electric Speciﬁcation

Burner correspond to IP 20

9Bentone

2.6 Recommended nozzles and pressures

Because of the different types of boiler in existence, with varying furnace

geometries and furnace loads, it is not possible to commit to any given spray

angle or spay pattern. Note that spray angles and spray patterns change

with pump pressures.

Nozzle 60° Solid/Hollow cone

80° Solid/Hollow conel

Pump pressure 10 bar (8–14 bar) Fuel oil 1

10 bar (7–12 bar) Kerosene

2.7 Nozzle table, 8-15 bar

Pump pressure, bar

Gph 8 9 10 11 12 13 14 15

kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW

0,40 1,33 16 1,41 17 1,49 18 1,56 18 1,63 19 1,70 20 1,76 21 1,82 21

0,50 1,66 20 1,76 21 1,86 22 1,95 23 2,04 24 2,12 25 2,20 26 2,28 27

0,60 2,00 24 2,12 25 2,23 26 2,34 28 2,45 29 2,55 30 2,64 31 2,73 32

0,65 2,16 26 2,29 27 2,42 29 2,54 30 2,65 31 2,75 33 2,86 34 2,96 35

0,75 2,49 29 2,65 31 2,79 33 2,93 35 3,08 36 3,18 38 3,30 39 3,42 40

0,85 2,83 33 3,00 36 3,16 37 3,32 39 3,47 41 3,61 43 3,74 44 3,87 46

1,00 3,33 39 3,53 42 3,72 44 3,90 46 4,08 48 4,24 50 4,40 52 4,56 54

1,10 3,66 43 3,88 46 4,09 48 4,29 51 4,48 53 4,67 55 4,84 57 5,01 59

1,20 3,99 47 4,24 50 4,47 53 4,68 55 4,89 58 5,09 60 5,29 63 5,47 65

1,25 4,16 49 4,40 52 4,65 55 4,88 58 5,10 60 5,30 63 5,51 65 5,70 68

1,35 4,49 53 4,76 56 5,02 59 5,27 62 5,50 65 5,73 68 5,95 70 6,15 73

1,50 4,98 59 5,29 63 5,58 66 5,85 69 6,11 72 6,36 75 6,60 78 6,83 81

1,65 5,49 65 5,82 69 6,14 73 6,44 76 6,73 80 7,00 83 7,27 86 7,52 89

1,75 5,82 69 6,18 73 6,51 77 6,83 81 7,14 85 7,42 88 7,71 91 7,97 94

2,00 6,65 79 7,06 84 7,45 88 7,81 93 8,18 97 8,49 101 8,81 104 9,12 108

2,25 7,49 89 7,94 94 8,38 99 8,78 104 9,18 109 9,55 113 9,91 117 10,26 122

The table applies to oils with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3.

2.7.1 Burner with preheater

Allow for a reduction in oil quantity of 5–20% with preheating owing to:

• Temperature increases at the nozzle.

• Nozzle design.

• Capacity (the higher the capacity the lower the difference).

10 Bentone

2.8 Beskrivning

1. Återställningsknapp

2. Reläbox

3. Tändtransformator

4. Tändkabel

5. Insats

6. Munstycke

7. Bromsskiva

8. Brännarrör

9. Tändelektrod

10. Förbindelserör

11. Luftspjäll

12. Magnetventil

13. Pump

14. Drivkoppling

15. Indikering, luftspjäll

16. Fläkthjul

17. Inställning, luftspjäll

18. Fotomotstånd

19. Motor

Autres manuels pour ST 146 KS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bentone Brûleur

Bentone

Bentone ST 120 KA Caractéristiques techniques

Bentone

Bentone ST 120 R Caractéristiques techniques

Bentone

Bentone B 30A Caractéristiques techniques

Bentone

Bentone BG 700i M Caractéristiques techniques

Bentone

Bentone B 30A Caractéristiques techniques

Bentone

Bentone B 40 A2.2 Caractéristiques techniques

Bentone

Bentone BENTOFLEX ST 146 B30A Caractéristiques techniques

Bentone

Bentone BG 400LN Caractéristiques techniques

Bentone

Bentone BG 300-2 Caractéristiques techniques

Bentone

Bentone STG 146i/2 Caractéristiques techniques

Bentone

Bentone B30 Caractéristiques techniques

Bentone

Bentone STERLING 40 ST108PL Caractéristiques techniques

Bentone

Bentone B 55-2 FAME Caractéristiques techniques

Bentone

Bentone B 55-3R Caractéristiques techniques

Bentone

Bentone B 30 A2.2 Caractéristiques techniques

Bentone

Bentone BENTOFLEX ST 146 B30A Caractéristiques techniques

Bentone

Bentone BG 800 M Caractéristiques techniques

Bentone

Bentone BG 550 M LN Caractéristiques techniques

Bentone

Bentone BG550M Caractéristiques techniques

Bentone

Bentone B45A 2.2H Caractéristiques techniques

Bentone

Bentone B65-2H Caractéristiques techniques

Bentone

Bentone BF 1 KSV FAME Caractéristiques techniques

Bentone

Bentone Pro 450i M Caractéristiques techniques

Bentone

Bentone B 55-2 Caractéristiques techniques

Manuels Brûleur populaires d'autres marques

Riello

Riello RS 28/M Guide de démarrage rapide

True Induction

True Induction TI4B Manuel utilisateur

Weishaupt

Weishaupt WG20 Series Manuel utilisateur

Carolina Cooker

Carolina Cooker M116672 Manuel utilisateur

Riello

Riello RX 500 S/PV Mode d’emploi

Unigas

Unigas HTP2000 Manuel utilisateur

baltur

baltur BT 250 DSG 4T Manuel utilisateur

muenkel design

muenkel design round burner Manuel utilisateur

Ecoflam

Ecoflam Multicalor 170.1 Manuel utilisateur

baltur

baltur BT 14 DSGW Manuel utilisateur

artisan

artisan Art-SB1 Mode d’emploi

Riello

Riello P 140 T/G Guide de démarrage rapide

AESYS

AESYS TurboFire II Manuel utilisateur

Riello

Riello RG1RKD Guide de démarrage rapide

IKEA

IKEA GRILLSKÄR Manuel utilisateur

RUSTA

RUSTA SAREK Manuel utilisateur

PROPOINT

PROPOINT 8933657 Manuel utilisateur

baltur

baltur TBL 1000 ME Manuel de référence
