BenQ RP6503 Manuel utilisateur

BenQ Board

Interactive Display

Quick Start Guide

Target model ：RP6503

　　　RP7503

　　　 RP8603

2023/2/7

•Part names of BenQ Board

•Initial Setup

•Software update

How to use

① Mirroring Device Screen with Cables

② Wireless Mirroring

③ Whiteboard App

④ Open Data Files

•Something Wrong with BenQ Board? (FAQ)

＜Index＞

Part names of BenQ Board

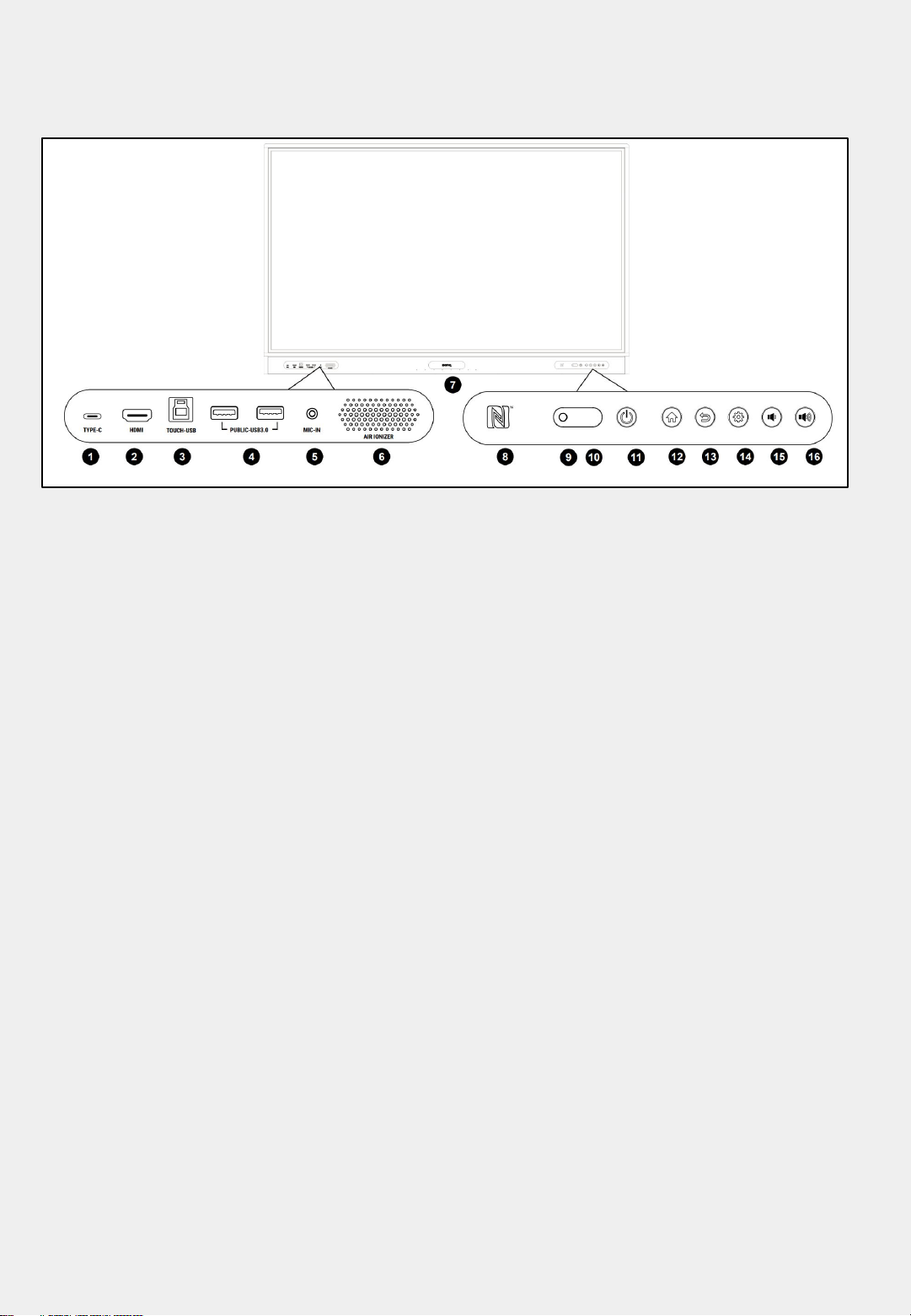

(Front)

❶　USB Type-C

❷　HDMI In

❸　USB Type-B

❹ USB Type-A

❺ Mic In

❻　Air Ionizer

❼　Array Mic

❽　NFC Sensor

❾　Ambient Light Sensor

❿　 IR Signal Receiver

⓫　Power

⓬　Home

⓭　Return

⓮　Menu

⓯ Volume Down

⓰ Volume Up

Part names of BenQ Board

(Under and Side)

❿　DisplayPort In

⓫　RS232

⓬　HDMI Out

⓭　USB Type-C

⓮　USB Type-A

⓯ OPS Slot Port

⓰　USB Type-A

❶　LAN Out

❷　LAN In

❸　Audio Out

❹　S/PDIF

❺ Audio In

❻　VGA(D-Sub)

❼　HDMI In 2

❽　USB Type-B

❾　USB Type-A for WLAN Adapter* and Remote Receiver USB

wireless LAN Adapter

Remote Control Receiver

*RP03 series has a WLAN Adapter "TDY31" inserted. (Detachable)

•Initial Setup

•Software Update

Power on BenQ Board

1. Connect the power cable and BenQ Board to the power outlet

2. Turn on the power switch

Power Switch

Initial Setup

1. After the power is turned on, the setup wizard starts

2. The language selection screen will appear

3. Select language as the default is English

Initial Setup

4. Set date and time

5. The default time zone is UK time. Set to Japan time.

6. Set up your internet settings. LAN or WLAN connection is available

If the time zone is not set

correctly, you may not be able

to connect to the network or use

some functions.

Please set the time zone

correctly.

Initial Setup

7. Enter any device name. The default setting is “BenQ”

8. Scroll down to the bottom of the Privacy Policy and tick ✓ to agree

9. The initial setup is done.

There are two ways to power on the BenQ Board.

•Press the power button on the BenQ Board

•Press the power button on the remote control

Power Pointer

Task switcher Setting

Direction and OK

Home Back

Adjust vol Freeze

Black

< Remote control buttons >

The BenQ Board home screen will be displayed.

Power On BenQ Board

*Aim the remote

control at the

sensor at the BenQ

Board’s

bottom-right side
